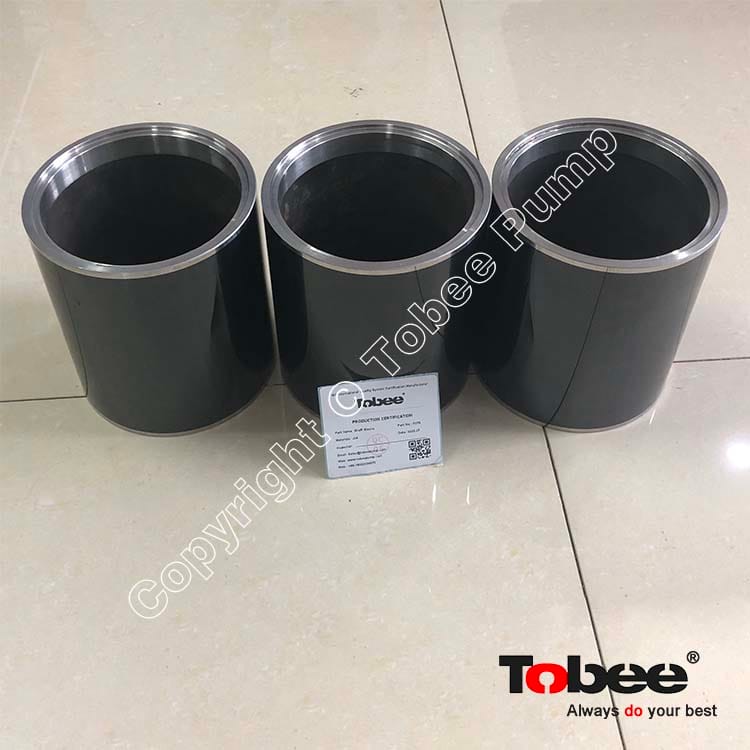

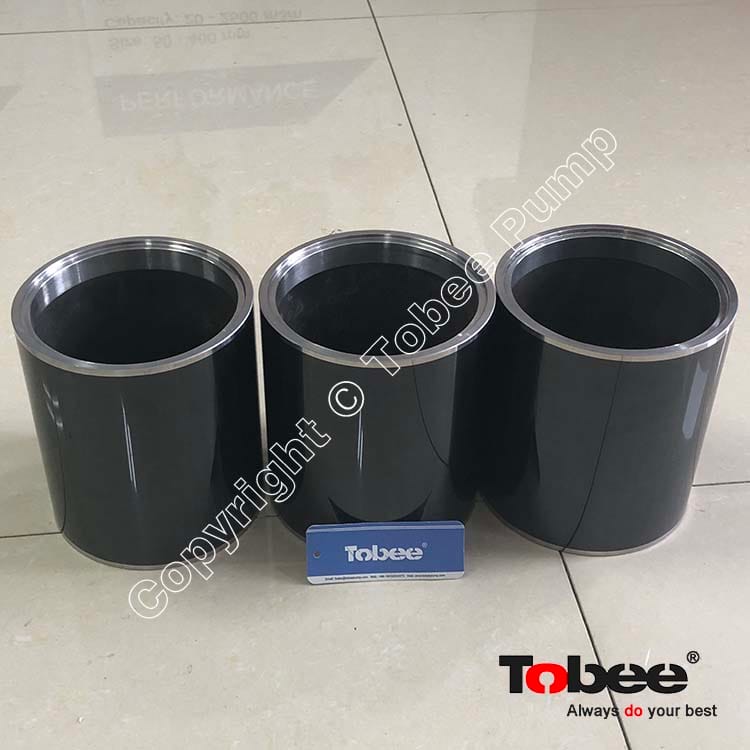

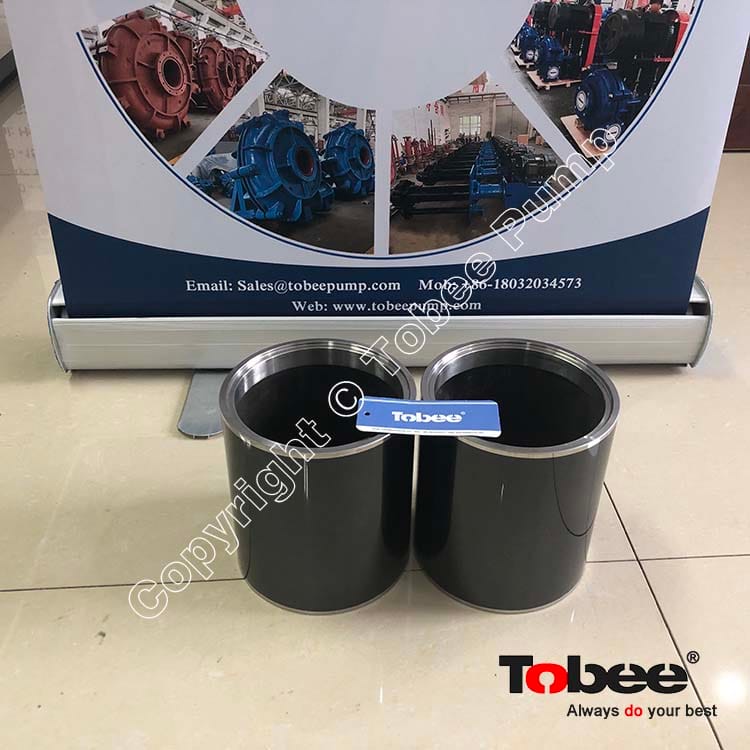

Tobee® Slurry Pump Ceramic Shaft Sleeve which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee's slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.
Tobee® Slurry Pump Ceramic Shaft Sleeves Code:
|
Ceramic Shaft Sleeve Code |
AH Slurry Pump |
Ceramic Shaft Sleeve Materials |
|
B075 |
1.5/1B-AH, 2/1.5B-AH |
J04 White Ceramic, J05 Black Ceramic |
|
C075 |
3/2C-AH, 4/3C-AH |
J04 White Ceramic, J05 Black Ceramic |
|
D075 |
4/3D-AH, 6/4D-AH |
J04 White Ceramic, J05 Black Ceramic |
|
E075 |
6/4E-AH, 8/6E-AH, 8/6R-AH |
J04 White Ceramic, J05 Black Ceramic |
|
F075 |
8/6F-AH |
J04 White Ceramic, J05 Black Ceramic |
|
FAM075 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
J04 White Ceramic, J05 Black Ceramic |
|
SH075 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
J04 White Ceramic, J05 Black Ceramic |
|
TH075 |
16/14TU-AH |
J04 White Ceramic, J05 Black Ceramic |
|
TH076 |
16/14TU-AH |
J04 White Ceramic, J05 Black Ceramic |
|
Ceramic Shaft Sleeve Code |
HH Slurry Pump |
Ceramic Shaft Sleeve Materials |
|
CH075 |
1.5/1C-HH |
J04 White Ceramic, J05 Black Ceramic |
|
D075 |
3/2D-HH |
J04 White Ceramic, J05 Black Ceramic |
|
E075 |
4/3E-HH |
J04 White Ceramic, J05 Black Ceramic |
|

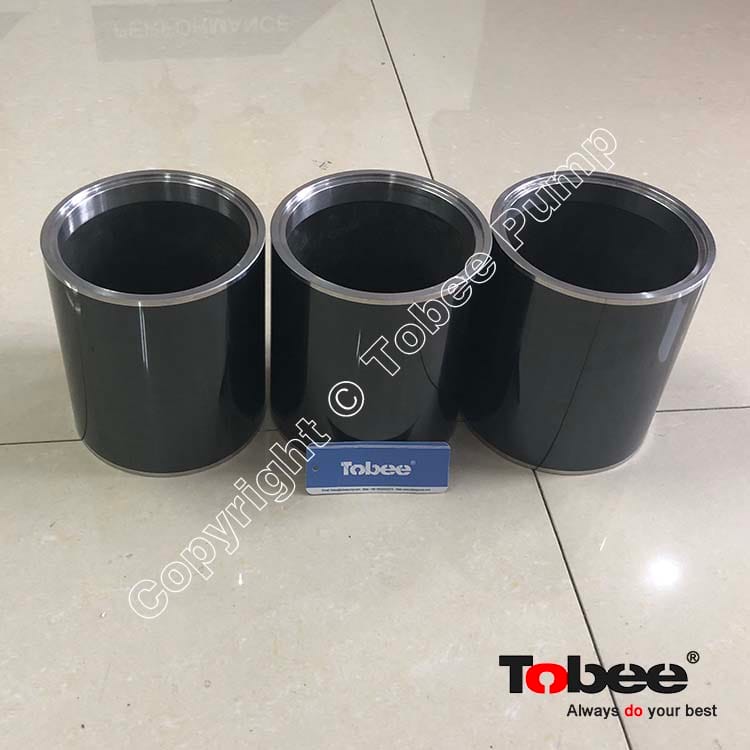

F075 |
6/4F-HH |
J04 White Ceramic, J05 Black Ceramic |
|
Ceramic Shaft Sleeve Code |
M Slurry Pump |
Ceramic Shaft Sleeve Materials |
|
E075 |
10/8E-M |
J04 White Ceramic, J05 Black Ceramic |
|

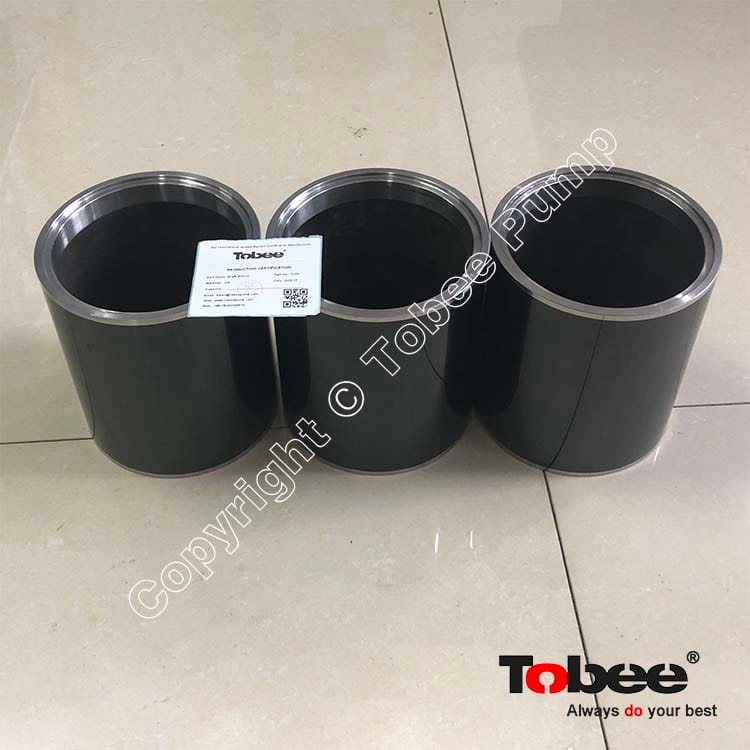

F075 |
10/8F-M |
J04 White Ceramic, J05 Black Ceramic |
|
Ceramic Shaft Sleeve Code |
L Slurry Pump |
Ceramic Shaft Sleeve Materials |
|
A075 |
20A-L |
J04 White Ceramic, J05 Black Ceramic |
|
BSC075 |
50B-L |
J04 White Ceramic, J05 Black Ceramic |
|
C075 |
75C-L |
J04 White Ceramic, J05 Black Ceramic |
|
D075 |
100D-L |
J04 White Ceramic, J05 Black Ceramic |
|
E075 |
150E-L |
J04 White Ceramic, J05 Black Ceramic |
|
S075 |
300S-L |
J04 White Ceramic, J05 Black Ceramic |
|
Ceramic Shaft Sleeve Code |
G(H) Gravel Pump |
Ceramic Shaft Sleeve Materials |
|
D075 |
6/4D-G |
J04 White Ceramic, J05 Black Ceramic |
|
E075 |
8/6E-G |
J04 White Ceramic, J05 Black Ceramic |
|
F075 |
10/8F-G |
J04 White Ceramic, J05 Black Ceramic |
|
G075 |
12/10G-G, 14/12G-G, 12/10G-GH |
J04 White Ceramic, J05 Black Ceramic |
|
TH075 |
14/12TU-G,16/14TU-G,16/14TU-GH |
J04 White Ceramic, J05 Black Ceramic |
|
TH076 |
14/12TU-G, 16/14TU-G, 16/14TU-GH |
J04 White Ceramic, J05 Black Ceramic |
Tobee® Slurry Pump Shaft Sleeves Applications:
Slurry Pump Parts widely used in Mining, Mineral Processing, Paper pulp, Sands, Gravels, Dredging, Coal Prep, Cyclone Feeds, Chemical Slurry Service, Tailings, Aggregate Processing, Ash Handling, Fine Primary Mill Grinding, Secondary Grinding, Iron Ore, Cooper, Oil field, Diamond, Alumina, Coal, Gold, Silver, Cement, Lead&zinc, Asbestos, Kaolin, Phosphorite, Bauxite, Potash, Mineral sands, Steel, Palm, Sugar, Steeloxyde, Chemical fertilizer, Molybdenum, Tin, Titanium, Power, FGD, Sea water, Food Processing, Cracking Operations, Pipeline Transport, High Velocity Hydraulic Transport,Food Processing, Explosive Sludge In Metal Smelting, River And Pond, Heavy Refuse Removal, Continuous (Snore) Sump Pump Operation, Abrasive Slurries, High Density Slurries, Large Particle Slurries, Sump Drainage, Wash down, Floor Drainage, Mixing, Frac Sand Blending, Tobacco, Construction, City Sewage, Industrial Processing etc.
