100RV-SPR EPDM Rubber lining Vertical Sump Pump for acid plants

Tobee® Vertical Sump Pumps with standard Submerged depth: E 900mm, G 1200mm, J 1500mm, L 1800m, M 2000m, Q 2400mm

Metal Model: 40PV-SP, 65QV-SP, 100RV-SP, 150SV-SP, 200SV-SP, 250TV-SP, 300TV-SP

Wet End parts:
Pump Impeller: SP40206A05, SP65206A05, SP10206A05, SP15206A05, SP20206A05, SP25206A05, SP30206A05
Pump Casing: SP40092A05, SP65092A05, SP10092A05, SP15092A05, SP20092A05, SP25092A05, SP30092A05
Pump Back Liner: SP40041A05, SP65041A05, SP10041A05, SP15041A05, SP20041A05, SP25041A05, SP30041A05

Rubber Model: 40PV-SPR, 65QV-SPR, 100RV-SPR, 150SV-SPR, 200SV-SPR, 250TV-SPR, 300TV-SPR

Wet End parts:

Pump Impeller: SPR40206, SPR65206,SPR10206, SPR15206, SPR20206, SPR25206, SPR30206
Pump Casing: SPR40092, SPR65092, SPR10092, SPR15092, SPR20092, SPR25092, SPR30092
Pump Back Liner: SPR40041, SPR65041, SPR10041, SPR15041, SPR20041, SPR25041, SPR30041
Impeller O-ring: RV064-S10,  Discharge Pipe Gasket: SP10204, Rubber Back Liner Seal: E4124S01
RV004-1

Impeller SP10206 - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.

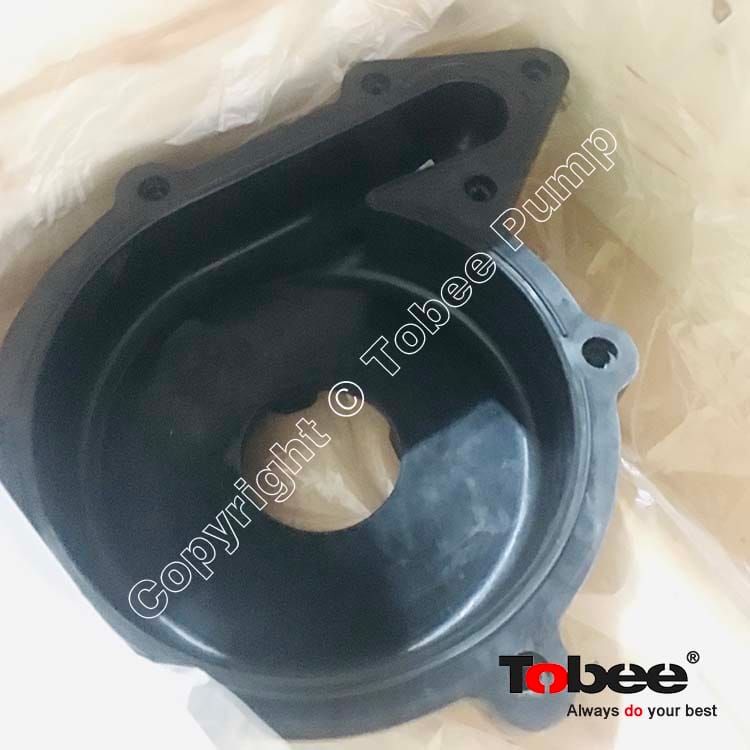

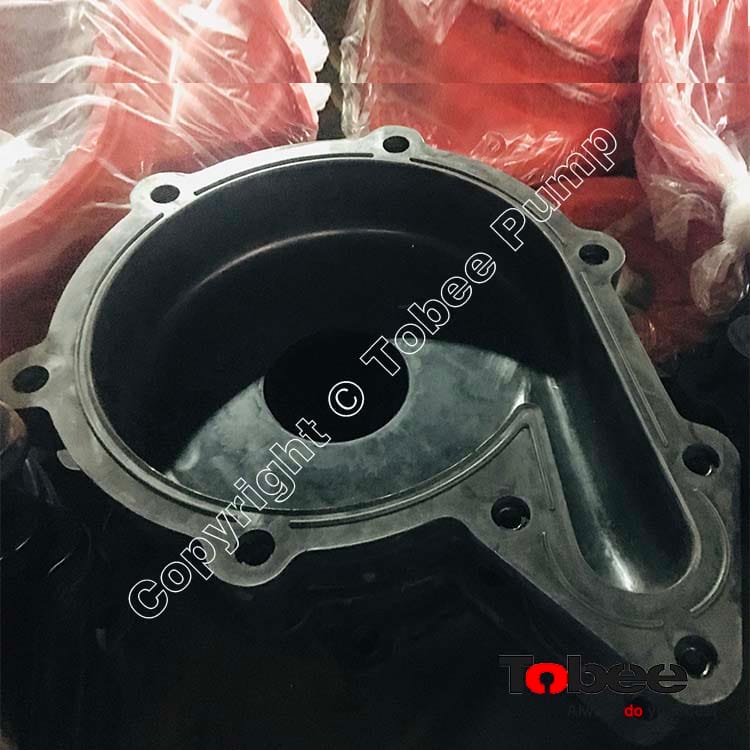

Casing SP10092 - Has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the SPR.

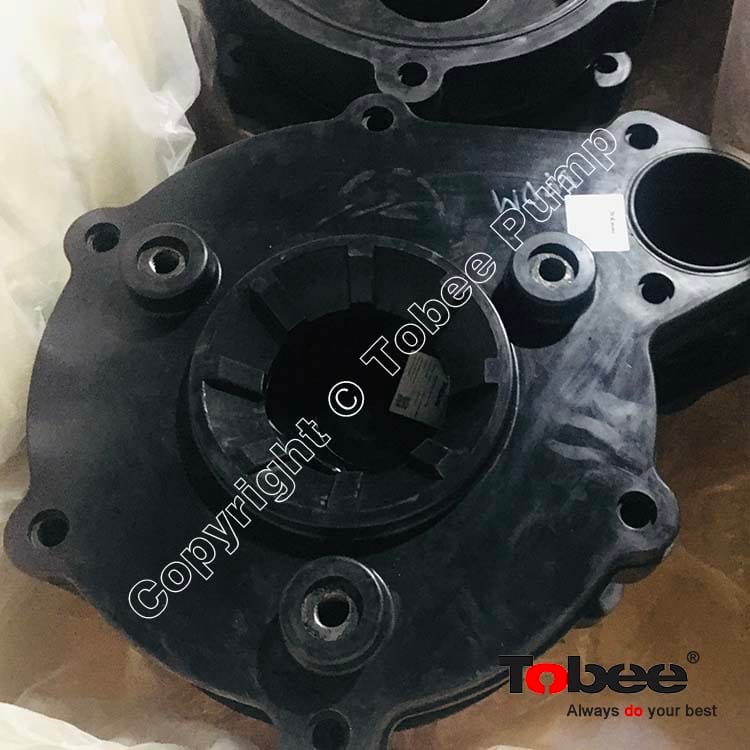

Back Liner SP10041 - It forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers back liners are interchangeable with stardand pump back liners with high chrome, natural rubber, polyurethane for different working condition.

Vertical Slurry Pump Parts:
• Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones. The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger. The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float. This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.
• Column Assembly - Completely fabricated from mild steel. The SPR model is elastomer covered.
• Discharge Pipe - Metal for SP, elastomer covered for SPR. All wetted metal parts are completely rust protected.
• Submerged Bearings - None
• Agitation - An external agitator spray connection arrangement can be fitted to the pump as an option. Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
• Materials - Pumps can be manufactured in abrasive and corrosive resistant materials.

100RV-SPR Rubber Lined Vertical Slurry Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters. Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe. The wet parts of SPR vertical sump pump is interchangeable with the SP series hard metal lined heavy duty sump pumps.

100RV-SPR Rubber Vertical Pump Parts List:

Applications:

Tobee vertical spindle pumps can be used for gravel and sand, mineral processing, chemical processing, coal preparation, effluent handling, floor sump pumping, mill scale pumping, pumping of machine tool cuttings and almost every other tank, floating dewatering or other floating pump platforms.
