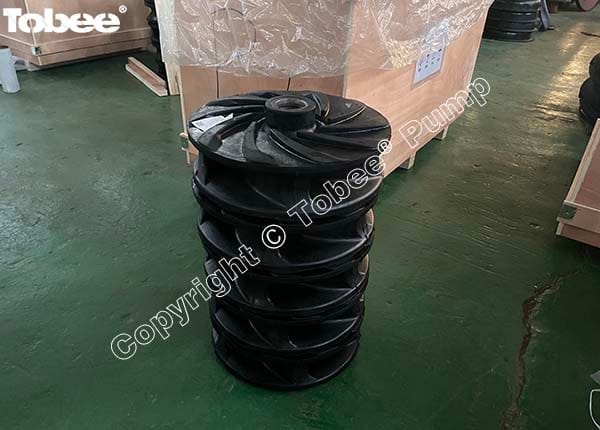

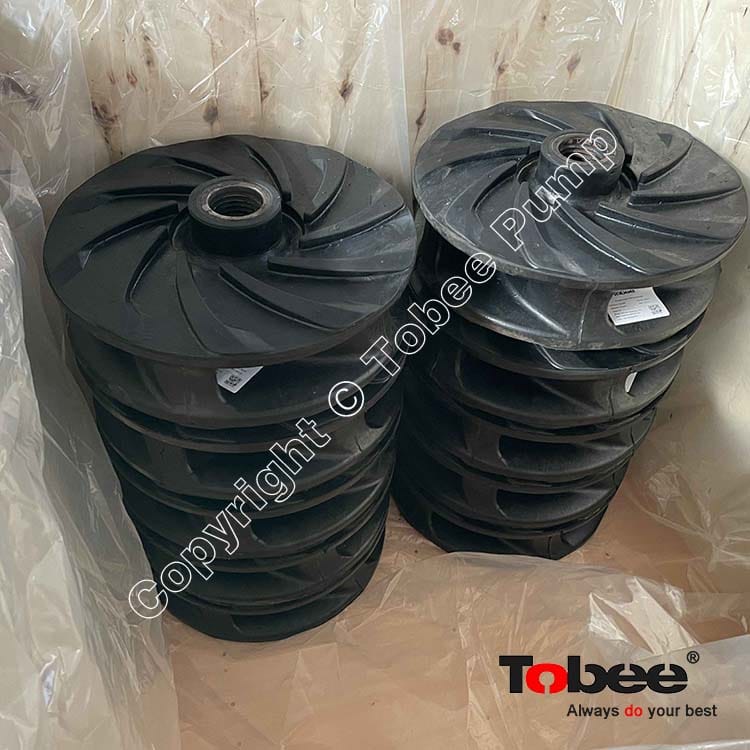

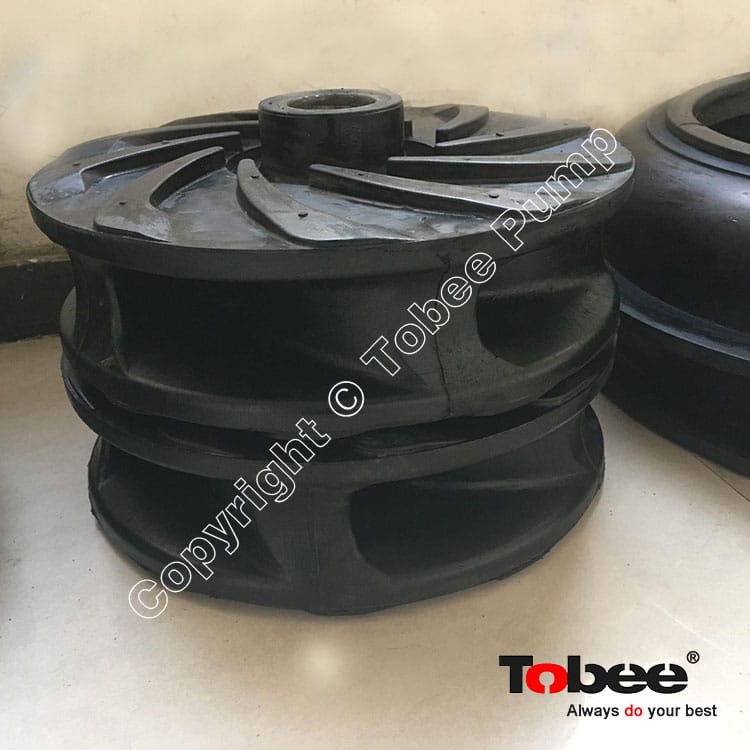

Tobee® Natural material Impeller E4147R55 is closed type impeller with 5 vanes, It can be installed on 6x4D-AH Slurry Pumps. The wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers rubber slurry pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
The R55 material has replaced our previous natural rubber grades such as R08A, R24, R26A, W411 and W413, brought about by progressive improvements in materials technology.
Tobee® offer rubber materials in: Natural rubber R55, R08, R26, R33, S01(EPDM), S10(NBR), S21(Bromobutyl), S31(Hypalon), S42(Neoprene) etc as well as polyurethane.
Tobee® Slurry Pump Rubber Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

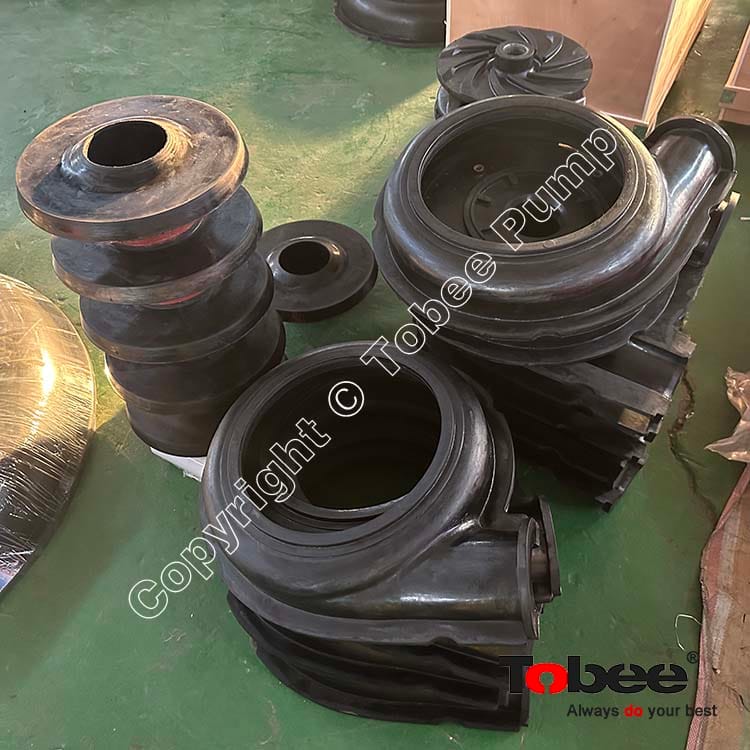

Tobee Rubber Slurry Pump Parts are widely used for Centrifugal horizontal slurry pumps, Vertical rubber slurry pumps, AHR rubber slurry pumps, Chemical slurry pumps, Silica sand slurry pumps, Minerals processing slurry pumps, De-Watering Screen Pump, Ore sand pumps, Tailings Pump, Pipe-jacking slurry pumps, Ball mill discharge Pump, Tunnelling slurry pumps, Mixing tank slurry Pump, Wet crushers slurry pumps, SAG mill discharge pumps, Ball mill discharge pumps, Rod mill discharge slurry pumps, Ni acid slurry pumps, Coarse sand pumps, Coarse tailings pumps, Phosphate matrix slurry pumps, Scrubber slurry Pump, Minerals concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Mineral Sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, Phosphoric acid slurry pumps, Coal slurry pumps, Flotation pumps.
Centrifugal Slurry Pump Impeller Parts Code List:
Slurry Pump Impeller Code | AH Slurry Pump | Slurry Pump Materials Code |
B1127 | 1.5/1B-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
B15127 | 2/1.5B-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
C2147 | 3/2C-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
C2127 | 3/2C-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
C2051 | 3/2C-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
D3147 | 4/3C-AH, 4/3D-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
D3145HE1 | 4/3C-AH, 4/3D-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
D3021 | 4/3C-AH, 4/3D-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
E4147 | 6/4D-AH, 6/4E-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
E4056 | 6/4D-AH, 6/4E-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
E4058 | 6/4D-AH, 6/4E-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F6147 | 8/6E-AH, 8/6F-AH, 8/6R-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F6056 | 8/6E-AH, 8/6F-AH, 8/6R-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F6021 | 8/6E-AH, 8/6F-AH, 8/6R-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F6058HE1 | 8/6E-AH, 8/6F-AH, 8/6R-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FAM8147 | 10/8F-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G8147 | 10/8ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FAM10147 | 12/10F-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G10147 | 12/10ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FAM12147 | 14/12F-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G12147 | 14/12ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
GAM14147 | 16/14TU-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Impeller Code | L Slurry Pump | Slurry Pump Materials Code |
175056 | 20A-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
32056 | 50B-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
43056 | 75C-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
64056 | 100D-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
86056 | 150E-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
108056 | 200E-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SL30147 | 300S-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SL35147 | 350S-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
STL40147 | 400ST-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
STL45147 | 450ST-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
TUL55147 | 550TU-L | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Impeller Code | M Slurry Pump | Slurry Pump Materials Code |
F8147 | 10/8E-M, 10/8F-M, 10/8R-M | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F10147 | 12/10F-M, 12/10R-M | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Impeller Code | HH Slurry Pump | Materials |
CH1127 | 1.5/1C-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
DH2147 | 3/2D-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
EH3147 | 4/3E-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FH4147 | 6/4F-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FH6147 | 6S-H, 8/6S-H | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Impeller Code | G(H) Gravel Pump | Slurry Pump Materials Code |
DG4137 | 6/4D-G, 6/4E-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
EG6137 | 8/6E-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FG8137 | 10/8F-G, 10/8S-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FG10137 | 12/10G-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
GG12137 | 14/12G-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FGH8137 | 10/8F-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
GGH10137 | 12/10G-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
TG14148 | 16/14TU-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Impeller Code | SP Vertical Slurry Pump | Slurry Pump Materials Code |
SP4206 | 40PV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP65206 | 65QV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP10206 | 100RV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP15206 | 150SV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP20206 | 200SV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP25206 | 250TV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
SP30206 | 300TV-SP | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
