Name: E4058A05 Slurry Pump Impeller for 6/4 D AH Slurry Pumps
Price: 1300.00 USD

E4058A05 Slurry Pump Impeller for 6/4 D AH Slurry Pumps

Product Brands: Tobee

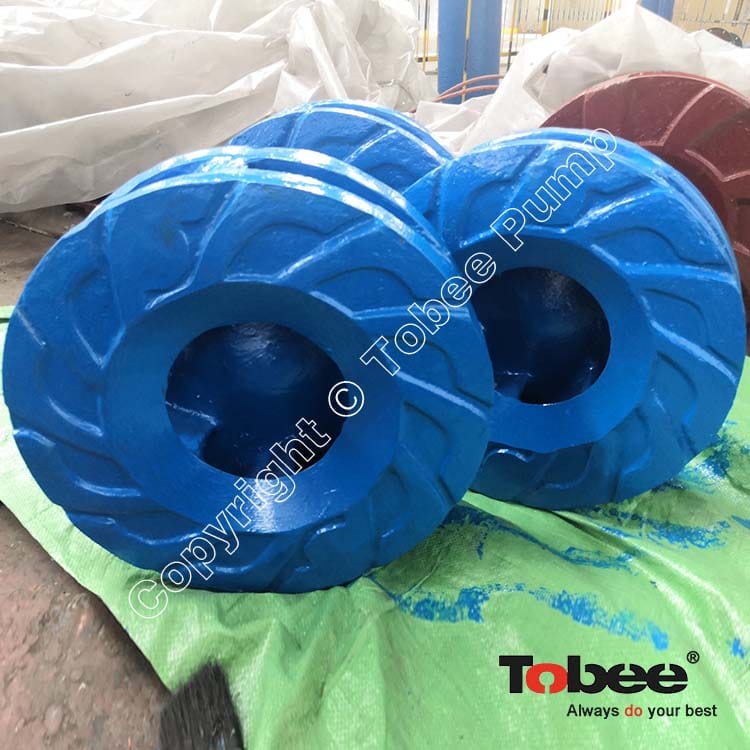

E4058A05 Slurry Pump Impeller is a closed type impeller with 6 vanes used for 6/4 D AH Slurry Pumps.

price:

$1300.00 $1500.00

Materials:

A05 A07 A49 A33 A51 A61

Parts Code:

E4058A05

Pump model:

6x4D-AH 6x4E-AH

Quantity:

- + (200 available)

Add to Favorite Items (320)

Sales: 290+

E4058A05 Slurry Pump Impeller is a closed type impeller with 6 vanes used for 6/4 D AH Slurry Pumps.

Impellers are integral components in centrifugal pumps, when fluid or gas media enters an impeller pump, it becomes trapped between the impeller vanes and the pump wall and increases in velocity as it moves from the impeller eye (center) toward the outside diameter of the slurry pump impeller. Slurry pump impeller's rotational speed (affects velocity) and impeller vanes height (affects pressure and the possible formation of a vacuum) largely determine the slurry pump's output pressure and flow.

The closed type slurry pump impeller will have a shroud in the back and front of the vanes making it a more robust and mechanically sound strong impeller,a closed impeller will provide a very low NPSH requirement and a very efficient flow for centrifugal slurry pump.

Slurry Pump Impellers List:

Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
B15127	2/1.5B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2147	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2127	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2051	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3147	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3145HE1	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3021	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4147	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4056	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4058	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM8147	10/8F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8147	10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM10147	12/10F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10147	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM12147	14/12F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12147	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GAM14147	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
32056	50B-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
43056	75C-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
64056	100D-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
86056	150E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
108056	200E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL30147	300S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL35147	350S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL40147	400ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL45147	450ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TUL55147	550TU-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F10147	12/10F-M, 12/10R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH2147	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EH3147	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4147	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH6147	6S-H, 8/6S-H	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	G(H) Gravel Pump	Slurry Pump Materials Code
DG4137	6/4D-G, 6/4E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EG6137	8/6E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG8137	10/8F-G, 10/8S-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG10137	12/10G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GG12137	14/12G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FGH8137	10/8F-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GGH10137	12/10G-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TG14148	16/14TU-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	SP Vertical Slurry Pump	Slurry Pump Materials Code
SP4206	40PV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP65206	65QV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP10206	100RV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP15206	150SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP20206	200SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP25206	250TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP30206	300TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
