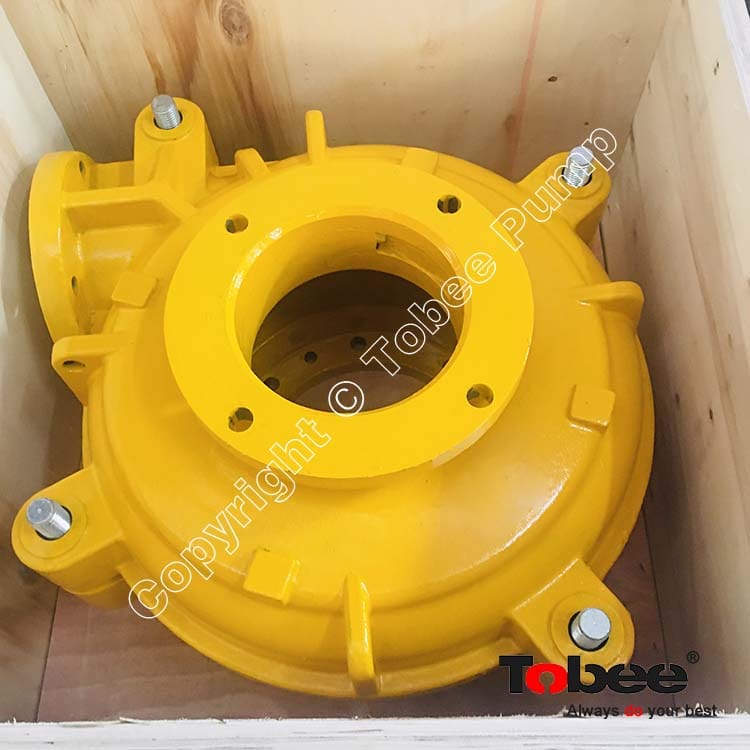

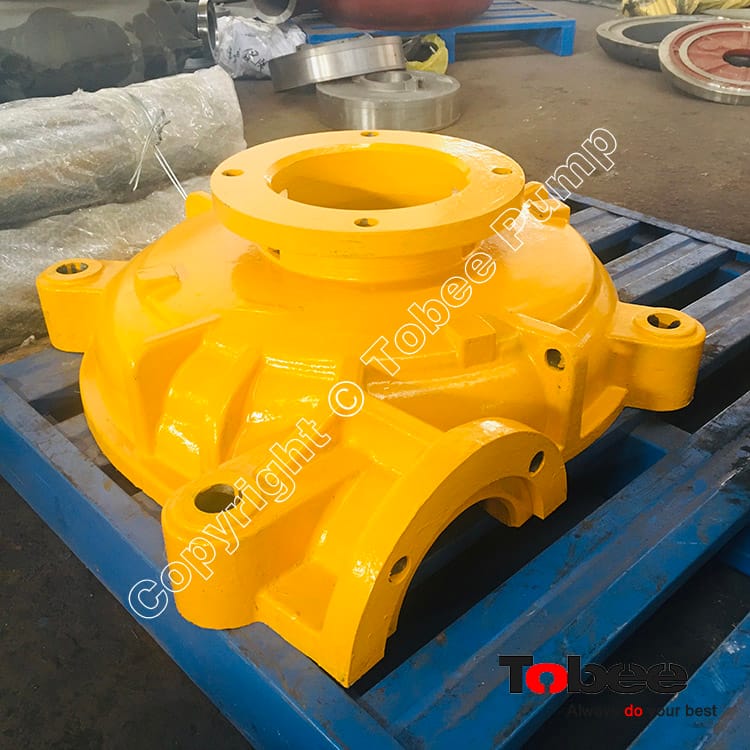

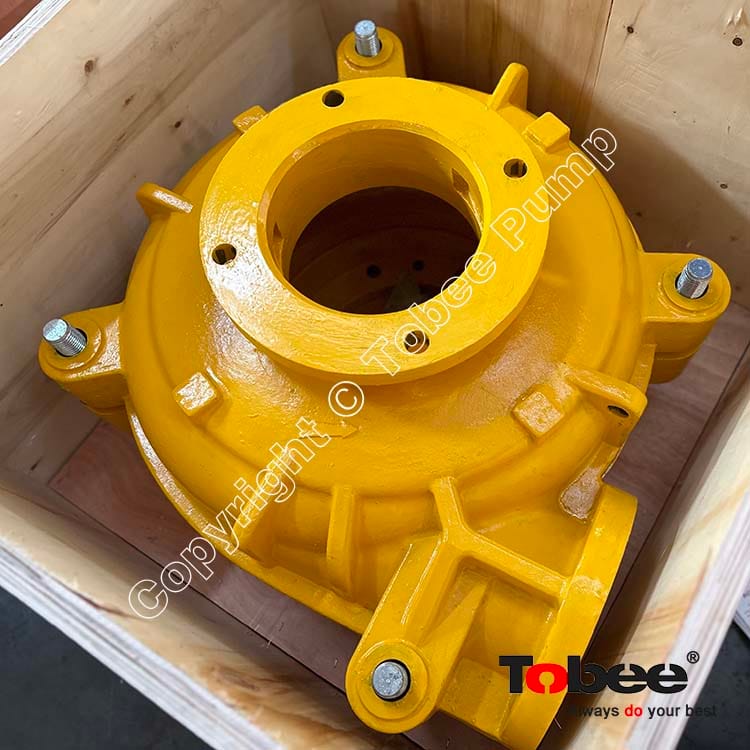

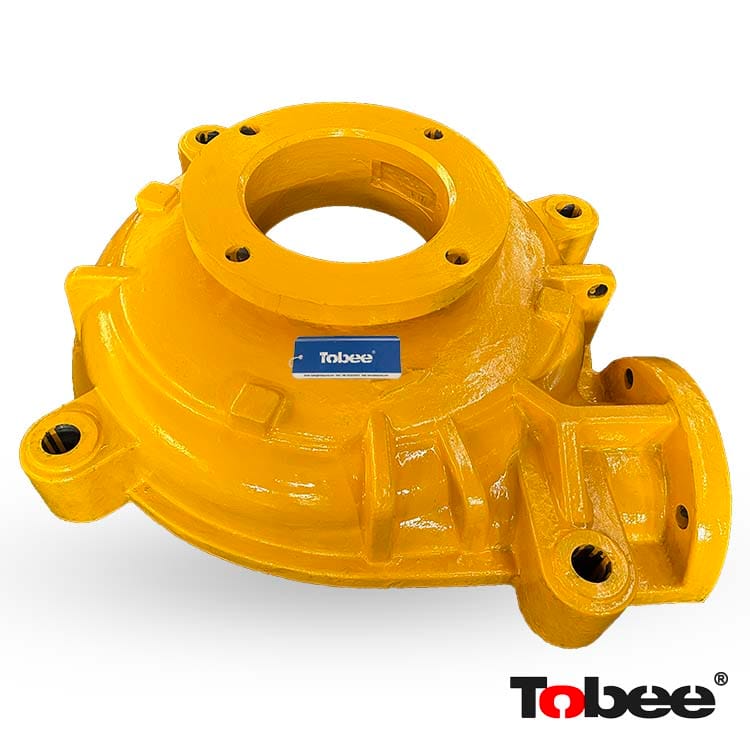

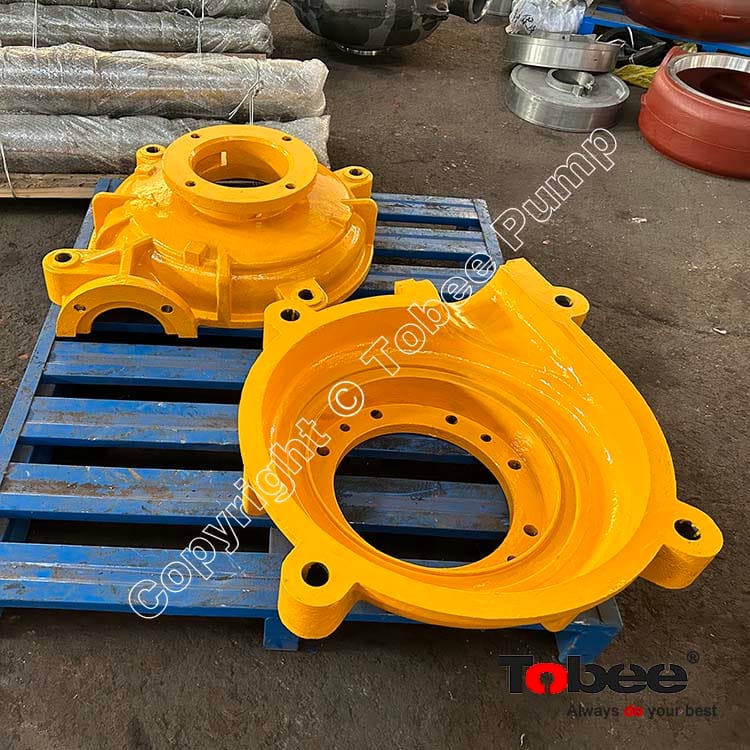

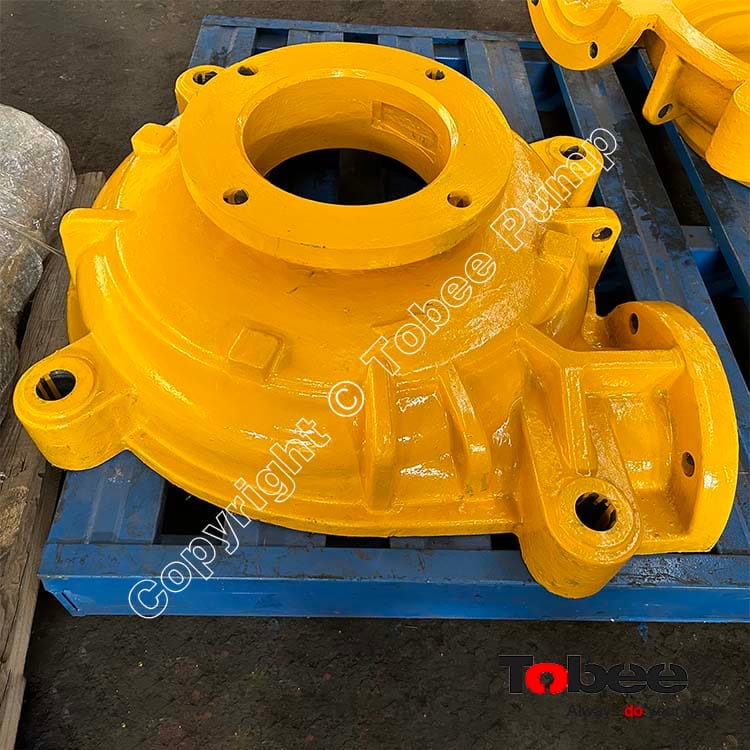

Tobee® 6/4E-AH Slurry Pump Cover Plate E4013D21 is one of the casing parts, and it will combine with the spare parts frame plate DAM4032.
Slurry Pump Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.
6/4E-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slurry pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.
Slurry Pump Cover Plate and Frame Plate Codes:
|
Cover Plate |
Frame Plate |
AH Slurry Pump |
Materials |
|
B1313 |
B1032 |
1.5/1B-AH |
HT250, High chrome |
|
B15013 |
B15032 |
2/1.5B-AH |
HT250, High chrome |
|
C2013 |
C2032 |
3/2C-AH |
HT250, High chrome |
|
CAM3032 |
4/3C-AH |
HT250, High chrome |
|
|
D3013 |
D3032 |
4/3D-AH |
HT250, High chrome |
|
DAM4013 |
DAM4032 |
6/4D-AH |
QT500-7 |
|
E4013 |
E4032 |
6/4E-AH |
QT500-7 |
|
EAM6032 |
8/6E-AH, 8/6R-AH, 8/6F-AH |
QT500-7 |
|
|
G8032 |
10/8F-AH, 10/8ST-AH |
QT500-7 |
|
|
G10013 |
G10032 |
12/10ST-AH, 12/10F-AH |
QT500-7 |
|
G12013 |
G10032 |
14/12ST-AH, 14/12F-AH |
QT500-7 |
|
H14013 |
H14032 |
16/14TU-AH |
QT500-7 |
|
Cover Plate |
Frame Plate |
HH Slurry Pump |
Materials |
|
CH1013 |
CH1032 |
1.5/1C-HH |
QT500-7 |
|
DH2013 |
DH2032 |
3/2D-HH |
QT500-7 |
|
EH3013 |
EH3032 |
4/3E-HH |
QT500-7 |
|
FH4013 |
FH4032 |
6/4F-HH |
QT500-7 |
|
Cover Plate |
Frame Plate |
M Slurry Pump |
Materials |
|
F8013 |
EM8032 |
10/8E-M |
QT500-7 |
|
Cover Plate |
Frame Plate |
L Slurry Pump |
Materials |
|
AL2013 |
AL2032 |
20A-L |
HT250, High chrome |
|
BL5013 |
BL5032 |
50B-L |
HT250, High chrome |
|
CL75013 |
CL75032 |
75C-L |
HT250, High chrome |
|
DL10013 |
DL10032 |
100D-L |
QT500-7 |
|
EL15013 |
EL15032 |
150E-L |
QT500-7 |
|
SL30013 |
SL30032 |
300S-L |
QT500-7 |
|
Cover Plate |
Frame Plate |
G(H) Gravel Pump |
Materials |
|
/ |
DG4131 |
6/4D-G |
High Chrome |
|
EG86013 |
EG6131 |
8/6E-G |
High Chrome |
|
F0108013 |
FG8131 |
10/8F-G |
High Chrome |
|
FG10131 |
12/10G-G |
High Chrome |
|
|
GG1412292 |
GG12131 |
14/12G-G |
High Chrome |
|
/ |
FGH8131 |
10/8S-GH |
High Chrome |
|
GGH10292 |
GGH10131 |
12/10TU-GH |
High Chrome |
|
HG14292 |
HG14131 |
16/14TU-GH |
High Chrome |
|
Cover Plate |
Pump Casing |
SP(R) Vertical Slurry Pump |
Materials |
|
/ |
SP4092 |
40PV-SP |
High Chrome, Rubber |
|
/ |
SP65092 |
65QV-SP |
High Chrome, Rubber |
|
/ |
SP0092 |
100RV-SP |
High Chrome, Rubber |
|
/ |
SP15092 |
150SV-SP |
High Chrome, Rubber |
|
/ |
SP20092 |
200SV-SP |
High Chrome, Rubber |
|
Cover Plate |
Frame Plate |
AH Froth Pump |
Materials |
|
C2013 |
C2032 |
2QV-AF |
HT250, QT500 |
|
E4013 |
E4032 |
4RV-AF |
HT250, QT500 |
Tobee® 6/4 AH Slurry Pump Typical Applications:
· Iron Ore Dressing Plant
· Copper Concentration Plant
· Gold Mine Concentration Plant
· Molybdenum Concentration Plant
· Potash Fertilizer Plant
· Other Mineral Processing Plants
· Alumina Industry
· Coal Washery
· Power Plant
· Sand Excavation
· Building Material Industry
· Chemical Industry
· Other industries
