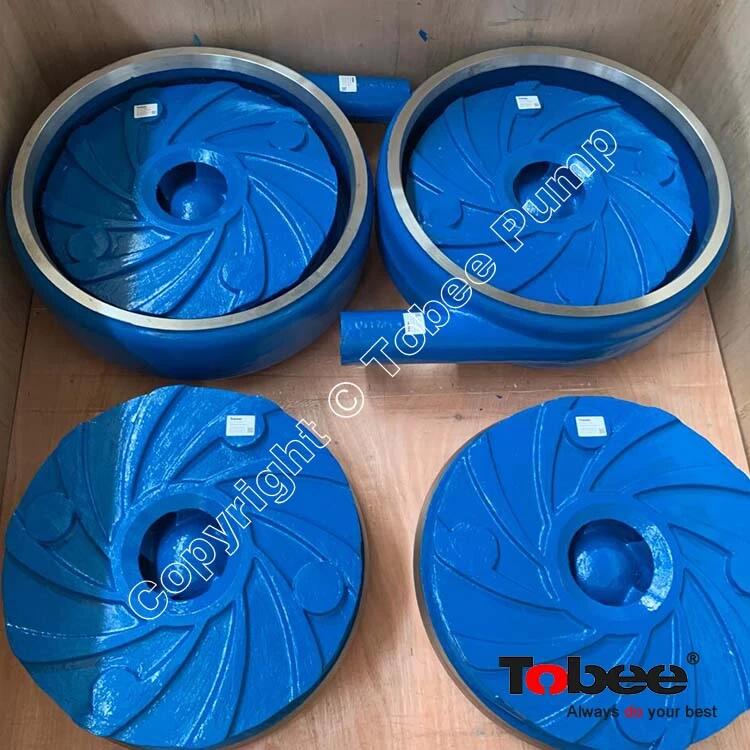

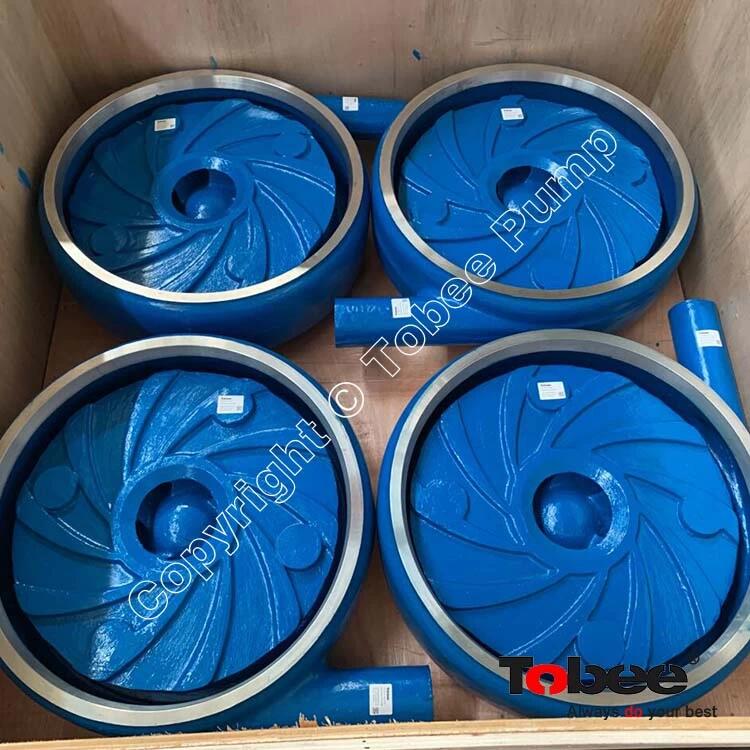

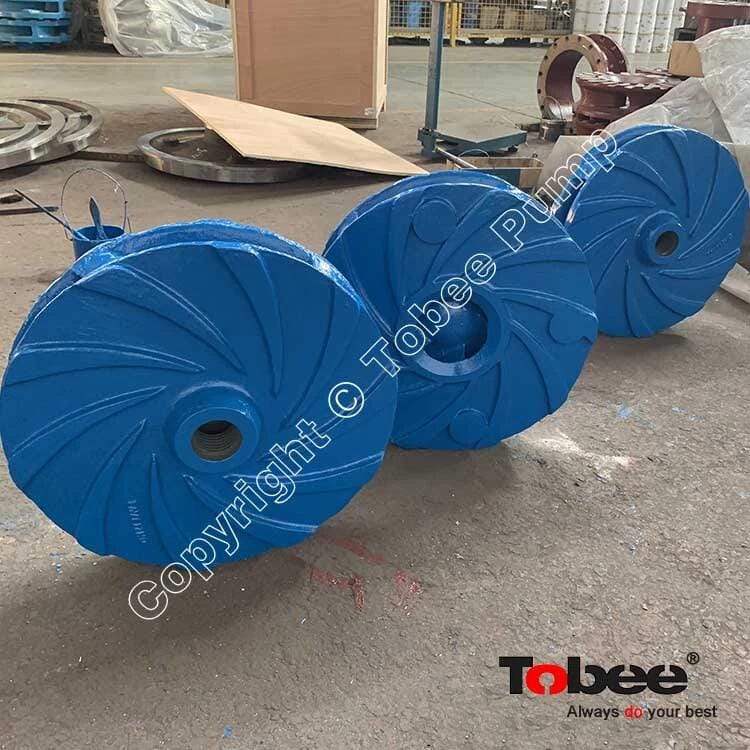

High Chrome DH2147NA A05 Impeller is a very important wear part for 3/2D-HH High Head Slurry Pump.
Slurry Pump Impeller DH2147 is the main component in 3/2D-HH or 3/2DD-HH centrifugal slurry pumps which has vanes to impart and direct the centrifugal force to the slurry. Slurry pump impeller is also the most diverse component in slurry pumps, by changing impeller, the same slurry pump can cover more different duties.
Tobee manages a complete inventory of slurry pump impellers which are dimensionally interchangeable with all other brand slurry pumps.
|
Impeller Code |
AH Slurry Pump |
Slurry Pump Materials Code |
|
B1127 |
1.5/1B-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
B15127 |
2/1.5B-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
C2147 |
3/2C-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
C2127 |
3/2C-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
C2051 |
3/2C-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
D3147 |
4/3C-AH, 4/3D-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
D3145HE1 |
4/3C-AH, 4/3D-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
D3021 |
4/3C-AH, 4/3D-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
E4147 |
6/4D-AH, 6/4E-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
E4056 |
6/4D-AH, 6/4E-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
E4058 |
6/4D-AH, 6/4E-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
F6147 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
F6056 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
F6021 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
F6058HE1 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FAM8147 |
10/8F-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
G8147 |
10/8ST-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FAM10147 |
12/10F-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
G10147 |
12/10ST-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FAM12147 |
14/12F-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
G12147 |
14/12ST-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
GAM14147 |
16/14TU-AH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
Impeller Code |
L Slurry Pump |
Slurry Pump Materials Code |
|
175056 |
20A-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
32056 |
50B-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
43056 |
75C-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
64056 |
100D-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
86056 |
150E-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
108056 |
200E-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SL30147 |
300S-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SL35147 |
350S-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
STL40147 |
400ST-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
STL45147 |
450ST-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
TUL55147 |
550TU-L |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
Impeller Code |
M Slurry Pump |
Slurry Pump Materials Code |
|
F8147 |
10/8E-M, 10/8F-M, 10/8R-M |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
F10147 |
12/10F-M, 12/10R-M |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
Impeller Code |
HH Slurry Pump |
Materials |
|
CH1127 |
1.5/1C-HH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
DH2147 |
3/2D-HH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
EH3147 |
4/3E-HH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FH4147 |
6/4F-HH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FH6147 |
6S-H, 8/6S-H |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
Impeller Code |
G(H) Gravel Pump |
Slurry Pump Materials Code |
|
DG4137 |
6/4D-G, 6/4E-G |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
EG6137 |
8/6E-G |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FG8137 |
10/8F-G, 10/8S-G |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FG10137 |
12/10G-G |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
GG12137 |
14/12G-G |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
FGH8137 |
10/8F-GH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
GGH10137 |
12/10G-GH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
TG14148 |
16/14TU-GH |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
Impeller Code |
SP Vertical Slurry Pump |
Slurry Pump Materials Code |
|
SP4206 |
40PV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP65206 |
65QV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP10206 |
100RV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP15206 |
150SV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP20206 |
200SV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP25206 |
250TV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
|
SP30206 |
300TV-SP |
A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Slurry Pump Impeller Type
Any type of impeller can be used in slurry applications, but closed slurry pump impellers are more common because they are high efficient and abrasion Resistance,. Open slurry pump impellers are usually used well for high concentration solids as they are less likely to clog. For example, the small fibers in paper stock which, in high densities, may have a tendency to clog the impeller. Pumping slurry can be difficult and you want to avoid a clogged pump at all costs.
Slurry Pump Impeller Size
The size of the slurry pump's impeller must be considered to ensure it holds up against abrasive wear. Slurry pump impellers are generally larger in size when compared to slury pumps for less abrasive liquids. The more “meat” the impeller has, the better it will hold up to the task of pumping harsh slurry mixtures. Think of the slurry pump's impeller as a football team's offensive line. These players are usually large and slow. Throughout the whole game they are beaten up, over and over again, but expected to withstand the abuse. You wouldn’t want small players in this position, just like you wouldn't want a small impeller on your slurry pumps.
Slurry Pump Speed
Your process speed doesn't have anything to do with choosing your slurry pump impeller, but it does have an effect on the life of your slurry pump impeller. It is important to find the sweet spot that allows the slurry pump to run as slow as possible, but fast enough to keep solids from settling and clogging. If you are pumping too fast, the slurry can quickly erode the impeller due to its abrasive nature. This is why it is important to select a larger impeller if possible.
When you're dealing with slurry, you generally want to go bigger and slower. The thicker the impeller, the better it will hold up. The slower the pump, the less erosion you’ll inflict on the impeller. However, the impeller isn’t the only thing you have to worry in your slurry pump when dealing with slurry. Tough, durable materials of construction are necessary most of the time. Metal slurry pump liners and wear plates are common in slurry applications.
