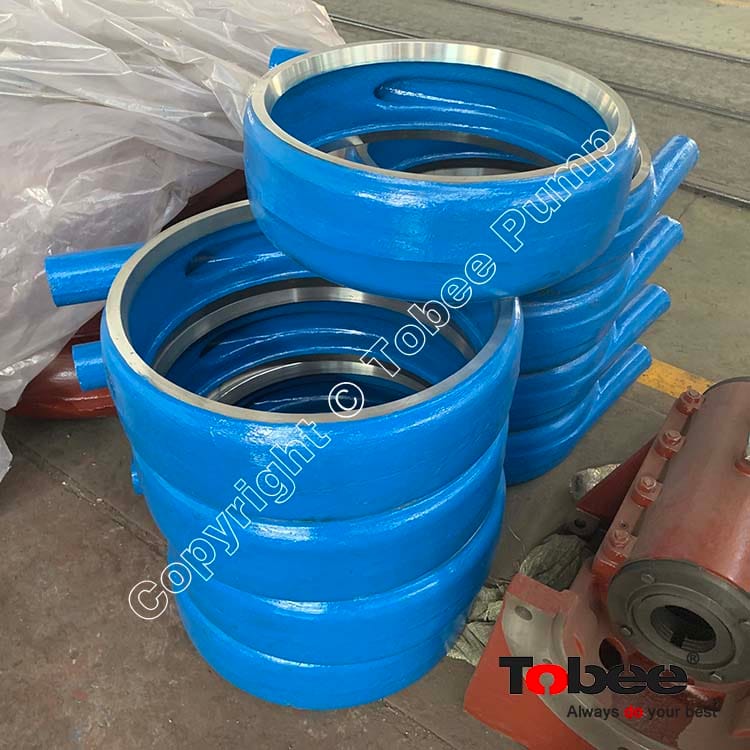

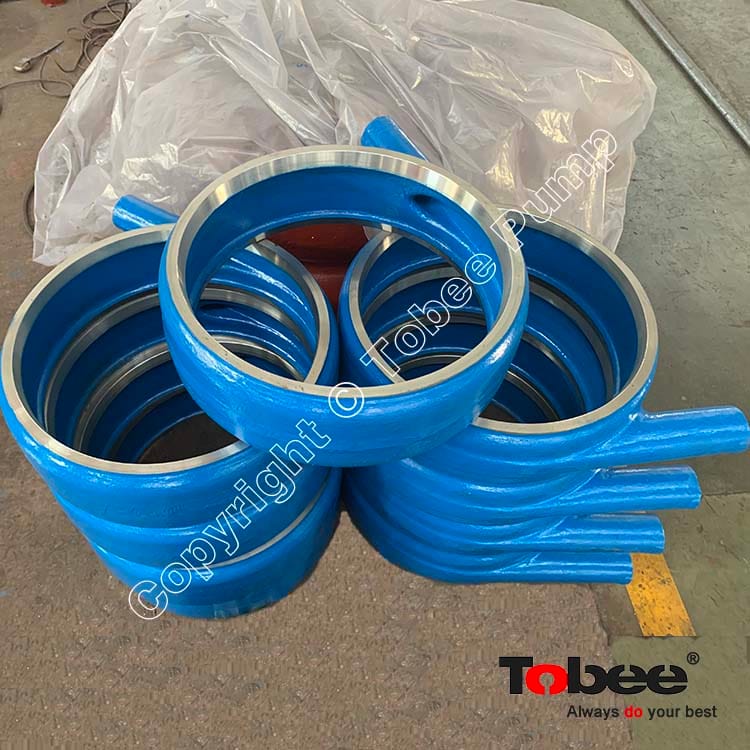

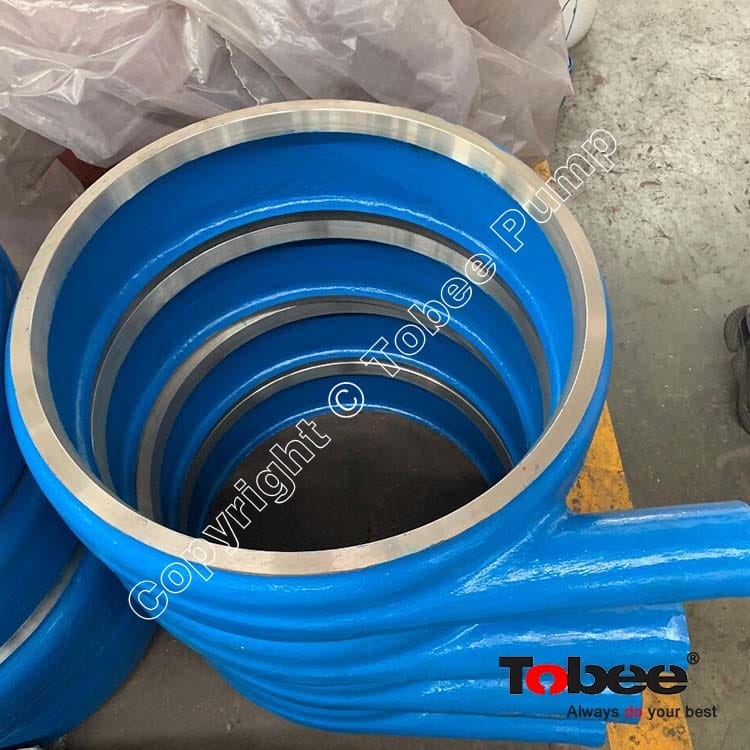

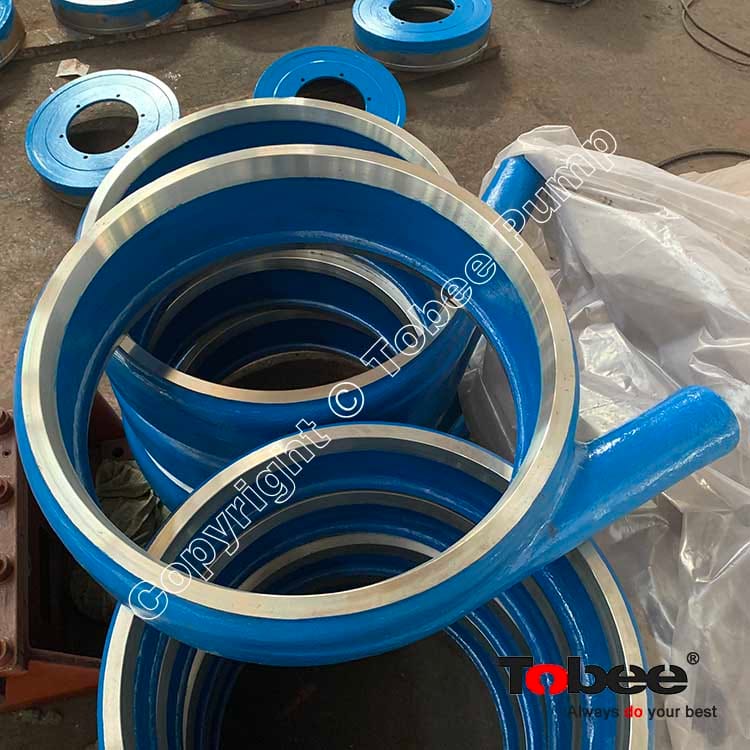

3x2D-HH High Head Slurry Pump Wear Parts-Volute Liner DH2110A05 A61, High Chrome Pump Parts.
Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.
Tobee® slurry pump parts are dimensionally interchangeable with warman slurry pump parts and other brand slurry pumps. And more, we accept pump parts OEM and ODM business, especially abrasion and corrosion pump parts. Tobee own foundry and compound specialist to increase the wet parts wear life time, and We have been tested by end users plant of the most abrasive and most corrosive arduously applications. and also welcome the opportunity to discuss your applications in more detail. Our experienced technical engineers are always ready to give advice and make suggestions to improve future wear life of your slurry pumps. We are capable enough to help you work out a perfect casting material ingredient for special slurries.
Tobee® 3/2D HH High Head Slurry Pumps and Spare Parts, Commonly used for long distance transport lines, the high head slurry pump lines can often satisfy application duties with a single pump where others require multiple pumps in series.
Detailed specification:
1. Horizontal, cantilevered, centrifugal, single stage slurry pump.
2. Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other.
4. Easily replaceable liners: Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 45 degrees.
7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
