Name: China SP20041A05 back liner for 200SV-SP Vertical Slurry Pump
Price: 3900.00 USD

China SP20041A05 back liner for 200SV-SP Vertical Slurry Pump

Product Brands: Tobee

Tobee® 200SV-SP Vertical Slurry Pump Spare Parts, Tobee is a professional slurry pump parts manufacturer, Tobee pump parts SP20041A05 back liner

price:

$3900.00

Part Materials:

A05

H.S Code:

8413910000

PUMO MODEL:

200SV-SP

Part Name:

back liner Frame Plate Liner Insert

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

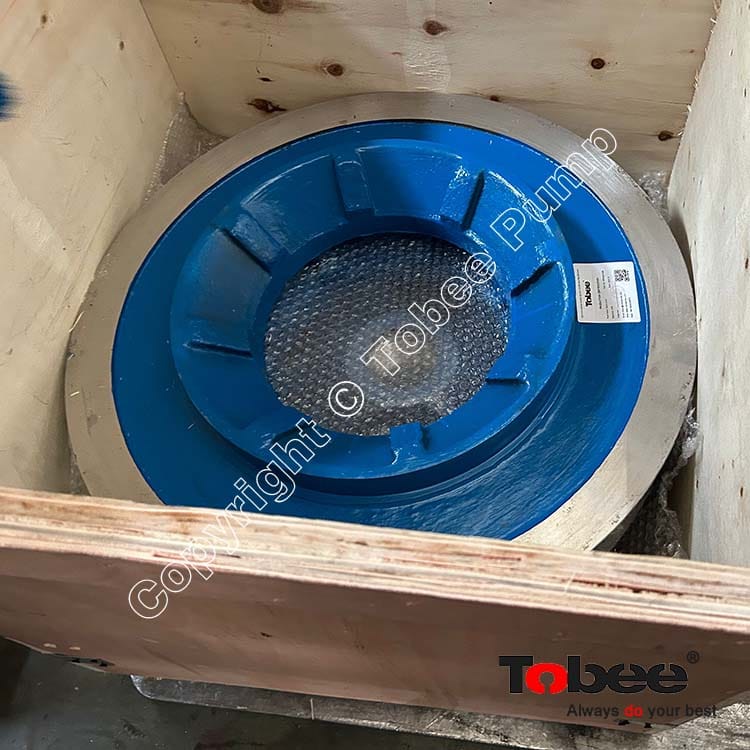

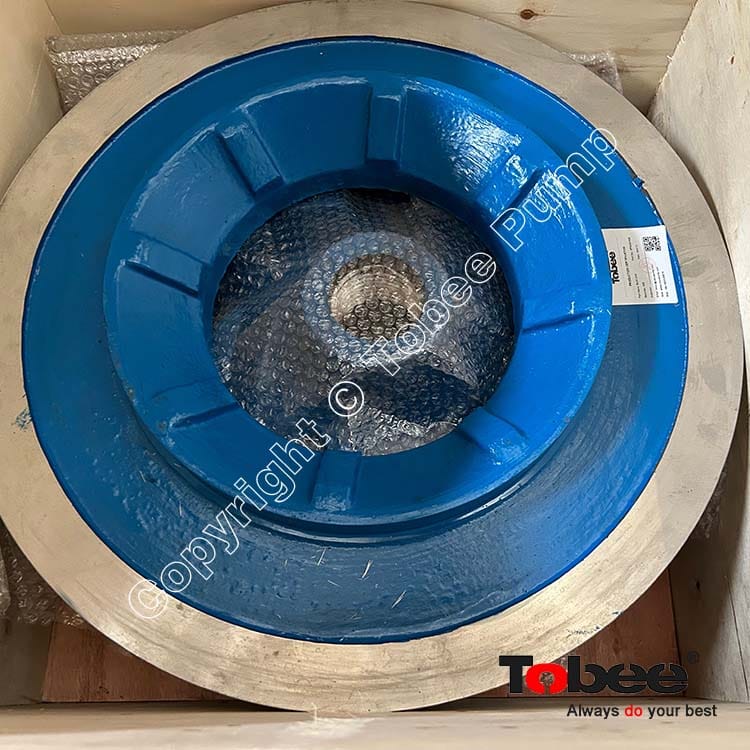

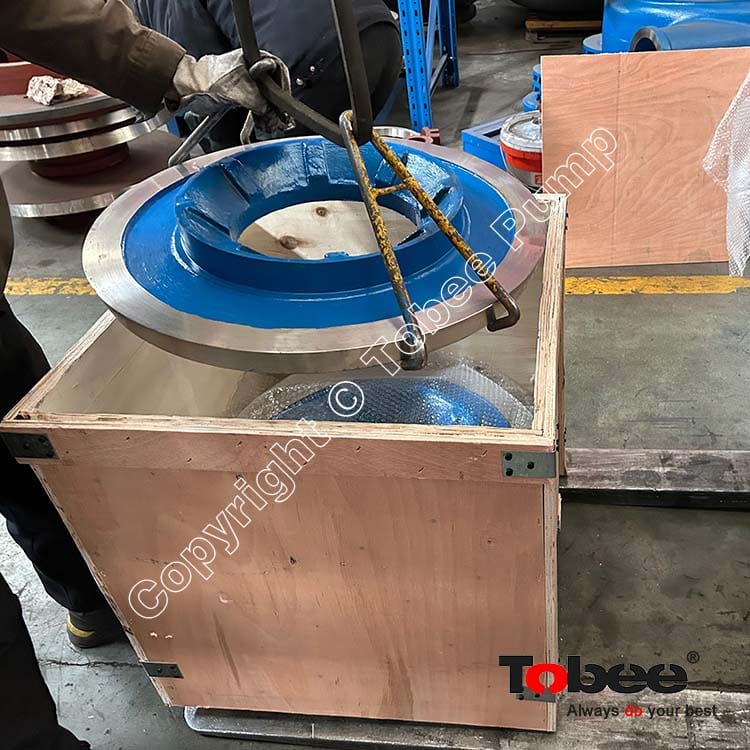

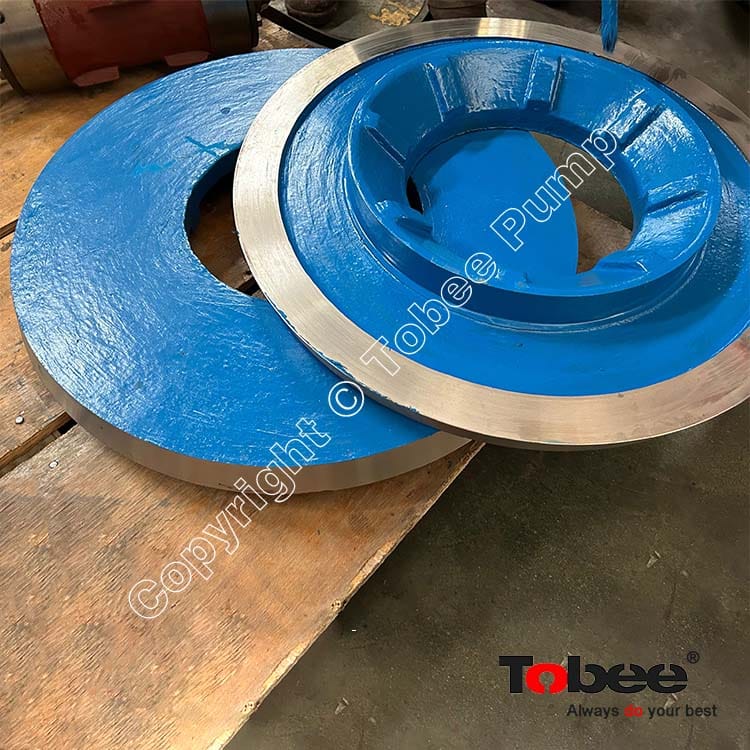

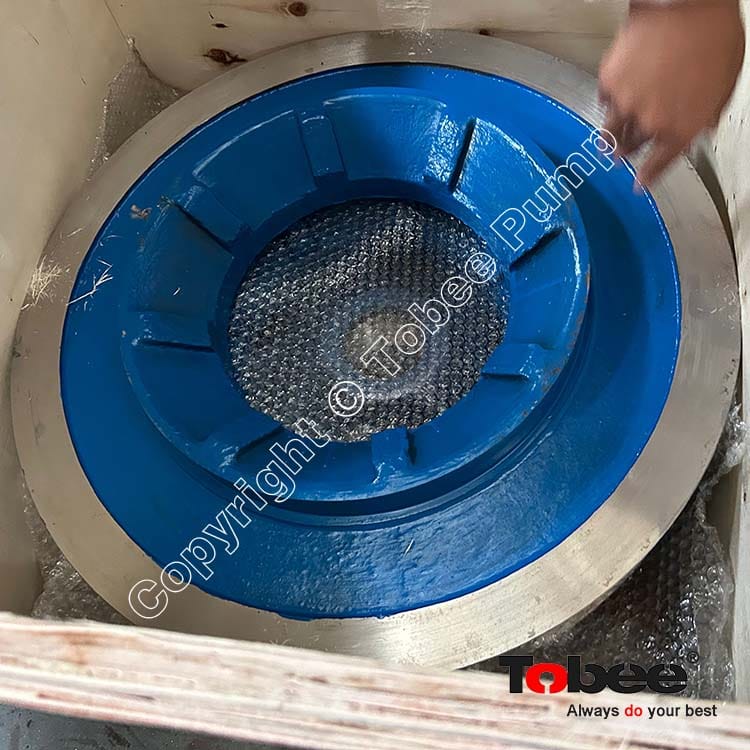

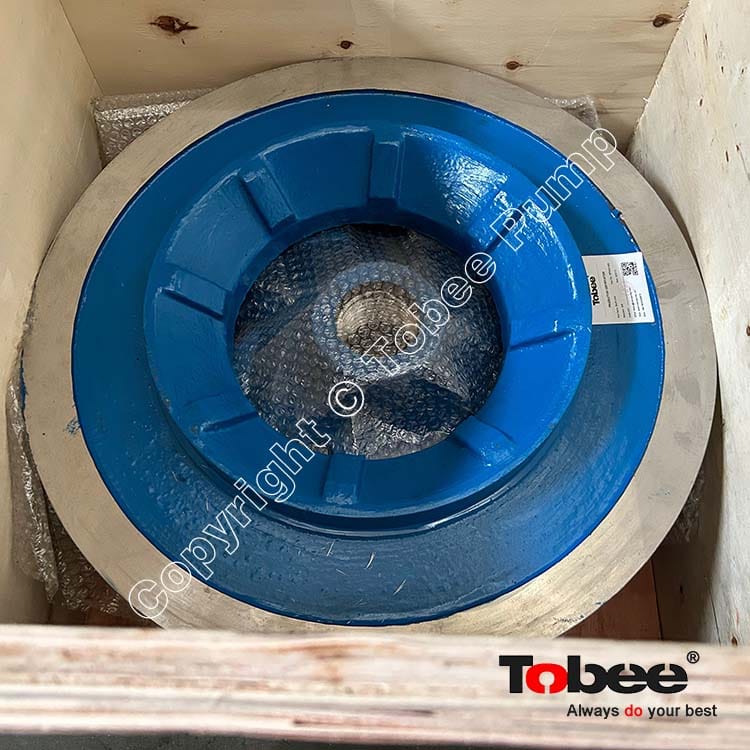

Back Liner SP20041A05 is used for 200SV-SP Vertical Slurry Pump.

Slurry Pump Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with warman pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.

Slurry Pump Frame Plate Liner Insert Code:

Frame Plate Liner Insert Code	Warman AH Slurry Pumps	Materials
B1041	1.5/1B-AH	High chrome, Natural rubber, Polyurethane
B15041	2/1.5B-AH	High chrome, Natural rubber, Polyurethane
C2041	3/2C-AH	High chrome, Natural rubber, Polyurethane
D3041	4/3C-AH, 4/3D-AH	High chrome, Natural rubber, Polyurethane
E4041	6/4D-AH, 6/4E-AH	High chrome, Natural rubber, Polyurethane
F6041	8/6E-AH, 8/6F-AH, 8/6R-AH	High chrome, Natural rubber, Polyurethane
G8041	10/8ST-AH	High chrome, Natural rubber, Polyurethane
G10041	12/10ST-AH	High chrome, Natural rubber, Polyurethane
G12041	14/12F-AH,14/12ST-AH	High chrome, Natural rubber, Polyurethane
H14041	16/14TU-AH	High chrome, Natural rubber, Polyurethane
FPL Insert	Warman HH Slurry Pumps	Materials
CH1041	1.5/1C-HH	High chrome, Polyurethane
DH2041	3/2D-HH	High chrome, Polyurethane
EH3041	4/3E-HH	High chrome, Polyurethane
FH4041	6/4F-HH	High chrome, Polyurethane
FH6041	6S-H, 8/6S-H	High chrome, Polyurethane
FPL Insert	Warman L Slurry Pumps	Materials
175041	20A-L	High chrome, Natural rubber
32056	50B-L	High chrome, Natural rubber
43041	75C-L	High chrome, Natural rubber
64041	100D-L	High chrome, Natural rubber
86041	150E-L	High chrome, Natural rubber
108041	200E-L	High chrome, Natural rubber
SL30041	300S-L	High chrome, Natural rubber
SL35041	350S-L	High chrome, Natural rubber
STL40041	400ST-L	High chrome, Natural rubber
STL45041	450ST-L	High chrome, Natural rubber
TUL55041	550TU-L	High chrome, Natural rubber
FPL Insert	Warman G(H) Gravel Pumps	Materials
DG4041	6/4D-G, 6/4E-G	High chrome
EG6041	8/6E-G	High chrome
FG8041	10/8F-G, 10/8S-G	High chrome
FG10041	12/10G-G	High chrome
GG12041	14/12G-G	High chrome
FGH8041	10/8F-GH	High chrome
SGGH10041	12/10G-GH	High chrome
TG14041	16/14TU-GH	High chrome
FPL Insert	Warman SP Vertical Slurry Pumps	Materials
SP4041	40PV-SP	High chrome, Natural rubber, Polyurethane
SP65041	65QV-SP	High chrome, Natural rubber, Polyurethane
SP10041	100RV-SP	High chrome, Natural rubber, Polyurethane
SP15041	150SV-SP	High chrome, Natural rubber, Polyurethane
SP20041	200SV-SP	High chrome, Natural rubber, Polyurethane
SP25041	250TV-SP	High chrome, Natural rubber, Polyurethane
SP30041	300TV-SP	High chrome, Natural rubber, Polyurethane

Label: China 200SV-SP Pump Spare Parts F.P.L Insert SP20041A05 China slurry pump and pump parts factory 200SV SP metal vertical pumps and parts
