Name: China Slurry Pump Spare Parts Impeller F8147 for 10/8 E-M
Price: 2058.00 USD

China Slurry Pump Spare Parts Impeller F8147 for 10/8 E-M

Product Brands: Tobee

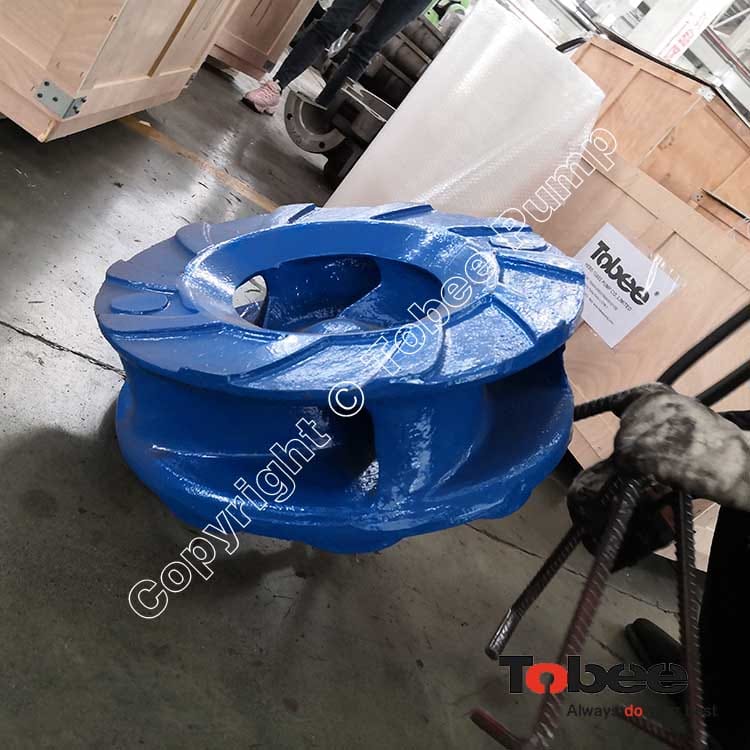

F8147 slurry pump impellers are used in slurry pumps 10/8 E-M

price:

$2058.00 $2100.00

Materials:

A05 A07 A49 A33 A61 A51

Part #:

F8147

Impeller Type:

Closed Semi-open Open

Quantity:

- + (200 available)

Add to Favorite Items (169)

Sales: 197+

F8147 slurry pump impellers are used in slurry pumps 10/8 E-M, the material can all types of high chrome alloy and rubbers.

The centrifugal pump impeller mainly has the following four forms：

(a) Closed impeller, (b) Front half open impeller, (c) The latter half open form impeller, (D) Open impeller

Slurry Pump Closed Impeller
It consists of a vane and a front and rear cover plate. Closed impeller is more efficient and difficult to manufacture, so it is most used in centrifugal pumps. It is suitable for conveying clean water, solution and other small viscosity clean liquid without particles.

Semi-open Slurry Pump Impeller
Semi-open impeller is suitable for conveying liquid containing suspended solids such as solid particles and fibers.The semi-open impeller is less difficult to manufacture, the cost is low, and the adaptability is strong, and the application in the centrifugal pump for oil refining and chemical industry is gradually increasing, and it is used for conveying clean water and the liquid of approximate clean water.

Slurry Pump Open impeller
Only the vane and vane reinforcement, no front and back cover impeller (open impeller vane number is less 2-5).The impeller has low efficiency and less application. It is mainly used for conveying liquid with high viscosity and slurry liquid.

10/8 E-M Slurry Pump Spares List：

No.	Pump Parts Name	Pump Model	Pump Parts Code	Matl. Code	Unit Weight (kg)
1	Impeller O-Ring	10/8E-M	F064	S12
2	Shaft O-Ring	10/8E-M	E109	S12
3	Shaft Sleeve	10/8E-M	E075	C21	10.44
4	Shaft Sleeve	10/8E-M	E075	C23
5	Shaft Sleeve	10/8E-M	E075	J05
6	Shaft Sleeve	10/8E-M	E075	J04
7	Shaft Spacer	10/8E-M	EAM117	C21	6.02
8	Shaft Sleeve	10/8E-M	E076	C21	10.44
9	Shaft Sleeve	10/8E-M	E076	C23
10	Shaft Sleeve	10/8E-M	E076	J05
11	Shaft Sleeve	10/8E-M	E076	J04
12	Shaft Spacer	10/8E-M	EAM117	C23	6.02
13	Stuffing Box	10/8E-M	EAM078	D21	41
14	Expeller	10/8E-M	EAM028	D21	8.2
15	Expeller Ring	10/8E-M	EAM029	D21	17.6
16	Pump Base	10/8E-M	E003M	D21	154
17	Lantern Ring	10/8E-M	E063	C23	2.87
18	Lantern Restrictor	10/8E-M	E118	C23	4.08
19	Neck Ring	10/8E-M	E067	C23	0.96
20	Gland Assembly	10/8E-M	E044	D21	3.8
21	Frame Plate	10/8E-M	EM8032	D21	266
22	Cover Plate	10/8E-M	F8013	D21	238
23	Impeller	10/8E-M	F8147	A07
24	Impeller	10/8E-M	F8147	A05A	210.5
25	Impeller	10/8E-M	F8147	R55
26	Volute Liner	10/8E-M	F8110	A07
27	Volute Liner	10/8E-M	F8110	A05A	299
28	Volute Liner	10/8E-M	F8110	R55
29	Throatbush	10/8E-M	F8083	A07
30	Throath bush	10/8E-M	F8083	A05A	101.5
31	Frame Plate Liner Insert	10/8E-M	F8041	A07
32	Frame Plate Liner Insert	10/8E-M	F8041	A05A	78.5
33	Frame Plate Liner Insert	10/8E-M	F8041	R55
34	Volute Lifting Beam	10/8E-M	F8304	Alloy 20	20.74
35	Keep Plate	10/8E-M	F8081	Alloy 20	0.36
36	Cover Plate Bolt	10/8E-M	F8015M	E62	4.49
37	Intake Joint	10/8E-M	F8060	Rubber
38	Discharge Joint Ring	10/8E-M	F8132XLP	Rubber
39	Shaft O-Ring	10/8E-M	F109	Rubber
40	Volute Liner Seal	10/8E-M	F8124	Rubber
41	Volute Frame Seal	10/8E-M	F122	Rubber
42	Bearing Body	10/8E-M	E004M	D21	58
43	End Cover	10/8E-M	E024	D21	7
44	Grease Retainer	10/8E-M	E046	D21	3.6
45	Labyrinth	10/8E-M	E062	D21	3.9
46	Shaft	10/8E-M	EAM073M	E62	70.19
47	Labyrinth Locknut	10/8E-M	E061	E62	1.41
48	Clamp Washer	10/8E-M	E011	E62	0.74
49	Bearing Assembly	10/8E-M	EAM005M	ZWZ Bearing

Label: Slurry pump impeller 10/8 E-M Slurry Pump Impeller F8147 Slurry Pump Impeller Manufacturers
