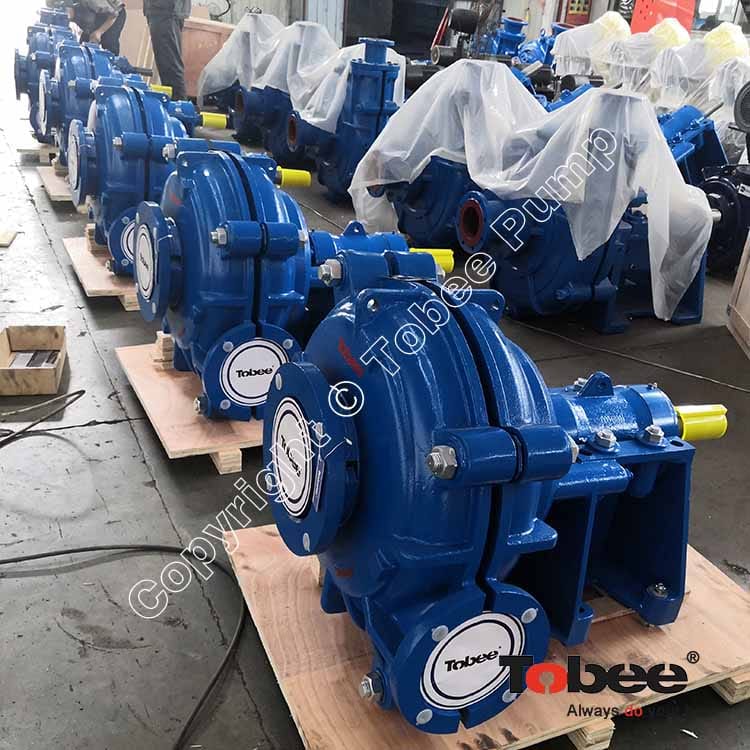

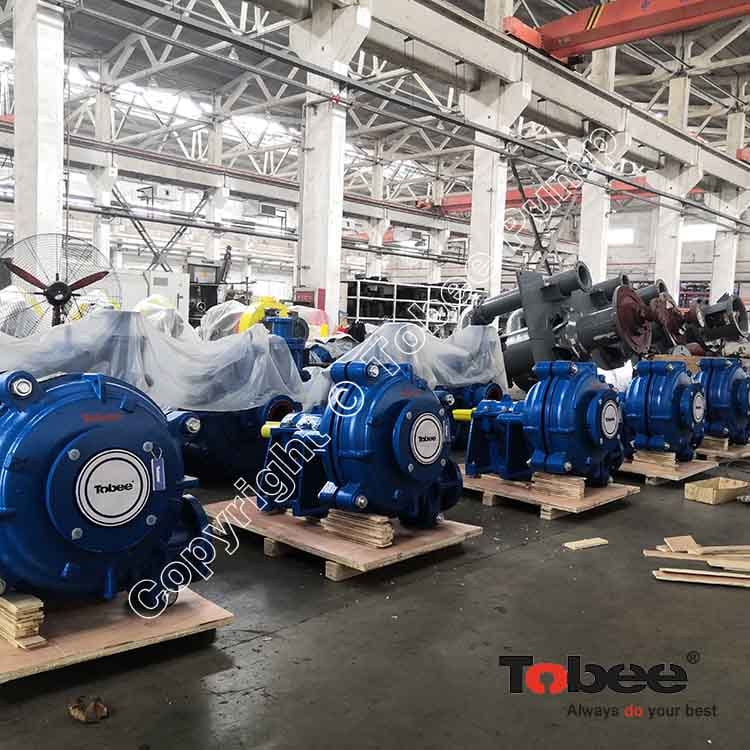

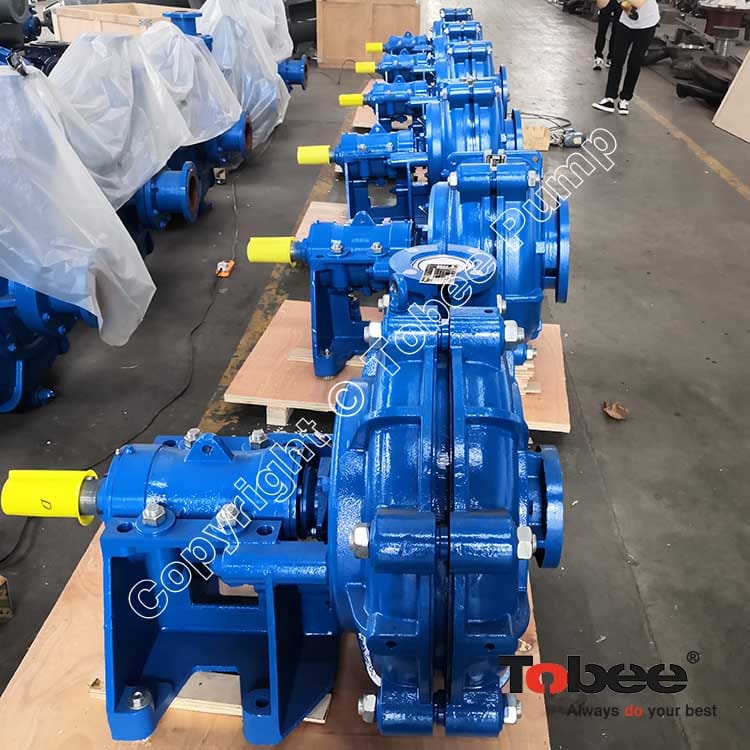

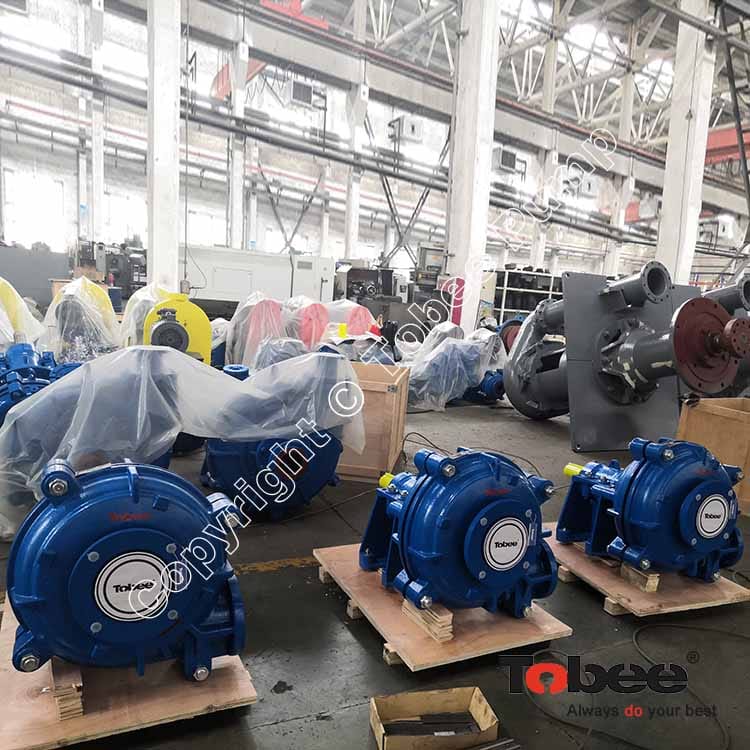

6x4D-AH Slurry Pump
SPECIFICATIONS:
Size: 6" x 4"
Capacity: 162-360m3/h
Head: 12-56m
Speed: 800-1550rpm
NPSHr: 5-8m
Eff.: 65%
Power: Max.60kw
Handling solids: 44mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slurry pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.
Design Features:
√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.
√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.
√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
√ The shaft seal uses the packing seal, expeller seal and mechanical seal.
Tobee® 6/4 D AH Series Slurry Pumps Performance Parameters:
|
Model |
Max. Power (kw) |
Materials |
Clear Water Performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
6/4D-AH |
60 |
Metal |
Metal |
162~360 |
12~56 |
800~1550 |
65 |
5~8 |
5 |
Tobee® 6/4 D AH Slurry Pumps Applications:
The 6/4 D AH Slurry Pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.
Typical Application:
· Iron Ore Dressing Plant
· Copper Concentration Plant
· Gold Mine Concentration Plant
· Molybdenum Concentration Plant
· Potash Fertilizer Plant
· Other Mineral Processing Plants
· Alumina Industry
· Coal Washery
· Power Plant
· Sand Excavation
· Building Material Industry
· Chemical Industry
· Other industries
