Name: China Horizontal Slurry Pump Spare Parts
Price: 980.00 USD

China Horizontal Slurry Pump Spare Parts

Product Brands: Tobee

Slurry Pump Spare Parts South Africa are also named slurry pump parts and directly connection with slurries, It is very crucial to the service life of slurry pumps. The wetted end parts is foremost element for the whole slurry pump, included Impeller, Volute, Throatbush and Frame Plate Liner etc., Tobee® can offer the complete range of interchangeable spare parts.

price:

$980.00 $1000.00

Pump Models:

4/3C AH 6/4D AH 8/6E AH 10/8E M 12/10ST AH

Material:

A05 A07 High Chrome C23 A49 A61 R55

Quantity:

- + (143 available)

Add to Favorite Items (0)

Sales: 0+

Tobee Pump spares parts will be installed for original AH slurry pumps for tailing application in a copper mine. Tobee® slurry pump parts are made from high chrome alloy 27%+, It has strong abrasion and corrosion resistance, The hardness can upto 65%HRC, So the worklife will be extended for 30% than others, Tobee offers slurry pump parts for 1.5/1B-AH, 1.5/1C-HH, 2/1.5B-AH, 3/2C-AH, 4/3C-AH, 4/3D-AH, 4/3E-HH, 6/4D-AH, 6/4E-AH, 6/4F-HH, 8/6E-AH, 10/8E-M, 10/8ST-AH, 12/10ST-AH, 14/12ST-AH, 16/14TU-AH, 18/16TU-AH, 20/18TU-AH etc.

Slurry Pump Parts Range:
• Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
• Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66
• Synthetic rubber materials code: S01, S02, S10, S12, S21, S31, S42, S44, S50
• Polyurethane materials code: U01, U38
• Shaft material: 45#, 40CrMo, SS304, SS316
• Shaft sleeve material: SS410, SS420 SS304, SS316, Ceramic
• Lantern ring material: SS304, SS316, PTFE
• Bearing housing/ end cover material: G01, D21
• Expeller, Expeller ring: HT250, A05
• Packing: Q05, Q21, Q22, X06
• 100% interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel pumps, AF/AHF froth slurry pumps, MCR mill circuit pumps etc

Slurry Pumps Wearing Spares Parts:

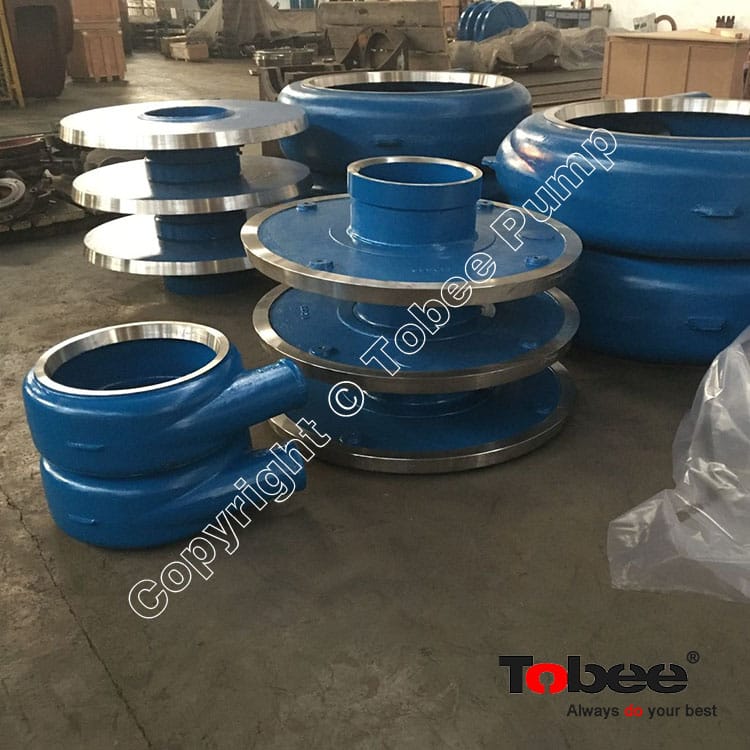

Metal Lined Slurry Pump Spares
Cover Plate / Throat Bush / Volute Liner / Impeller / Frame Plate Liner Insert / Stuffing Box / Frame Plate / Shaft Sleeve / Expeller / Expeller ring / Bearing Assembly

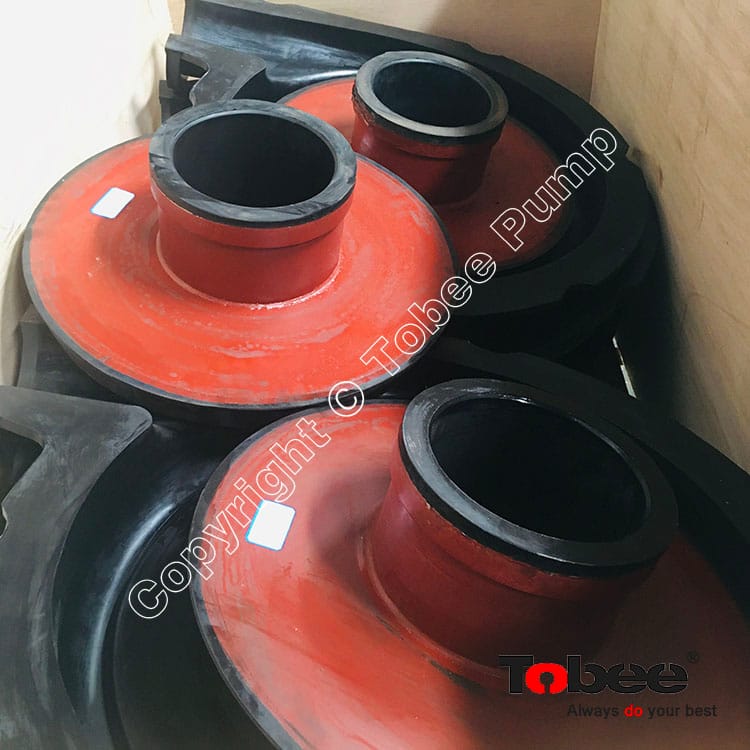

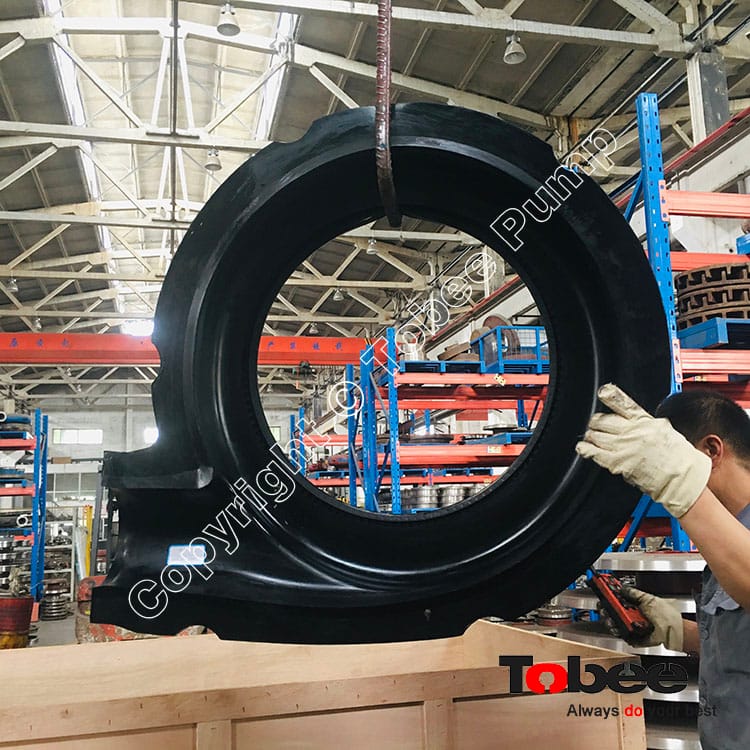

Rubber Lined Slurry Pump Spares
Throat Bush / Cover Plate Liner / Impeller / Frame Plate Liner Insert / Expeller ring

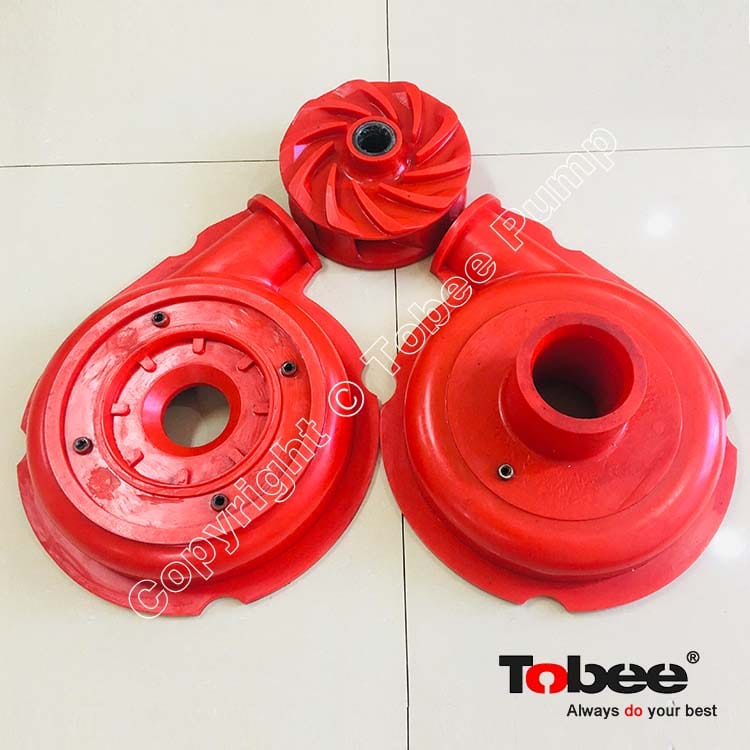

Polyurethane Slurry Pump Spares
Throat Bush / Cover Plate Liner / Frame Plate Liner / Impeller / Frame Plate Liner Insert / Expeller

Ceramic Slurry Pump Spares
Throat Bush / Impeller / Frame Plate Liner / Frame Plate Liner Insert

Standard Slurry Pump Spare Parts Codes List:

Basic Part Number	Description	Basic Part Number	Description
001	Adjusting Screw	080	Stepped Washer
003	Base	081	Keeper Plate
004	Bearing Housing	083	Throatbush
005	Bearing Assembly	085	Throatbush Cotter
008	Bearing Sleeve	089	Bearing Seal
009	Bearing	090	Shaft Seal
011	Clamp Washer	092	Sump Pump Casing
012	Clamp Bolt	102	Sump Pump Column
013	Cover Plate	108	Piston Ring
015	Cover Plate Bolt	109	Shaft Sleeve O-Ring
017	Cover Plate Liner	110	Volute Liner
018	Cover Plate Liner – Throatbush	111	Packing Ring
019	Sump Pump Mounting Plate	112	Throatbush
021	Impeller – Two Vanes Open	114	Impeller – Six Vanes Open
023	Cover Plate Liner Stud	116	Sump Pump Strainer
024	End Cover	117	Shaft Spacer
025	End Cover Shim	118	Lantern Restrictor
026	Frame Plate Liner Stud	122	Seal Ring
027	End Cover Set Screw	124	Volute Cover Seal
028	Expeller	125	Volute Frame Seal
029	Expeller Ring	126	Gland Clamp Bolt
032	Frame Plate	127	Impeller – Five Vanes Open
034	Frame Plate Bolt	130	Flange
036	Frame Plate Liner	131	Gravel Pump Bowl
039	Frame Plate Liner Stud	132	Discharge Joint Ring
040	Frame Plate Liner Insert Bolt	134	Clamp Ring
041	Frame Plate Liner Insert	135	Clamp Ring
043	Frame Plate Liner	137	Impeller – Three Vanes Closed
044	Gland	138	Grease Cup Adaptor
045	Gland Bolt	143	Volute Seal Holder
046	Grease Retainer	144	Volute Seal Holder Stud
049	Impeller – Eight Vanes Closed	145	Impeller – Four Vanes Closed
051	Impeller – Two Vanes Open	147	Impeller – Five Vanes Closed
052	Impeller – Three Vanes Open	154	Sump Pump Discharge Pipe
053	Impeller – Eight Vanes Open	179	Shaft Sleeve Spacer
056	Impeller – Four Vanes Open	184	Sump Pump Flinger
058	Impeller – Six Vanes Closed	190	Suction Cover
060	Intake Joint Ring	191	Impeller – Eight Vanes Open
061	Labyrinth Locknut	204	Discharge Joint
062	Labyrinth	206	Sump Pump Impeller
063	Lantern Ring	217	Impeller O-Ring
064	Impeller Sealing O-Ring	221	Flange
066	Motor Support Bolt	239	Release Collar
067	Neck Ring	241	Lip Seal Gland
070	Shaft Key	290	Sump Pump Spacer
073	Shaft	292	Door Clamp Plate
075	Shaft Sleeve	322	Sump Pump Suction Pipe
076	Shaft Sleeve – Long Type	360	Mechanical Seal Adaptor
078	Stuffing Box	424	Mechanical Seal Shaft sleeve
079	Expeller Ring Stud

Label: 10/8E M slurry pumps 8/6E AH mining pumps parts 6/4D AH metal slurry pumps 4/3C AH minerals pumps and spares China AH centrifugal pumps spares
