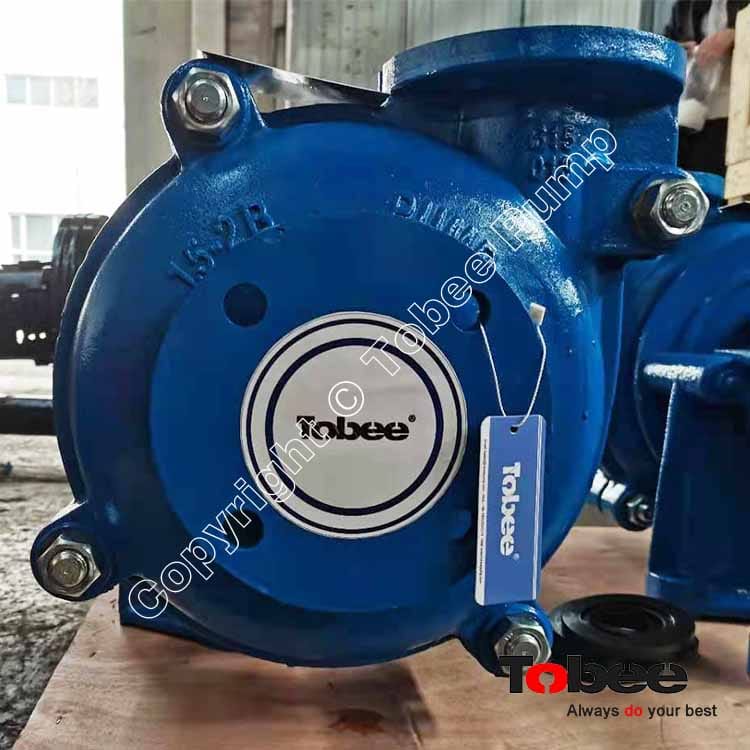

Tobee® 2/1.5B-AH Slurry Pump is designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. It widely used for Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling.
Design Features:
√ The Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and lowest maintenance
√ The Large, open internal passages designed to reduce internal velocities, maximize wear life and lowest maintenance
√ Heavy duty construction with through-bolt design provides ease of maintenance and Min downtime
√ The Replaceable and Interchangeable wet end parts are lower the stocking cost, easy to repair and Min downtime
√ The Ductile iron fully lined casing provides durability, strength, safety, and long service life recommended while the Grey iron liner is the economic solution could meet the most customers required especially when you don’t need the pumps work at 24x7
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life and the mean time between failures
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life, which is another way to increase the mean time between failures
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime
√ Lower NPSH requirements results in enhanced hydraulic performance and extended the wear life
√ The metal or rubber parts are available for different work conditions Max the wear life and lowest the maintenance cost
Tobee® 2/1.5 B AH Slurry Pump Performance Parameters:
|
Model |
Max. Power (kw) |
Materials |
Clear Water Performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff.η (%) |
NPSH (m) |
|||
|
2/1.5B-AH |
15 |
Metal |
Metal |
32.4~72 |
6~58 |
1200~3200 |
45 |
3.5~8 |
5 |

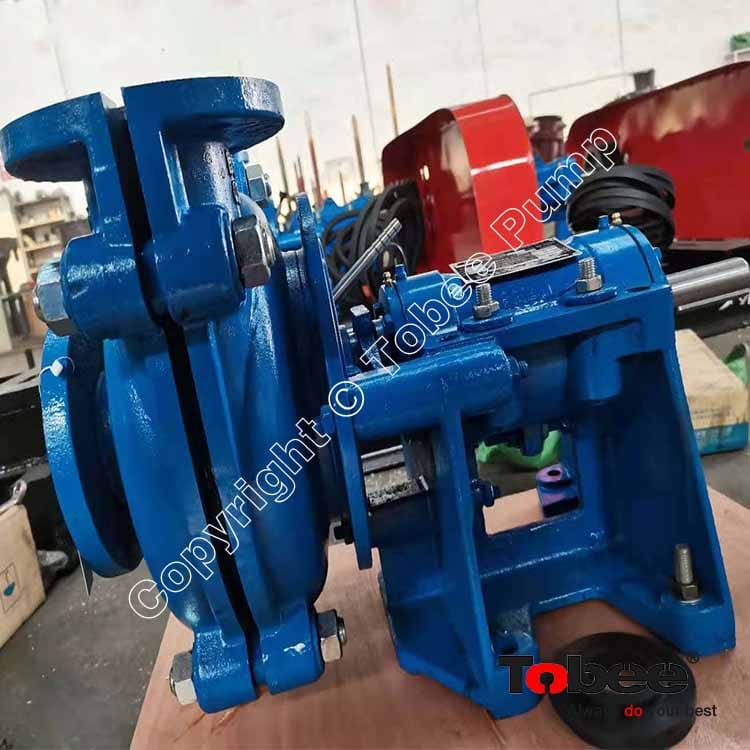

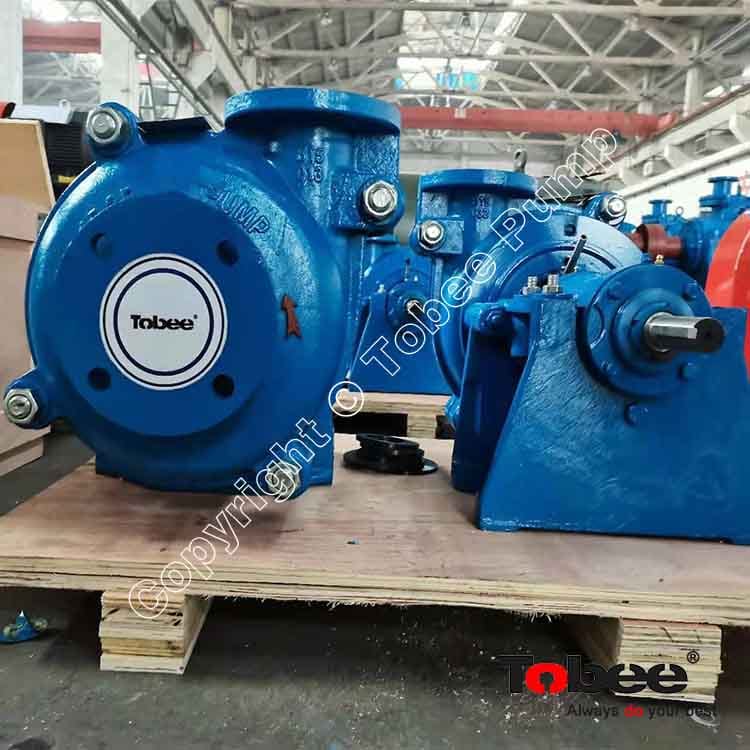

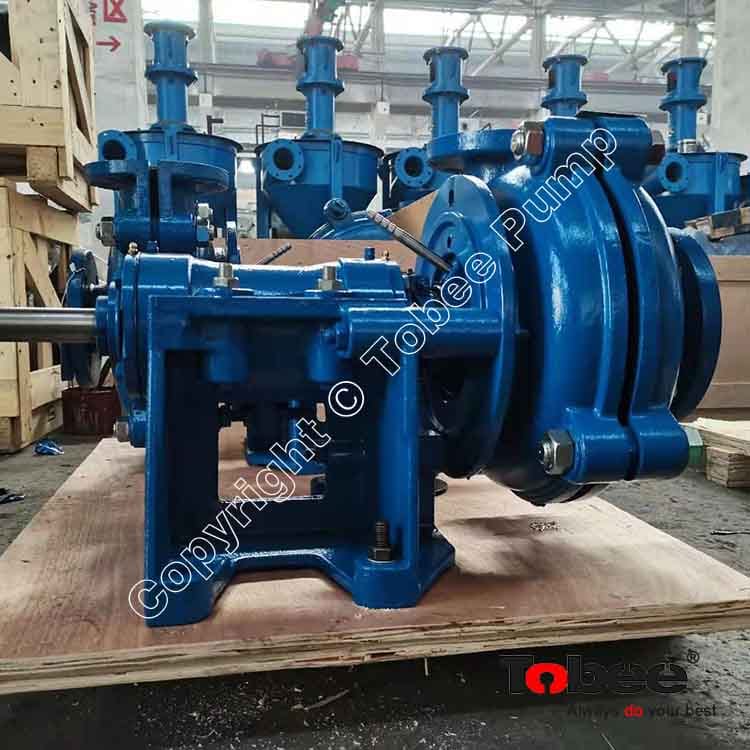

Tobee® 2×1.5 B-AH Centrifugal Heavy Duty Slurry Pump is designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
The pump can be used in many applications, such as Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling.
