Home > SLURRY PUMP PARTS > China 10-10TC Cyklo Pump Impeller TC25191-A05A for Sale

China 10-10TC Cyklo Pump Impeller TC25191-A05A for Sale

(1 Reviews)

TB-TC25191-A05A

Product Brands: Tobee

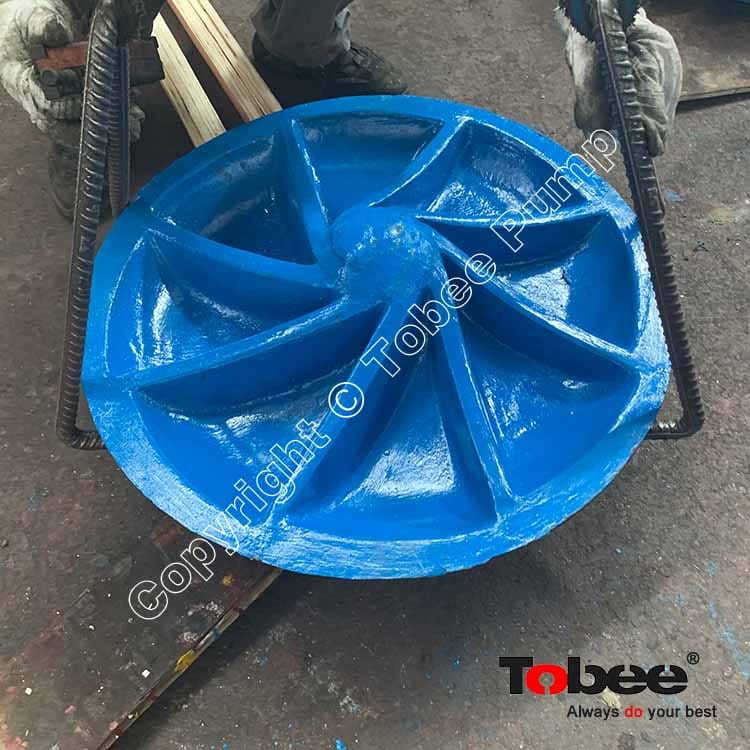

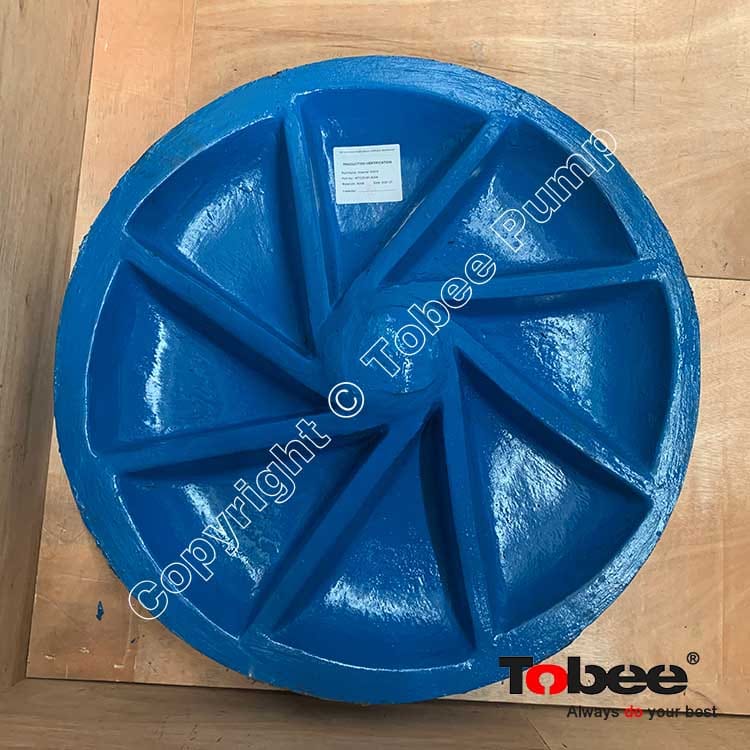

TC25191-A05A Impeller is used for Cyklo 10-10TC Horizontal Pump.

price:

$1349.00 $1599.00

Parts Code:

TC25191-A05A

Pump model:

10-10TC

Quantity:

- + (20 available)
Add to Favorite Items (9)

Sales: 5+

TC25191-A05A Impeller is used for Cyklo 10-10TC Horizontal Pump.



The recessed impeller design, together with the large volume casing, has allowed the impeller vanes to be positioned outside of the general flowpath of the fluid. This results in the pump's large particle handling capability as well as very low particle degradation due to the limited vane interaction with the medium being pumped.



The Cyklo (TC) horizontal type hard metal wet end fitted pump range is applied in situations where non-clog or gentle pumping features of the TC are required. The vortex type priciple is applied to avoid damaging particles going through the pump.



TC Pump Key Features:

• Unlined all-metal wet end is suitable for horizontal and vertical configurations
• Double suction with unique recessed open impeller design to create vortex action
• Vortex design transfers energy to the medium being pumped which enables "soft" transfer of solids to limit particle degaradation
• Equally sized inlets and outlets determine maximum particle size the pump can handle limiting potential blocking
• Hard metal fitted for longer operating life
• Large volume casing design reduces internal velocities further decreasing wear and particle degradation



10-10 TC Pump Structure Drawing:

China 10-10TC Cyklo Pump Impeller TC25191-A05A for Sale

TC Pump Applications:

Carbon Transfer Duties
“Soft” Particles
Sewage and Effluent
Sugar Beet
Diamond Concentrate
Low Shear Duties
Food Industry
General Spillage
