Name: Ceramic material Slurry Pump Shaft Sleeve Parts E075J04
Price: 300.00 USD

Ceramic material Slurry Pump Shaft Sleeve Parts E075J04

Product Brands: Tobee

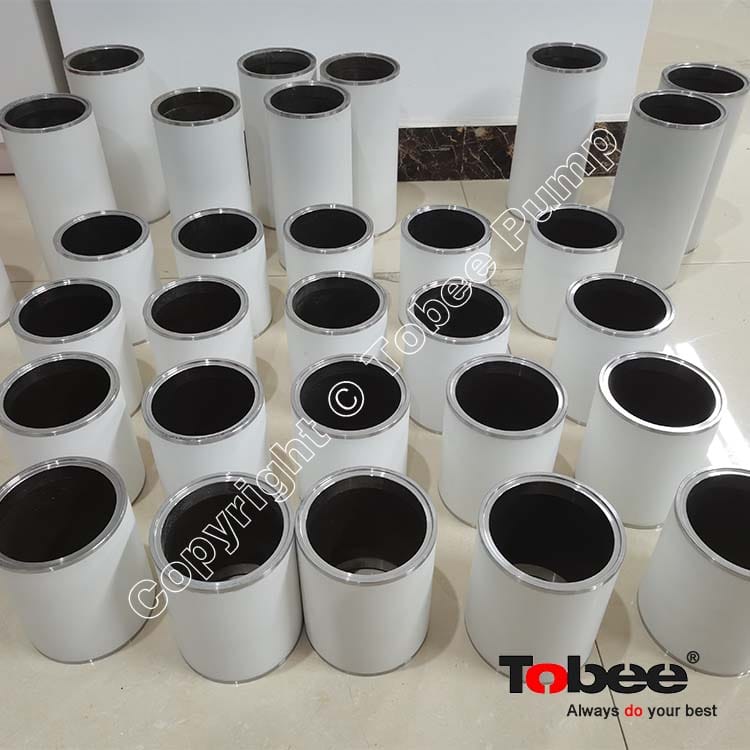

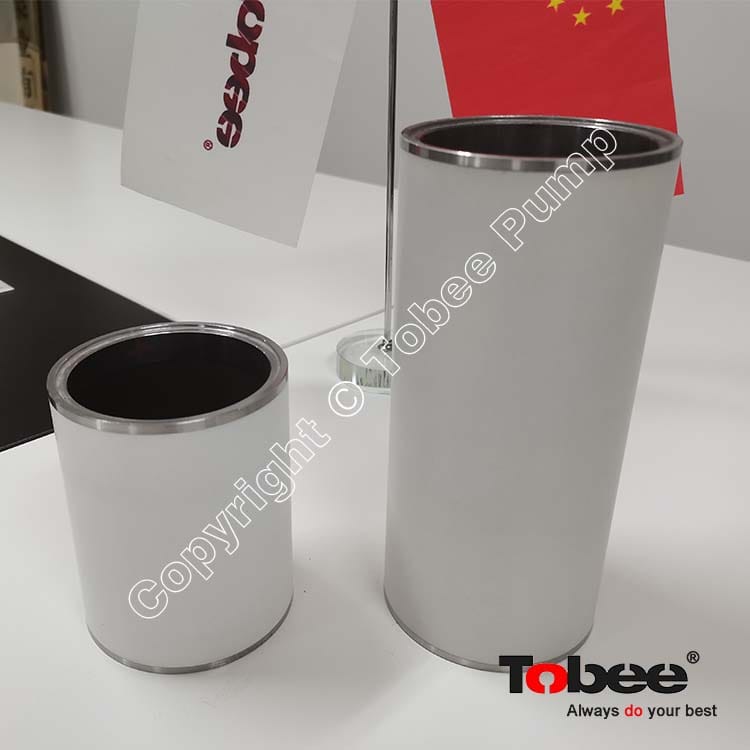

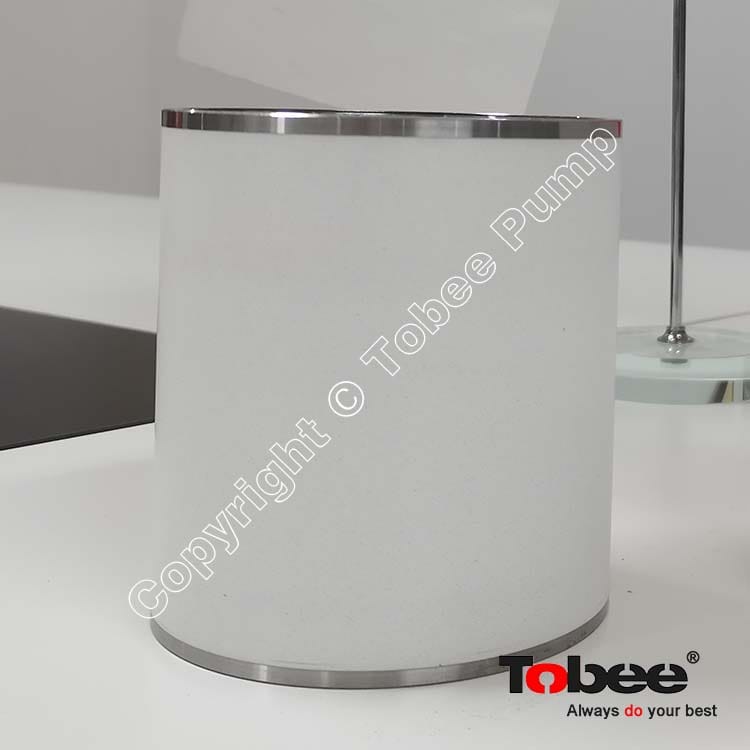

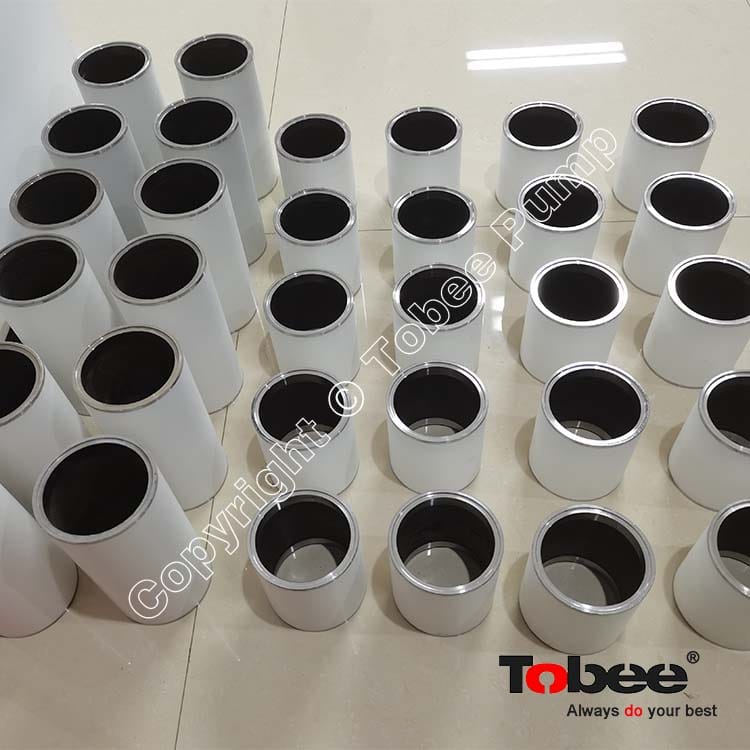

Tobee® White Ceramic Short type Shaft Sleeve Parts E075J04 are used for 6x4E-AH Slurry Pumps. It also can be suit for 8x6E-AH Slurry Pumps.

price:

$300.00 $360.00

Part Codes:

E075J04

Pump Models:

6x4E-AH Slurry Pump

Material:

J04

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® White Ceramic Short type Shaft Sleeve Parts E075J04 are used for 6x4E-AH Slurry Pumps. It also can be suit for 8x6E-AH Slurry Pumps.

Tobee® Slurry Pump Ceramic Shaft Sleeve which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee’s slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.

Tobee® 6x4E-AH Slurry Pump Shaft Sleeve Parts List:

Shaft Sleeve Code	AH Slurry Pump	Shaft Sleeve Materials
B075	1.5/1B-AH, 2/1.5B-AH	SS420, SS304, SS316L, Ceramic
C075	3/2C-AH, 4/3C-AH	SS420, SS304, SS316L, Ceramic
D075	4/3D-AH, 6/4D-AH	SS420, SS304, SS316L, Ceramic
E075	6/4E-AH, 8/6E-AH, 8/6R-AH	SS420, SS304, SS316L, Ceramic
F075	8/6F-AH	SS420, SS304, SS316L, Ceramic
FAM075	10/8F-AH, 12/10F-AH, 14/12F-AH	SS420, SS304, SS316L, Ceramic
SH075	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	SS420, SS304, SS316L, Ceramic
TH075	16/14TU-AH	SS420, SS304, SS316L, Ceramic
TH076	16/14TU-AH	SS420, SS304, SS316L, Ceramic
Shaft Sleeve Code	HH Slurry Pump	Shaft Sleeve Materials
CH075	1.5/1C-HH	SS420, SS304, SS316L, Ceramic
D075	3/2D-HH	SS420, SS304, SS316L, Ceramic
E075	4/3E-HH	SS420, SS304, SS316L, Ceramic
F075	6/4F-HH	SS420, SS304, SS316L, Ceramic
Shaft Sleeve Code	M Slurry Pump	Shaft Sleeve Materials
E075	10/8E-M	SS420, SS304, SS316L, Ceramic
F075	10/8F-M	SS420, SS304, SS316L, Ceramic
Shaft Sleeve Code	L Slurry Pump	Shaft Sleeve Materials
A075	20A-L	SS420, SS304, SS316L, Ceramic
BSC075	50B-L	SS420, SS304, SS316L, Ceramic
C075	75C-L	SS420, SS304, SS316L, Ceramic
D075	100D-L	SS420, SS304, SS316L, Ceramic
E075	150E-L	SS420, SS304, SS316L, Ceramic
S075	300S-L	SS420, SS304, SS316L, Ceramic
Shaft Sleeve Code	G(H) Gravel Pump	Shaft Sleeve Materials
D075	6/4D-G	SS420, SS304, SS316L, Ceramic
E075	8/6E-G	SS420, SS304, SS316L, Ceramic
F075	10/8F-G	SS420, SS304, SS316L, Ceramic
G075	12/10G-G, 14/12G-G, 12/10G-GH	SS420, SS304, SS316L, Ceramic
TH075	14/12TU-G,16/14TU-G,16/14TU-GH	SS420, SS304, SS316L, Ceramic
TH076	14/12TU-G, 16/14TU-G, 16/14TU-GH	SS420, SS304, SS316L, Ceramic

Tobee® Ceramic slurry pump parts including Impeller, Throat bush, Volute Liner, Shaft sleeves etc, The ceramic material is Si3N4-SiC in sintering or pouring process.

Ceramic slurry pump parts are widely used in coal power generation, non-ferrous foundry, Mineral Processing, Coal Prep, Cyclone Feeds, Aggregate Processing, Fine Primary Mill Grinding, Chemical Slurry Service, Tailings, Secondary Grinding, Industrial Processing, Pulp and Paper, Food Processing, Cracking Operations, Ash Handling and other high corrosion and wear conditions.

Label: White Ceramic Shaft Sleeve Slurry Pump Shaft Sleeve E075J04 Ceramic material Slurry Pump Shaft Sleeve Parts White Ceramic Short type Shaft Sleeve 6x4E-AH Slurry Pump Parts Shaft Sleeve
