Tobee^® AH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling high abrasive, high density slurries.

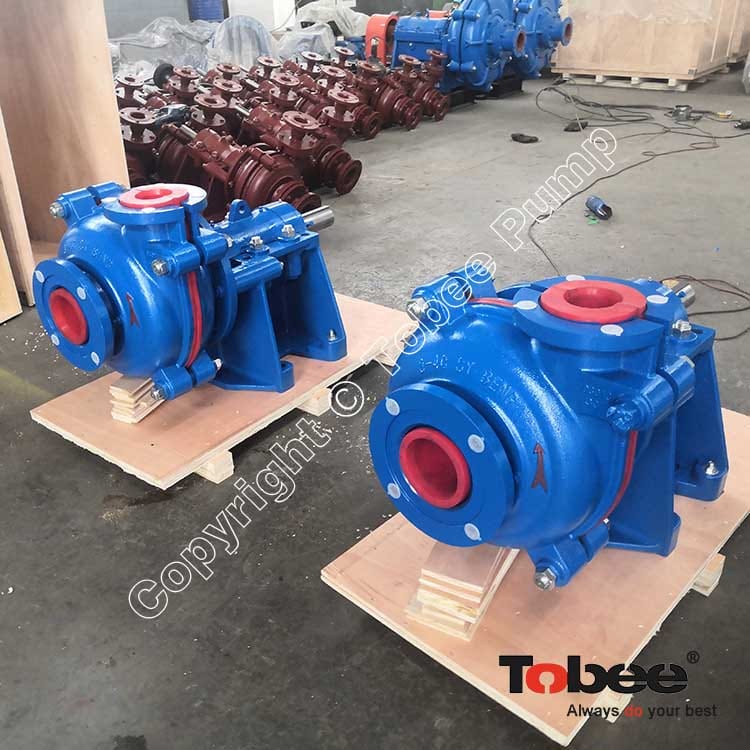

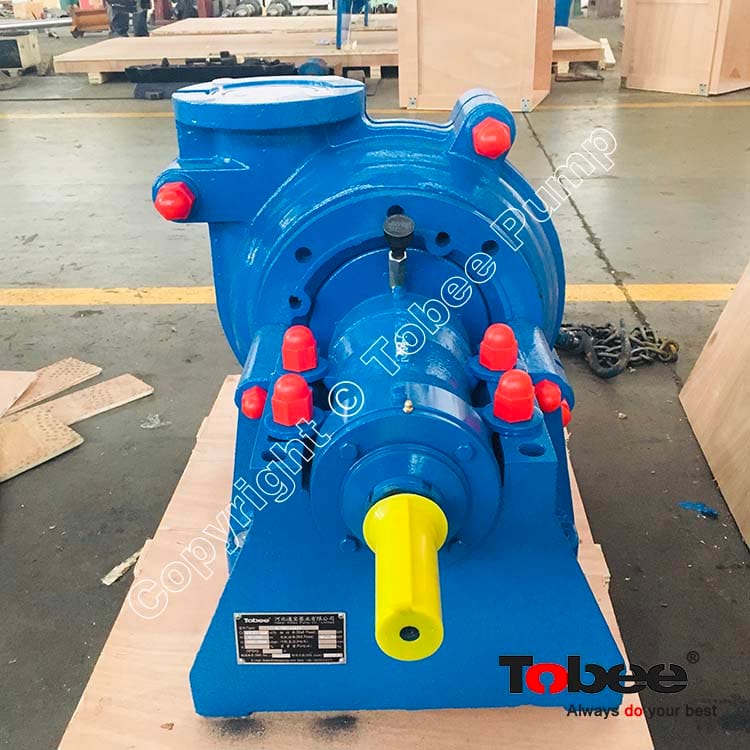

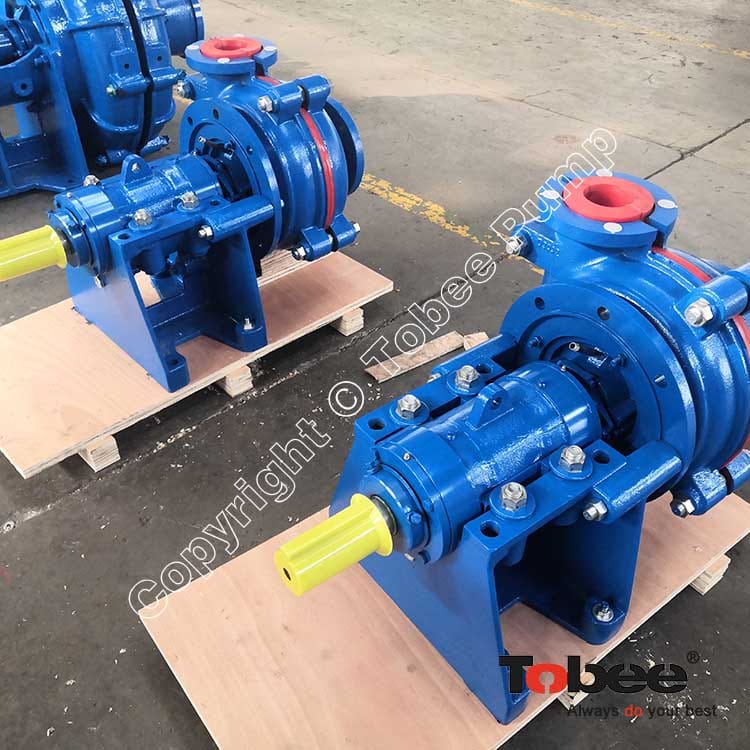

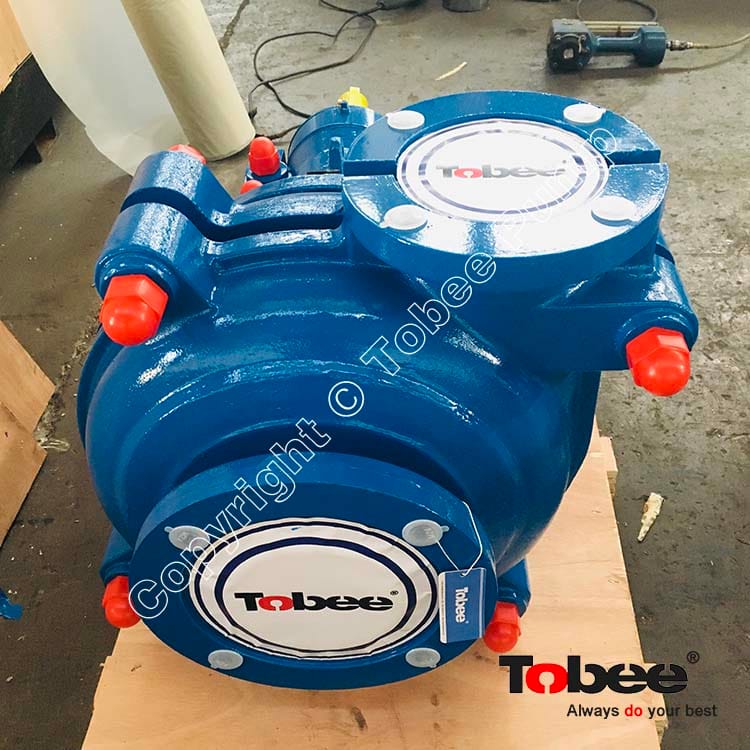

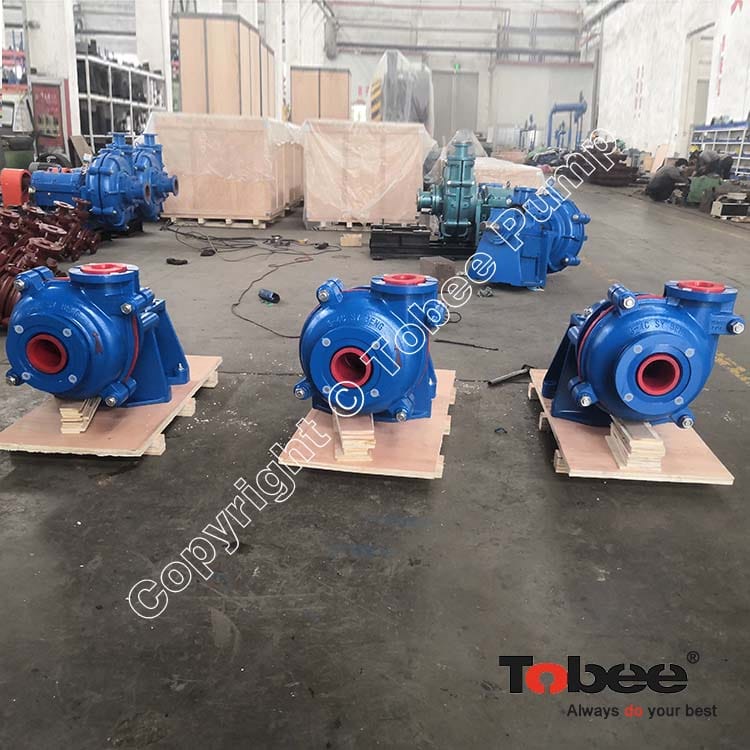

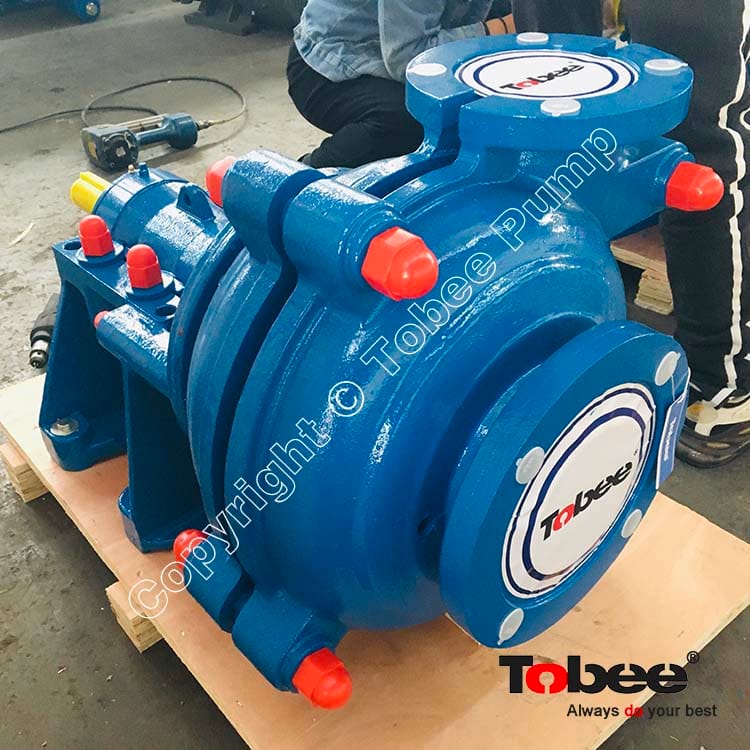

Name: Centrifugal Brine Purification Scrubber Recirc Pump
Price: 6100.00 USD

Tobee® AH Slurry Pump

SPECIFICATIONS:

Size: 1" to 22"
Capacity: 3.6-5400 m3/h
Head: 6-125 m
Handing solids: 0-130mm
Concentration: 0%-70%
Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc.

Design Features:

√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

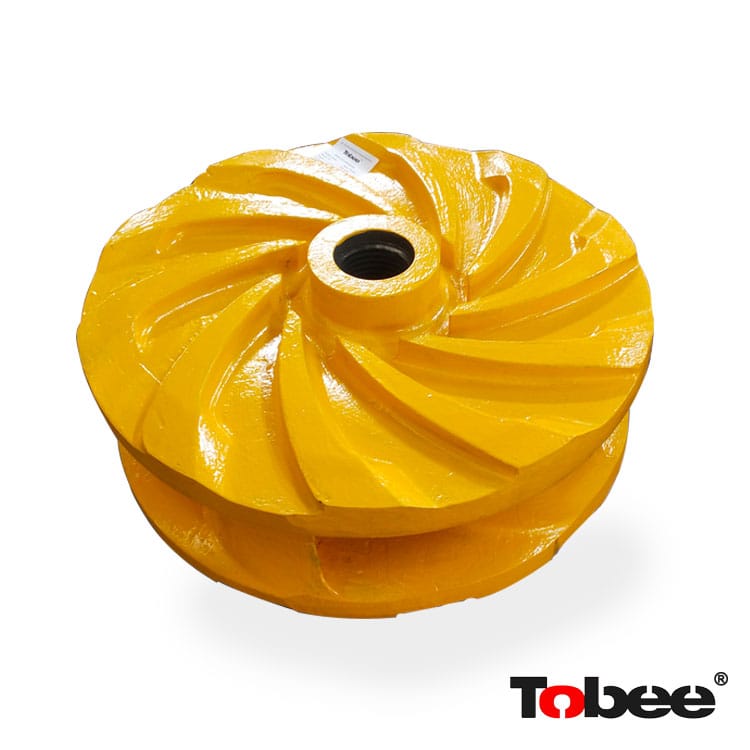

√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Tobee^® AH Series Slurry Pumps Performance Parameters:

Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-AH	15	M	M	12.6-28.8	6-68	1200-3800	40	2-4	5
1.5/1B-AH	15	RU	RU	10.8-25.2	7-52	1400-3400	35	2-4	3
1.5/1B-HH	30	M	M	16.2-34.2	25-92	1400~2200	20	1-5.5	5
2/1.5B-AH	15	M	M	32.4-72	6-58	1200-3200	45	3.5-8	5
2/1.5B-AH	15	RU	RU	25.2-54	5.5-41	1000-2600	50	2.5-5	5
3/2C-AH	30	M	M	39.6-86.4	12-64	1300-2700	55	4-6	5
3/2C-AH	30	RU	RU	36-75.6	13-39	1300-2100	60	2-4	5
3/2D-HH	60	M	M	68.4-126.8	25-87	850-11400	47	3-7.5	5
4/3C-AH	30	M	M	86.4-198	9-52	1000-2200	71	4-6	5
4/3C-AH	30	RU	RU	79.2-180	5-34.5	800-1800	59	3-5	5
4/3D-AH	60	M	M	97.2-198	9-53	1000-2200	71	4-6	5
4/3D-AH	60	RU	RU	79.2-180	5-34.5	800-1800	59	3-5	5
4/3E-HH	120	M	M	126-252	12-97	600-1400	50	2-5	5
6/4D-AH	60	M	M	162-360	12-56	800-1550	65	5-8	5
6/4D-AH	60	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4E-AH	120	M	M	162-360	12-56	800-1550	65	5-8	5
6/4E-AH	120	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4S-HH	560	M	M	324-720	30-118	600-1000	64	3-8	5
8/6E-AH	120	M	M	360-828	10-61	500-1140	72	2-9	5
8/6E-AH	120	RU	RU	324-720	7-49	400-1000	65	5-10	5
8/6R-AH	300	M	M	360-828	10-61	500-1140	72	2-9	5
8/6R-AH	300	RU	RU	324-720	7-49	400-1000	65	5-10	5
10/8ST-AH	560	M	M	612-1368	11-61	400-850	71	4-10	5
10/8ST-AH	560	RU	RU	540-1188	12-50	400-750	75	4-12	5
10/8E-M	120	M	M	666-1440	14-60	600-1100	73	4-10	5
10/8E-M	120	RU	RU	540-1188	10-42	500-900	79	5-9	5
12/10ST-AH	560	M	M	936-1980	7-68	300-800	82	6	5
12/10ST-AH	560	RU	RU	720-1620	7-45	300-650	80	2.5-7.5	5
14/12ST-AH	560	M	M	1260-2772	13-63	300-600	77	3-10	5
14/12ST-AH	560	RU	RU	1152-2520	13-44	300-500	79	3-8	5
16/14ST-AH	560	M	M	1368-3060	11-63	250~550	79	4-10	5
16/14TU-AH	1200	M	M	1368-3060	11-63	250~550	79	4-10	5
18/16TU-AH	1200	M	M	2160-5040	8-66	200-500	80	4.5-9	5
20/18TU-AH	1200	M	M	2520-5400	13-57	200-400	85	5-10	5

Tobee^® AH Series Slurry Pumps Outline Dimensions:

Warman Centrifugal Slurry AH Pump

Pump Size	A	B	C	D	U	Key size	E	G	H	J	K	L	M	Approximate mass (kg)
Pump Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	metal	rubber
1.5/1 BAH	583	295	248	197	28	8X7	79	181	98	171	46	-	106	90	75
2/1.5 BAH	596	295	248	197	28	8X7	79	203	114	184	33	-	115	100	85
3/2 CAH	777	406	311	254	42	12X8	122	238	138	210	67	-	156	200	160
4/3 CAH	848	406	311	254	42	12X8	121	292	149	262	20	-	192	300	230
4/3 DAH	948	492	364	330	65	18X11	152	292	149	262	100	-	192	380	280
6/4 DAH	1028	492	364	330	65	18X11	150	406	229	338	12	-	228	660	420
6/4 EAH	1188	622	448	457	80	22X14	220	406	229	338	139	-	228	810	620
8/6 EAH	1318	622	448	457	80	22X14	222	551	318	460	-	62	292	1510	980
8/6 FAH	1518	857	635	610	100	28X16	279	551	318	460	91	-	304	1650	1160
10/8 FAH	1650	990	705	610	100	28X16	279	667	419	635	-	12	334	2650	1970
10/8 STAH	1753	1150	780	650	120	32X18	280	667	419	635	28	-	334	3450	3210
12/10 FAH	1721	990	705	610	100	28X16	279	749	464	673	-	104	381	4080	3040
12/10 STAH	1827	1150	780	650	120	32X18	280	749	464	673	-	64	381	4470	3730
12/10 TAH	2204	1150	1040	650	150	36X20	350	749	464	673	-	64	381	5200	4570
14/12 FAH	1777	990	705	610	100	28X16	279	944	629	832	-	264	406	5900	4180
14/12 STAH	1879	1150	780	650	120	32X18	280	944	629	832	-	224	406	5490	4870
16/14 TUAH	2320	1460	1050	900	150	36X20	350	1048	660	889	-	84	451	10560	7860
20/18 TUAH	2475	1460	1050	900	150	36X20	350	1414	940	1230	-	417	580	17760	12890

Tobee^® AH Series Slurry Pumps Applications:

Centrifugal Brine Purification Scrubber Recirc Pump

AH Series slurry pumps can be used in various of applications, like Minerals processing, Pipeline transport, High velocity hydraulic transport, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.

Accroding to different working conditions, AH series slurry pumps can be use as minerals process pump, Booster sand pump, Gypsum slurry pump, Classifying Cyclone Feed Pump, Dewatering Screen Pump, Thickner Area Sump Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, DMC Feed Pump, Thickener U/F Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Fines Area Sump Pump, Transfer to feedprep Pump, Metboom Return Pump, Slime Pond Sump Pump, Thickner Underflow Pump, Thickner Tailings Pump, Thickner Underflow Pump, Magnetite Sump Slurry Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Dilute Medium Slurry Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Correct Medium Slurry Pump, Mixing tank slurry Pump, Centrifuge Effl. Transfer Slurry Pump, Fines Refuse Effl. Transfer Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, BPF Filtrate Effl. Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.

* Tobee^® is a registered trademark and does not represent or is not in any way affiliated with Warman^® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* Tobee^® AH slurry pumps and spares are only interchangeable with Warman^® AH slurry pumps and spares.

* This document is the property of Tobee^® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
