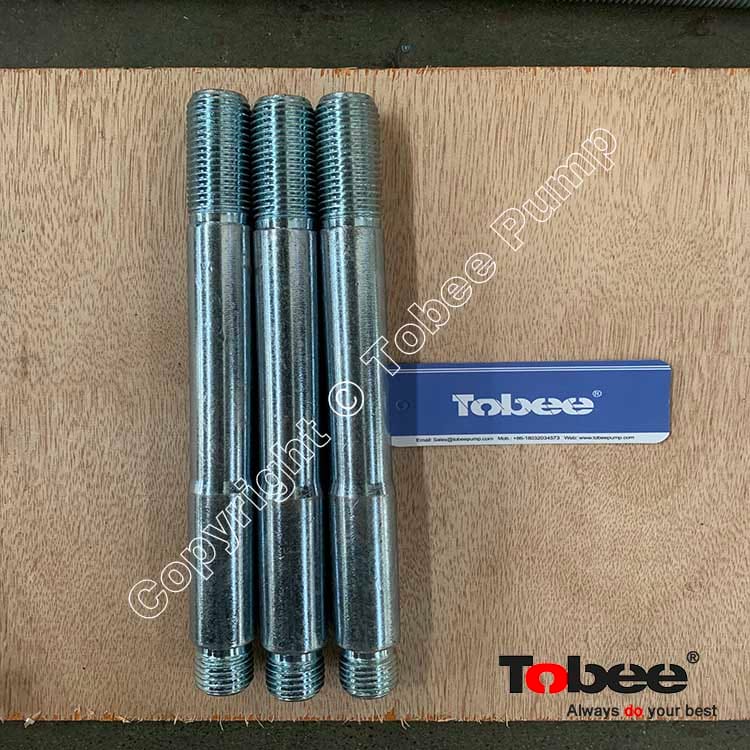

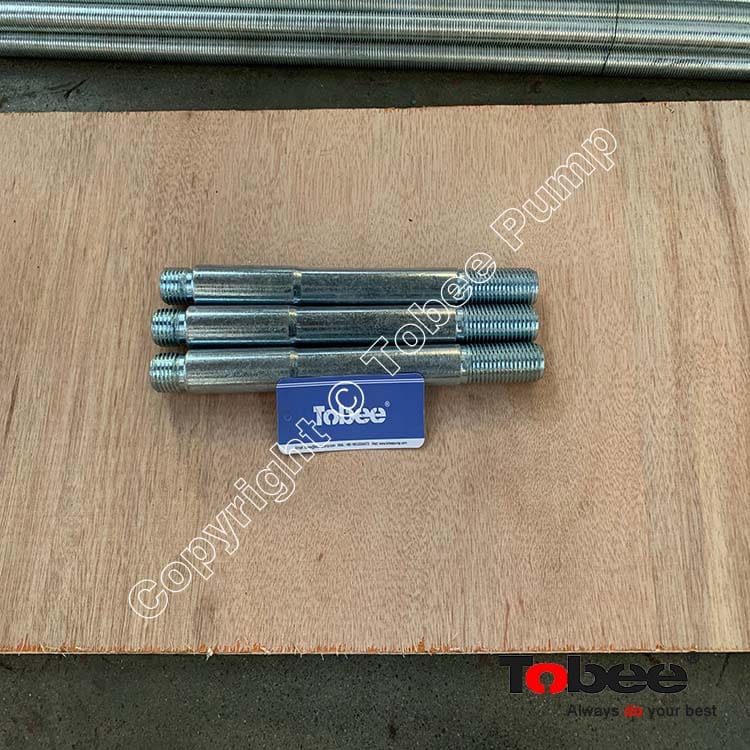

C034 Frame Plate Bolt is for 3/2 AH Slurry Pump.
Tobee® manufactures high quality metal, rubber and polyurethane replacement slurry pump parts fully compatible with pumps parts, and provides value to customers through fair pricing and lead times that are some of the lowest in the market. Tobee stocks millions of dollars of slurry pumps and slurry pump parts globally, all of which are interchangeable with Warman® pump parts. Tobee also maintains a global distribution network that stands ready to serve your process needs.
|
Basic Part Number |
Description |
Basic Part Number |
Description |
|
001 |
Adjusting Screw |
080 |
Stepped Washer |
|
003 |
Base |
081 |
Keeper Plate |
|
004 |
Bearing Housing |
083 |
Throatbush |
|
005 |
Bearing Assembly |
085 |
Throatbush Cotter |
|
008 |
Bearing Sleeve |
089 |
Bearing Seal |
|
009 |
Bearing |
090 |
Shaft Seal |
|
011 |
Clamp Washer |
092 |
Sump Pump Casing |
|
012 |
Clamp Bolt |
102 |
Sump Pump Column |
|
013 |
Cover Plate |
108 |
Piston Ring |
|
015 |
Cover Plate Bolt |
109 |
Shaft Sleeve O-Ring |
|
017 |
Cover Plate Liner |
110 |
Volute Liner |
|
018 |
Cover Plate Liner – Throatbush |
111 |
Packing Ring |
|
019 |
Sump Pump Mounting Plate |
112 |
Throatbush |
|
021 |
Impeller – Two Vanes Open |
114 |
Impeller – Six Vanes Open |
|
023 |
Cover Plate Liner Stud |
116 |
Sump Pump Strainer |
|
024 |
End Cover |
117 |
Shaft Spacer |
|
025 |
End Cover Shim |
118 |
Lantern Restrictor |
|
026 |
Frame Plate Liner Stud |
122 |
Seal Ring |
|
027 |
End Cover Set Screw |
124 |
Volute Cover Seal |
|
028 |
Expeller |
125 |
Volute Frame Seal |
|
029 |
Expeller Ring |
126 |
Gland Clamp Bolt |
|
032 |
Frame Plate |
127 |
Impeller – Five Vanes Open |
|
034 |
Frame Plate Bolt |
130 |
Flange |
|
036 |
Frame Plate Liner |
131 |
Gravel Pump Bowl |
|
039 |
Frame Plate Liner Stud |
132 |
Discharge Joint Ring |
|
040 |
Frame Plate Liner Insert Bolt |
134 |
Clamp Ring |
|
041 |
Frame Plate Liner Insert |
135 |
Clamp Ring |
|
043 |
Frame Plate Liner |
137 |
Impeller – Three Vanes Closed |
|
044 |
Gland |
138 |
Grease Cup Adaptor |
|
045 |
Gland Bolt |
143 |
Volute Seal Holder |
|
046 |
Grease Retainer |
144 |
Volute Seal Holder Stud |
|
049 |
Impeller – Eight Vanes Closed |
145 |
Impeller – Four Vanes Closed |
|
051 |
Impeller – Two Vanes Open |
147 |
Impeller – Five Vanes Closed |
|
052 |
Impeller – Three Vanes Open |
154 |
Sump Pump Discharge Pipe |
|
053 |
Impeller – Eight Vanes Open |
179 |
Shaft Sleeve Spacer |
|
056 |
Impeller – Four Vanes Open |
184 |
Sump Pump Flinger |
|
058 |
Impeller – Six Vanes Closed |
190 |
Suction Cover |
|
060 |
Intake Joint Ring |
191 |
Impeller – Eight Vanes Open |
|
061 |
Labyrinth Locknut |
204 |
Discharge Joint |
|
062 |
Labyrinth |
206 |
Sump Pump Impeller |
|
063 |
Lantern Ring |
217 |
Impeller O-Ring |
|
064 |
Impeller Sealing O-Ring |
221 |
Flange |
|
066 |
Motor Support Bolt |
239 |
Release Collar |
|
067 |
Neck Ring |
241 |
Lip Seal Gland |
|
070 |
Shaft Key |
290 |
Sump Pump Spacer |
|
073 |
Shaft |
292 |
Door Clamp Plate |
|
075 |
Shaft Sleeve |
322 |
Sump Pump Suction Pipe |
|
076 |
Shaft Sleeve – Long Type |
360 |
Mechanical Seal Adaptor |
|
078 |
Stuffing Box |
424 |
Mechanical Seal Shaft sleeve |
