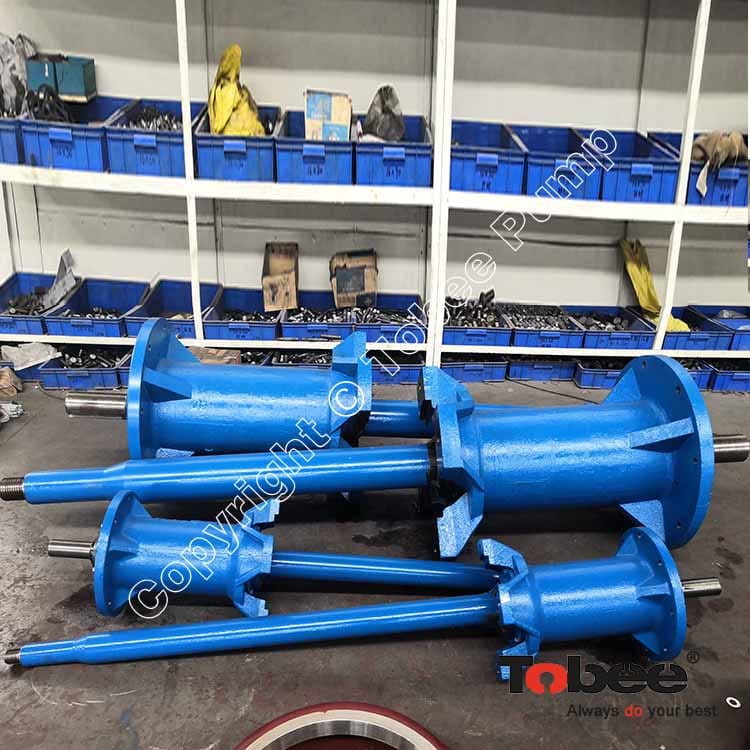

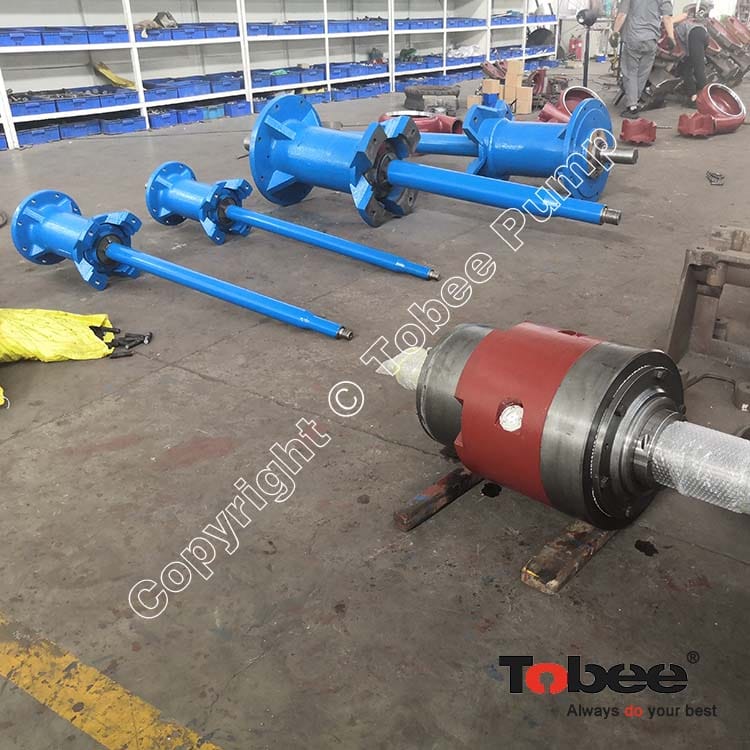

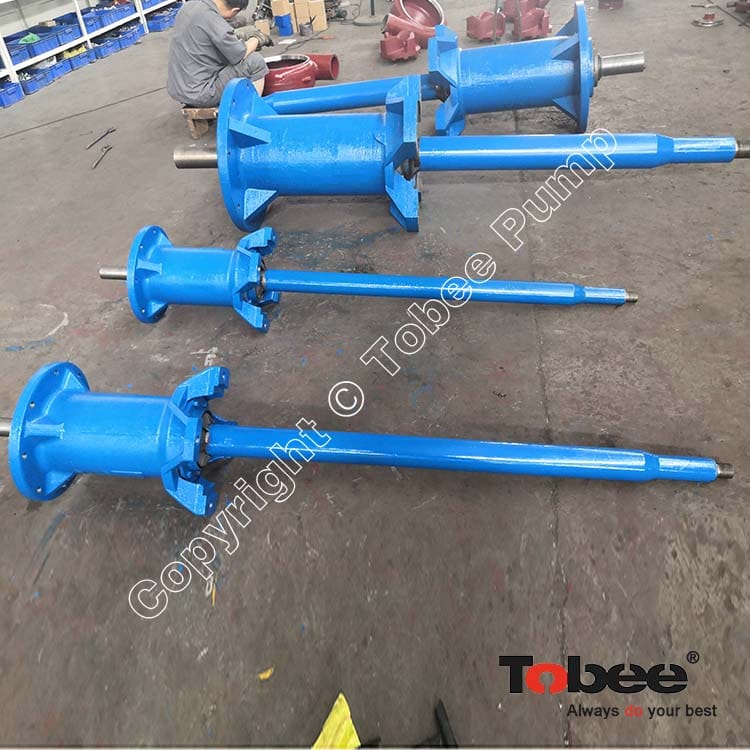

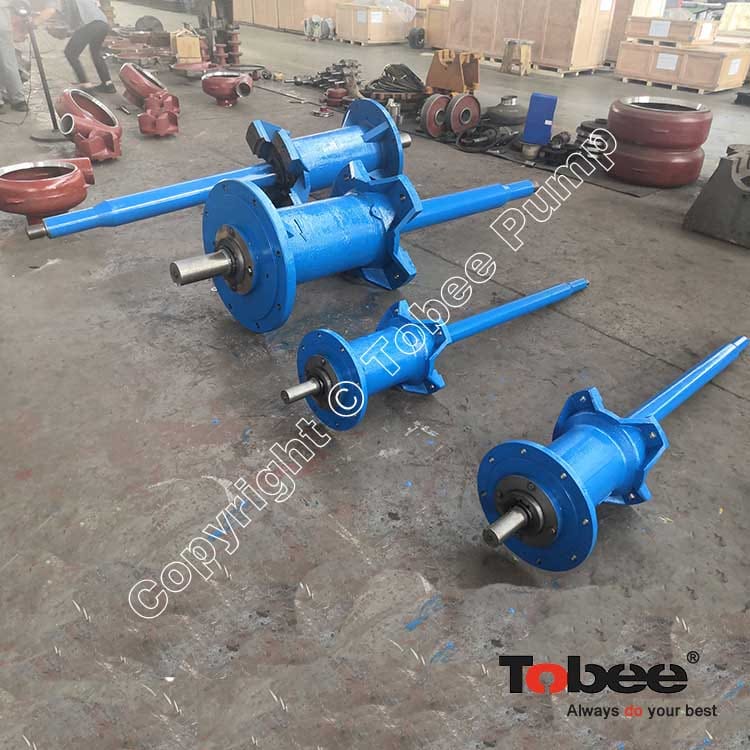

QV65005J Bearing Assembly is one of wearing spares for 65QV-SP Vertical Slurry Pump with 1500mm submerged length,the bearing assembly for slurry pump is used to connect the pump and motor parts to form a complete working system. The stability of the bearing assembly for vertical slurry pump directly affects the operation and service life of the pump.The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft. whether new or re-used after overhaul, should be correctly packed with grease when fitted to the Bearing Assembly.
65 QV SP Vertical Slurry Pump Parts List:
|
No. |
Pump Model |
Part Name |
Basic Part No. |
Part Code |
Material |
|
1 |
65QV-SP |
Bearing Housing |
004 |
QV004-1 |
Ductile |
|
2 |
65QV-SP |
Bearing Sleeve |
008 |
QV008 |
- |
|
3 |
65QV-SP |
Bearing |
009 |
Q009 |
SKF/Timken (Standard) |
|
4 |
65QV-SP |
Bearing |
009D |
Q009D-1 |
SKF/Timken (Standard) |
|
5 |
65QV-SP |
Mounting Plate |
019 |
QV65019 |
Steel |
|
6 |
65QV-SP |
End Cover |
024 |
QV024 |
Ductile |
|
7 |
65QV-SP |
Low End Cover |
024L |
QV024L-1 |
Steel |
|
8 |
65QV-SP |
Key |
- |
QV070 |
Steel |
|
9 |
65QV-SP |
Washer |
- |
60 |
Steel |
|
10 |
65QV-SP |
Shim Set |
025 |
QV025 |
- |
|
11 |
65QV-SP |
Nipple |
- |
M10X1 |
Steel |
|
12 |
65QV-SP |
Name Plate |
- |
- |
- |
|
13 |
65QV-SP |
Rivet |
- |
- |
Steel |
|
14 |
65QV-SP |
Back Liner |
041 |
SP65041 |
Chrome alloy |
|
15 |
65QV-SP |
Suction Joint |
060 |
SP65060 |
- |
|
16 |
65QV-SP |
Lock Nut |
061 |
QV061 |
Steel |
|
17 |
65QV-SP |
Labyrinth |
062 |
QV062 |
Steel |
|
18 |
65QV-SP |
Nipple 45 |
- |
M10X1 |
Steel |
|
19 |
65QV-SP |
O Ring |
064 |
QV064 |
Ductile |
|
20 |
65QV-SP |
Shaft |
073 |
QV65073 |
Steel |
|
21 |
65QV-SP |
Shaft Sleeve Ejector |
077 |
QV077 |
- |
|
22 |
65QV-SP |
Bearing Seal |
089 |
QV089 |
- |
|
23 |
65QV-SP |
Casing |
092 |
Chrome alloy |
|
|
24 |
65QV-SP |
Column |
102 |
QV65102 |
- |
|
25 |
65QV-SP |
Piston Ring |
108 |
Q108 |
Steel |
|
26 |
65QV-SP |
End Cover Set Screw |
- |
D027M |
Steel |
|
27 |
65QV-SP |
Strainer |
116 |
SP65116-1 |
- |
|
28 |
65QV-SP |
Lower Strainer |
116L |
SP65116L |
D21 |
|
29 |
65QV-SP |
Casing Seal |
124 |
D3125 |
- |
|
30 |
65QV-SP |
Discharge Pipe |
154 |
QV65154 |
- |
|
31 |
65QV-SP |
Flinger |
184 |
QV184-1 |
- |
|
32 |
65QV-SP |
Discharge Pipe Gasket |
204 |
SP65204 |
- |
|
33 |
65QV-SP |
Impeller |
206 |
Chrome alloy |
|
|
34 |
65QV-SP |
O Ring |
217 |
QV217 |
Steel |
|
35 |
65QV-SP |
Spacer Set |
290 |
QV290 |
- |
|
36 |
65QV-SP |
Suction Pipe |
322 |
SP65322 |
- |
