Bearing Assembly of 4x3D AH Slurry Pump

Bearing Assembly of 4x3D AH Slurry Pump use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. Bearings use grease lubrication. The shaft seal could use the packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices. Wide performance, good NPSH and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance

Bearing assembly is used to connect the slurry pump and motor parts to form a complete working system. The stability of the slurry pump bearing assembly directly affects the operation and service life of the pump. Before assembling, pre-heat the inner race of the bearing to a temperature below 120℃. The inner race must be fixed next to the shaft shoulder or grease retainer. For double row taper roller bearing, the inner ring, outer ring, and lantern ring come in a set, please do not interchange the components.

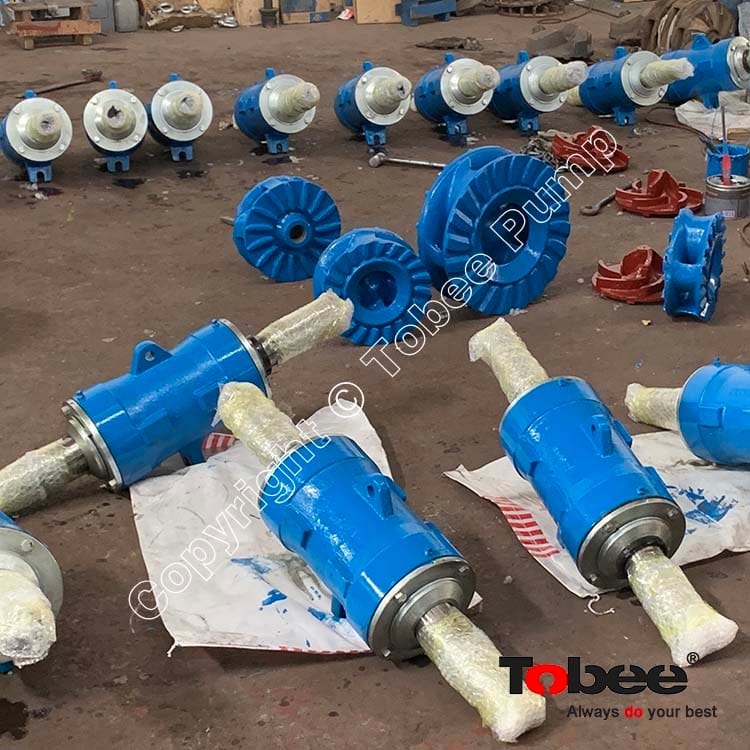

4x3D AH Slurry Pump is a standard horizontal dewatering pump for pumping abrasive slurries, designed for ultra heavy duty applications such as mill discharge, process plant and tailings, high pressure pipelines, as well as other specialty applications.
