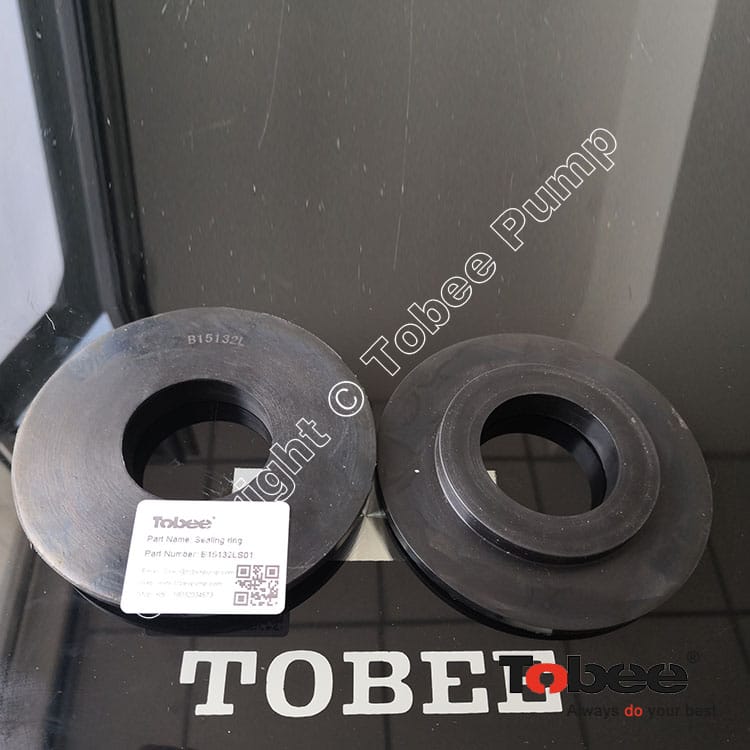

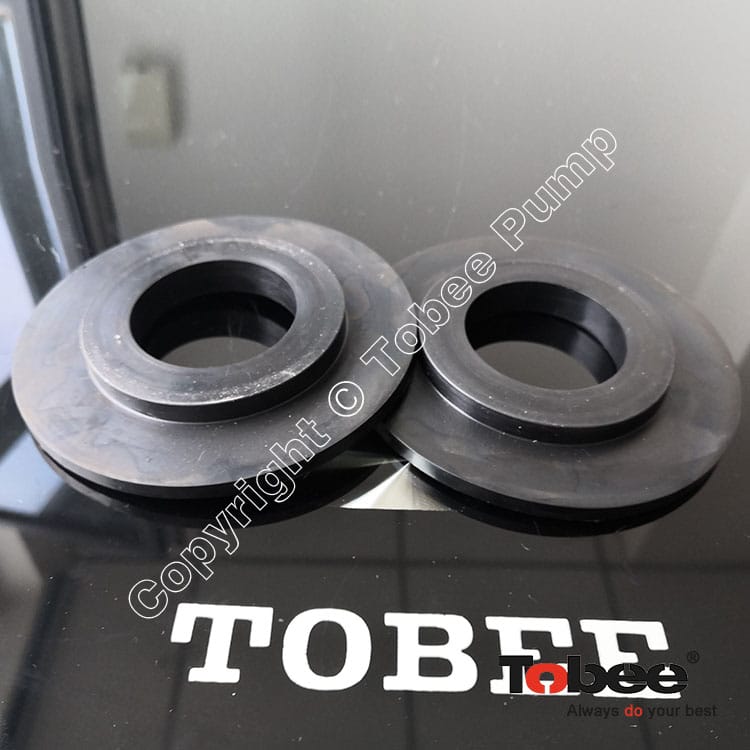

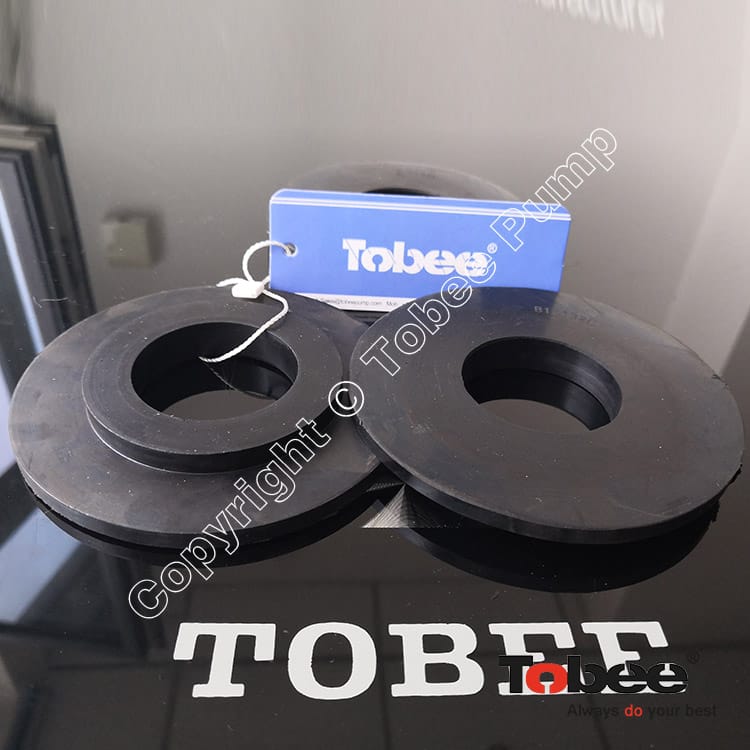

B15132LS01 Slurry pump discharge joint is used to seal the 2x1.5 B-AH slurry pump discharge end, and Slurry pump discharge joint made in rubber material like S01,S12,S42,R55,S31,S14,S10,S51 etc. and act on pipeline or valve connected to the pump discharge end. Slurry pump discharge joint is also one of slurry pump wet end parts which can directorly touch the slurries and play a sealing role of the material.
2x1.5 B-AH slurry pump parts list:
|
No. |
Pump Parts Name |
Pump Model |
Pump Part Code |
Matl. Code |
Unit Weight |
|
1 |
Adjust Screw |
2/1.5B-AH |
B001 |
E62 |
|
|
2 |
Base |
2/1.5B-AH |
B003M |
G01 |
20.0 |
|
3 |
2/1.5B-AH |
B005M |
ZWZ Bearing |
15.5 |
|
|
4 |
Bearing Housing |
2/1.5B-AH |
B004M |
G01 |
7.0 |
|
5 |
Cover Plate |
2/1.5B-AH |
B15013 |
D21 |
14.6 |
|
6 |
Cover Plate Bolt |
2/1.5B-AH |
B015 |
E65 |
|
|
7 |
Cover Plate Liner |
2/1.5B-AH |
B15017 |
R55 |
3.0 |
|
8 |
Discharge Joint |
2/1.5B-AH |
B15132L |
S01 |
0.1 |
|
9 |
End Cover |
2/1.5B-AH |
B024 |
G01 |
0.8 |
|
10 |

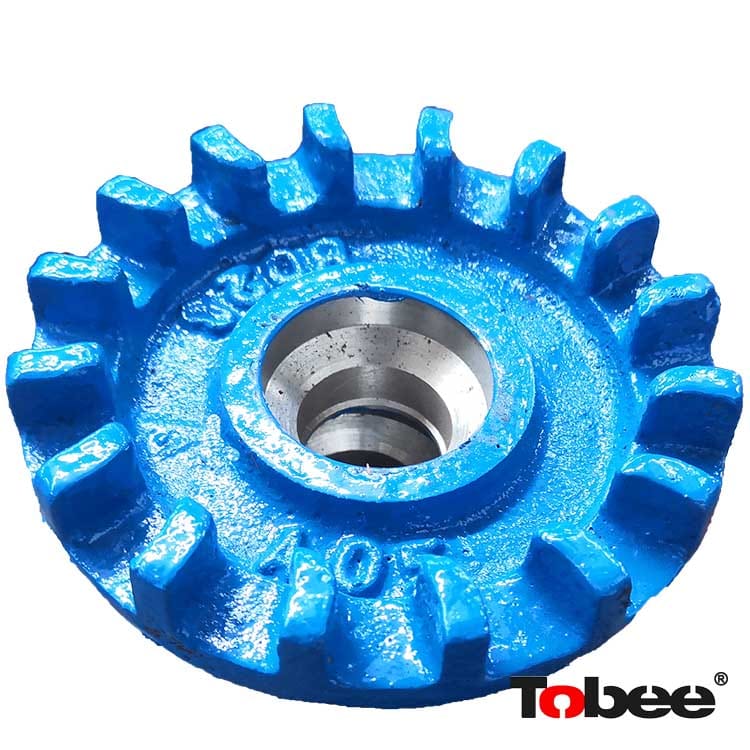

Expeller |
2/1.5B-AH |
A05 |
0.6 |
|
|
11 |
Expeller Ring |
2/1.5B-AH |
B029 |
A05 |
2.6 |
|
12 |
Expeller Ring |
2/1.5B-AH |
B029R |
R55 |
0.7 |
|
13 |
Frame Plate |
2/1.5B-AH |
B15032 |
D21 |
14.8 |
|
14 |
Frame Plate Bolt |
2/1.5B-AH |
B026 |
E62 |
|
|
15 |
Frame Plate Liner |
2/1.5B-AH |
B15036 |
R55 |
2.0 |
|
16 |
Frame Plate Liner Insert |
2/1.5B-AH |
B15041 |
A05 |
3.4 |
|
17 |
Frame Plate Stud |
2/1.5B-AH |
B039 |
E62 |
|
|
18 |
Gland |
2/1.5B-AH |
B044 |
G01 |
0.4 |
|
19 |
Gland |
2/1.5B-AH |
B044 |
C23 |
0.4 |
|
20 |
Gland Bolt |
2/1.5B-AH |
B045 |
C23 |
|
|
21 |
Grease Retainer |
2/1.5B-AH |
B046 |
G01 |
0.2 |
|
22 |
Impeller |
2/1.5B-AH |
B15127 |
A05 |
5.9 |
|
23 |
Impeller |
2/1.5B-AH |
B15127 |
R55 |
2.0 |
|
24 |
Intake Joint |
2/1.5B-AH |
B15060 |
S01 |
0.04 |
|
25 |
Labyrinth |
2/1.5B-AH |
B062 |
G01 |
0.3 |
|
26 |
Labyrinth Locknut |
2/1.5B-AH |
B061 |
E62 |
0.1 |
|
27 |
Lantern Restrictor |
2/1.5B-AH |
B118 |
C23 |
0.2 |
|
28 |
Lantern Ring |
2/1.5B-AH |
B063 |
C23 |
0.1 |
|
29 |
Lip Seal |
2/1.5B-AH |
B090 |
S01 |
|
|
30 |
Neck Ring |
2/1.5B-AH |
B067 |
C23 |
0.03 |
|
31 |
O ring |
2/1.5B-AH |
B109 |
S10 |
|
|
32 |
O ring |
2/1.5B-AH |
B217 |
S10 |
|
|
33 |
Packing |
2/1.5B-AH |
B111 |
Q05 |
|
|
34 |
Packing |
2/1.5B-AH |
B111 |
Q05A |
|
|
35 |
Packing |
2/1.5B-AH |
B111 |
Q21 |
|
|
36 |
Packing |
2/1.5B-AH |
B111 |
X06 |
|
|
37 |
Piston Ring |
2/1.5B-AH |
B108 |
G01 |
|
|
38 |
Seal |
2/1.5B-AH |
B122 |
S01 |
0.1 |
|
39 |
Shaft |
2/1.5B-AH |
B073M |
E05 |
3.9 |
|
40 |
Shaft Sleeve |
2/1.5B-AH |
B075 |
C21 |
0.3 |
|
41 |
Shaft Sleeve |
2/1.5B-AH |
B075 |
C23 |
0.3 |
|
42 |
Shaft Sleeve |
1.5/1 B-AH |
B075 |
J05 |
|
|
43 |
Shaft Sleeve |
2/1.5B-AH |
B076 |
C21 |
0.3 |
|
44 |
Shaft Sleeve |
2/1.5B-AH |
B076 |
C23 |
0.3 |
|
45 |
Shaft Spacer |
2/1.5B-AH |
B117 |
C21 |
0.2 |
|
46 |
Shaft Spacer |
2/1.5B-AH |
B117 |
C23 |
|
|
47 |
Shaft Spacer |
1.5/1 B-AH |
B117 |
J05 |
0.2 |
|
48 |
Shim Set |
2/1.5B-AH |
B025 |
P10 |
|
|
49 |
Stuffing Box |
2/1.5B-AH |
B078 |
A05 |
2.5 |
|
50 |
Volute Frame Seal |
2/1.5B-AH |
B15125 |
S01 |
0.02 |
|
51 |
Volute Liner |
2/1.5B-AH |
B15110 |
A05 |
15.0 |
