Name: B15041NA FPL Insert for 2/1.5B-AH Slurry Pump
Price: 300.00 USD

B15041NA FPL Insert for 2/1.5B-AH Slurry Pump

Product Brands: Tobee

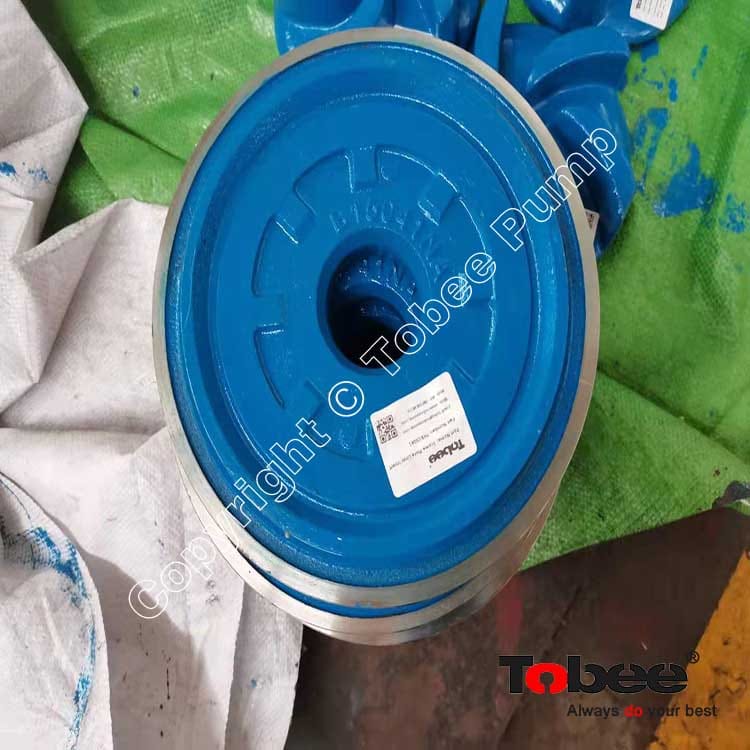

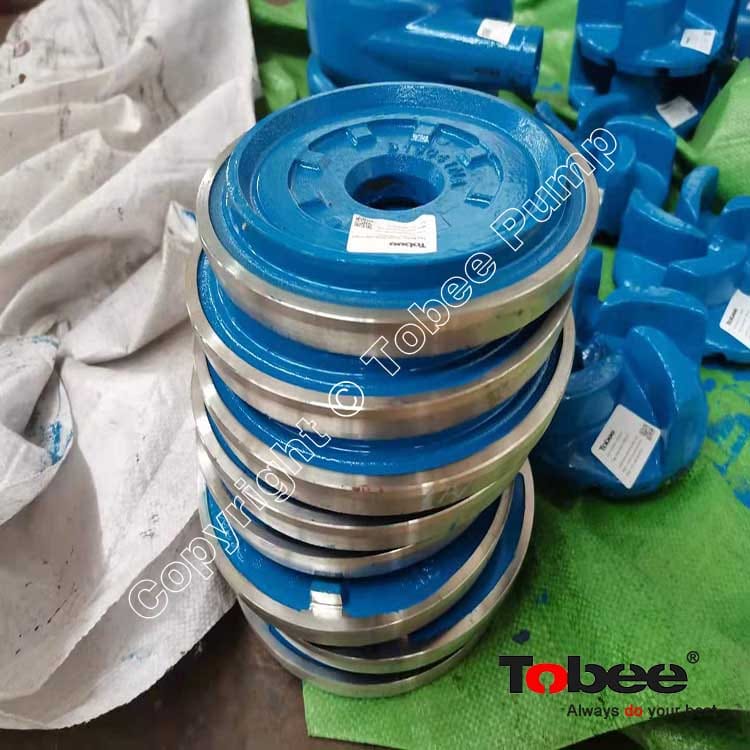

B15041NA Slurry Pump Frame Plate Liner Insert is a wear part of 2/1.5B-AH slurry pumps.

price:

$300.00

Part Code:

B15041NA

Pump model:

2X1.5B-AH Slurry Pump

Quantity:

- + (80 available)

Add to Favorite Items (24)

Sales: 60+

Tobee^® Slurry Pump Frame plate liner insert B15041NA is wear parts for 2x1.5B-AH Slurry Pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers high chrome, natural rubber and polyurethane materials for different working condition.

Tobee^® Slurry Pump Main Parts Materials Standard:

Part Name	Part Code	Standard
Bearing Assembly Frame Frame Plate & Cover Plate	HT200, HT250	GB9439-88
	QT450-10, QT500-7	GB1348-88
	ZG230-450, ZG270-500	GBT11352-89
Impeller Volute Liner ThroatbushFrame Plate Liner Insert	High Chrome Alloy	GB8263-87
	Ultra Chrome Alloy	GB8263-87
	Extra Chrome Alloy	GB8263-87
	Hyper Chrome Alloy	GB8263-87
Expeller Expeller Ring	HT200, HT250	GB9439-88
	QT450-10, QT500-7	GB1348-88
	Anti-corrosive Stainless Steel	GB2100-80
	High Chrome Alloy	GB8263087
Shaft	45# Steel	GB699-88
Shaft	40CrMo	GB3077-88
Shaft Sleeve	45# Steel Coated Chrome	GB699-88
Shaft Sleeve	3Cr13	GBT1220-92

Label: FPL Insert B15041NA Slurry Pump Spare Parts FPL Insert Slurry Pump Parts
