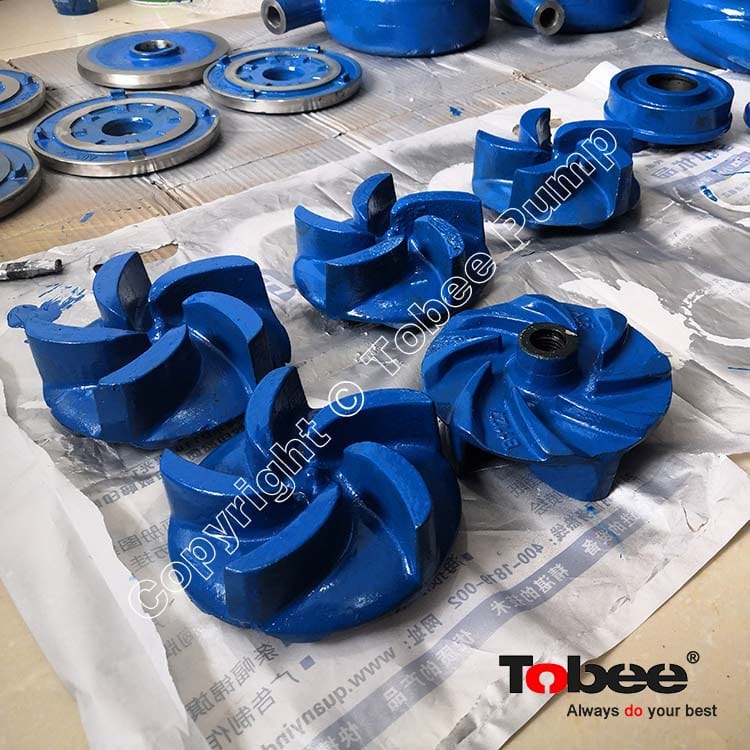

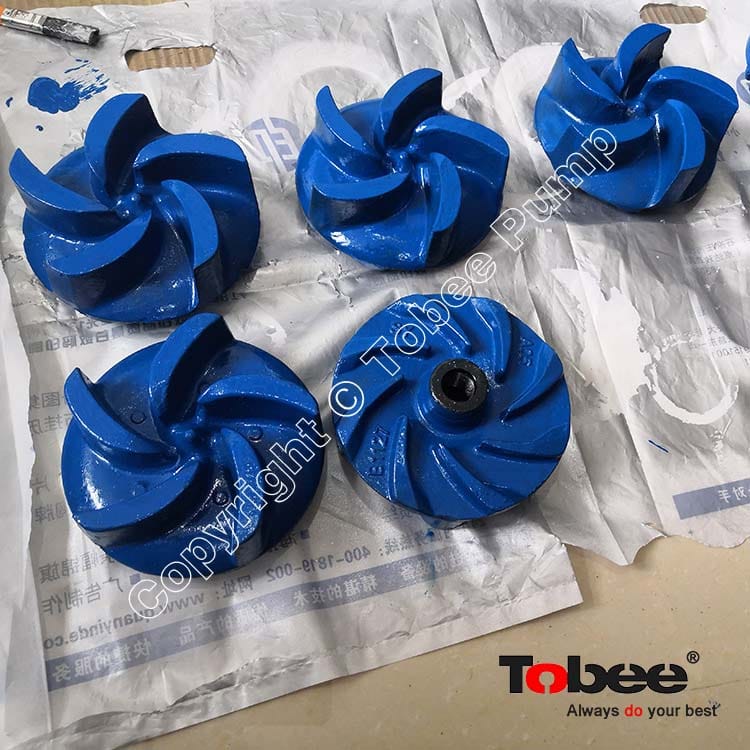

The B1127NA high chrome impeller is semi-open type impeller for 1.5x1 BAH centrifugal slurry pumps.
Slurry Pump impeller is one of the most important parts of centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.
Tobee® offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.
1.5/1B-AH Slurry Pump Parts List:
|
No. |
Part Name |
Pump Model |
Part Code |
Material Code |
Unit Weight (kg) |
|
1 |
Adjust Screw |
1.5/1 B-AH |
B001 |
E62 |
|
|
2 |
Base |
G01 |
20.0 |
||
|
3 |
Bearing Assembly |
1.5/1 B-AH |
B005M |
ZWZ Bearing |
15.5 |
|
4 |
Bearing Housing |
1.5/1 B-AH |
B004M |
G01 |
7.0 |
|
5 |
Cover Plate |
1.5/1 B-AH |
B1013 |
D21 |
13.8 |
|
6 |
Cover Plate Bolt |
1.5/1 B-AH |
B015 |
E65 |
|
|
7 |
Cover Plate Liner |
1.5/1 B-AH |
B1017 |
R55 |
2.0 |
|
8 |
Discharge Joint |
1.5/1 B-AH |
B1132L |
S01 |
|
|
9 |
End Cover |
1.5/1 B-AH |
B024 |
G01 |
0.8 |
|
10 |
Expeller |
1.5/1 B-AH |
B028 |
A05 |
0.6 |
|
11 |
Expeller Ring |
1.5/1 B-AH |
B029 |
A05 |
2.6 |
|
12 |
Expeller Ring |
1.5/1 B-AH |
B029 |
R55 |
0.7 |
|
13 |
Frame Plate |
1.5/1 B-AH |
B1032 |
D21 |
12.4 |
|
14 |
Frame Plate Bolt |
1.5/1 B-AH |
B026 |
E62 |
|
|
15 |
Frame Plate Liner |
1.5/1 B-AH |
B1036 |
R55 |
2.0 |
|
16 |
Frame Plate Liner Insert |
1.5/1 B-AH |
B1041 |
A05 |
3.0 |
|
17 |
Frame Plate Stud |
1.5/1 B-AH |
B039 |
E62 |
|
|
18 |
Gland |
1.5/1 B-AH |
B044 |
G01 |
0.4 |
|
19 |
Gland |
1.5/1 B-AH |
B044 |
C23 |
0.4 |
|
20 |
Gland Bolt |
1.5/1 B-AH |
B045 |
C23 |
|
|
21 |
Grease Retainer |
1.5/1 B-AH |
B046 |
G01 |
0.2 |
|
22 |
Impeller |
1.5/1 B-AH |
A05 |
4.2 |
|
|
23 |
1.5/1 B-AH |
B1052 |
R55 |
1.2 |
|
|
24 |
Intake Joint |
1.5/1 B-AH |
B1060 |
S01 |
|
|
25 |
Labyrinth |
1.5/1 B-AH |
B062 |
G01 |
0.3 |
|
26 |
Labyrinth Locknut |
1.5/1 B-AH |
B061 |
E62 |
0.1 |
|
27 |
Lantern Restrictor |
1.5/1 B-AH |
B118 |
C23 |
0.2 |
|
28 |
Lantern Ring |
1.5/1 B-AH |
B063 |
C23 |
0.1 |
|
29 |
Lip Seal |
1.5/1 B-AH |
B090 |
S01 |
|
|
30 |
Neck Ring |
1.5/1 B-AH |
B067 |
C23 |
|
|
31 |
O ring |
1.5/1 B-AH |
B109 |
S10 |
|
|
32 |
O ring |
1.5/1 B-AH |
B217 |
S10 |
|
|
33 |
Packing |
1.5/1 B-AH |
B111 |
Q05 |
|
|
34 |
Packing |
1.5/1 B-AH |
B111 |
Q05A |
|
|
35 |
Packing |
1.5/1 B-AH |
B111 |
Q21 |
|
|
36 |
Packing |
1.5/1 B-AH |
B111 |
Q22 |
|
|
37 |
Piston Ring |
1.5/1 B-AH |
B108 |
G01 |
|
|
38 |
Seal |
1.5/1 B-AH |
B122 |
S01 |
0.1 |
|
39 |
Shaft |
1.5/1 B-AH |
B073M |
E05 |
3.9 |
|
40 |
Shaft Sleeve |
1.5/1 B-AH |
B075 |
C21 |
0.3 |
|
41 |
Shaft Sleeve |
1.5/1 B-AH |
B075 |
C23 |
0.3 |
|
42 |
Shaft Sleeve |
1.5/1 B-AH |
B075 |
J05 |
|
|
43 |
Shaft Sleeve |
1.5/1 B-AH |
B076 |
C21 |
0.3 |
|
44 |
Shaft Sleeve |
1.5/1 B-AH |
B076 |
C23 |
0.3 |
|
45 |
Shaft Spacer |
1.5/1 B-AH |
B117 |
C21 |
0.2 |
|
46 |
Shaft Spacer |
1.5/1 B-AH |
B117 |
C23 |
0.2 |
|
47 |
Shaft Spacer |
1.5/1 B-AH |
B117 |
J05 |
0.2 |
|
48 |
Shim Set |
1.5/1 B-AH |
B025 |
P10 |
|
|
49 |
Stuffing Box |
1.5/1 B-AH |
B078 |
A05 |
2.5 |
|
50 |
Volute Frame Seal |
1.5/1 B-AH |
B1125 |
S01 |
|
|
51 |
Volute Liner |
1.5/1 B-AH |
A05 |
11.5 |
