Name: AH1.5x1B Slurry Mud Sand Pumps for Waste Water Treatment
Price: 3108.00 USD

AH1.5x1B Slurry Mud Sand Pumps for Waste Water Treatment

Product Brands: Tobee

Tobee® AH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling high abrasive, high density slurrie

price:

$3108.00 $3200.00

Pump Materials:

Metal Lined Rubber Lined

Seal Arrangement:

Packing seal Expeller seal Mechanical seal

Drive Type:

CV Drive DC Drive CR Drive CL Drive ZV Drive

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

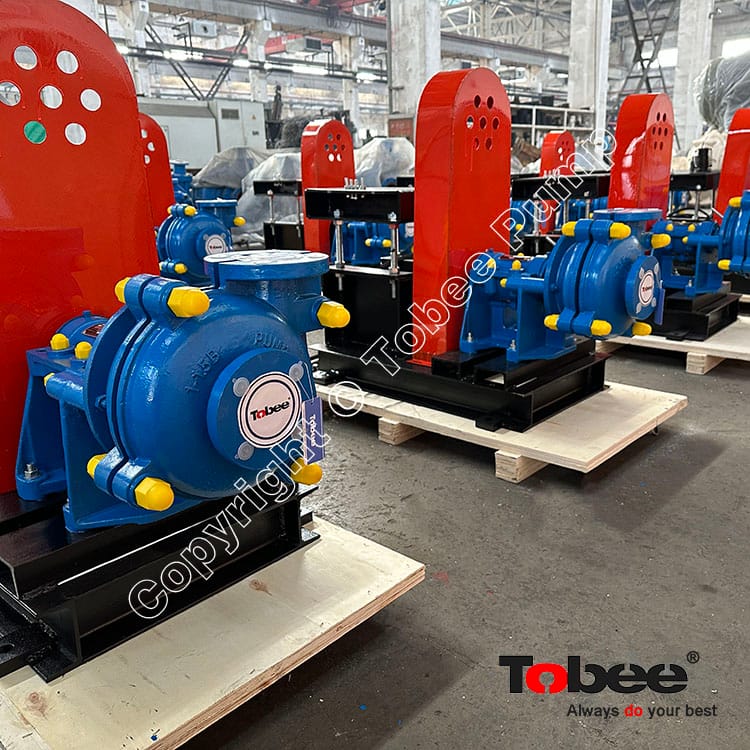

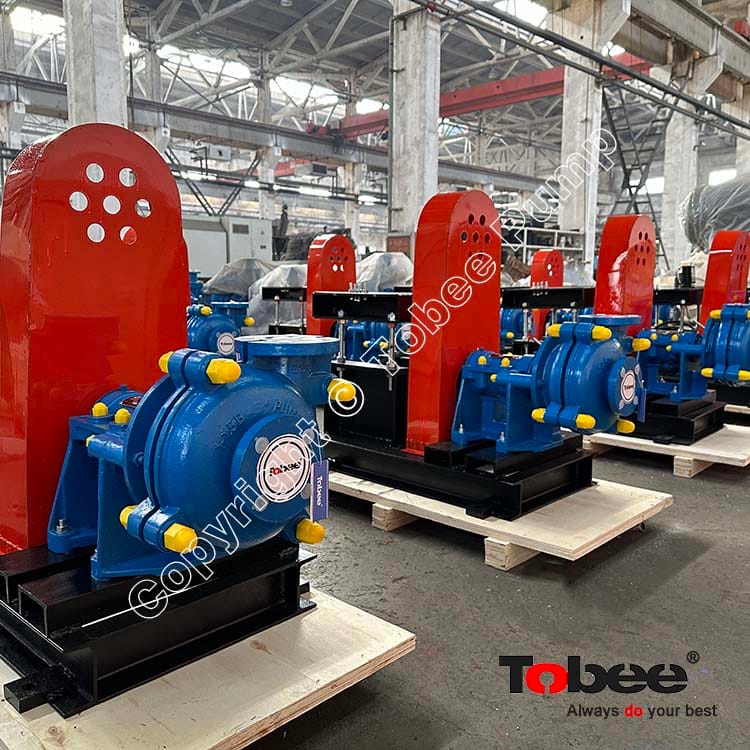

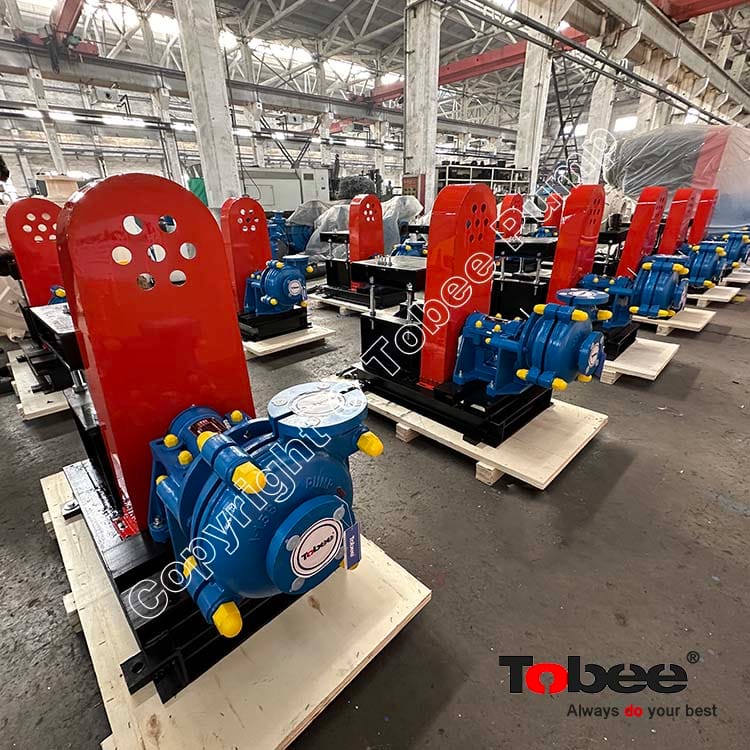

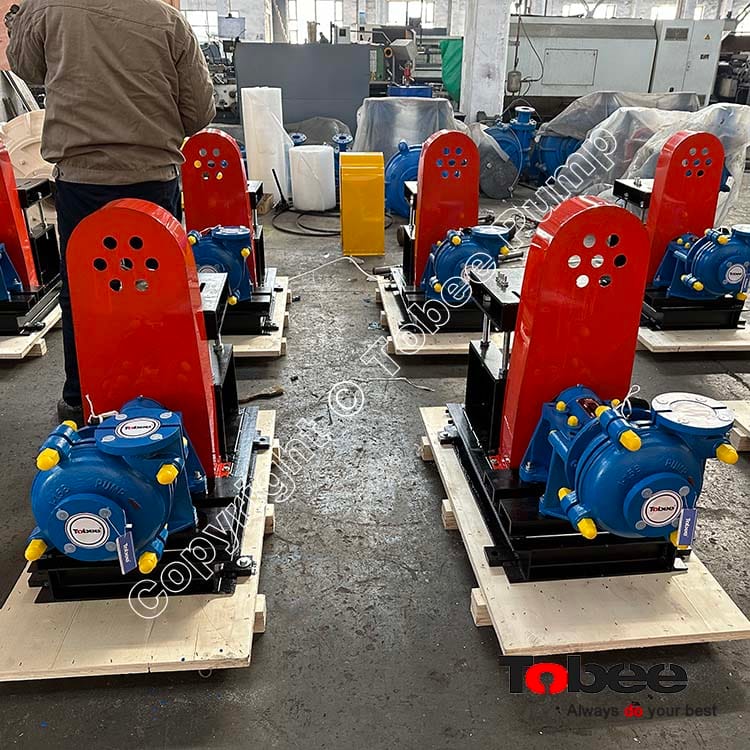

Tobee^®1.5/1B-AH Slurry Pump is end-suction, split-case, centrifugal slurry pumps have set the world standard for heavy duty abrasive pumping applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, Application customization comes standard with this line by applying a wide variety of metallic and elastomeric parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base assembly.

Design Features:

√ Slurry Pump wet parts are made of wear-resistant high chromium alloy.

√ Slurry Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication. International famous bearing

√ The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.

√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.

√ There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

√ Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.

Tobee^® 1.5/1 B AH Slurry Pump Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear Water Performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

1.5/1B-AH

Metal

12.6-28.8

6-68

1200-3800

2-4

Tobee^®AH Slurry Pumps Shaft Seal Arrangement:

• Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.

• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.

• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.

Tobee^® AH Slurry Pumps Structural Design:

Metal Lined Pump			Rubber Lined Pump
No	Parts Name	Materials	No	Parts Name	Materials
1	Liner	27.5% UltraChrome Alloy	1	Frame Plate	QT500-7
2	Frame Plate	QT500-7	2	Expeller Ring	27% High Chrome Alloy
3	Frame Plate Liner Insert	27.5% UltraChrome Alloy	3	Gland Assembly	HT200
4	Cover Plate	QT500-7	4	Shaft Sleeve	420 Stainless Steel
5	Throat Bush	27.5% UltraChrome Alloy	5	Expeller	27% High Chrome Alloy
6	Impeller	27.5% UltraChrome Alloy	6	Frame Plate Liner	Rubber Coated High Tensile Steel
7	Expeller Ring	27% UltraChrome Alloy	7	Impeller	Rubber Coated High Tensile Steel
8	Shaft Sleeve	420 Stainless Steel	8	Cover Plate Liner	Rubber Coated High Tensile Steel
9	Expeller	27% HighChrome Alloy	9	Cover Plate	QT500-7
10	Bearing Assembly	SKF/Timken (Standard)

Tobee^® AH Series Slurry Pumps Applications:

TH1.5x1B Slurry Mud Sand Pumps for Waste Water Treatment

AH Series slurry pumps can be used in various of applications, like Minerals processing, Pipeline transport, High velocity hydraulic transport, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.

Accroding to different working conditions, AH series slurry pumps can be use as minerals process pump, Booster sand pump, Gypsum slurry pump, Classifying Cyclone Feed Pump, Dewatering Screen Pump, Thickner Area Sump Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, DMC Feed Pump, Thickener U/F Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Fines Area Sump Pump, Transfer to feedprep Pump, Metboom Return Pump, Slime Pond Sump Pump, Thickner Underflow Pump, Thickner Tailings Pump, Thickner Underflow Pump, Magnetite Sump Slurry Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Dilute Medium Slurry Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Correct Medium Slurry Pump, Mixing tank slurry Pump, Centrifuge Effl. Transfer Slurry Pump, Fines Refuse Effl. Transfer Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, BPF Filtrate Effl. Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.

Label: Head mounted horizontal slurry pump tractor slurry pump Centrifugal Slurry Pump solid slurry pump small dredging pump cow manure pump pulp pump for sand and water abrasive slurry pump with motor
