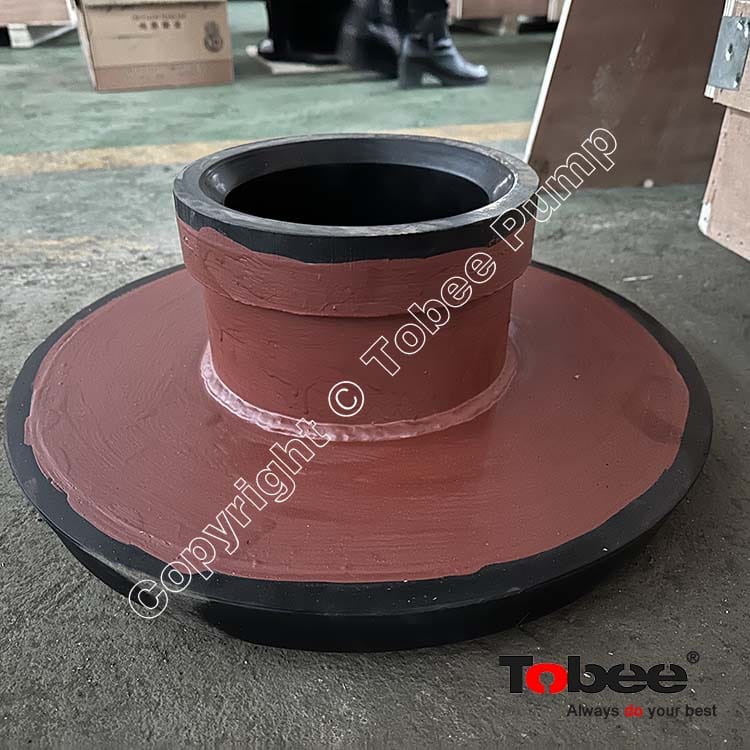

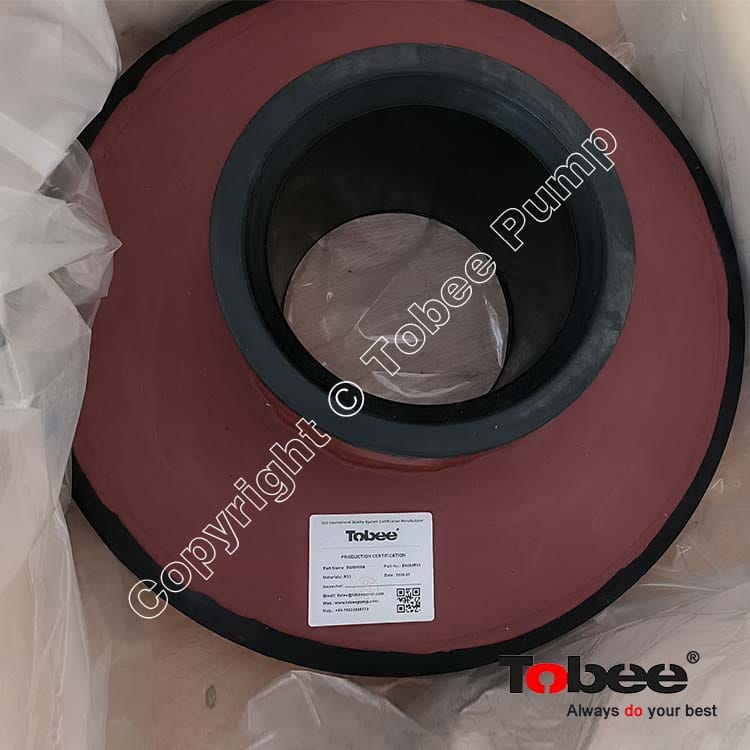

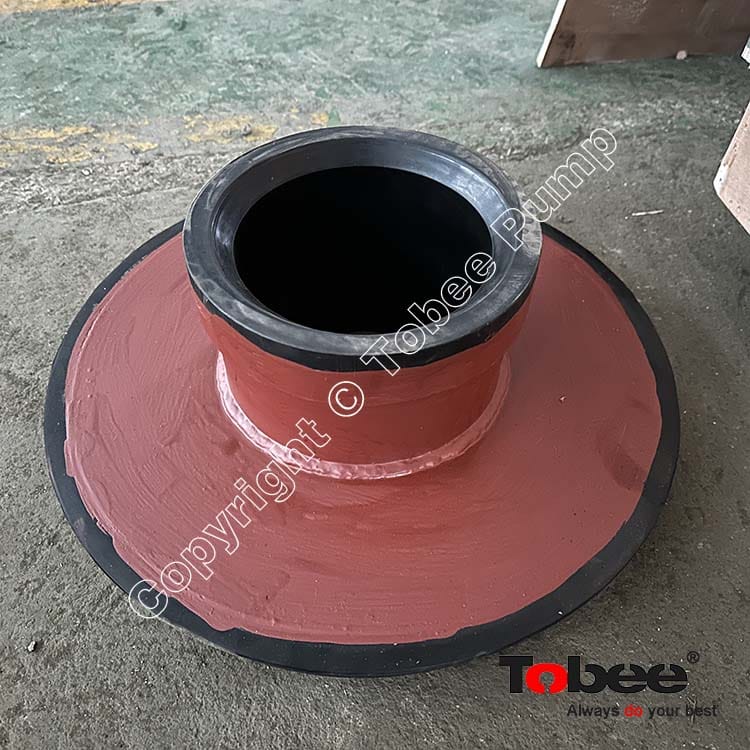

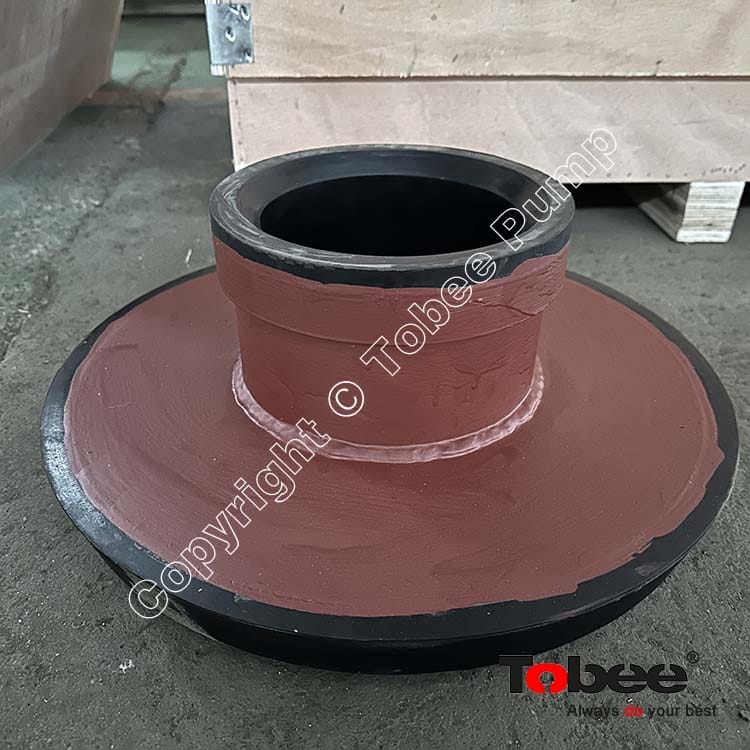

Throat Bush E4083R55 for Coal Heavy Media Transfer Pump

Tobee® Slurry Pump Rubber Throatbush is the main wear parts for the rubber lined slurry pumps. It links plate liner and forms a pump chamber to work with impeller to contact with slurries, the rubber throatbush is normally made in natural rubber, special materials are also available.

These wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers rubber slurry pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
Slurry Pump Throat Bush is interchangeable with AH/HH/L/M slurry pump throat bush, It links plate liner and forms a Pump chamber to work with impeller, as one of wetted parts for the slurry pump, Its wear-resistance is very important to pump worklife. Tobee offers Cr27Mo high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Tobee® Rubber Lined Slurry Pump Parts namely the rubber parts have direct connection with slurries, They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed, The wetted parts include impeller, cover plate liner, frame plate liner, throatbush, frame plate liner insert etc, These wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers rubber slurry pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Tobee® Slurry Pump Rubber Wear Parts:

√ Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

√ Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Slurry Pump Throat Bush Code:
