THB15110A05 Volute Liner for 2/1.5B-TH Pump

(0 Reviews)

THB15110A05

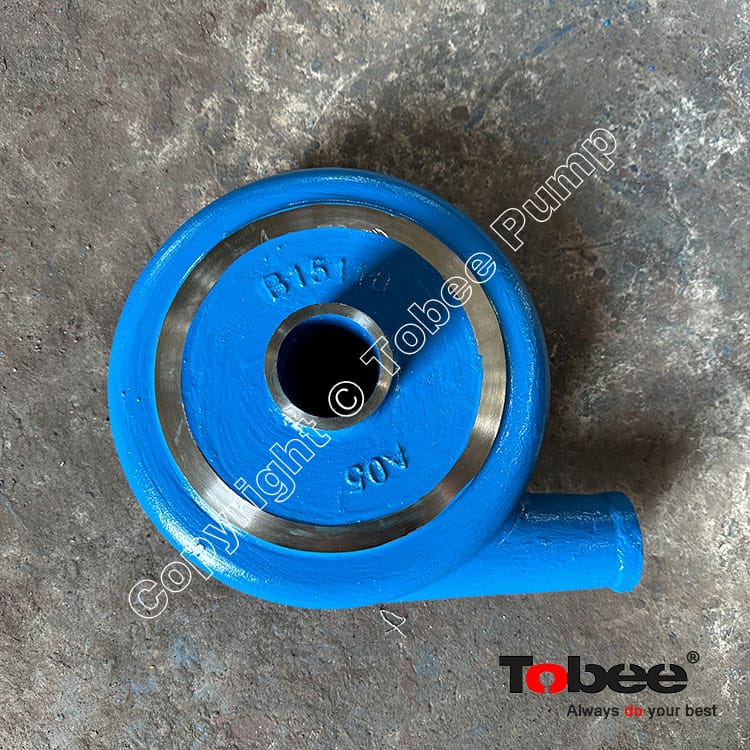

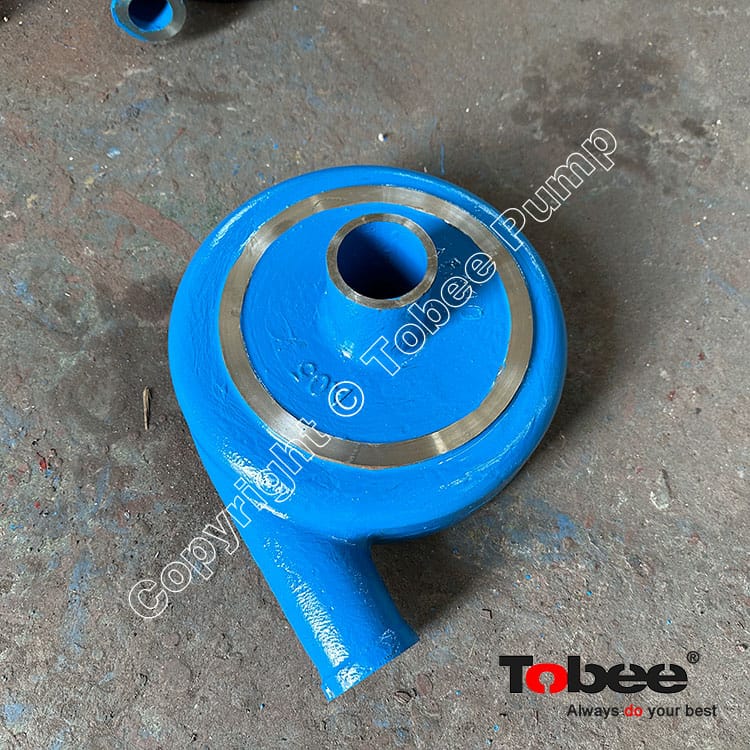

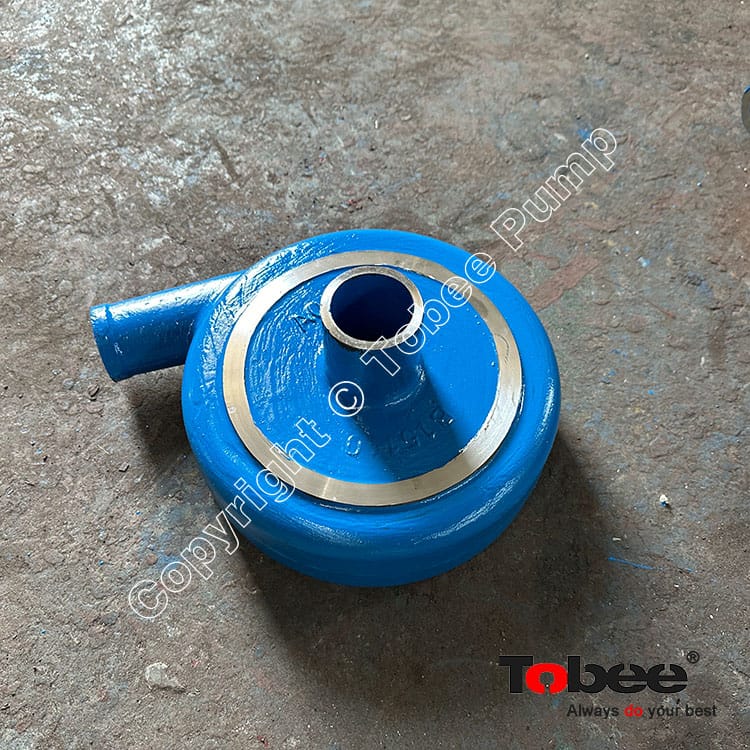

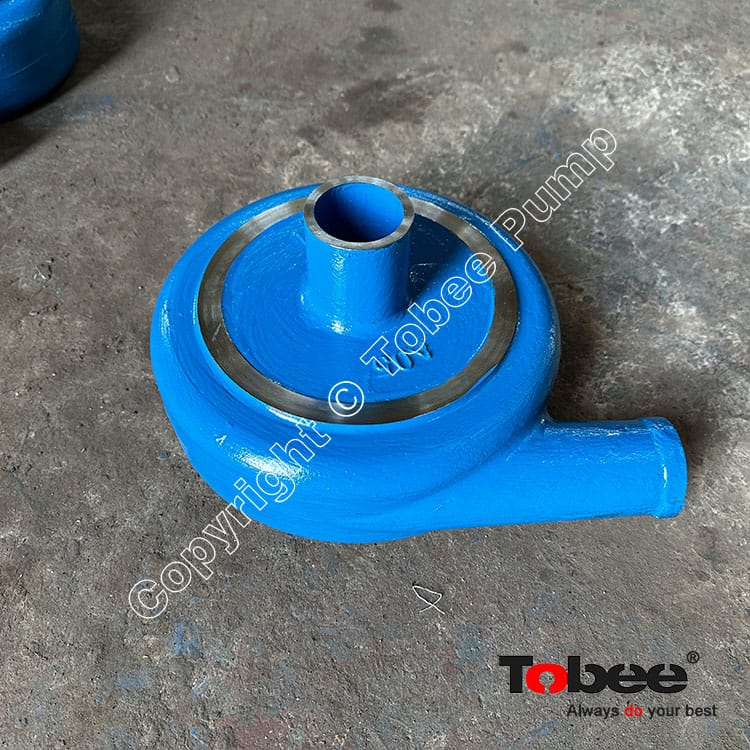

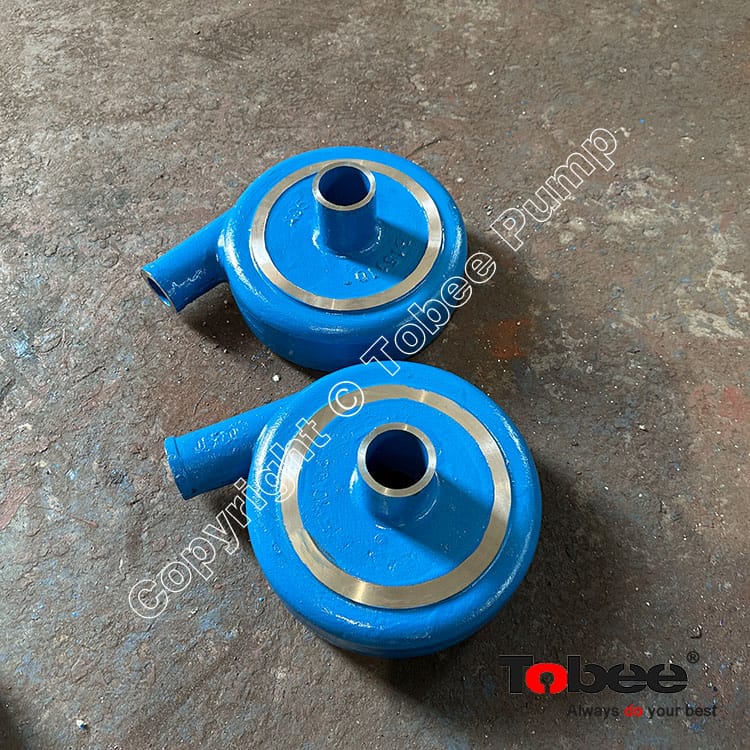

2/1.5B-TH Slurry Pump Volute Liner B15110 forms a slurry pump chamber with frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port.

price:

$439.00 $600.00

Parts Number:

THB15110A05

Parts Material:

A05

Quantity:

- + (500 available)
Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry Pump Volute liners are interchangeable with TH/HH/L/M slurry pump volute lines, It is also one of wetted parts for slurry pumps. It forms a pump chamber with throatbush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid. The main purposes of a volute casing is to help balance the hydraulic pressure on the shaft of the slurry pump. materials can be high chrome alloy, Natural Rubber, Polyurethane for different working applications.

Slurry Pump Components Drawing:

Slurry Pump Components Drawing



Tobee® slurry pump parts are dimensionally interchangeable with original slurry pump parts and other brand slurry pumps. And more, we accept pump parts OEM and ODM business, especially abrasion and corrosion pump parts. Tobee own foundry and compound specialist to increase the wet parts wear life time.



2/1.5 AH-B Slurry Pump Parts:

No.

Pump Parts Name

Pump Model

Pump Part Code

Matl. Code

Unit Weight
(kg)

1

Adjust Screw

2/1.5B-AH

B001

E62



2

Base

2/1.5B-AH

B003M

G01

20.0

3

Bearing Assembly

2/1.5B-AH

B005M

AGM Bearing

15.5

4

Bearing Housing

2/1.5B-AH

B004M

G01

7.0

5

Cover Plate

2/1.5B-AH

B15013

D21

14.6

6

Cover Plate Bolt

2/1.5B-AH

B015

E65



7

Cover Plate Liner

2/1.5B-AH

B15017

R55

3.0

8

Discharge Joint

2/1.5B-AH

B15132L

S01

0.1

9

End Cover

2/1.5B-AH

B024

G01

0.8

10

Expeller

2/1.5B-AH

B028

A05

0.6

11

Expeller Ring

2/1.5B-AH

B029

A05

2.6

12

Expeller Ring

2/1.5B-AH

B029R

R55

0.7

13

Frame Plate

2/1.5B-AH

B15032

D21

14.8

14

Frame Plate Bolt

2/1.5B-AH

B026

E62



15

Frame Plate Liner

2/1.5B-AH

B15036

R55

2.0

16

Frame Plate Liner Insert

2/1.5B-AH

B15041

A05

3.4

17

Frame Plate Stud

2/1.5B-AH

B039

E62



18

Gland

2/1.5B-AH

B044

G01

0.4

19

Gland

2/1.5B-AH

B044

C23

0.4

20

Gland Bolt

2/1.5B-AH

B045

C23



21

Grease Retainer

2/1.5B-AH

B046

G01

0.2

22

Impeller

2/1.5B-AH

B15127

A05

5.9

23

Impeller

2/1.5B-AH

B15127

R55

2.0

24

Intake Joint

2/1.5B-AH

B15060

S01

0.04

25

Labyrinth

2/1.5B-AH

B062

G01

0.3

26

Labyrinth Locknut

2/1.5B-AH

B061

E62

0.1

27

Lantern Restrictor

2/1.5B-AH

B118

C23

0.2

28

Lantern Ring

2/1.5B-AH

B063

C23

0.1

29

Lip Seal

2/1.5B-AH

B090

S01



30

Neck Ring

2/1.5B-AH

B067

C23

0.03

31

O ring

2/1.5B-AH

B109

S10



32

O ring

2/1.5B-AH

B217

S10



33

Packing

2/1.5B-AH

B111

Q05



34

Packing

2/1.5B-AH

B111

Q05A



35

Packing

2/1.5B-AH

B111

Q21



36

Packing

2/1.5B-AH

B111

X06



37

Piston Ring

2/1.5B-AH

B108

G01



38

Seal

2/1.5B-AH

B122

S01

0.1

39

Shaft

2/1.5B-AH

B073M

E05

3.9

40

Shaft Sleeve

2/1.5B-AH

B075

C21

0.3

41

Shaft Sleeve

2/1.5B-AH

B075

C23

0.3

42

Shaft Sleeve

1.5/1 B-AH

B075

J05



43

Shaft Sleeve

2/1.5B-AH

B076

C21

0.3

44

Shaft Sleeve

2/1.5B-AH

B076

C23

0.3

45

Shaft Spacer

2/1.5B-AH

B117

C21

0.2

46

Shaft Spacer

2/1.5B-AH

B117

C23



47

Shaft Spacer

1.5/1 B-AH

B117

J05

0.2

48

Shim Set

2/1.5B-AH

B025

P10



49

Stuffing Box

2/1.5B-AH

B078

A05

2.5

50

Volute Frame Seal

2/1.5B-AH

B15125

S01

0.02

51

Volute Liner

2/1.5B-AH

B15110

A05

15.0
