Name: Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters
Price: 7970.00 USD

Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters

Product Brands: Hydroman

Hydroman® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters is a multifunctional hydraulic driven dredging pump,mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging. Submersible Offloading Sand Pump is the most robust equipment for moving sand, slurry, gravel materials dredging. Hydraulic Submersible Sand Pump is driven by the excavator hydraulic system or a separate hydraulic power pack.

price:

$7970.00 $9950.00

Pumps Type:

Submersible Dredge Pump Vertical Mud Pump

Pump Seal Arrangement:

Double Mechanical Seal

Pumps Application:

Dredging Desilting Sand extraction

Quantity:

- + (20 available)

Add to Favorite Items (0)

Sales: 0+

Hydroman^® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters Specification:

Size: 150mm
Capacity: 200-240m3/h
Head: 22-30m
Max. particles: 60mm
Max. concentration: 70%
Temperature Range:≤80°C
Agitator: Available
Cutterheads: 3-22kw
Sealing arrangement: Double mechanical seal
Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Hydroman^® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters Description:

Hydroman^® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters operated by using hydraulic power provided by an excavator to drive the dredging pump or slurry pump, instead of using traditional power sources such as oil-fired diesel engines or electric generators. Submersible Sand Dredging Pump for All Tons of Excavators is the union of excavators with specialized submersible hydraulic dredge sand pump led to a streamlined approach, is more versatile and efficient solutions than traditional methods for the dredging industry, land reclamation, agriculture, mining, oil and gas, chemical processing, and so on.

Dredging service is always used to maintain harbors, canals, rivers, lakes, and other bodies of water to ensure boats and large ships are able to safely pass without getting stuck in sediment build-up which occurs as sand and silt wash downstream, eventually clogging up channels and harbor. Our submersible offloading dredge pump advanced design, which includes agitators, hydraulic cutters and pressure compensation of all equipment, allows for high-efficiency dredging, even in deep sea conditions, so Hydroman submersible sand dredging pump plays a important role in the dredging service.

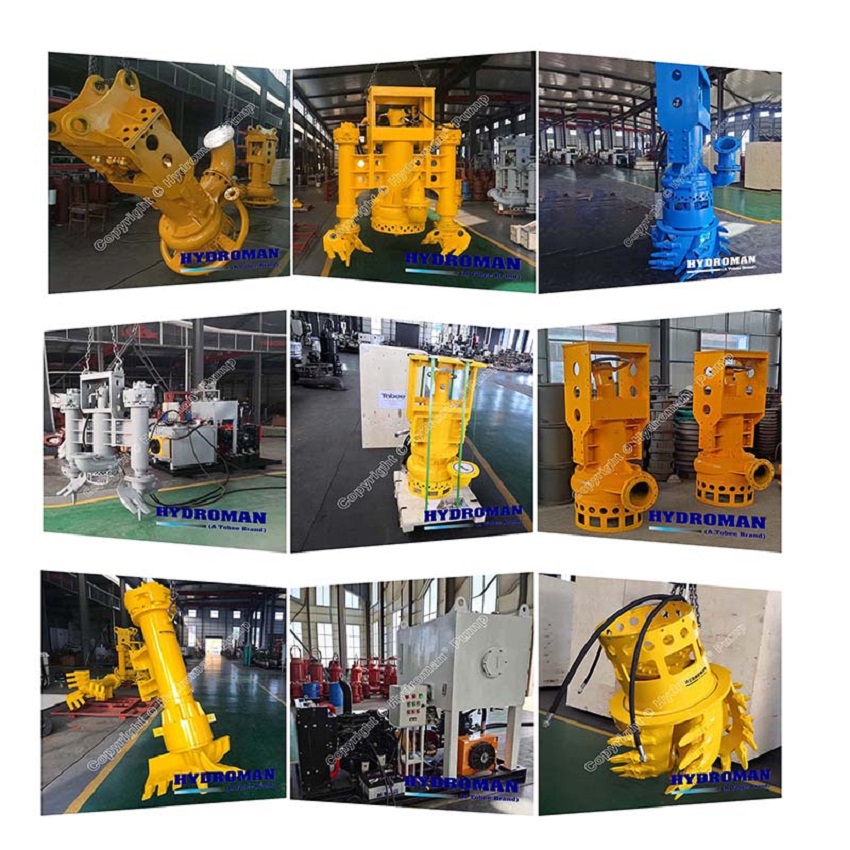

Hydraulic Submersible Sand Slurry Pump With Agitator Dredger

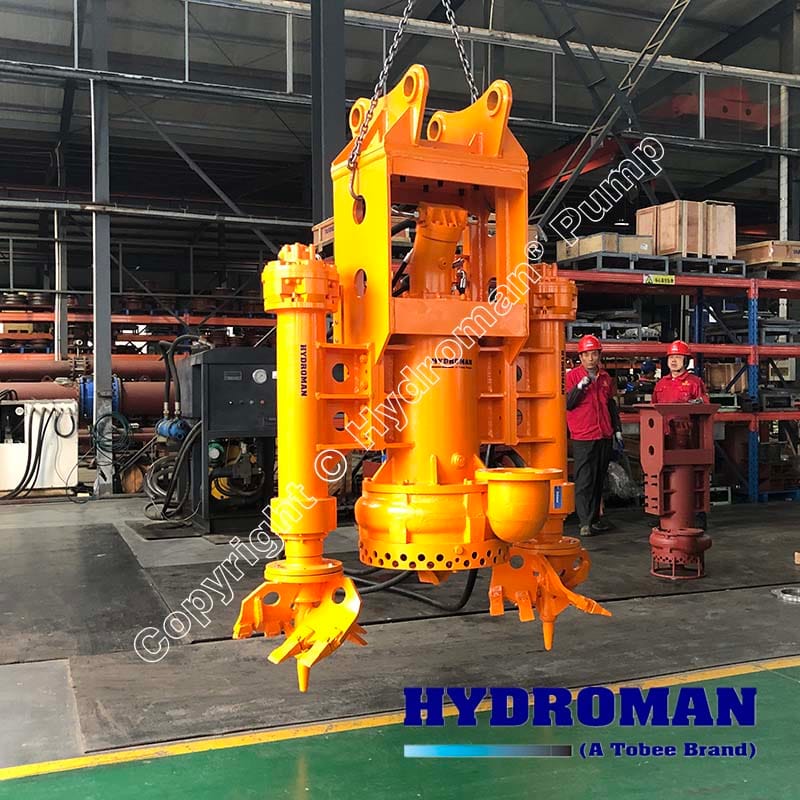

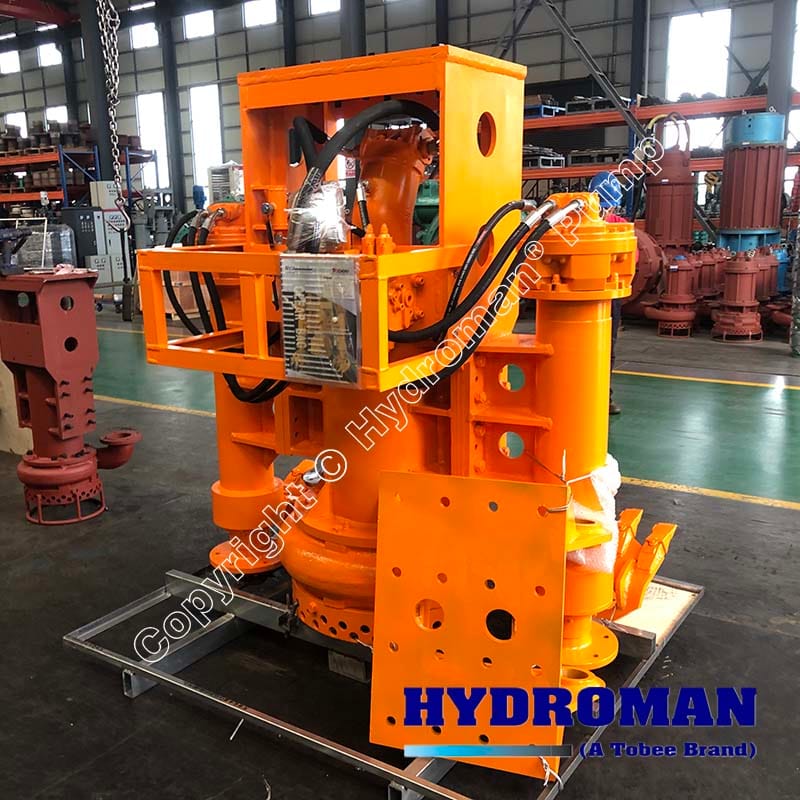

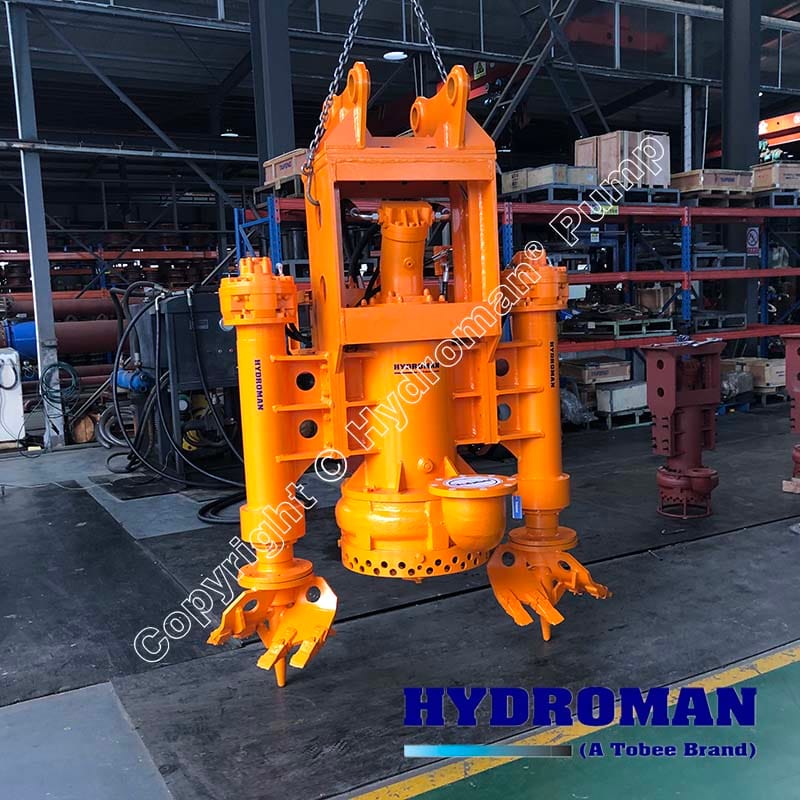

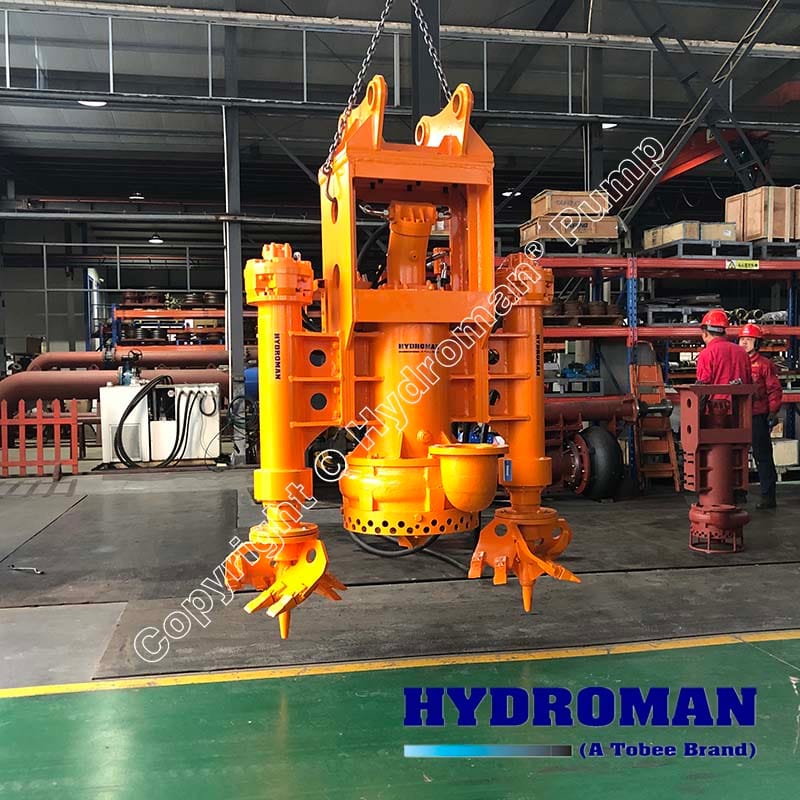

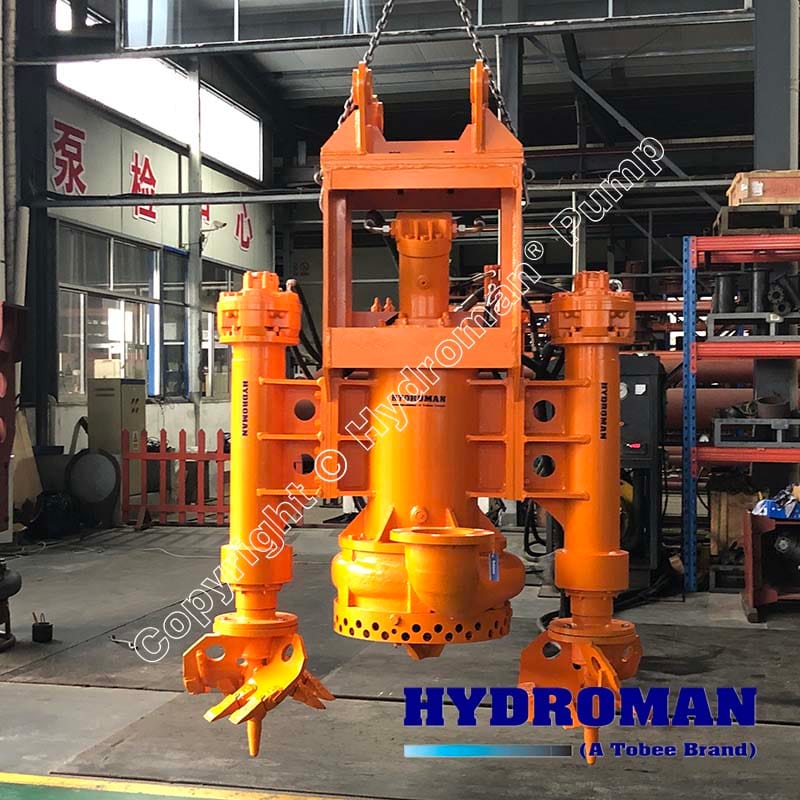

Hydroman^® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters Detail Photos:

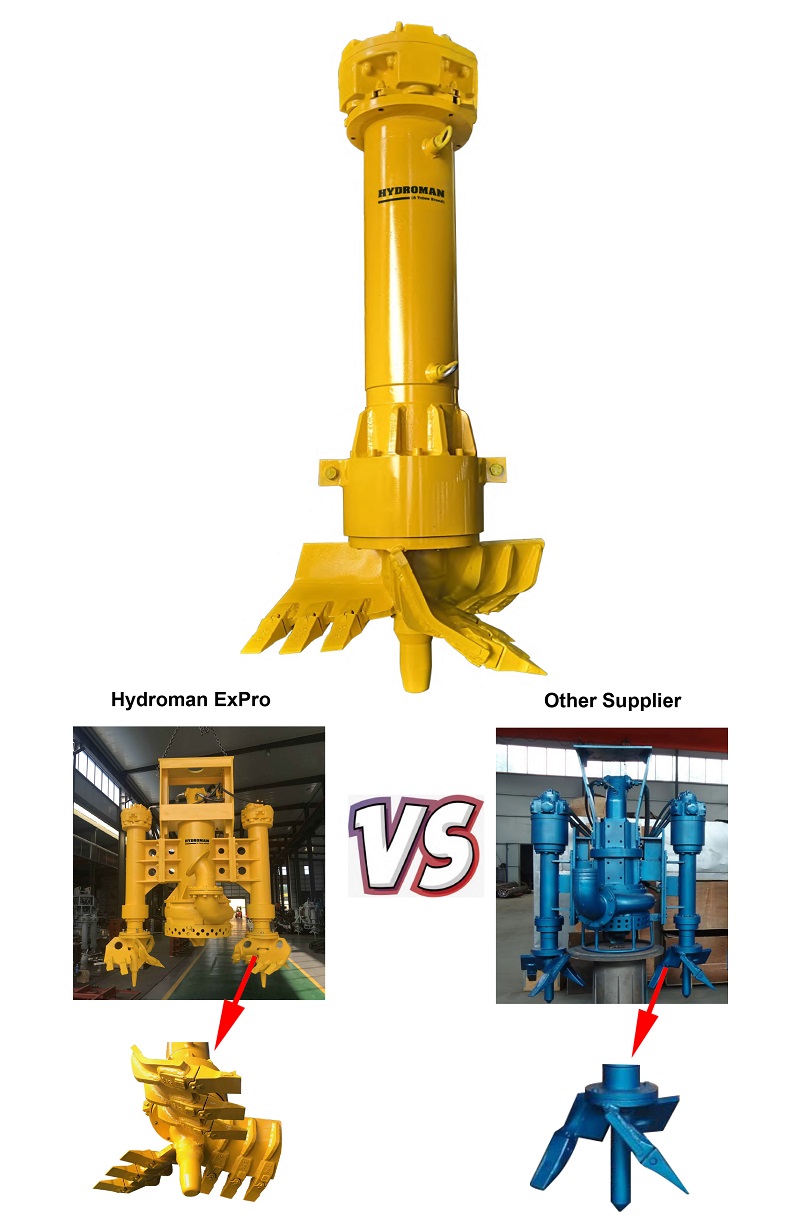

Hydraulic Submersible Sand Slurry Dredge Pump For Excavator

Hydroman^® Submersible Dredge Suction Sand Pump with Hydraulic System and Side Cutters Applications:

▪ Dredging
▪ Marine Construction
▪ Dewatering and Construction
▪ Slurry/Sludge Transfer
▪ Mine Tailings Removal
▪ Drill Cuttings Transfer
▪ Ground Water Removal
▪ Excavation Dewatering
▪ Open Pit Dewatering & Drainage
▪ Process Water Supply
▪ Storm Water / Flood Control
▪ Mining Operations
