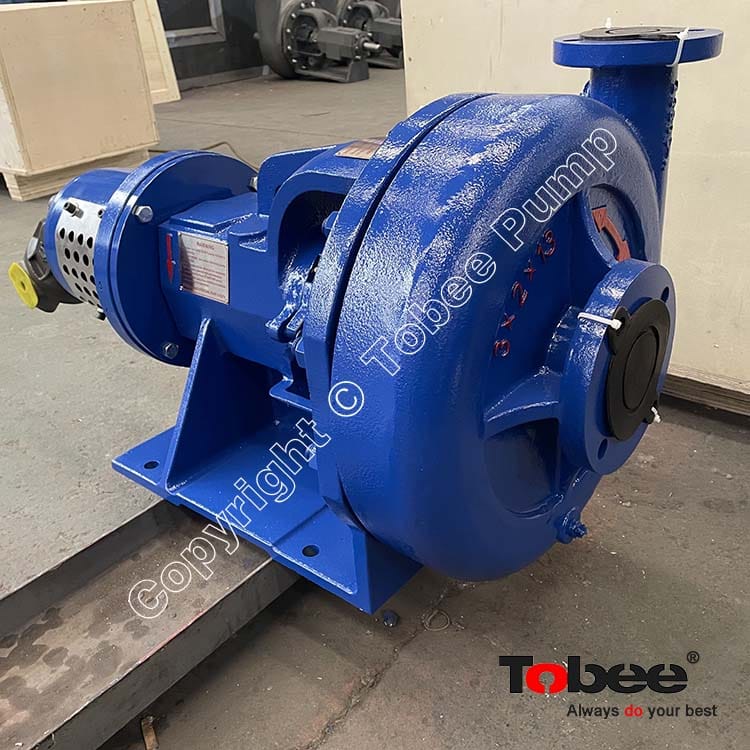

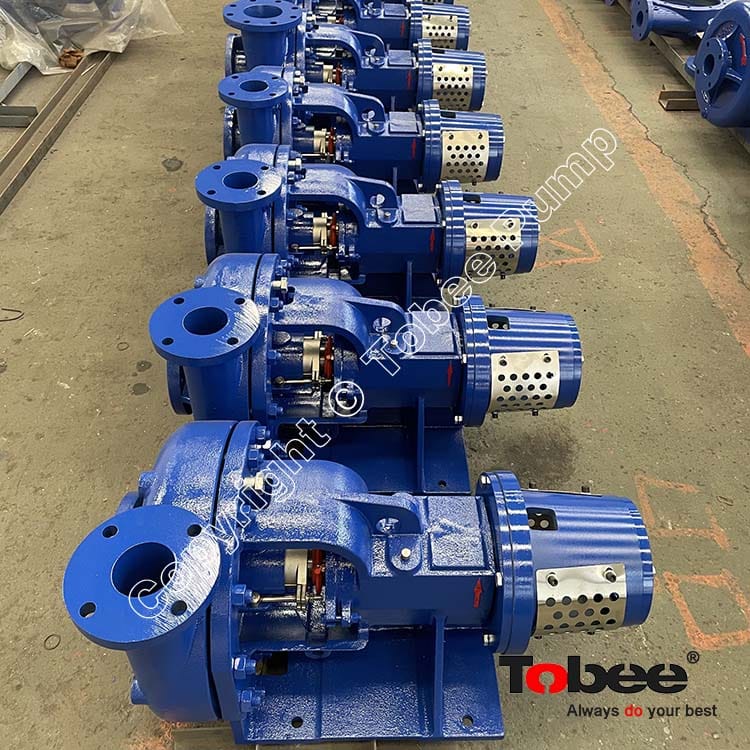

Mission Sandmaster 3x2x13 Centrifugal Pump

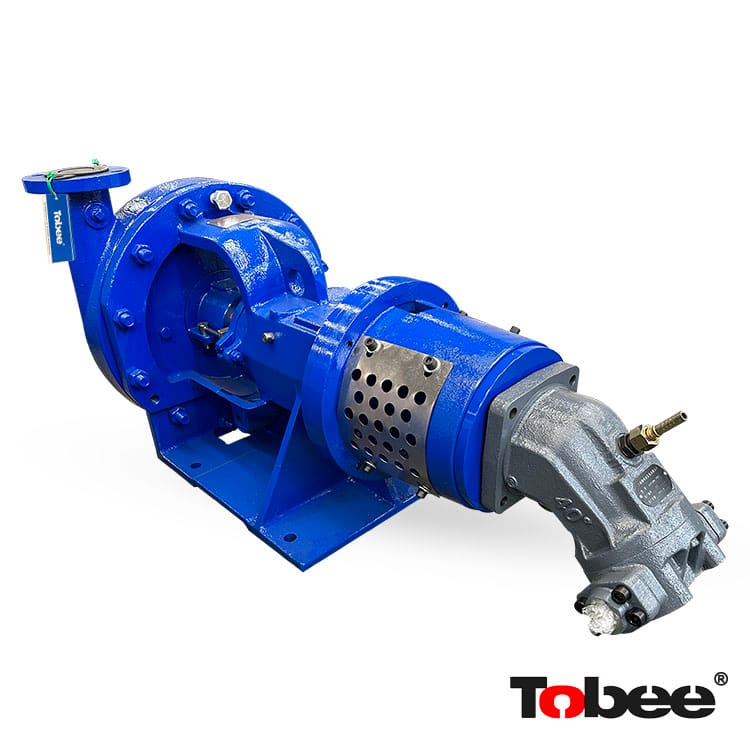

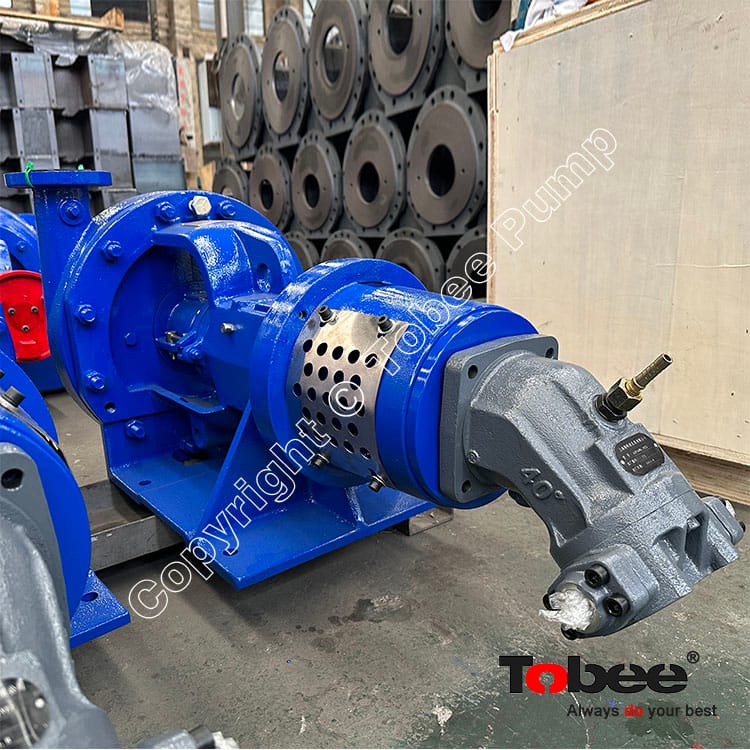

Sandman® Mission 3x2x13 Sandmaster Centrifugal Pump with hydraulic driven, transfer for drill water, diesel, brine, water, mud.

The model 10x8x14 and 8x6x14 centrifugal sandmaster pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.

Mission Sandmaster Pump Designs:

• Compact heavy-duty frame design for small space;
• Multiple application in the oil and gas industrial;
• Full open impeller reduces shaft loading;
• Replaceable stuffing box cover,
• Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;
• Available in 8 different size, 3x2, 4x3, 5x4, 6x5, 8x6, 10x8;
• One-piece concentric and thicker casing with same power end;
• SKF bearings or equal;
• Oil or grease lube available; oil lube is for speeds in excess of 2400rpm; 3500rpm is available for 3x2x13 and 4x3x13 pump;
• Completely interchangeable with Mission™ Sandmaster™ and MCM™ Mud Master™ and all other popular brand design in the market;
• Spare parts are interchangeable with the standard model.

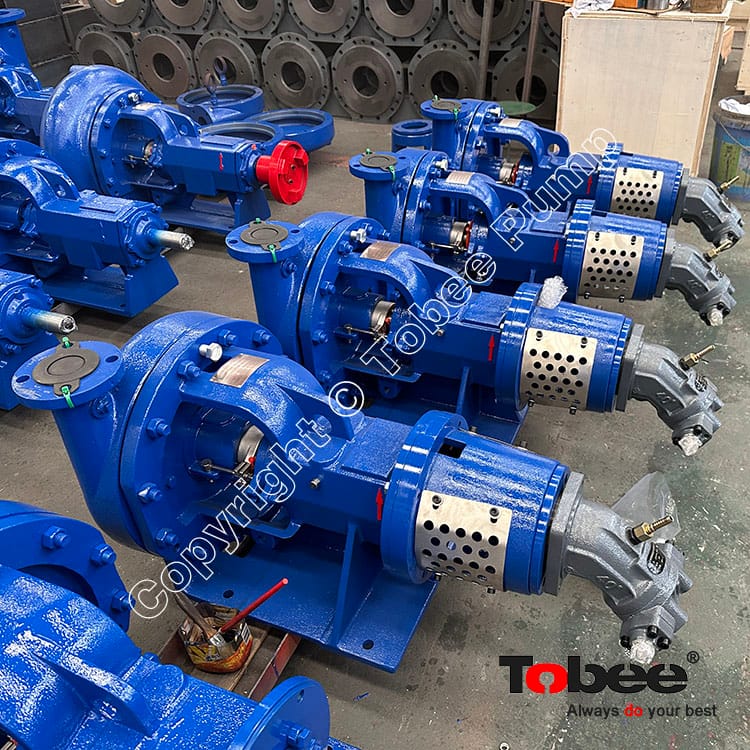

• The pumps can be unitized with hydraulic motors driven.

Mission centrifugal Sandmaster pumps to suit for all kinds of drilling sand pump application. Bare shaft pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.

Typical Configurations:

3x2x13       6x5x14
4x3x13       8x6x11
5x4x14       8x6x14
6x5x11       10x8x14

Typical Applications:

• Mud mixing and shearing
• Desanding and desilting
• Degassing
• Supercharging
• Centrifugal feed
• Mud cooling towers
• Wash-down
• Chemical, refinery, industrial, construction and agricultural applications
• Underground Construction
