H2524-70-30 Semi Open Impeller for 2500 Supreme 6x5x11 Pump

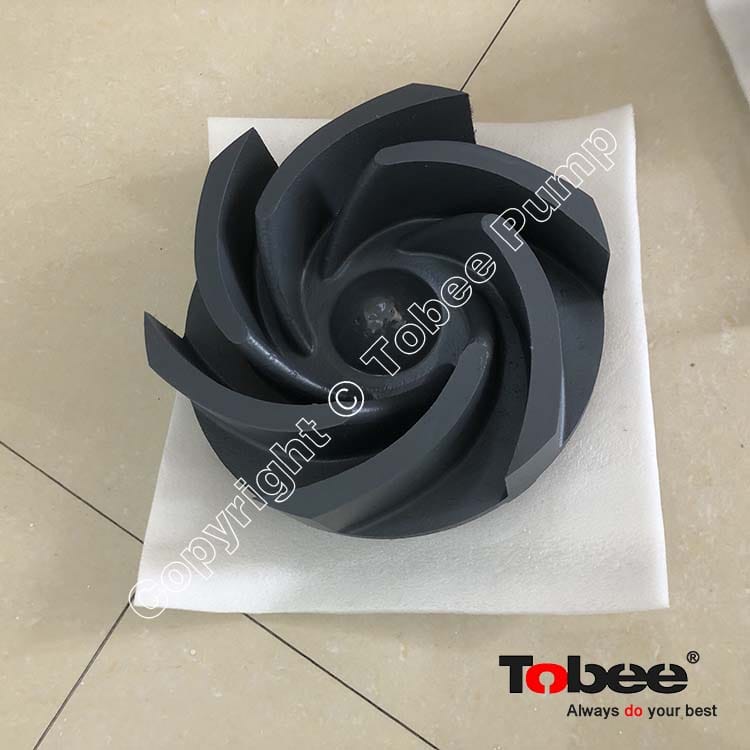

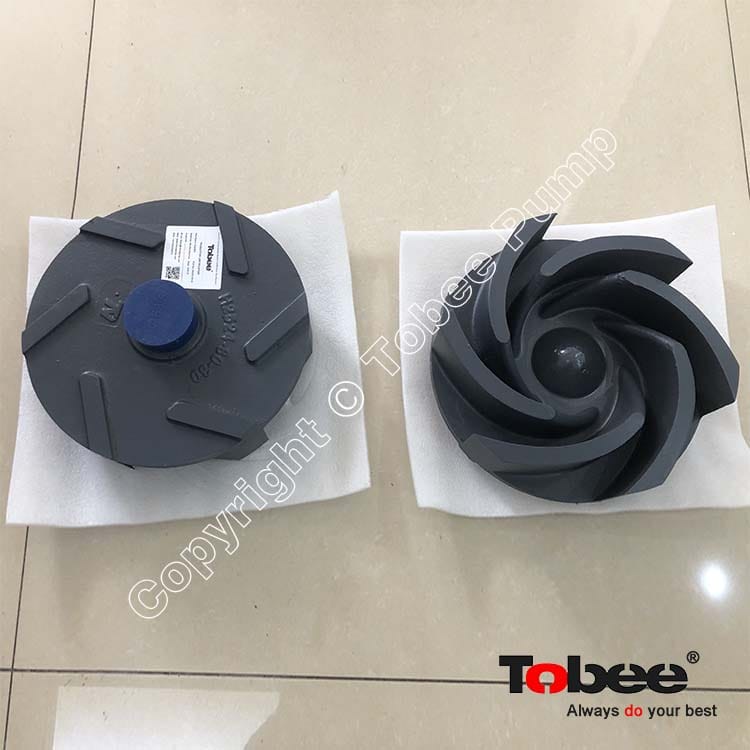

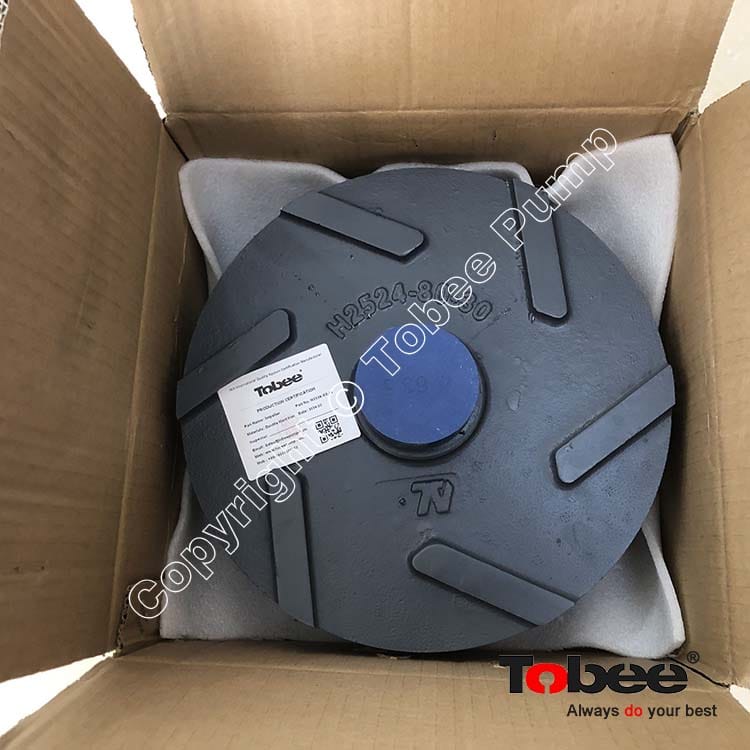

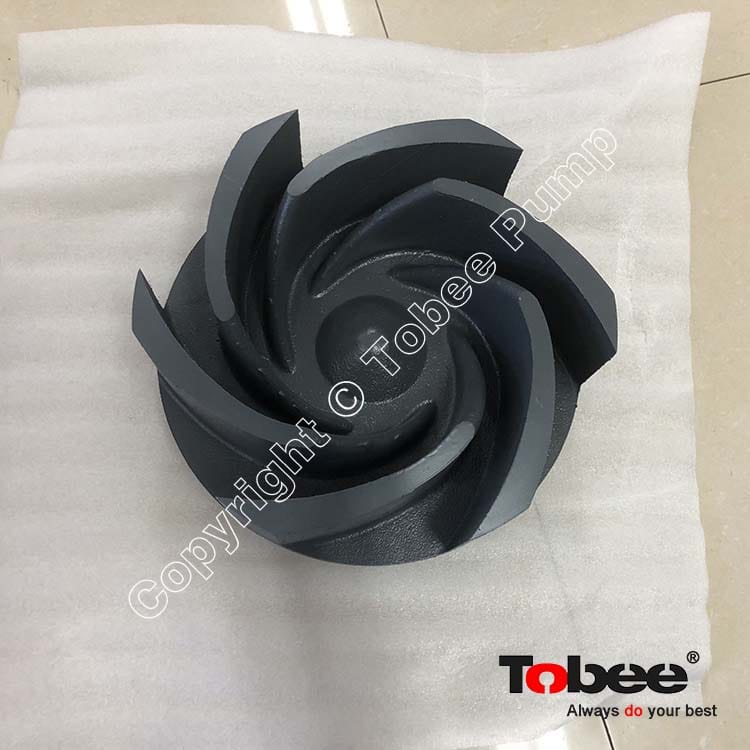

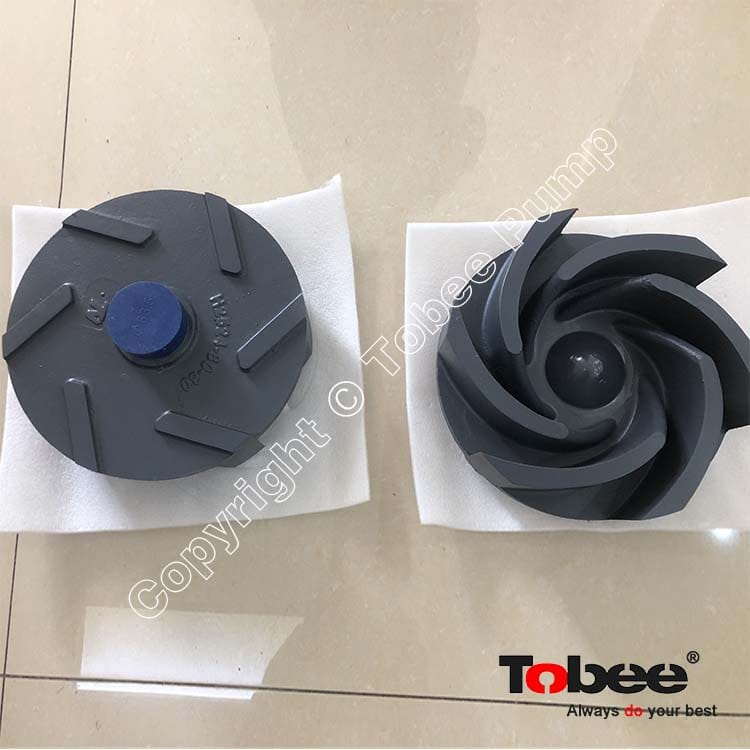

P/N: (H2524-70-30)11 inch Semi Open Ductile Hard Iron Impeller for Mission 2500 Supreme 6x5x11 Oilfield Pump.

Sandman™ H2524-XX-30 impellers Diameter can be cut:

H2524-50-30 Impeller 6×5 – 9 inch
H2524-60-30 Impeller 6×5 – 10 inch
H2524-70-30 Impeller 6×5 – 11 inch
H2524-80-30 Impeller 6×5 – 12 inch
H2524-90-30 Impeller 6×5 – 13 inch
H2524-A0-30 Impeller 6×5 – 14 inch

The Mission 2500 Supreme has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

Fluid end parts available with Supreme Hard material that has a 400 Brinell hardness. The standard impeller, casing wear pad and stuffing box are Ductile Iron to ensure even wear characteristics.
Casing provided with replaceable casing wear pad on 4x3x13 – 10x8x14 models.

Mission 2500 series Pumps Typical Configurations:

3x2x13       6x5x14
4x3x13       8x6x11
5x4x14       8x6x14
6x5x11       10x8x14

Mission 2500 Supreme Pump Applications:

• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
• Mine de-watering
• Lime slurries
• Kaolin clay
• Crystalline forms
