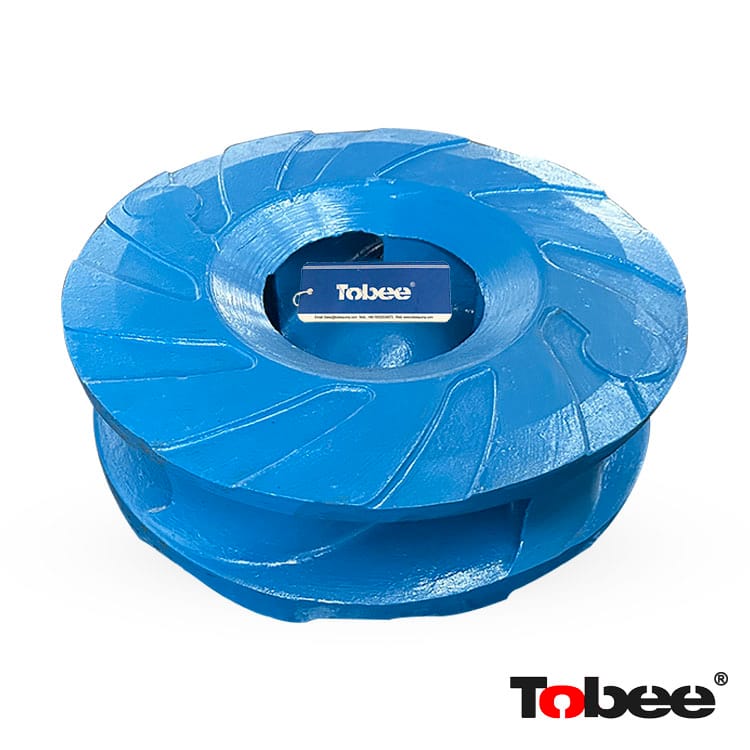

Name: FAM8147A05A Impeller for AH10x8 Slurry Pump
Price: 3900.00 USD

FAM8147A05A Impeller for AH10x8 Slurry Pump

Tobee® Slurry Pump impeller is one of the most important parts of centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.

price:

$3900.00 $4980.00

Pump model:

AH10X8 AH10/8

Parts Material:

Metal Rubber Polyurethane Ceramic

Parts Application:

River water pump Gravel dredge pump Sand gravel pump Gold slurry pump

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

Tobee^® Slurry Pump Parts are interchangeable with AH/HH/L/M slurry pump parts and designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee’s high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.

Tobee^® offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.

Tobee^®Slurry Pumps Interchangeable parts:

√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc

√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66

√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50

√ Polyurethane materials code: U01, U05

√ Shaft material: 45#, 40CrMo, SS304, SS316

√ Shaft sleeve material: SS410, SS420 SS304, SS316

√ Lantern ring material: 304, 316, PTFE

√ Bearing housing/ bearing end cover material: G01, D21

√ Expeller, Expeller ring: A05

√ Packing: Q05

Tobee^® Main Parts for Spare and Wear Parts for Slurry Pumps:

Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

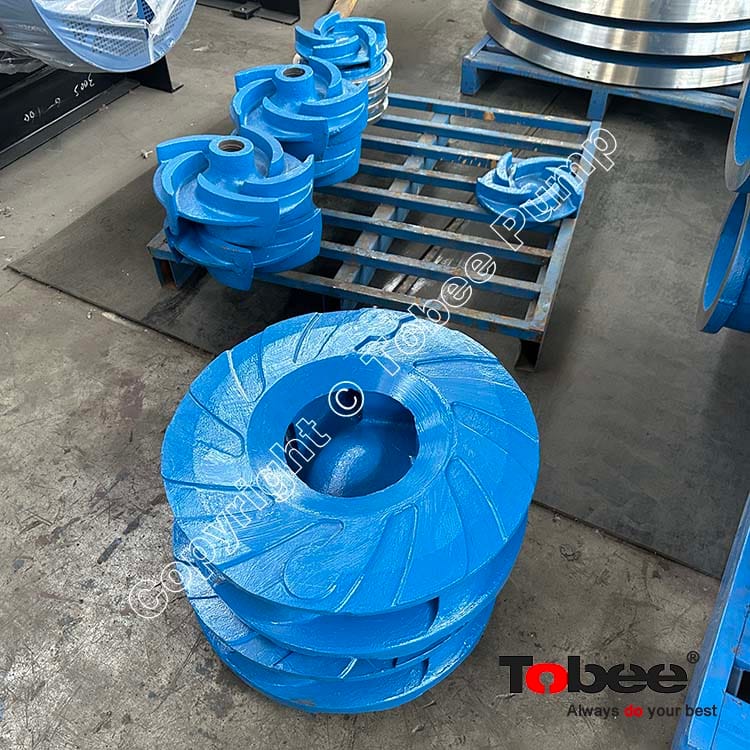

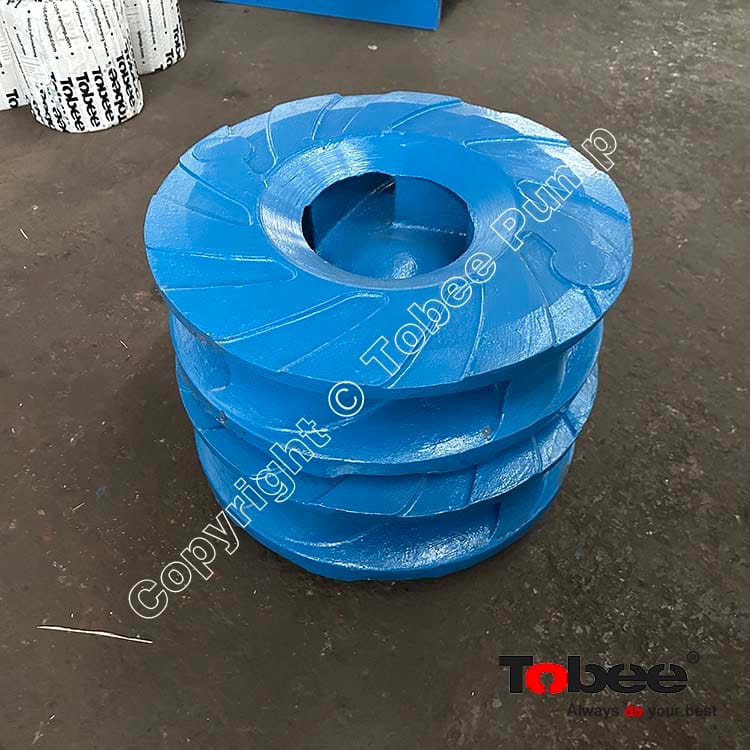

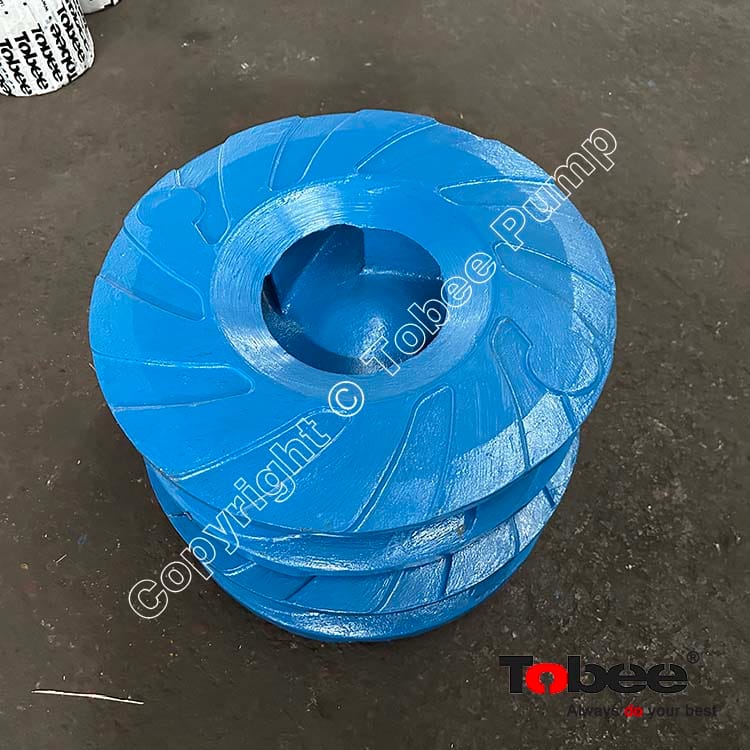

Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Tobee^®Slurry Pump Impeller Code:

Slurry Pump Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
B15127	2/1.5B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2147	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2127	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2051	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3147	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3145HE1	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3021	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4147	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4056	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4058	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM8147	10/8F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8147	10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM10147	12/10F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10147	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM12147	14/12F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12147	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GAM14147	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
32056	50B-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
43056	75C-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
64056	100D-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
86056	150E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
108056	200E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL30147	300S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL35147	350S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL40147	400ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL45147	450ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TUL55147	550TU-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F10147	12/10F-M, 12/10R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH2147	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EH3147	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4147	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH6147	6S-H, 8/6S-H	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	G(H) Gravel Pump	Slurry Pump Materials Code
DG4137	6/4D-G, 6/4E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EG6137	8/6E-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG8137	10/8F-G, 10/8S-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FG10137	12/10G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GG12137	14/12G-G	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FGH8137	10/8F-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GGH10137	12/10G-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TG14148	16/14TU-GH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	SP Vertical Slurry Pump	Slurry Pump Materials Code
SP4206	40PV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP65206	65QV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP10206	100RV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP15206	150SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP20206	200SV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP25206	250TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SP30206	300TV-SP	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Tobee® Slurry Pump Materials Application Areas:

Tobee® Slurry Pump Parts widely used in Mining, Mineral Processing, Paper pulp, Sands, Gravels, Dredging, Coal Prep, Cyclone Feeds, Chemical Slurry Service, Tailings, Aggregate Processing, Ash Handling, Fine Primary Mill Grinding, Secondary Grinding, Iron Ore, Cooper, Oil field, Diamond, Alumina, Coal, Gold, Silver, Cement, Lead&zinc, Asbestos, Kaolin, Phosphorite, Bauxite, Potash, Mineral sands, Steel, Palm, Sugar, Steeloxyde, Chemical fertilizer, Molybdenum, Tin, Titanium, Power, FGD, Sea water, Food Processing, Cracking Operations, Pipeline Transport, High Velocity Hydraulic Transport,Food Processing, Explosive Sludge In Metal Smelting, River And Pond, Heavy Refuse Removal, Continuous (Snore) Sump Pump Operation, Abrasive Slurries, High Density Slurries, Large Particle Slurries, Sump Drainage, Wash down, Floor Drainage, Mixing, Frac Sand Blending, Tobacco, Construction, City Sewage, Industrial Processing etc.
