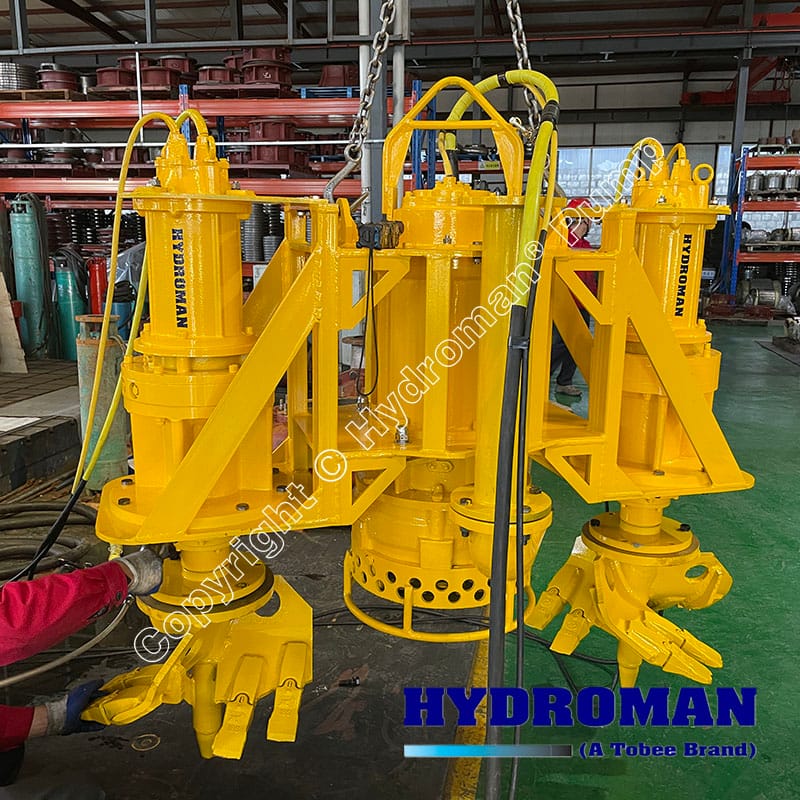

Electric Centrifugal Vertical Submersible Sand Sludge Water Pump

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump Description:

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump is built to handle thick, soft, wet mud or other similarly viscous mixtures of liquids and solids, especially the mining and tailings processing. Our electric submersible mud pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. Hydroman^® submersible mud pumps equipped with agitators as well as the impeller, suction plate, and agitator made of high-chromium cast iron and the pump casing and motor frame made of ductile cast iron, submersible mud dredging pumps are excellent in terms of wear resistance, and thus suited for drainage of mud-water, sediment-containing water, and various kinds of liquid slurry.

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump Specification:

Size: 50-400mm
Capacity: 7-2400m3/h
Head: 7-120m
Power: 0.75-315kW
Max. particle: 120mm
Agitator or Cutter heads: Available
Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.

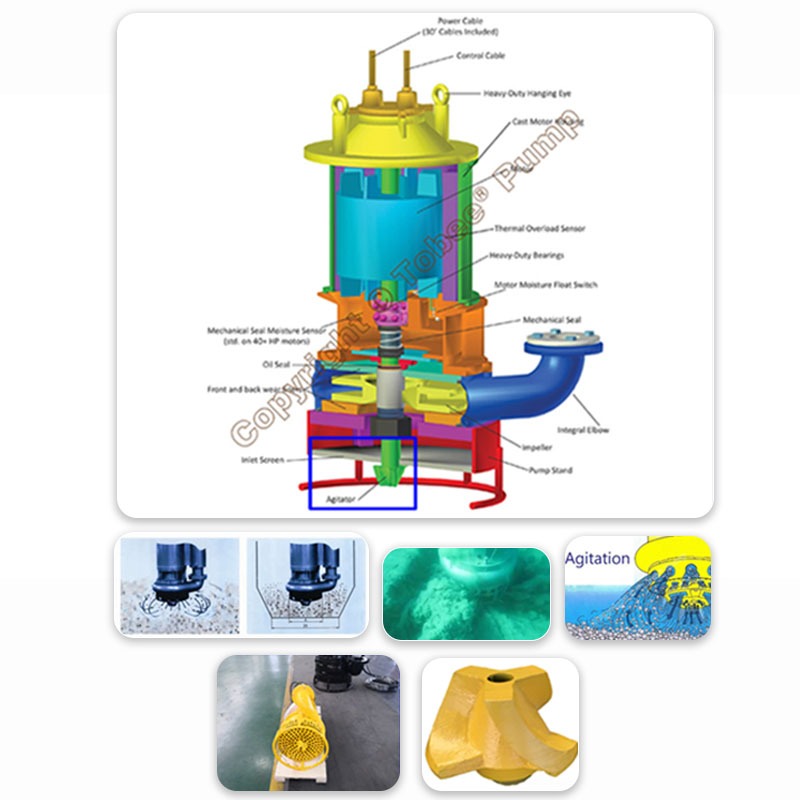

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump Constructional Drawing:

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump Maintenance:

Submersible electric dredging sand pump should be managed and used by a special person, and the insulation resistance of the electric pump winding and the casing should be checked regularly.
After each use is especially suitable for thicker slurry, the submersible electric sand pump should be put into clean water and run for a few minutes to prevent deposits and ensure the cleanliness of the motor.
If the submersible dredging mud pump is not used for a long time, the submersible mud pump should be taken out of the water. Do not soak it in water for a long time, so as to reduce the chance of the motor stator winding being damp and increase the service life of the submersible electric mud pump.
Under normal conditions, submersible agitator sand pump should be filled with oil in the oil chamber after every 300-500 hours of use to keep the mechanical seal in good lubrication and improve the service life of the mechanical seal.
After submersible dredged sand pump is disassembled and repaired, the casing components must pass the 0.2mpa air tightness test to ensure the reliable sealing of the motor.
The seal ring between the impeller and the pump body has a sealing function. If the seal is damaged, it will directly affect the performance of the electric submersible pump and should be replaced if necessary.

Hydroman^® Electric Centrifugal Vertical Submersible Sand Sludge Water Pump Application:

▪ Dredging
▪ Marine Construction
▪ Dewatering and Construction
▪ Slurry/Sludge Transfer
▪ Mine Tailings Removal
▪ Drill Cuttings Transfer
▪ Chemical and industrial plant remediation
▪ Mining remediation
▪ Harbour and marina dredging
▪ Channel, pond, lagoon, dam and canal cleaning
▪ Sand extraction
