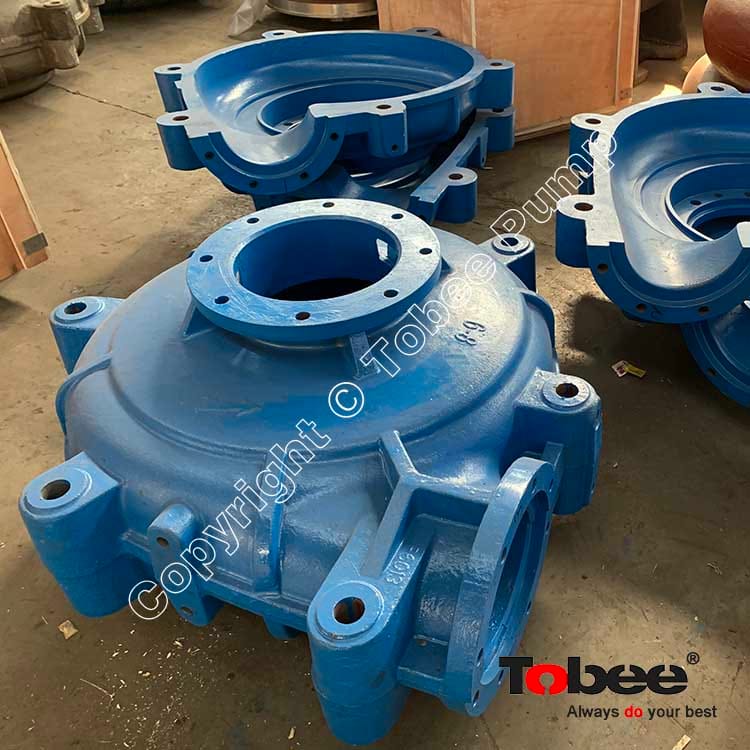

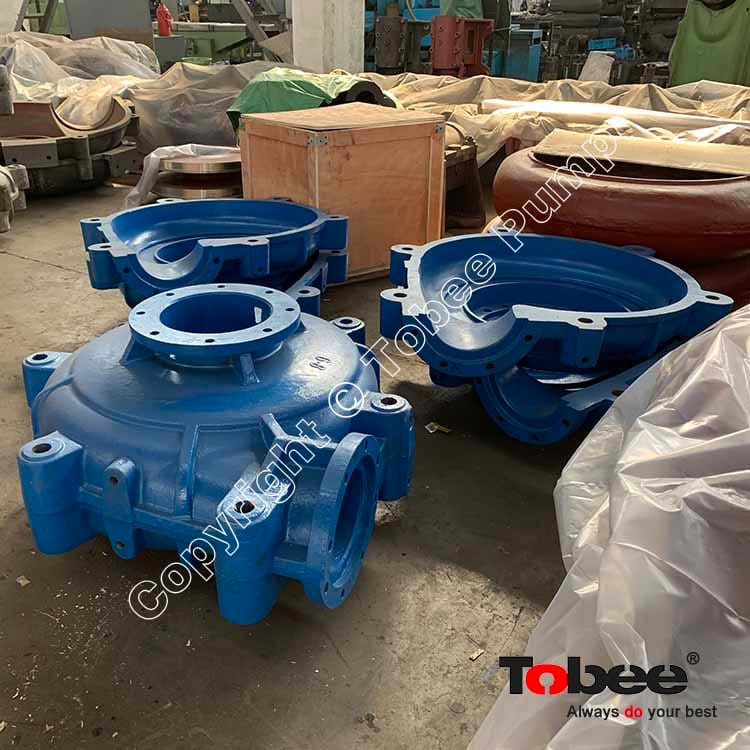

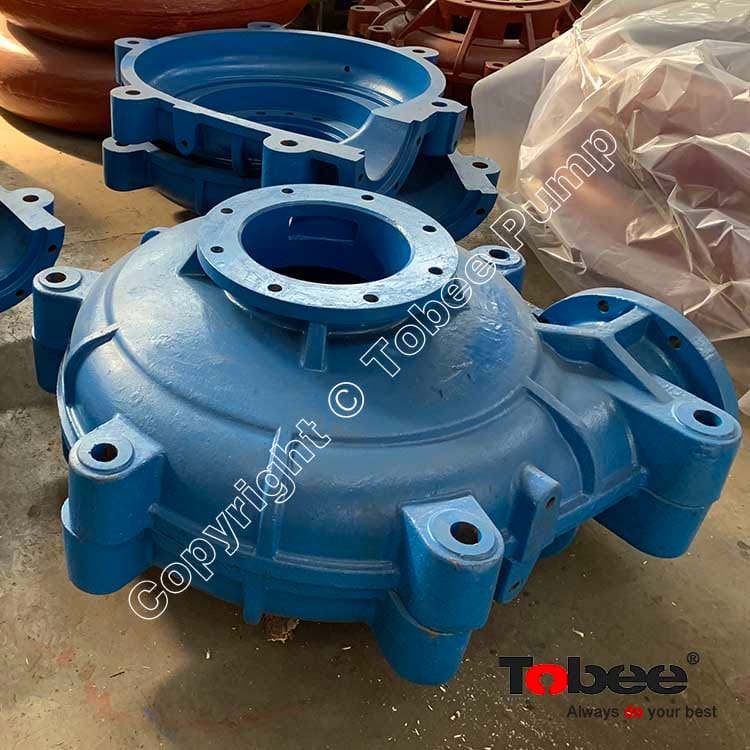

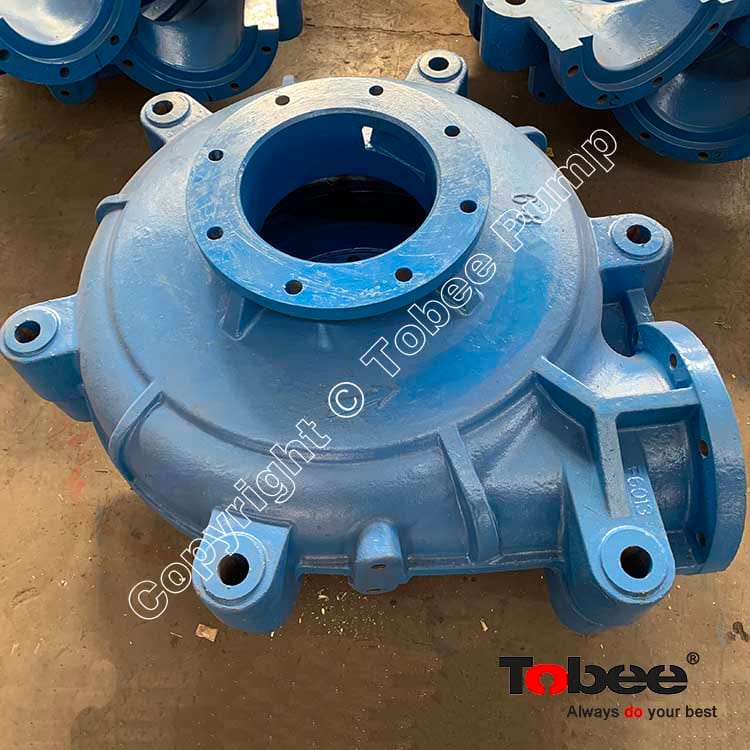

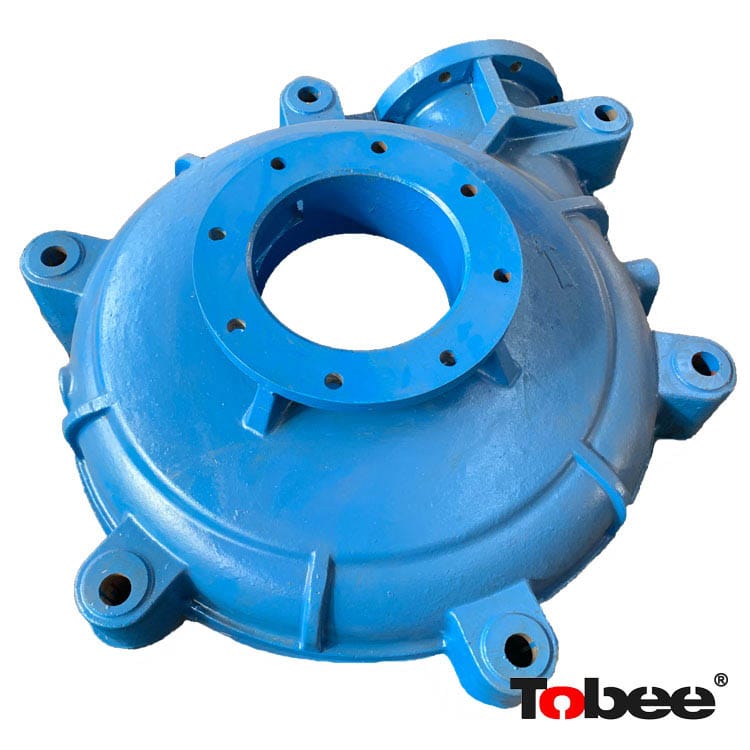

F6013A05 Cover Plate is suction side casing in 8/6F-AH Slurry Pumps which pull together with frame plate around the liners via cover plate bolts.
Slurry Pump Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.
Slurry Pump Cover Plate and Frame Plate Codes:
|
Cover Plate |
Frame Plate |
AH Slurry Pump |
Materials |
|
B1313 |
B1032 |
1.5/1B-AH |
HT250, High chrome |
|
B15013 |
B15032 |
2/1.5B-AH |
HT250, High chrome |
|
C2013 |
C2032 |
3/2C-AH |
HT250, High chrome |
|
CAM3032 |
4/3C-AH |
HT250, High chrome |
|
|
D3013 |
D3032 |
4/3D-AH |
HT250, High chrome |
|
DAM4013 |
DAM4032 |
6/4D-AH |
QT500-7 |
|
E4013 |
E4032 |
6/4E-AH |
QT500-7 |
|
EAM6032 |
8/6E-AH, 8/6R-AH, 8/6F-AH |
QT500-7 |
|
|
G8032 |
10/8F-AH, 10/8ST-AH |
QT500-7 |
|
|
G10013 |
G10032 |
12/10ST-AH, 12/10F-AH |
QT500-7 |
|
G12013 |
G10032 |
14/12ST-AH, 14/12F-AH |
QT500-7 |
|
H14013 |
H14032 |
16/14TU-AH |
QT500-7 |
|
Cover Plate |
Frame Plate |
HH Slurry Pump |
Materials |
|
CH1013 |
CH1032 |
1.5/1C-HH |
QT500-7 |
|
DH2013 |
DH2032 |
3/2D-HH |
QT500-7 |
|
EH3013 |
EH3032 |
4/3E-HH |
QT500-7 |
|
FH4013 |
FH4032 |
6/4F-HH |
QT500-7 |
|
Cover Plate |
Frame Plate |
M Slurry Pump |
Materials |
|
F8013 |
EM8032 |
10/8E-M |
QT500-7 |
|
Cover Plate |
Frame Plate |
L Slurry Pump |
Materials |
|
AL2013 |
AL2032 |
20A-L |
HT250, High chrome |
|
BL5013 |
BL5032 |
50B-L |
HT250, High chrome |
|
CL75013 |
CL75032 |
75C-L |
HT250, High chrome |
|
DL10013 |
DL10032 |
100D-L |
QT500-7 |
|
EL15013 |
EL15032 |
150E-L |
QT500-7 |
|
SL30013 |
SL30032 |
300S-L |
QT500-7 |
|
Cover Plate |
Frame Plate |
G(H) Gravel Pump |
Materials |
|
/ |
DG4131 |
6/4D-G |
High Chrome |
|
EG86013 |
EG6131 |
8/6E-G |
High Chrome |
|
F0108013 |
FG8131 |
10/8F-G |
High Chrome |
|
FG10131 |
12/10G-G |
High Chrome |
|
|
GG1412292 |
GG12131 |
14/12G-G |
High Chrome |
|
/ |
FGH8131 |
10/8S-GH |
High Chrome |
|
GGH10292 |
GGH10131 |
12/10TU-GH |
High Chrome |
|
HG14292 |
HG14131 |
16/14TU-GH |
High Chrome |
|
Cover Plate |
Pump Casing |
SP(R) Vertical Slurry Pump |
Materials |
|
/ |
SP4092 |
40PV-SP |
High Chrome, Rubber |
|
/ |
SP65092 |
65QV-SP |
High Chrome, Rubber |
|
/ |
SP0092 |
100RV-SP |
High Chrome, Rubber |
|
/ |
SP15092 |
150SV-SP |
High Chrome, Rubber |
|
/ |
SP20092 |
200SV-SP |
High Chrome, Rubber |
|
Cover Plate |
Frame Plate |
AH Froth Pump |
Materials |
|
C2013 |
C2032 |
2QV-AF |
HT250, QT500 |
|
E4013 |
E4032 |
4RV-AF |
HT250, QT500 |
