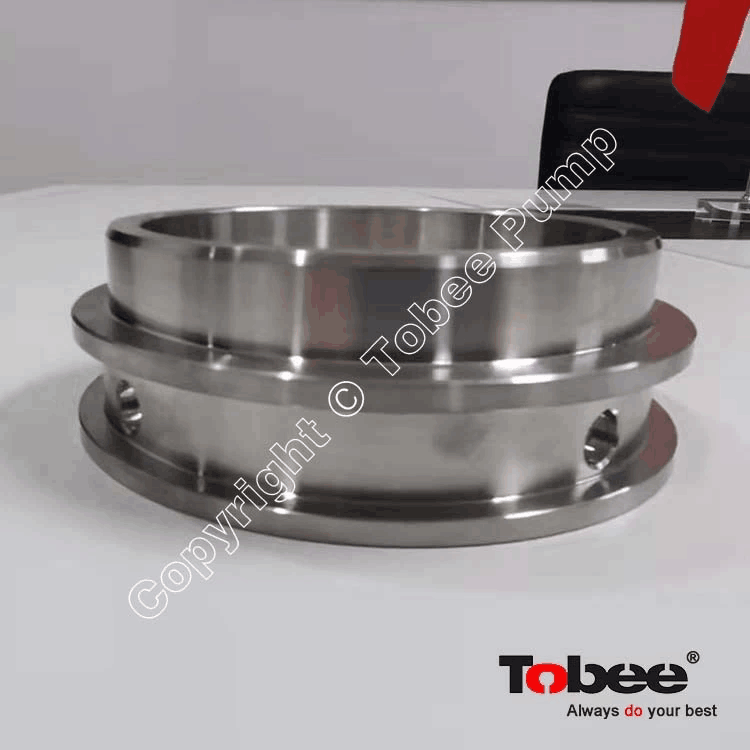

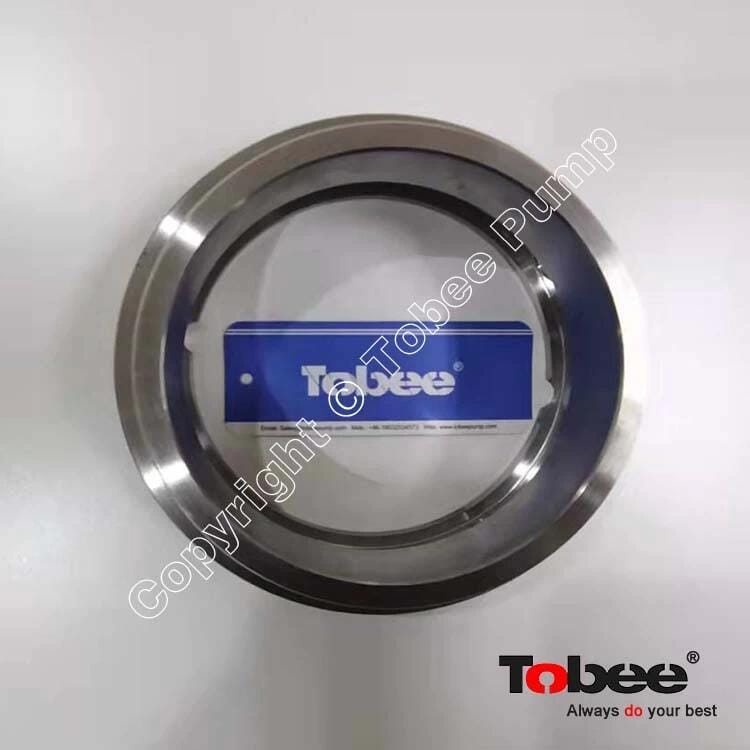

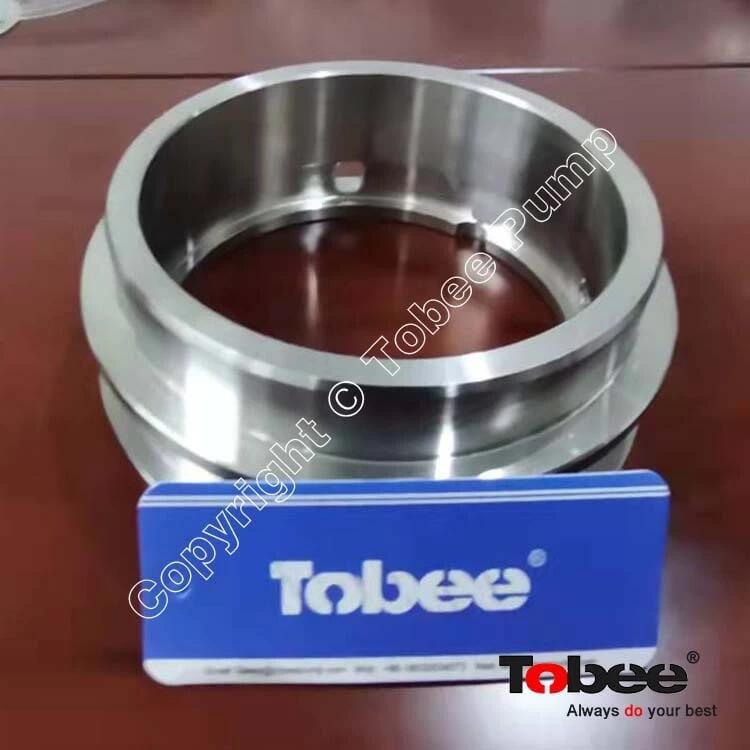

Tobee® Slurry Pump Lantern Restrictor E118E62 is one of shaft seal parts in full flow gland seal 8x6E-AH slurry pump where the flushing water is injected through.
Slurry Pump Lantern Reatrictor is located between slurry pump impeller and packing ring, it works as a lantern ring, but requires more flushing water. Slurry Pump Lantern Reatrictors are normally made in stainless steel.
In slurry pumps, a slurry pump lantern reatrictor is located between slurry pump gland packing and slurry pump impeller. It works as a lantern ring, but at the same time has clearances that restrict the flow into the pump. These clearances result in significantly more flush water being required, as there is no longer the interference fit between the ring of gland packing and slurry pump shaft.
By using a lantern restrictor, if the gland flush is always on, at a higher pressure than in the slurry pump wet end parts and the flush water is clean, the packing never encounters slurry and the sleeve and packing life is usually acceptable. Because the sleeve remains in good condition, the leakage is acceptable.
Slurry pump Lantern Restrictor Part Codes: B118C21, C118C21, D118C21, E118C21, F118C21, G118C21, H118C21, B118C23, C118C23, D118C23, E118C23, F118C23, G118C23, H118C23, B118K31, C118K31, D118K31, E118K31, F118K31, G118K31, H118K31, ect.
Slurry Pump Lantern Reatrictors are also available to suit: AH pumps, L pumps, M pumps, HH pumps, G and GH pumps.
Tobee® Slurry Pump Spare Parts Applications:
Heavy Mining | Mineral Processing | Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Washdown | Floor Drainage | Mixing
