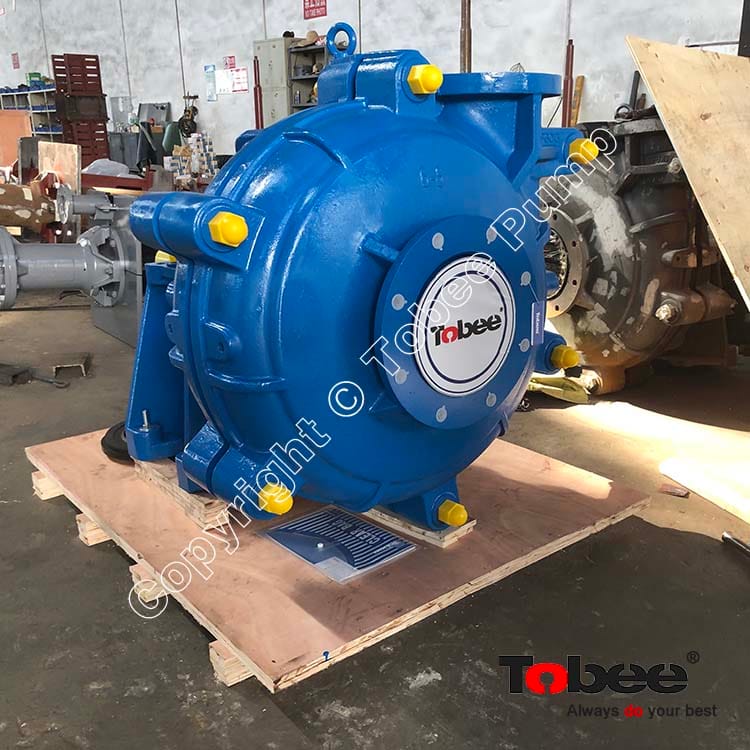

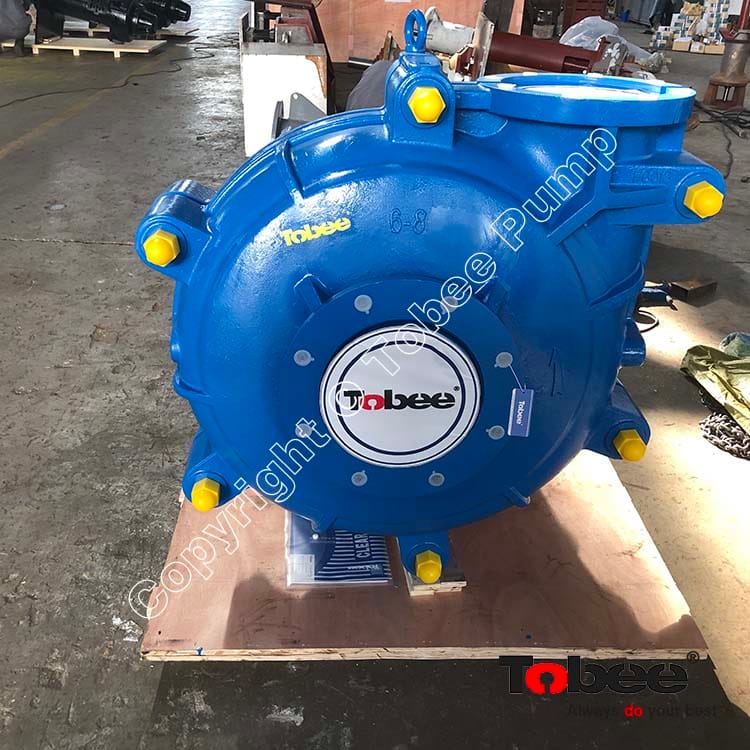

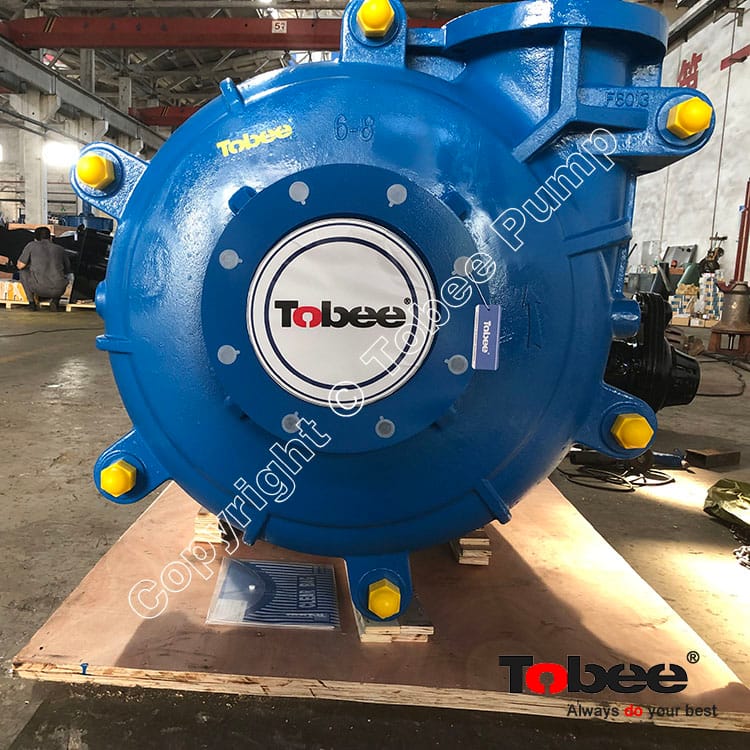

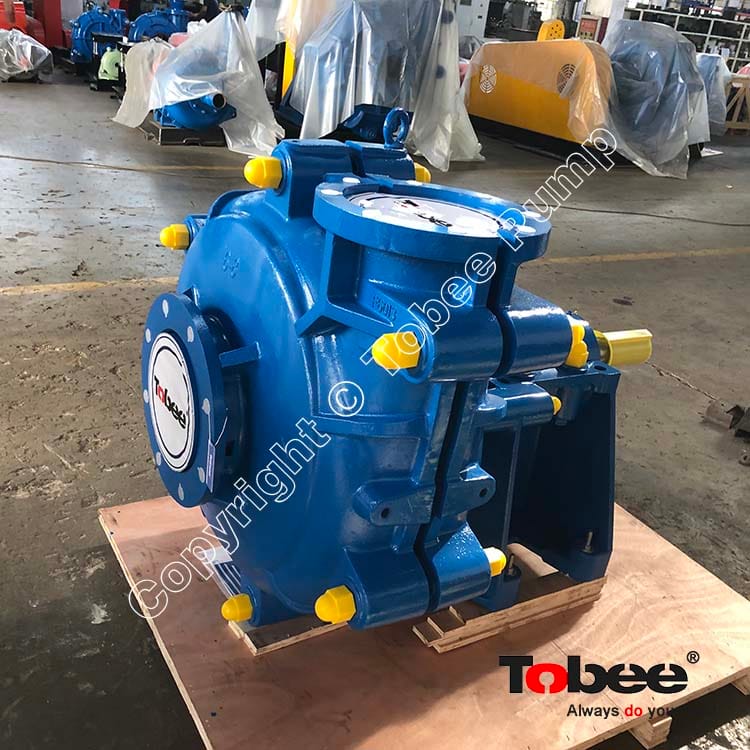

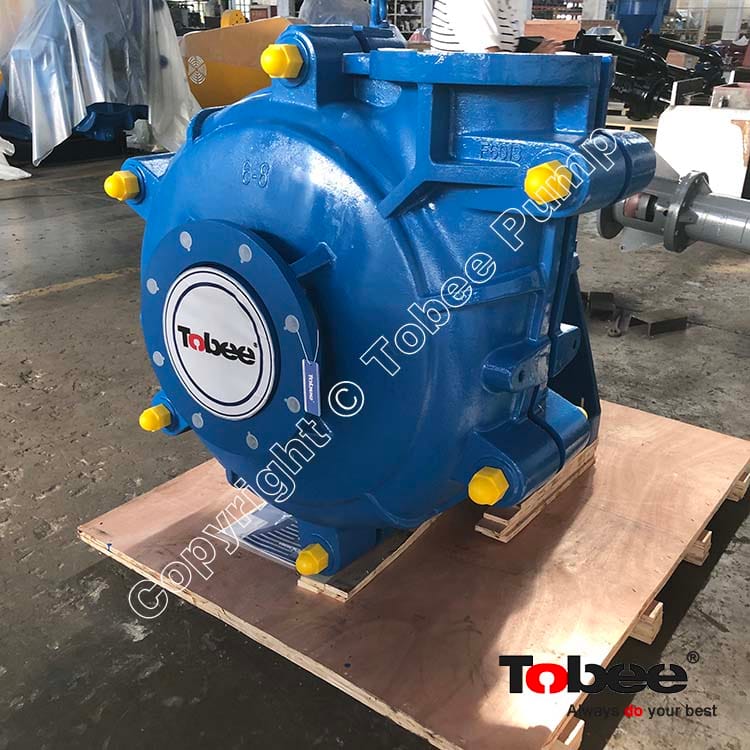

Tobee® offered THR8x6E Centrifugal Slurry Pump, Thickener Tailings Pump, Classifying Cyclones Feed Pump, Overdense Medium Pump, industrial pumping equipment, horizontal single stage pumps for suction dredger and mining application.
Tobee® AH slurry pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurries.
Tobee® 8x6 E AH Slurry Pump Design Features:
√ Bearing assembly - large diameter shaft with short overhang contributes to long bearing life.
√ Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
√ Casing - Casing halves of cast or ductile iron provide high operating pressure capabilities.
√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal.
Tobee® 8x6 E AH Slurry Pump Data Sheet:
|
Model |
Max. Power (kw) |
Materials |
Clear Water Performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
8/6E-AH |
120 |
M |
M |
360-828 |
10-61 |
500-1140 |
72 |
2-9 |
5 |
Tobee® 8x6 E AH Slurry Pump Applications:
|
Mining |
• Gypsum |
• Limestone |
• Mineral processing |
|
• FGD |
• Chemical slurries |
• Tailings |
• Lime slurries |
|
• Ash handing |
• Cyclone feeds |
• Waste sludge |
• Coarse sand |
|
• Lime mud |
• Phosphoric acid |
• Dredging |
• Construction |
|
• Alumina Industry |
• Power Plant |
• Potash Fertilizer Plant |
• Other industries |
