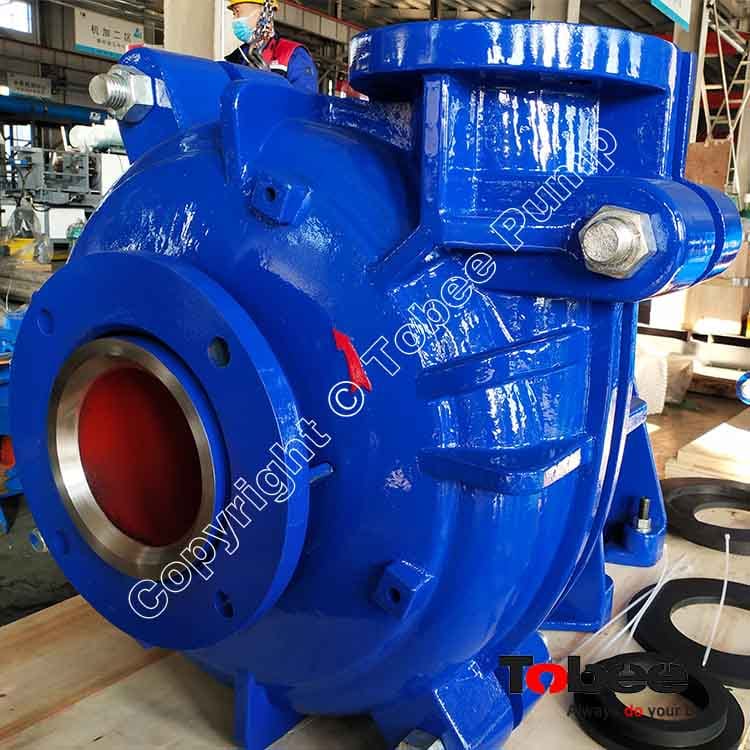

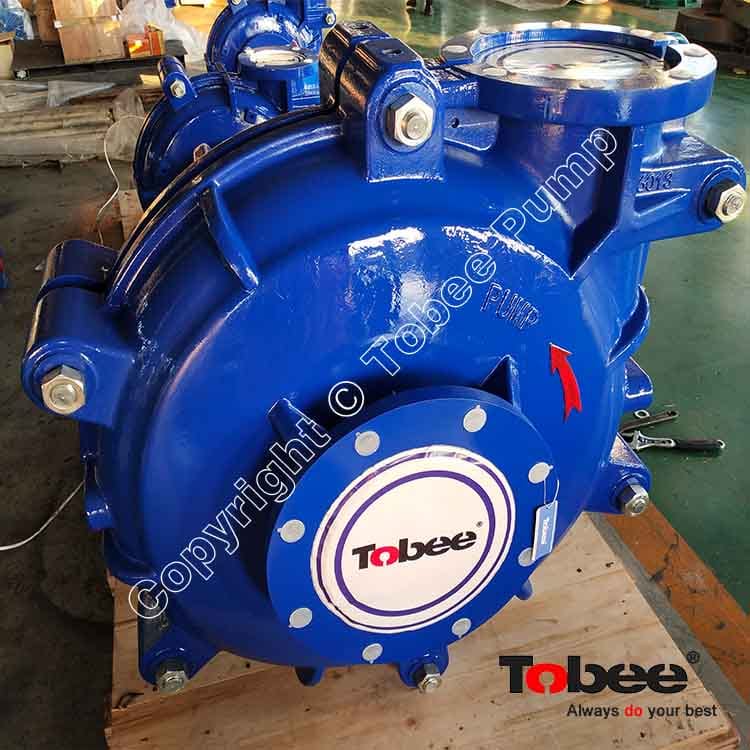

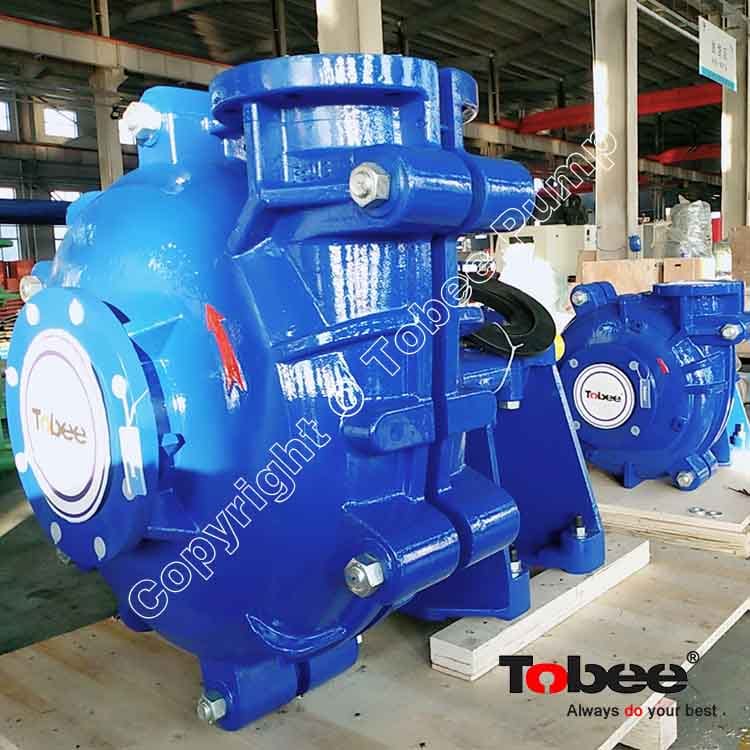

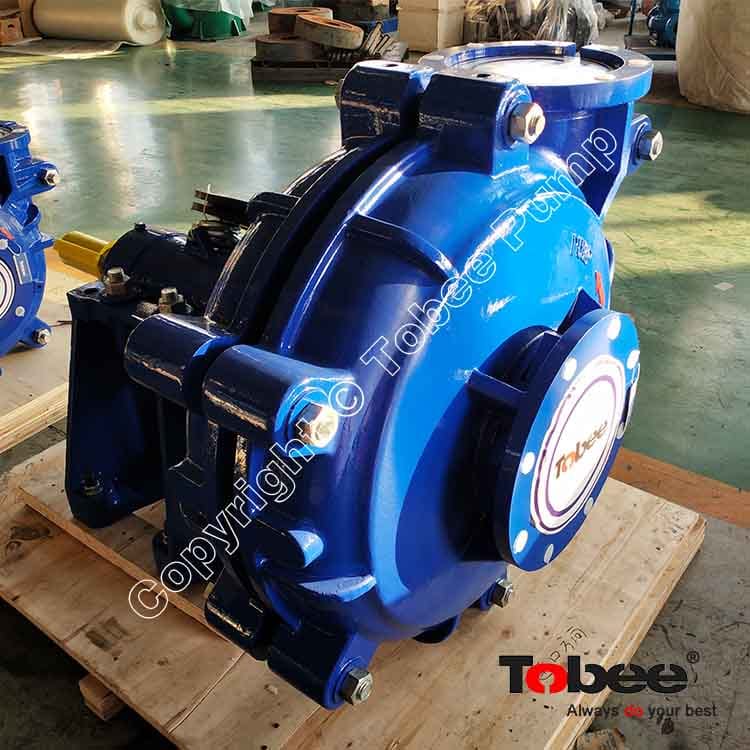

8/6E-AH Slurry Pump wet parts can be installed with metal and Rubber materials, Impeller F6147A05, F6147R55, F6145-A05, Volute Liner F6110A05, Frame Plate Liner F6036R55, Cover Plate Liner F6018R55, Throat bush F6083A05, F6083WR-T05, F6083R55, F.P.L Insert F6041A05, F6041HS1A05.
Size: 8" x 6"
Capacity: 360-828m3/h
Head: 10-61m
Speed: 500-1140rpm
NPSHr: 2-9m
Eff.: 72%
Power: Max.120kw
Handling solids: 63mm
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc
8x6E-AH Slurry Pump is used for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging and drilling mud application etc.
Design Features:
√ Bearing assembly - large diameter shaft with short overhang contributes to long bearing life.
√ Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
√ Casing - Casing halves of cast or ductile iron provide high operating pressure capabilities.
√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal.
8x6E-AH Slurry Pump Applications:
• Mining
• Gypsum
• Limestone
• Mineral processing
• FGD
• Chemical slurries
• Tailings
• Lime slurries
• Ash handing
• Cyclone feeds
• Waste sludge
• Coarse sand
• Lime mud
• Phosphoric acid
• Dredging
• Construction
• Alumina Industry
• Power Plant
• Potash Fertilizer Plant
• Other industries
