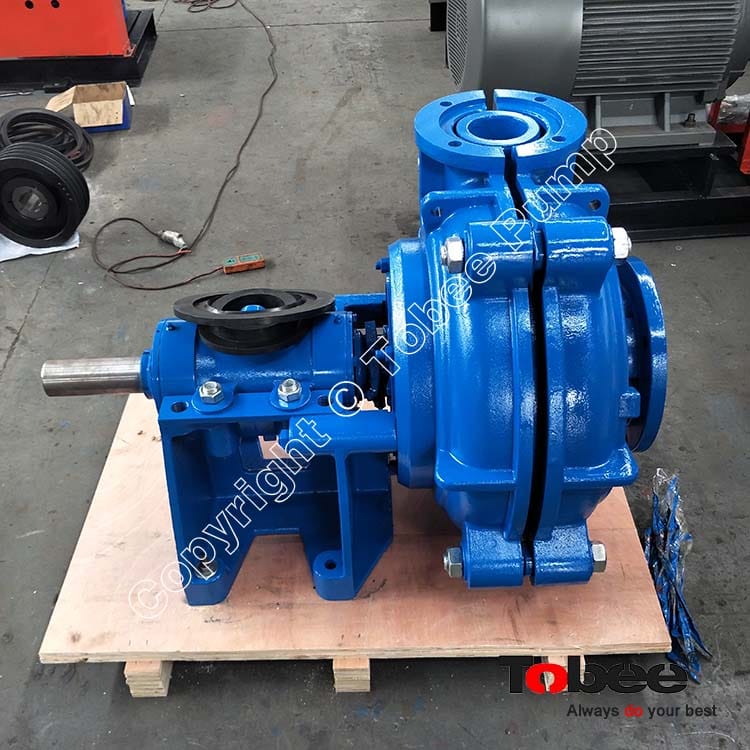

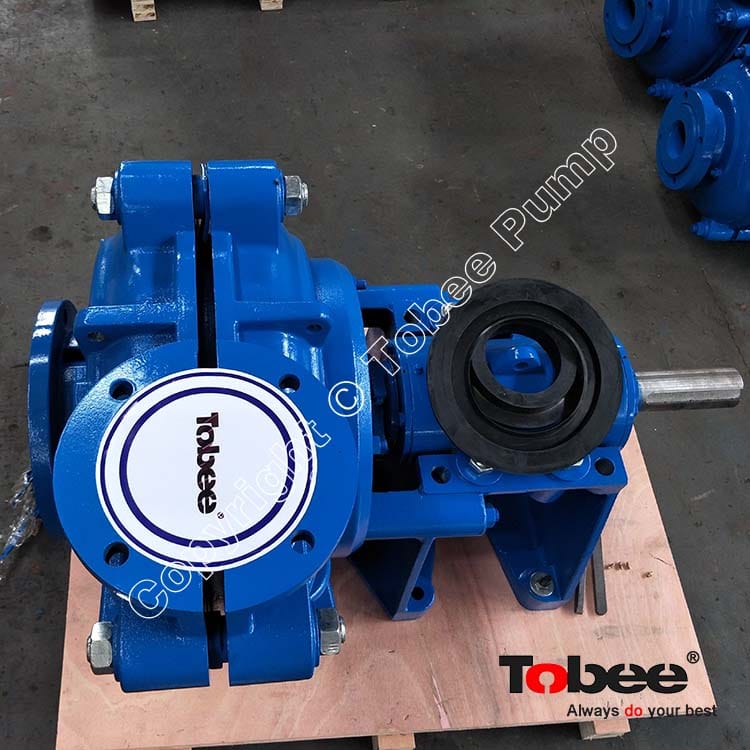

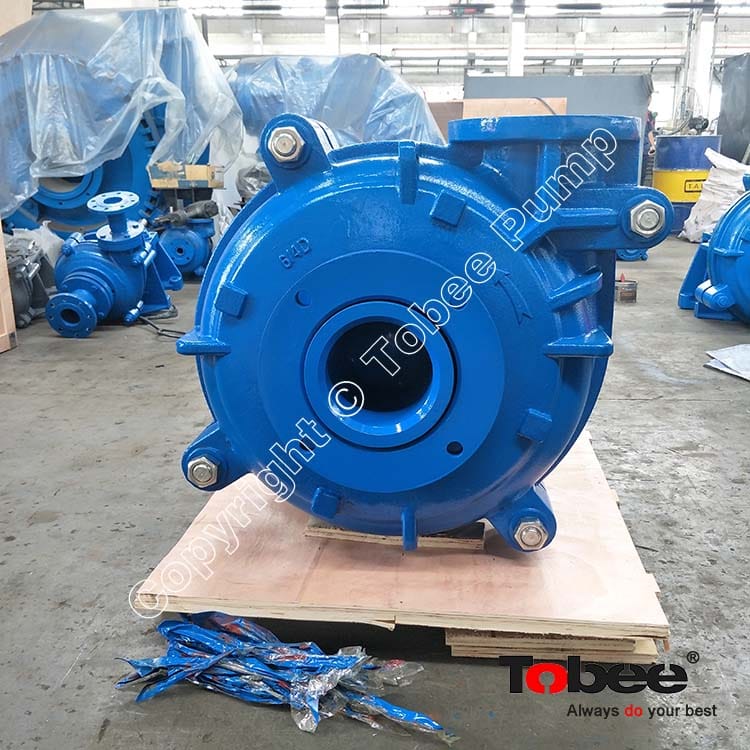

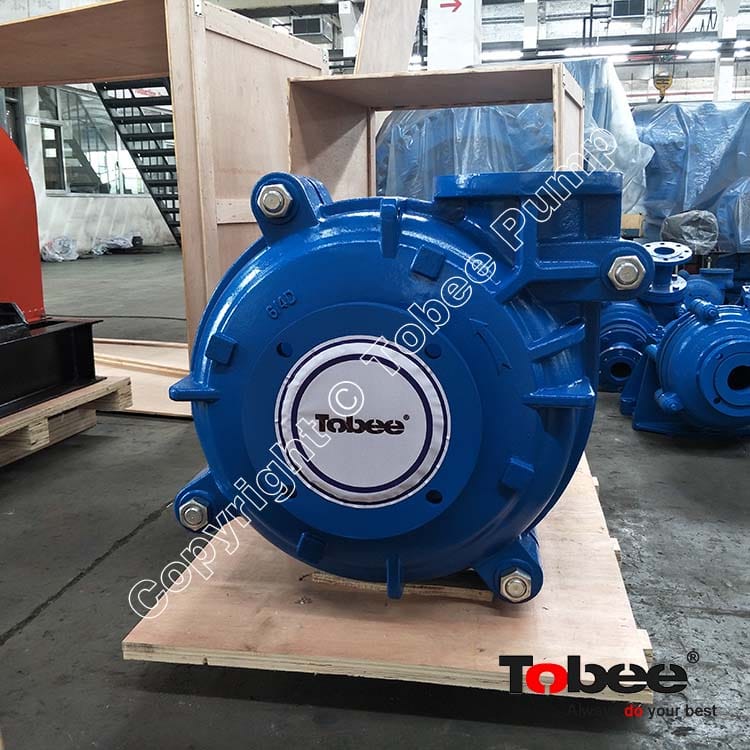

6x4 DAH Head Mounted Horizontal Slurry Pump for Palm Oil Mill

6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Tobee® 6/4 D AH Series Slurry Pumps Performance Parameters:

Tobee® 6/4 D AH Slurry Pumps Design Features:

√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.

√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.

√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.

√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.

√ The shaft seal uses the packing seal, expeller seal and mechanical seal.

Tobee® 6/4 D AH Slurry Pumps Shaft Seal Arrangement:

• Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.

• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.

• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.

Tobee® 6/4 D AH Slurry Pumps Applications:

The 6/4 D AH Slurry Pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Typical Application:

· Iron Ore Dressing Plant

· Copper Concentration Plant

· Gold Mine Concentration Plant

· Molybdenum Concentration Plant

· Potash Fertilizer Plant

· Other Mineral Processing Plants

· Alumina Industry

· Coal Washery

· Power Plant

· Sand Excavation

· Building Material Industry

· Chemical Industry

· Other industries
