Name: SPR65092R55 Rubber Casing for 65QV-SPR Vertical Slurry Pump
Price: 550.00 USD

SPR65092R55 Rubber Casing for 65QV-SPR Vertical Slurry Pump

Product Brands: Tobee

SPR65092R55 Casing is used for 65QV-SPR Rubber Lined Vertical Slurry Pump

price:

$550.00 $599.00

Part Code:

SPR65092R55 SPR65092

Pump model:

65QV-SPR 65QV-SP

Rubber Materials:

R55 R26 R08 R33 S42

Quantity:

- + (62 available)

Add to Favorite Items (20)

Sales: 12+

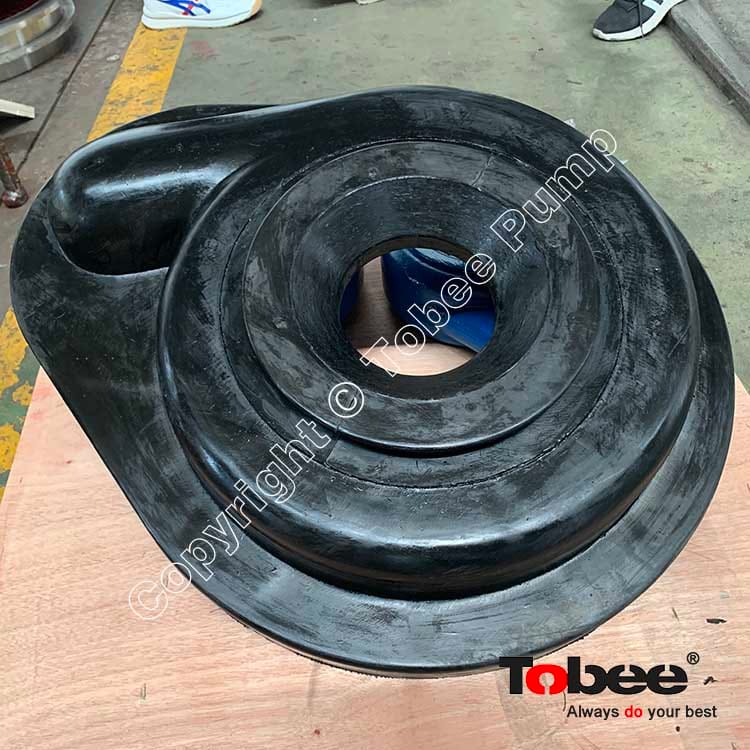

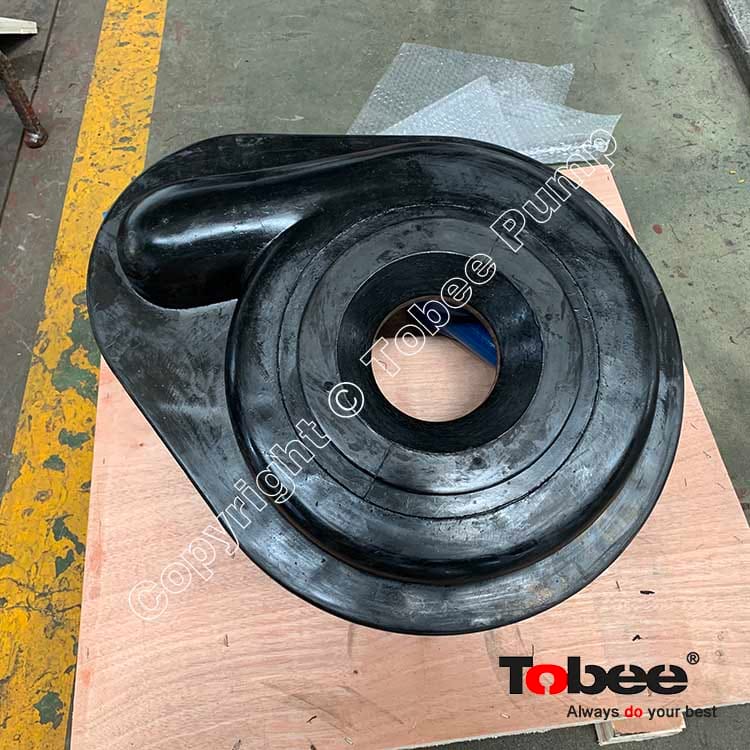

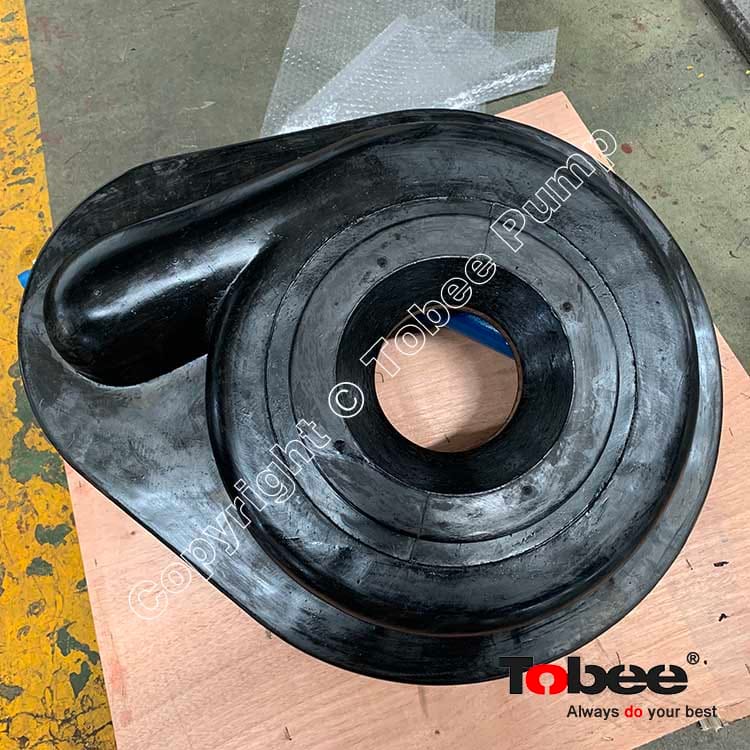

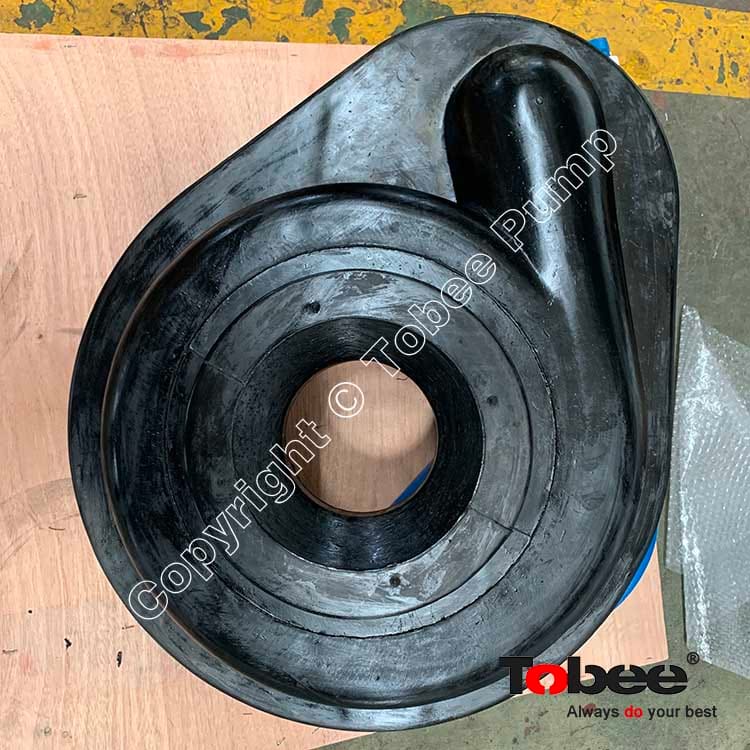

SPR65092R55 Casing is used for 65QV-SPR Rubber Lined Vertical Slurry Pump.

Vertical Slurry Pump Casing has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the SPR.

Tobee® SPR Rubber Lined Vertical Slurry Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters. Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe. The wet parts of SPR vertical sump pump is interchangeable with the SP series hard metal lined heavy duty sump pumps.

65QV-SPR Rubber Lined Vertical Pump Parts List:

No.	Pump Model	Part Name	Basic Part No.	Part Code	Material
1	65QV-SPR	Bearing Housing	004	QV004-1	Ductile
2	65QV-SPR	Bearing Sleeve	008	QV008	-
3	65QV-SPR	Bearing	009	Q009	SKF/Timken (Standard)
4	65QV-SPR	Bearing	009D	Q009D-1	SKF/Timken (Standard)
5	65QV-SPR	Mounting Plate	019	QVR65019	Steel
6	65QV-SPR	End Cover	024	QV024	Ductile
7	65QV-SPR	Low End Cover	024L	QV024L-1	Steel
8	65QV-SPR	Key	-	QV070	Steel
9	65QV-SPR	Washer	-	60	Steel
10	65QV-SPR	Shim Set	025	QV025	-
11	65QV-SPR	Nipple	-	M10X1	Steel
12	65QV-SPR	Name Plate	-	-	-
13	65QV-SPR	Rivet	-	-	Steel
14	65QV-SPR	Back Liner	041	SPR65041	Rubber
15	65QV-SPR	Suction Joint	060	SPR65060	-
16	65QV-SPR	Lock Nut	061	QV061	Steel
17	65QV-SPR	Labyrinth	062	QV062	Steel
18	65QV-SPR	Nipple 45	-	M10X1	Steel
19	65QV-SPR	O Ring	064	QV064	Ductile
20	65QV-SPR	Shaft	073	QVR65073	Steel
21	65QV-SPR	Shaft Sleeve Ejector	077	QV077	-
22	65QV-SPR	Bearing Seal	089	QV089	-
23	65QV-SPR	Casing	092	SPR65092	Rubber
24	65QV-SPR	Column	102	QVR65102	-
25	65QV-SPR	Piston Ring	108	Q108	Steel
26	65QV-SPR	End Cover Set Screw	-	D027M	Steel
27	65QV-SPR	Strainer	116	SPR65116-1	Rubber
28	65QV-SPR	Socket Head Protector	-	M20-291	-
29	65QV-SPR	Column Clamp	153	SPR65153	-
30	65QV-SPR	Discharge Pipe	154	QVR65154	-
31	65QV-SPR	Flinger	184	QV184-1	-
32	65QV-SPR	Impeller	206	SPR65206A	Rubber
33	65QV-SPR	O Ring	217	QV217	Steel
34	65QV-SPR	Spacer Set	290	QV290	-
35	65QV-SPR	Socket Head Protector	291	M12-291	-
36	65QV-SPR	Suction Pipe	322	SPR65322	-
37	65QV-SPR	Lower Strainer	1162	SPR65116L	Rubber

65QV-SPR Rubber Lined Vertical Slurry Pumps Applications:

The SPR and SP designs, manufactured in popular metric sizes, provide a simple, yet rugged range of sump pumps specially developed for: Abrasive and/or corrosive slurries, Large particle size, High slurry densities, Continuous or “snore” operations,Heavy duties demanding cantilevered shafts in minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel, and almost every other tank, pit or hole-in-the-ground slurry handling situation.

Label: 65QV-SPR Vertical Slurry Pump Casing SPR65092 Casing for 65QV-SPR Vertical Pumps Warman SP Vertical Slurry Pump Rubber Parts
