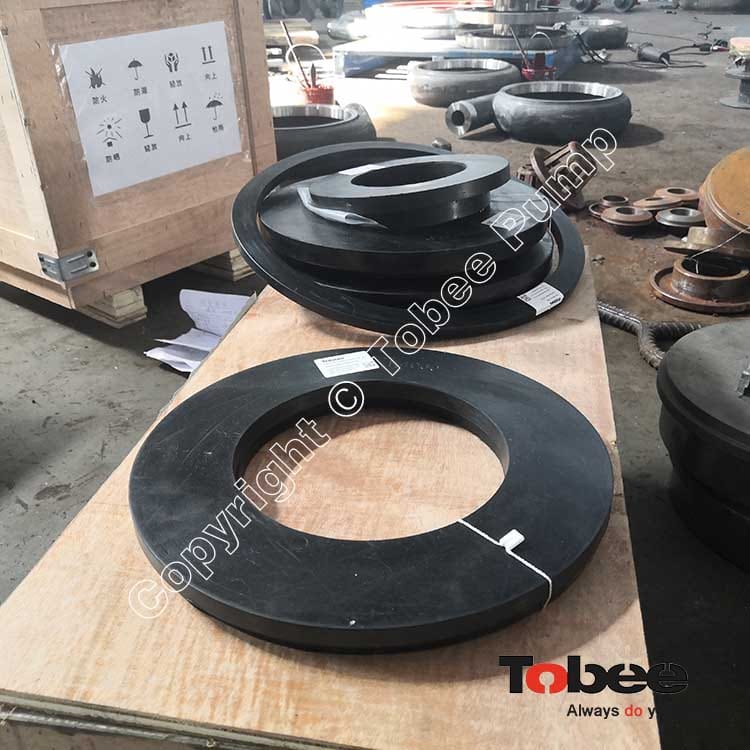

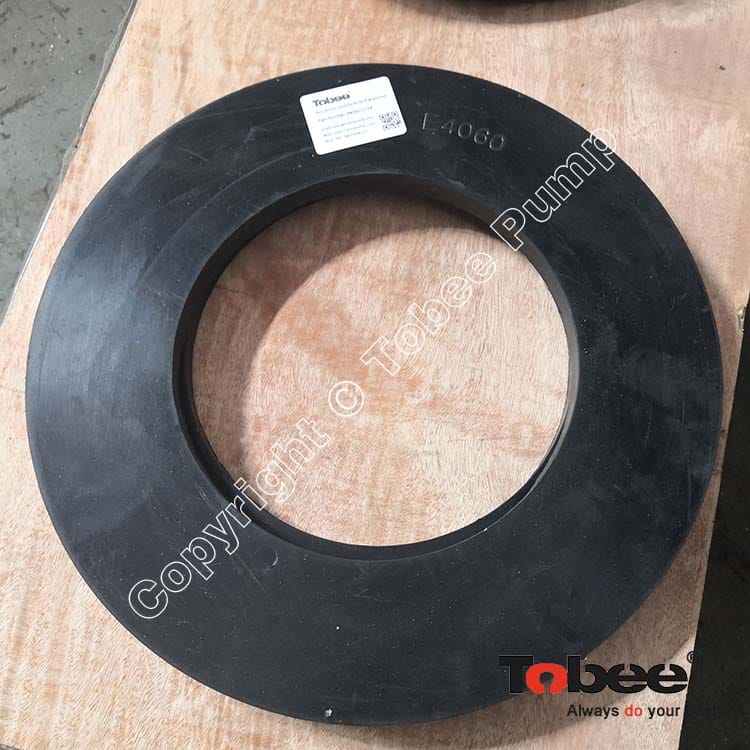

E4060S01 intake joint is installed on 6/4 E-AH Slurry Pumps.
Slurry pump intake joint ring is one of wet end parts which is used to seal the outlet of ah slurry pump for sealing slurry pump and pipeline or valve connected to the slurry pump suction end.
Slurry pump intake joint made in rubber material like S01,S12,S42,R55,S31,S14,S10,S51 etc.
Slurry pump intake joint supplied by Tobee is suit: AH slurry pumps, L slurry pumps, M slurry pumps, HH slurry pumps, G and GH gravel sand pumps.
6x4E AH Slurry Pumps Spare Parts List:
|
No. |
Pump Parts Name |
Pump Model |
Pump Parts Code |
Matl. Code |
Unit Weight |
|
1 |
Adjust Screw |
6/4E-AH |
E001 |
E62 |
|
|
2 |
Base |
6/4E-AH |
E003 |
G01 |
143.0 |
|
3 |
Bearing Assembly |
6/4E-AH |
E005M |
ZWZ Bearing |
113.0 |
|
4 |
Bearing Housing |
6/4E-AH |
E004M |
G01 |
43.5 |
|
5 |
Cover Plate |
6/4E-AH |
E4013 |
D21 |
90.0 |
|
6 |
Cover Plate Bolt |
6/4E-AH |
E4015 |
E65 |
|
|
7 |
Cover Plate Liner |
6/4E-AH |
E4018 |
R55 |
10.0 |
|
8 |
Cover Plate Liner |
6/4E-AH |
E4018TL1 |
R55 |
10.0 |
|
9 |
Discharge Joint |
6/4E-AH |
S01 |
0.4 |
|
|
10 |
End Cover |
6/4E-AH |
E024 |
G01 |
3.3 |
|
11 |
Expeller |
6/4E-AH |
E028 |
A05 |
7.3 |
|
12 |
Expeller Ring |
6/4E-AH |
E029 |
A05 |
15.2 |
|
13 |
Expeller Ring |
6/4E-AH |
E029R |
R55 |
4.5 |
|
14 |
Frame Plate |
6/4E-AH |
E4032 |
D21 |
106.0 |
|
15 |
Frame Plate Bolt |
6/4E-AH |
DAM026 |
E62 |
|
|
16 |
Frame Plate Liner |
6/4E-AH |
E4036 |
R55 |
17.0 |
|
17 |
Frame Plate Liner |
6/4E-AH |
E4036TL1 |
R55 |
17.0 |
|
18 |
Frame Plate Liner Insert |
6/4E-AH |
E4041 |
A05 |
29.0 |
|
19 |
Frame Plate Stud |
6/4E-AH |
D039 |
E62 |
|
|
20 |
Gland |
6/4E-AH |
E044 |
G01 |
2.6 |
|
21 |
Gland |
6/4E-AH |
C23 |
|
|
|
22 |
Gland Bolt |
6/4E-AH |
E045 |
C23 |
|
|
23 |
Grease Retainer |
6/4E-AH |
E046 |
G01 |
1.9 |
|
24 |
Impeller |
6/4E-AH |
E4147 |
A05 |
68.0 |
|
25 |
Impeller |
6/4E-AH |
E4147 |
R55 |
23.3 |
|
26 |
Intake Joint |
6/4E-AH |
E4060 |
S01 |
0.5 |
|
27 |
Labyrinth |
6/4E-AH |
E062 |
G01 |
2.0 |
|
28 |
Labyrinth Locknut |
6/4E-AH |
E061 |
E62 |
0.6 |
|
29 |
Lantern Restrictor |
6/4E-AH |
E118 |
C23 |
1.0 |
|
30 |
Lantern Ring |
6/4E-AH |
E063 |
C23 |
0.6 |
|
31 |
Neck Ring |
6/4E-AH |
E067 |
C23 |
0.2 |
|
32 |
O ring |
6/4E-AH |
E109 |
S10 |
|
|
33 |
O ring |
6/4E-AH |
F064 |
S10 |
|
|
34 |
Packing |
6/4E-AH |
E111 |
Q05 |
|
|
35 |
Packing |
6/4E-AH |
E111 |
Q05A |
|
|
36 |
Packing |
6/4E-AH |
E111 |
Q21 |
|
|
37 |
Packing |
6/4E-AH |
E111 |
X06 |
|
|
38 |
Piston Ring |
6/4E-AH |
E108 |
G01 |
|
|
39 |
Seal |
6/4E-AH |
E122 |
S01 |
0.4 |
|
40 |
Shaft |
6/4E-AH |
E073M |
E05 |
41.6 |
|
41 |
Shaft Sleeve |
6/4E-AH |
E075 |
C21 |
2.0 |
|
42 |
Shaft Sleeve |
6/4E-AH |
E075 |
C23 |
2.0 |
|
43 |
Shaft Sleeve |
6/4E-AH |
E075 |
J05 |
|
|
44 |
Shaft Sleeve |
6/4E-AH |
E076 |
C21 |
2.0 |
|
45 |
Shaft Sleeve |
6/4E-AH |
E076 |
C23 |
2.0 |
|
46 |
Shaft Sleeve |
6/4E-AH |
E076 |
J05 |
|
|
47 |
Shaft Spacer |
6/4E-AH |
E117 |
C21 |
1.2 |
|
48 |
Shaft Spacer |
6/4E-AH |
E117 |
C23 |
|
|
49 |
Shaft Spacer |
6/4E-AH |
E117 |
J05 |
|
|
50 |
Shim Set |
6/4E-AH |
E025 |
P10 |
|
|
51 |
Stuffing Box |
6/4E-AH |
E078 |
A05 |
15.6 |
|
52 |
Throatbush |
6/4E-AH |
E4083 |
A05 |
46.0 |
|
53 |
Throatbush |
6/4E-AH |
E4083 |
R55 |
17.4 |
|
54 |
Volute Frame Seal |
6/4E-AH |
E4124 |
S01 |
0.6 |
|
55 |
Volute Liner |
6/4E-AH |
E4110 |
A05 |
97.0 |
