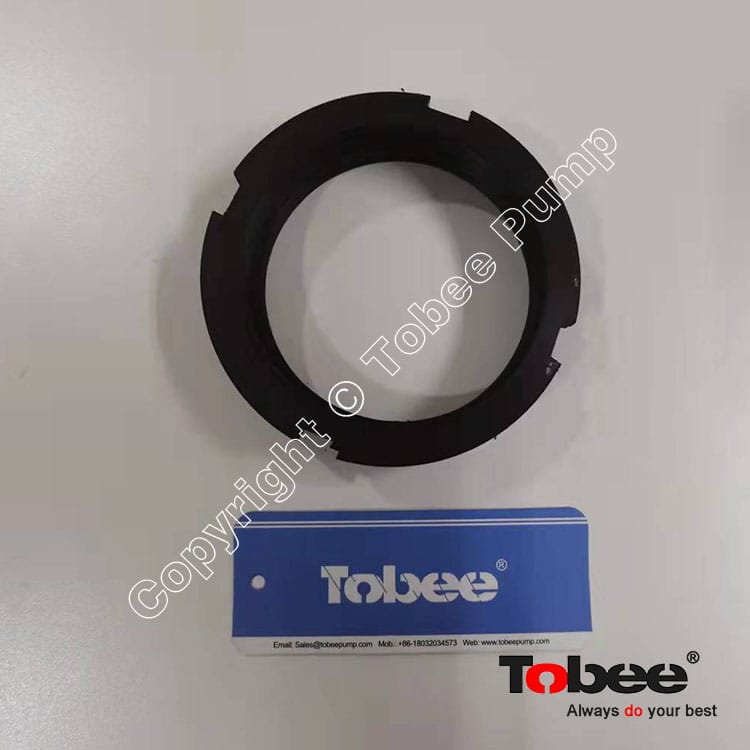

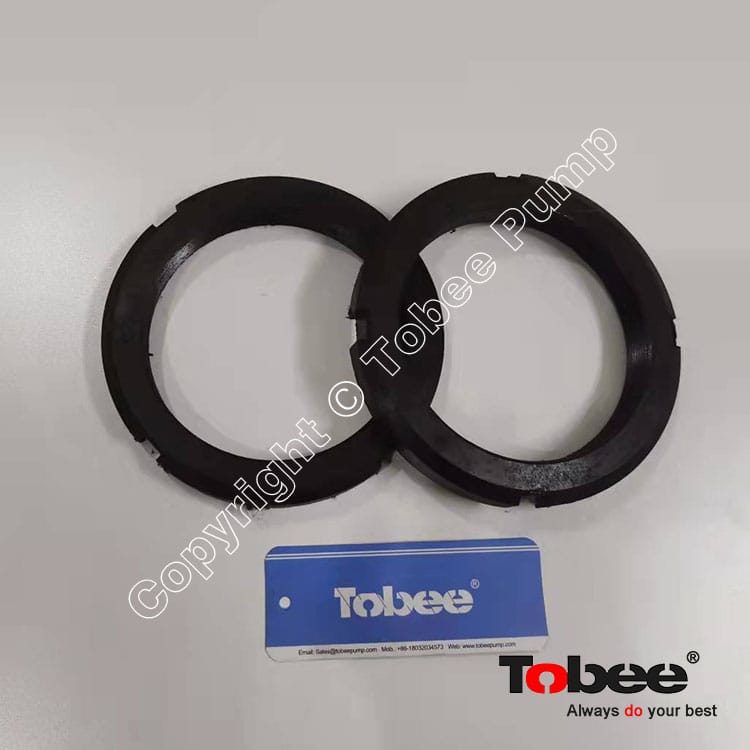

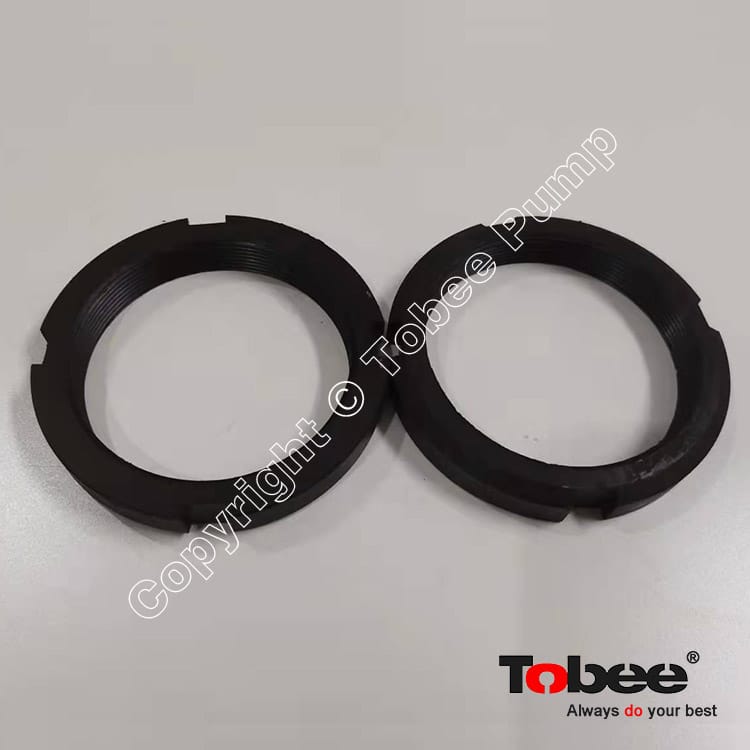

Tobee® Slurry Pump Parts Labyrinth Locknut D061 can be used for 6x4DE-AH Slurry Pumps, the basic part number is 061, its function is to fasten the labyrinth of drive end. And the labyrinth locknut is installed on the slurry pump bearing assembly to fasten the slurry pump labyrinth of drive end.
Slurry Pump Labyrinth Locknuts are normally made in carbon steel plating zinc. Our slurry pump labyrinth locknuts are available to suit: AH pumps, L pumps, M pumps, HH pumps, G and GH pumps.
Tobee® 6/4 D-AH Slurry Pump Parts Codes List:
|
No. |
Pump Parts Name |
Pump Model |
Pump Parts Code |
Matl. Code |
|
1 |
Adjust Screw |
6/4 D-AH |
D001 |
E62 |
|
2 |
Base |
6/4D-AH |
D003M |
G01 |
|
3 |
Bearing Assembly |
6/4D-AH |
DAM005M |
ZWZ Bearing |
|
4 |
Bearing Housing |
6/4D-AH |
D004M |
G01 |
|
5 |
Cover Plate |
6/4D-AH |
E4013 |
D21 |
|
6 |
Cover Plate Bolt |
6/4D-AH |
E4015 |
E65 |
|
7 |
Cover Plate Liner |
6/4D-AH |
E4018 |
R55 |
|
8 |
Cover Plate Liner |
6/4D-AH |
E4018TL1 |
R55 |
|
9 |
Discharge Joint |
6/4D-AH |
E4132L |
S01 |
|
10 |
End Cover |
6/4D-AH |
D024 |
G01 |
|
11 |
Expeller |
6/4D-AH |
DAM028 |
A05 |
|
12 |
Expeller Ring |
6/4D-AH |
DAM029 |
A05 |
|
13 |
Expeller Ring |
6/4D-AH |
DAM029R |
R55 |
|
14 |
Frame Plate |
6/4D-AH |
DAM4032 |
D21 |
|
15 |
6/4D-AH |
E4036 |
R55 |
|
|
16 |
Frame Plate Bolt |
6/4D-AH |
DAM026 |
E62 |
|
17 |
Frame Plate Liner |
6/4D-AH |
E4036TL1 |
R55 |
|
18 |
Frame Plate Liner Insert |
6/4D-AH |
E4041 |
A05 |
|
19 |
Frame Plate Stud |
6/4D-AH |
D039 |
E62 |
|
20 |
Gland |
6/4D-AH |
D044 |
G01 |
|
21 |
Gland |
6/4D-AH |
D044 |
C23 |
|
22 |
Gland Bolt |
6/4D-AH |
D045 |
C23 |
|
23 |
Grease Retainer |
6/4D-AH |
D046 |
G01 |
|
24 |
Impeller |
6/4D-AH |
E4147 |
A05 |
|
25 |
Impeller |
6/4D-AH |
R55 |
|
|
26 |
Intake Joint |
6/4D-AH |
E4060 |
S01 |
|
27 |
Labyrinth |
6/4D-AH |
D062 |
G01 |
|
28 |
6/4D-AH |
E62 |
||
|
29 |
Lantern Restrictor |
6/4D-AH |
D118 |
C23 |
|
30 |
Lantern Ring |
6/4D-AH |
D063 |
C23 |
|
31 |
Lip Seal |
6/4D-AH |
D090 |
S01 |
|
32 |
Neck Ring |
6/4D-AH |
D067 |
C23 |
|
33 |
O ring |
6/4D-AH |
D109 |
S10 |
|
34 |
O ring |
6/4D-AH |
F064 |
S10 |
|
35 |
Packing |
6/4D-AH |
D111 |
Q05 |
|
36 |
Packing |
6/4D-AH |
D111 |
Q05A |
|
37 |
Packing |
6/4D-AH |
D111 |
Q21 |
|
38 |
Packing |
6/4D-AH |
D111 |
Q22 |
|
39 |
Piston Ring |
6/4D-AH |
D108 |
G01 |
|
40 |
Seal |
6/4D-AH |
E122 |
S01 |
|
41 |
Shaft |
6/4D-AH |
DAM073M |
E05 |
|
42 |
Shaft Sleeve |
6/4D-AH |
D075 |
C21 |
|
43 |
Shaft Sleeve |
6/4D-AH |
D075 |
C23 |
|
44 |
Shaft Sleeve |
6/7D-AH |
D075 |
J05 |
|
45 |
Shaft Sleeve |
6/4D-AH |
D076 |
C21 |
|
46 |
Shaft Sleeve |
6/4D-AH |
D076 |
C23 |
|
47 |
Shaft Sleeve |
6/4D-AH |
D076 |
J05 |
|
48 |
Shaft Spacer |
6/4D-AH |
DAM117 |
C21 |
|
49 |
Shaft Spacer |
6/4D-AH |
DAM117 |
C23 |
|
50 |
Shaft Spacer |
6/4D-AH |
DAM117 |
J05 |
|
51 |
Shim Set |
6/4D-AH |
D025 |
P10 |
|
52 |
Stuffing Box |
6/4D-AH |
DAM078 |
A05 |
|
53 |
Throat bush |
6/4D-AH |
E4083 |
A05 |
|
54 |
Throat bush |
6/4D-AH |
E4083 |
R55 |
|
55 |
Volute Frame Seal |
6/4D-AH |
E4124 |
S01 |
