Tobee® 6/4inch Pump can be installed with metal lined or rubber lined as per the different application on site. with the wet parts: Impeller E4147A05, E4147R55, Volute liner E4110A05, Frame Plate Liner E4036R55, Cover plate liner F4018R55, Frame Plate liner insert E4041A05, Throat bush, E4083R55

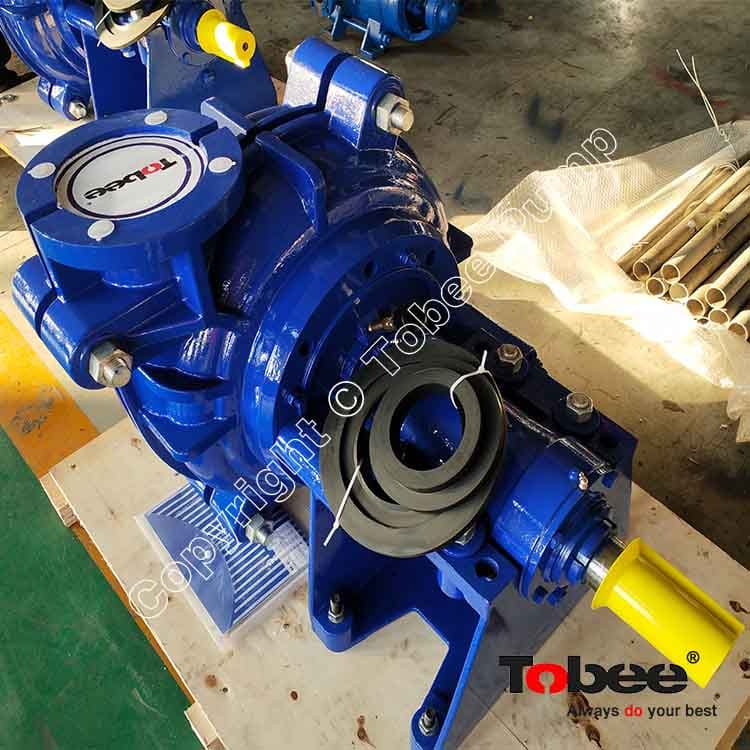

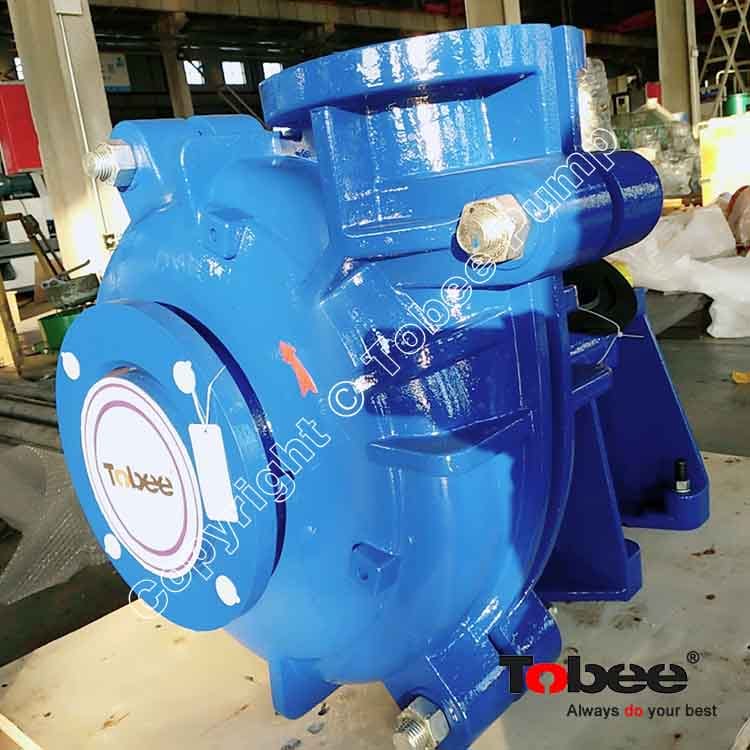

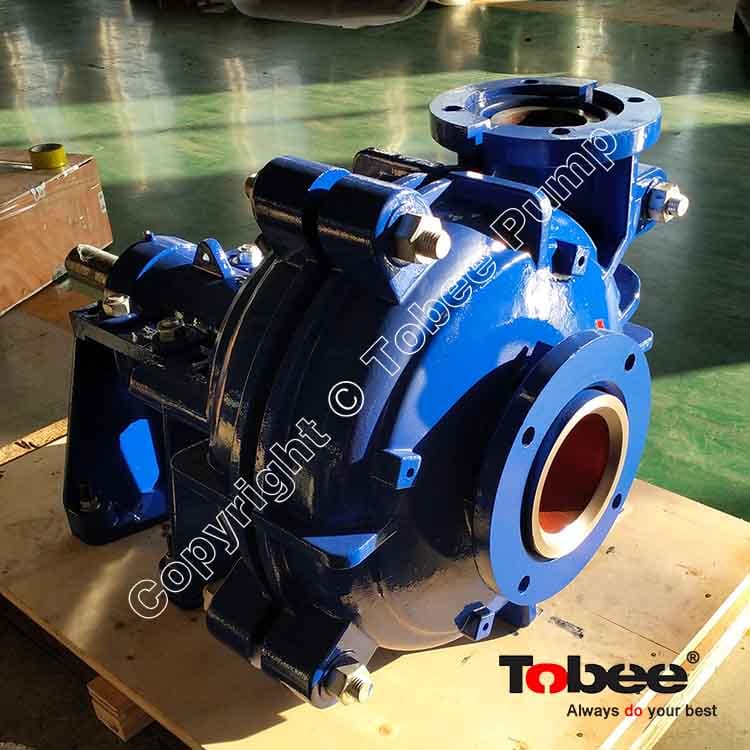

6/4D-AH heavy duty rubber slurry pumps are ready for partners' project, 6/4D AH rubber lining mining slurry pumps for handling highly abrasive, high density slurries in metallurgy industry, mining industry, coal, power, chemical, building material and other industrial departments. The pumps of these models also can be installed as multi-stage series.

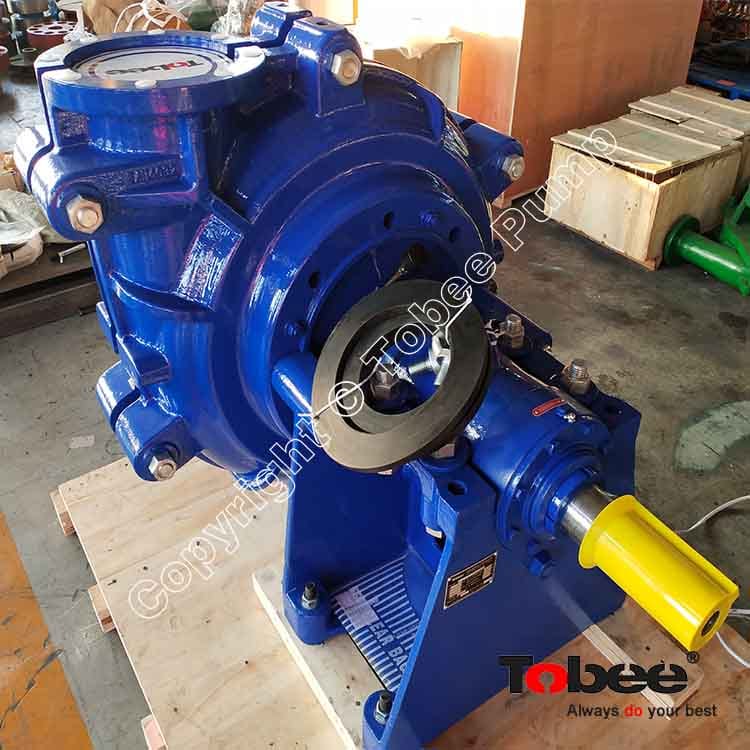

4inch AHR Rubber Lined Slurry Pump is the standard heavy duty slurry pumps which designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements, It maintains high efficiencies over the wear life of its components. 6/4 slurry pump typically used in process plant transfers, wet waste processes, recycling-washing plants, sand plant duties, heavy minerals processing, mineral recovery and chemical process plant.
AHR horizontal centrifugal slurry pumps design features:
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs
√ Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs
√ Thick rubber or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime
√ Optional dry running shaft seal reduces or eliminates flush water requirements

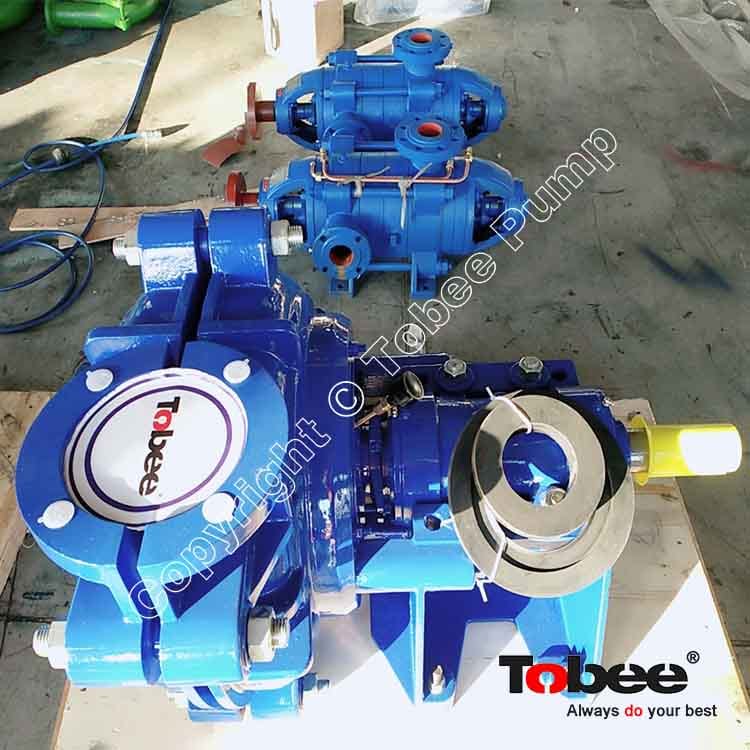

√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement
