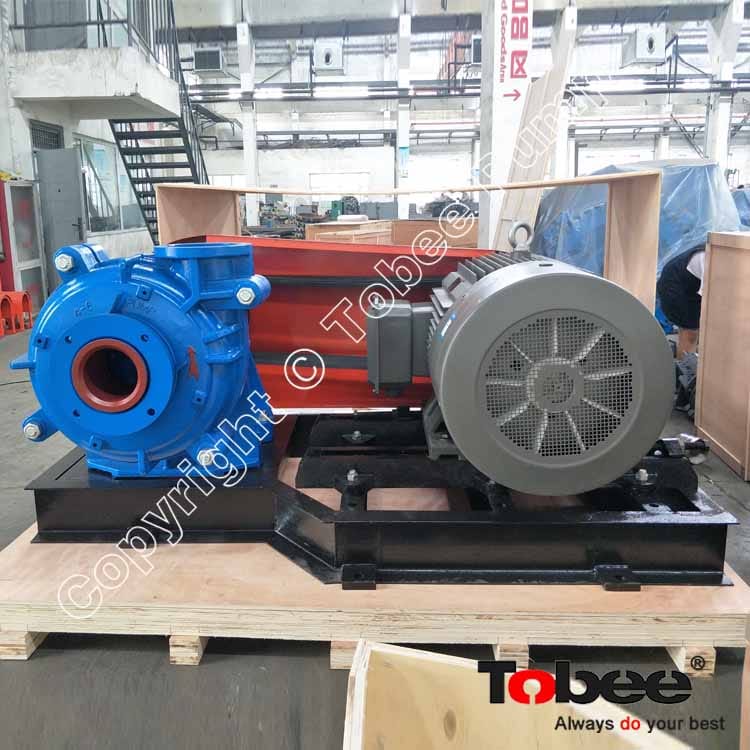

6/4D AH High Chrome Slurry Pump with CR/CL Belt Drive

6/4D-AH High Chrome Slurry Pump is made of A05A high chrome alloy and driven by CR/CL belt.

6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slurry pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Design Features:

√ A large diameter with a short overhang ensure the rigidity of shaft, suitable for high power condition.
√ Hardened stainless steel shaft sleeve with ‘O’ ring seals at both ends. A slip fit allows the sleeve protects the shaft from the wear and corrosion.
√ The deputy vanes in both former and rear cover of Impeller relieve seal pressure and minimize recirculation.
√ Casing is made of ductile iron, ribs help casing to stand high pressure.
√ The wet parts are made of high-chrome alloy or rubber, having the abrasion-resist, corrosion-resist and impact erosion-resist properties, improved the service life of pump.
√ The wet parts are made of metal or rubber which can interchangeable or mixed use, suited different working condition.
√ Impeller adopt the method of wide flow and vane concave to improve flow and corrosion resistance, prolong service life.
√ The shaft seal may be adoptable of packing seal, expeller seal and mechanical seal to fit different working conditions.
√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
√ The bearing Assembly have the grease lubrication and oil lubrication are optional depend on the usage.
√ Adopted the oil lubrication bearing assembly can effectively lower the high operating temperature and reduce bearing fault
√ The grease lubrication bearing assembly easy installation and adjustment, simple structure and easy to maintain and perform reliably.

6/4 D-AH Slurry Pumps Performance Parameters:

6/4D AH Slurry Pump Sealing Arrangements Options:

Gland Packing Arrangement
• Grease and liquid lubricated configurations
• Optional gland flushing arrangements to optimize seal water supply and product dilution requirements

Expeller (Centrifugal) Seal Arrangement
• Supplementary expeller generates high head to overcome normal suction conditions
• Extend packing life by restricting the presence of solids at the shaft

Mechanical Seal Arrangement
• Cartridge style mechanical seals to simplify maintenance by negating seal settings
• Generous mechanical seal gland sizes to accept nearly all seal manufacturers’ designs
• Single and double configurations to focus on environmental and process needs
• Flushed and non-flushed primary seal arrangements to promote optimized reliability
