Name: 4 Inch Slurry Pump for Mining Waste, Tailing, and Coal slurry transfer
Price: 4900.00 USD

4 Inch Slurry Pump for Mining Waste, Tailing, and Coal slurry transfer

Product Brands: Tobee

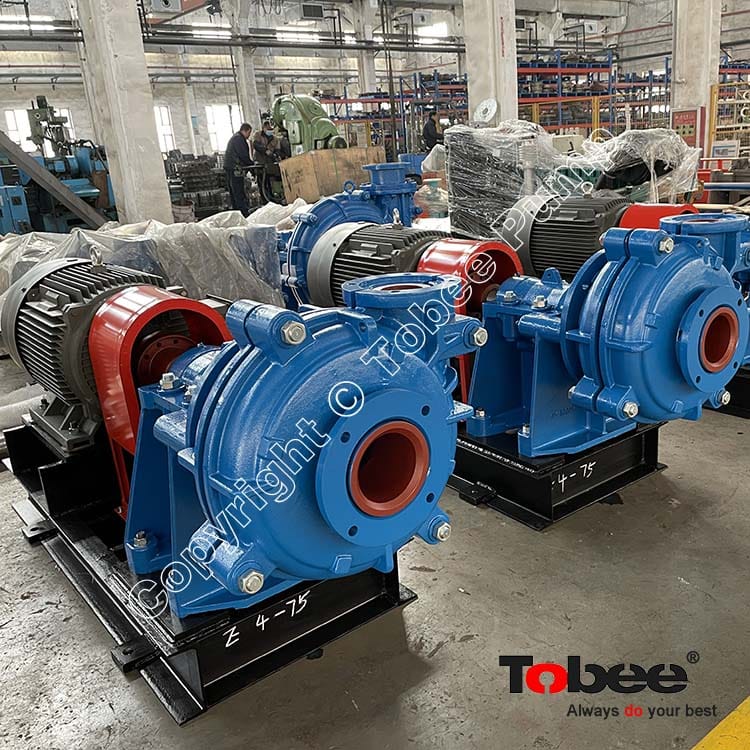

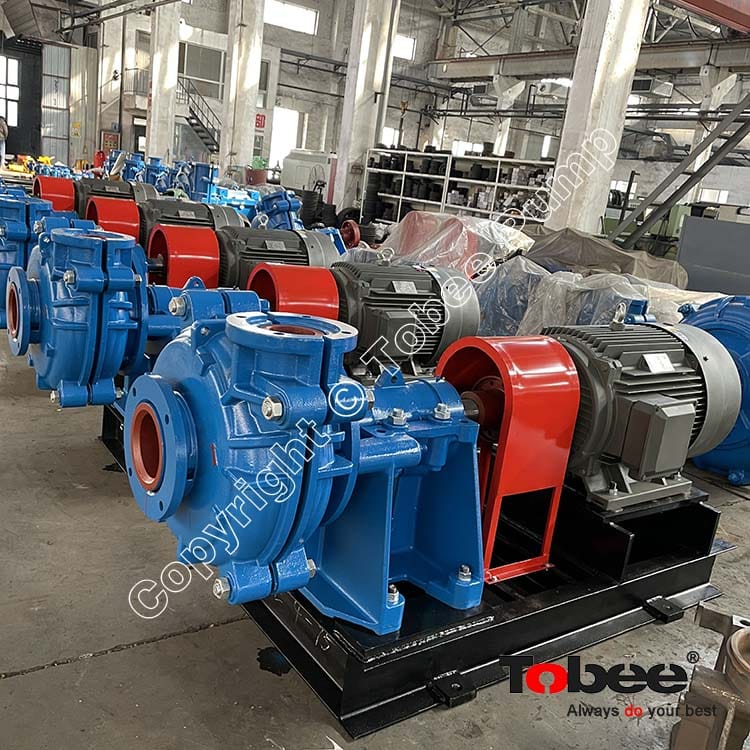

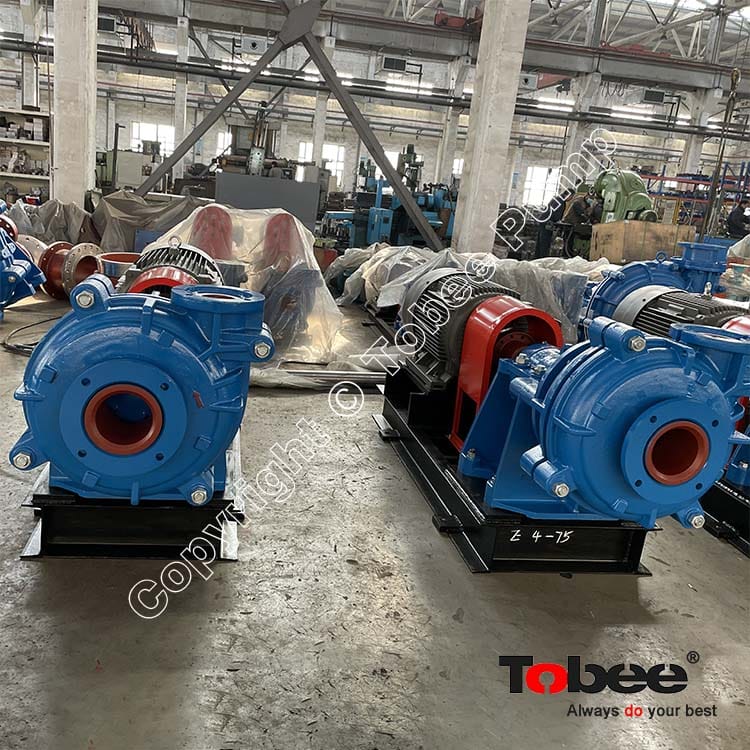

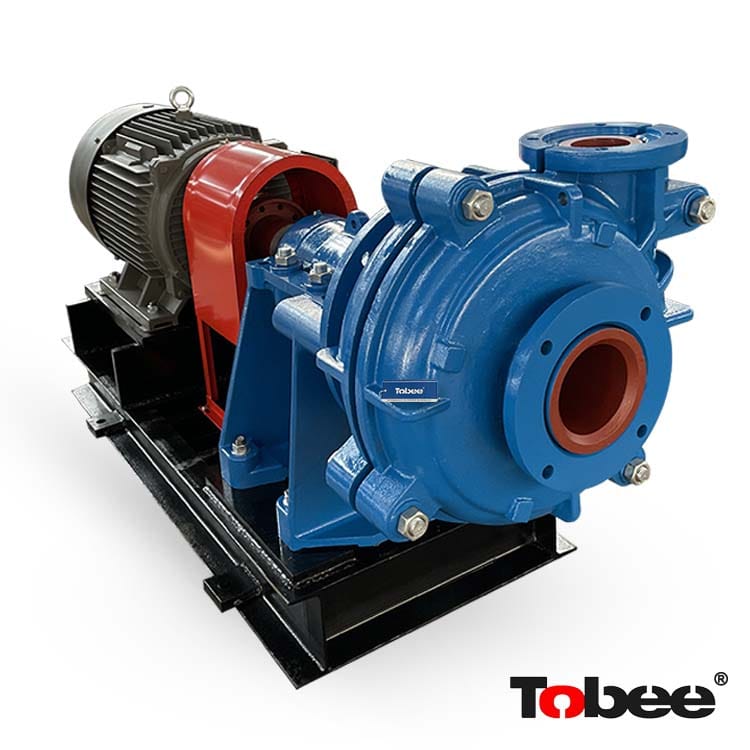

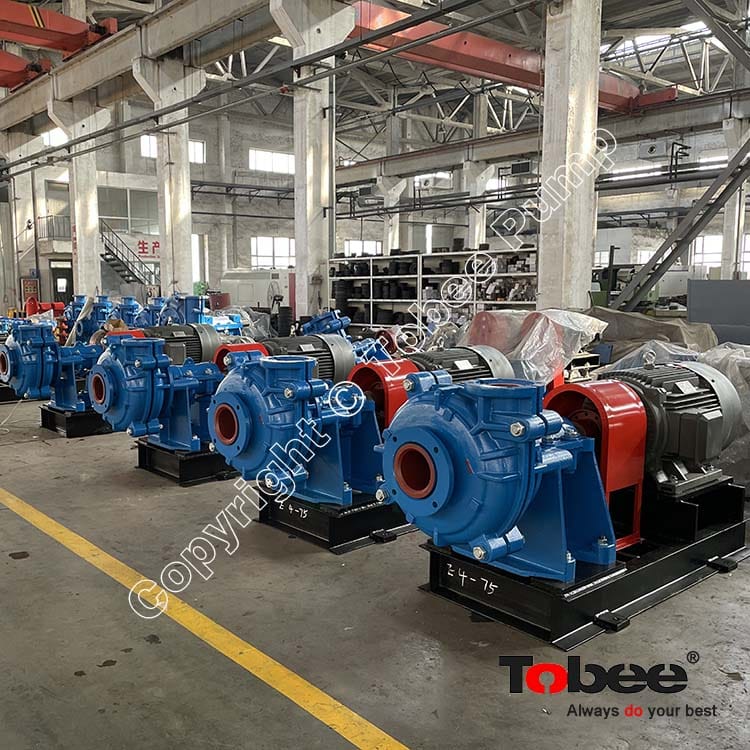

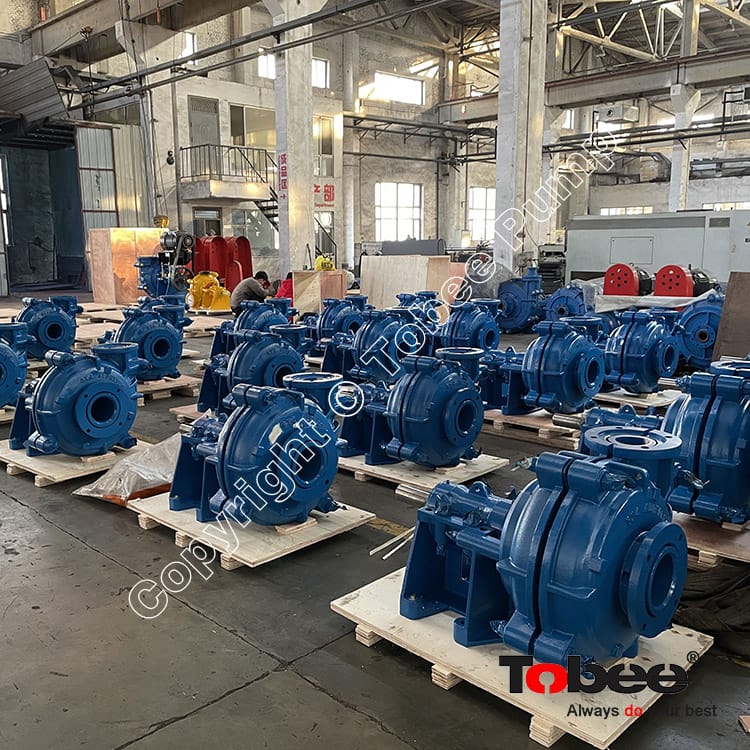

Tobee® 6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Add to Favorite Items (0)

Sales: 0+

Tobee^®6x4D-AH Slurry Pump is designed for continuous conveying highly abrasive and high-hardness, high-concentration, low-corrosion slurries contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones in the tailing mining, minerals recycling, coal washing, industries of metallurgy, pulp and paper making, power plant, building material & chemical engineering, sand dredging etc.

Design Features:

√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

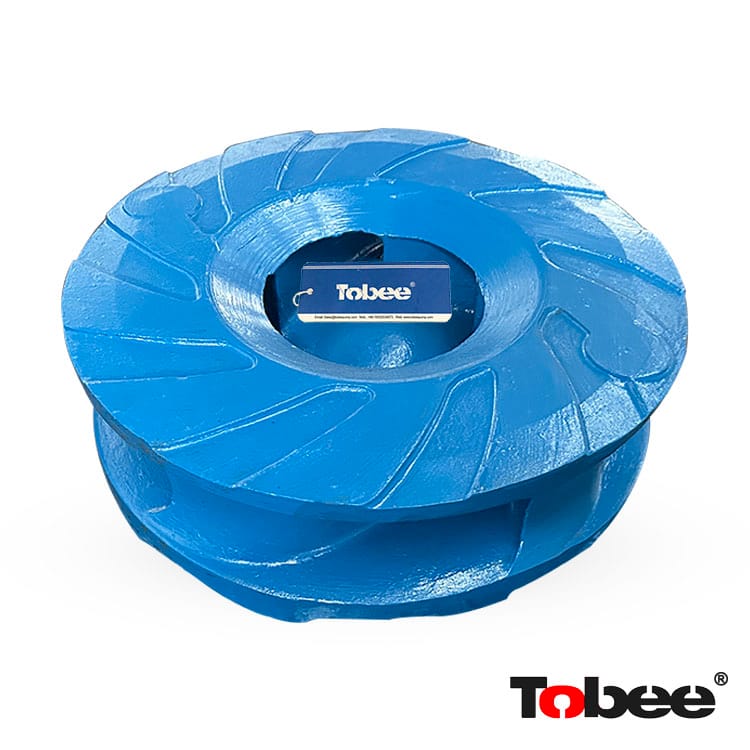

√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Tobee^® AH Series Slurry Pumps Performance Parameters:

Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
6/4D-AH	60	M	M	162-360	12-56	800-1550	65	5-8	5
6/4D-AH	60	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4E-AH	120	M	M	162-360	12-56	800-1550	65	5-8	5
6/4E-AH	120	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4S-HH	560	M	M	324-720	30-118	600-1000	64	3-8	5

Tobee^® 6/4 D AH Slurry Pumps Applications:

The 6/4 D AH Slurry Pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Tobee^®Slurry Pumps Typical Application:

· Iron Ore Dressing Plant

· Copper Concentration Plant

· Gold Mine Concentration Plant

· Molybdenum Concentration Plant

· Potash Fertilizer Plant

· Other Mineral Processing Plants

· Alumina Industry

· Coal Washery

· Power Plant

· Sand Excavation

· Building Material Industry

· Chemical Industry

· Other industries
