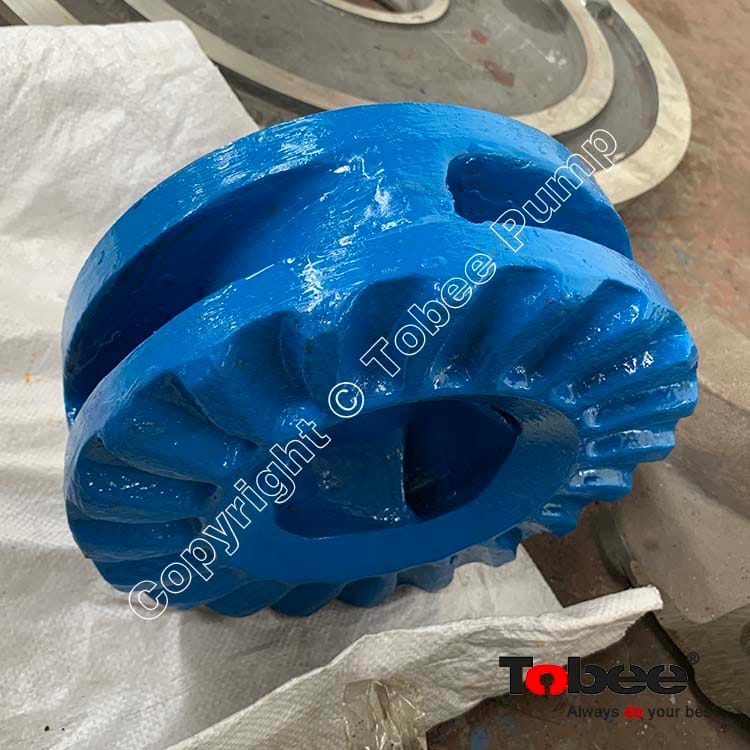

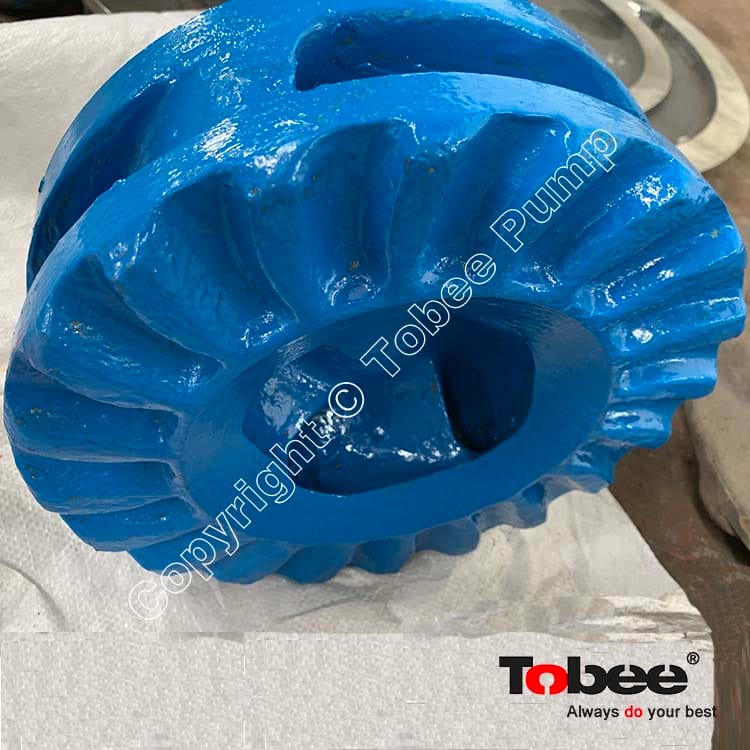

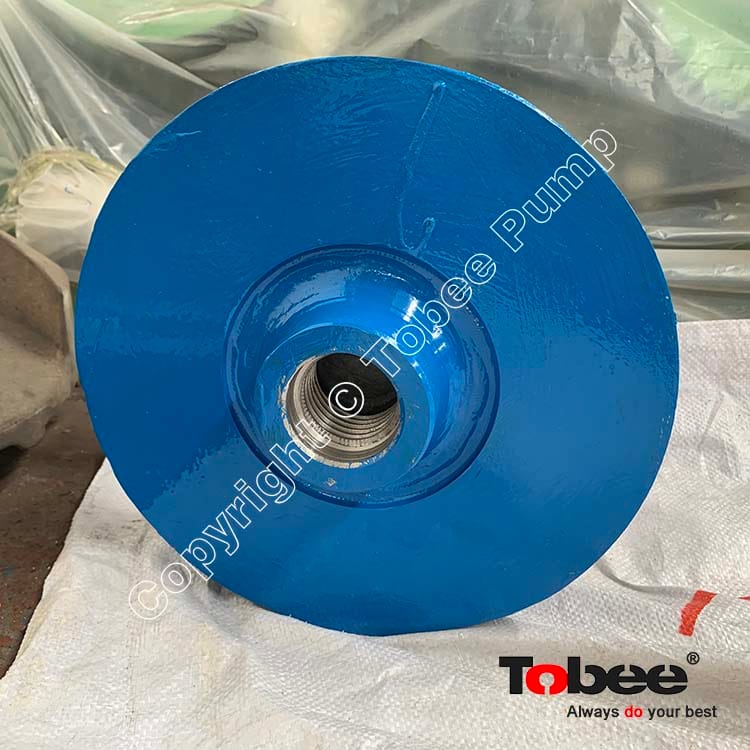

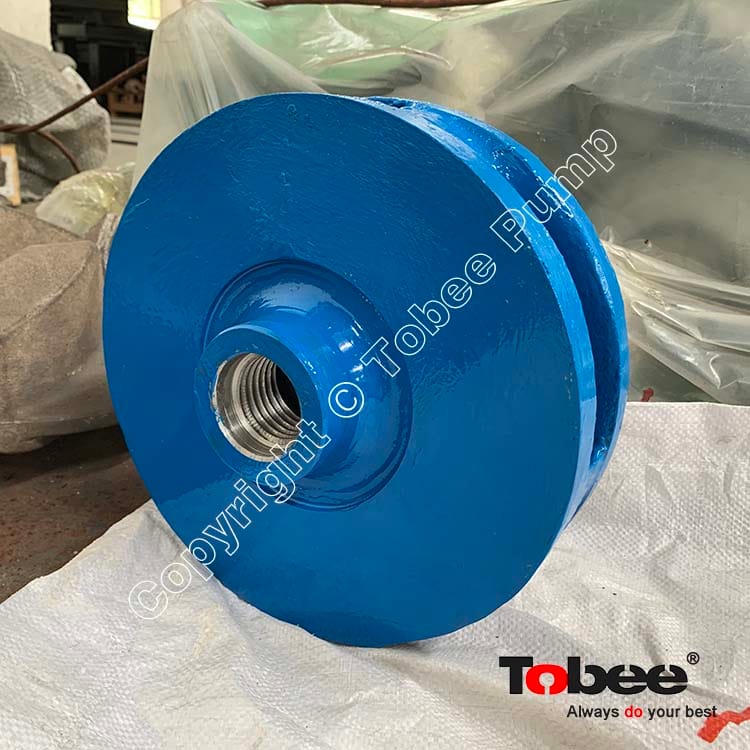

Name: D3145BRA49 Impeller for 4x3D-AH Horizontal Slurry Pumps
Price: 880.00 USD

D3145BRA49 Impeller for 4x3D-AH Horizontal Slurry Pumps

Product Brands: Tobee

D3145BRA49 Back Remove Impellers can be used for 4/3 DAH Horizontal Slurry Pumps

price:

$880.00 $899.00

Part Code:

Pump model:

Impeller Vanes:

Impeller Type:

Metal Materials:

A49 A05 A61 A07 A33 A05A

Quantity:

- + (10 available)

Add to Favorite Items (6)

Sales: 2+

D3145BRA49 Impeller has 4 vanes and remove the vanes at the driven end that can be used for 4/3 DAH Horizontal Slurry Pumps.

D3145BRA49 Slurry Pump impeller is one of the most important parts of 4x3 AH centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.

Tobee® offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.

Slurry Pump Impeller List:

Impeller Code	AH Slurry Pump	Slurry Pump Materials Code
B1127	1.5/1B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
B15127	2/1.5B-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2147	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2127	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
C2051	3/2C-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3147	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3145HE1	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
D3021	4/3C-AH, 4/3D-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4147	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4056	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
E4058	6/4D-AH, 6/4E-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6147	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6056	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6021	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F6058HE1	8/6E-AH, 8/6F-AH, 8/6R-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM8147	10/8F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G8147	10/8ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM10147	12/10F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G10147	12/10ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FAM12147	14/12F-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
G12147	14/12ST-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
GAM14147	16/14TU-AH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	L Slurry Pump	Slurry Pump Materials Code
175056	20A-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
32056	50B-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
43056	75C-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
64056	100D-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
86056	150E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
108056	200E-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL30147	300S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
SL35147	350S-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL40147	400ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
STL45147	450ST-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
TUL55147	550TU-L	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	M Slurry Pump	Slurry Pump Materials Code
F8147	10/8E-M, 10/8F-M, 10/8R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
F10147	12/10F-M, 12/10R-M	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Impeller Code	HH Slurry Pump	Materials
CH1127	1.5/1C-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
DH2147	3/2D-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
EH3147	4/3E-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH4147	6/4F-HH	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
FH6147	6S-H, 8/6S-H	A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
