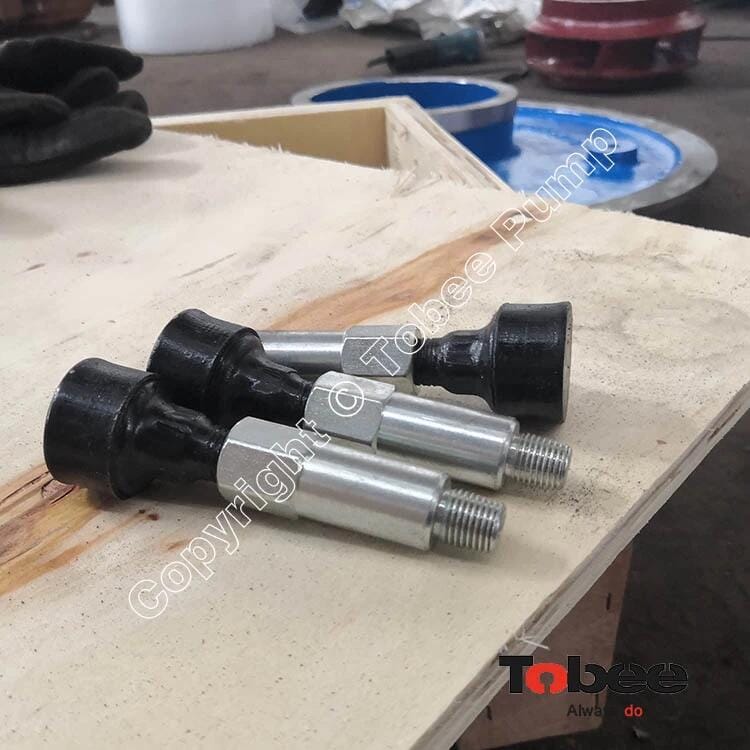

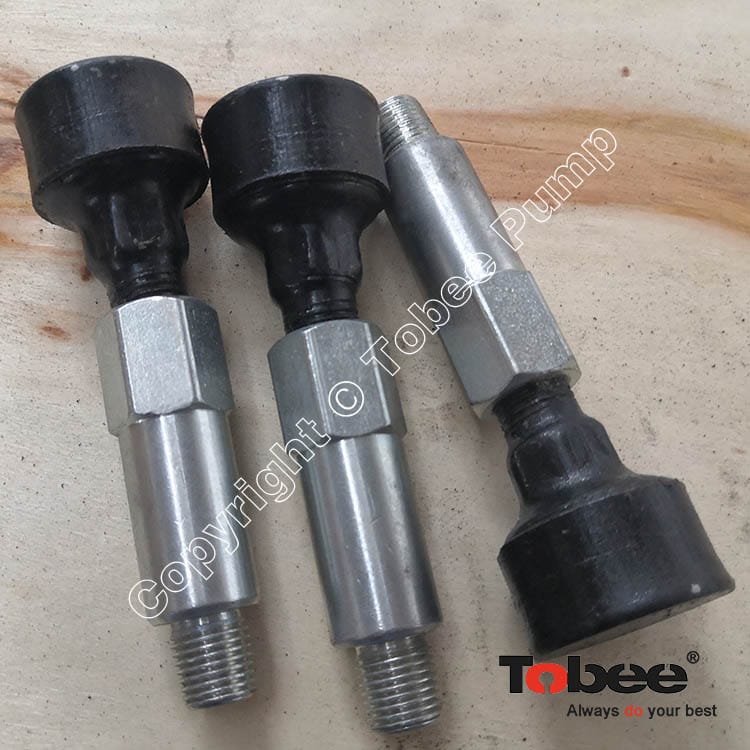

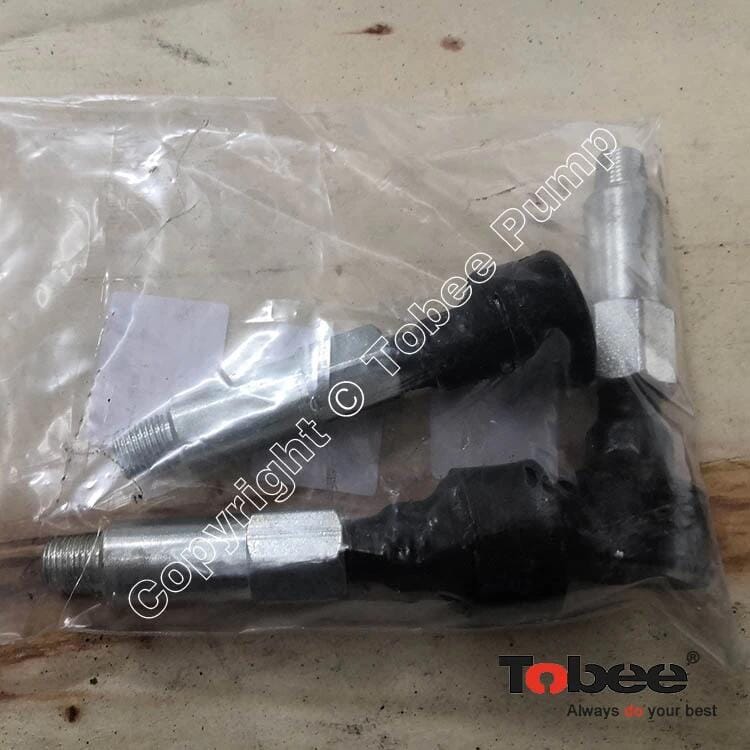

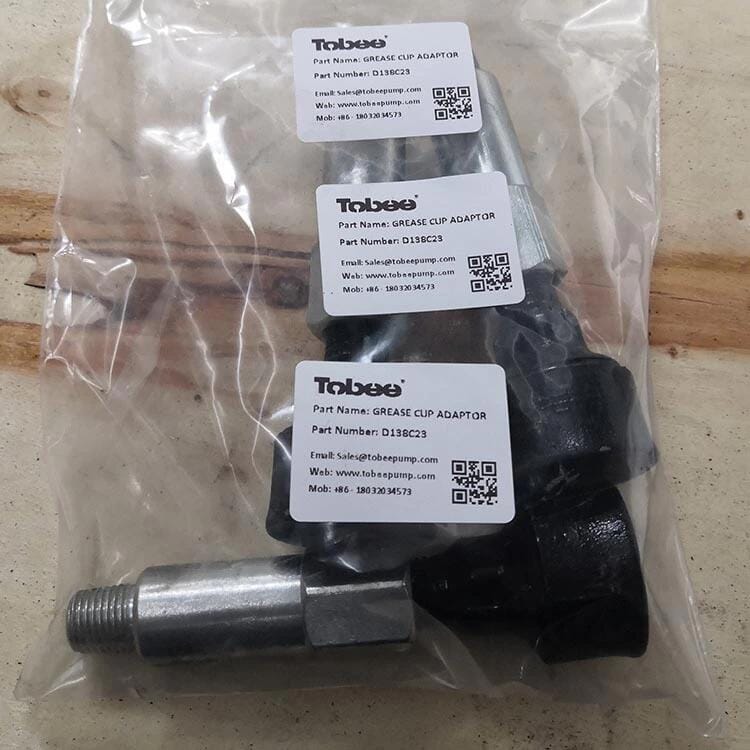

Slurry Pump Oil Cup Seat D138C23 is one of spares for 4x3C-AH Slurry Pump.
Tobee not only can supply the mainly wet end parts of slurry pump like impeller, throatbush, volute, frame plate liner insert, bearing assembly, but also can supply any other small pump spares like rubber seals,slurry pump bolt and nut,slurry pump stud,slurry pump oil cup seat etc.
Tobee Pump stocks a range of slurry pump spares from 1.5/1 to 20/18 pumps which have been developed for abrasive applications in mines, quarries, sand and gravel etc, and are used widely across the globe in mineral processing and all other solid mixture applications.
4x3D-AH Slurry Pump Spare Parts List:
|
No. |
Pump Part Name |
Pump Model |
Pump Part Code |
Matl. Code |
Unit Weight |
|
1 |
Adjust Screw |
4/3/D-AH |
D001 |
E62 |
|
|
2 |
Base |
4/3/D-AH |
D003M |
G01 |
72.0 |
|
3 |
4/3/D-AH |
D005M |
ZWZ Bearing |
63.0 |
|
|
4 |
Bearing Housing |
4/3/D-AH |
D004M |
G01 |
25.0 |
|
5 |
Cover Plate |
4/3/D-AH |
D3013 |
D21 |
46.0 |
|
6 |
Cover Plate Bolt |
4/3/D-AH |
D015 |
E65 |
|
|
7 |
Cover Plate Liner |
4/3/D-AH |
D3017 |
R55 |
8.0 |
|
8 |
Discharge Joint |
4/3/D-AH |
D3132L |
S01 |
0.2 |
|
9 |
End Cover |
4/3/D-AH |
D024 |
G01 |
2.2 |
|
10 |
Expeller |
4/3/D-AH |
A05 |
3.3 |
|
|
11 |
Expeller Ring |
4/3/D-AH |
D029 |
A05 |
6.3 |
|
12 |
Expeller Ring |
4/3/D-AH |
D029R |
R55 |
1.7 |
|
13 |
Frame Plate |
4/3/D-AH |
D3032 |
D21 |
42.0 |
|
14 |
Frame Plate Bolt |
4/3/D-AH |
D026 |
E62 |
|
|
15 |
Frame Plate Liner |
4/3/D-AH |
D3036 |
R55 |
6.5 |
|
16 |
Frame Plate Liner Insert |
4/3/D-AH |
D3041 |
A05 |
14.0 |
|
17 |

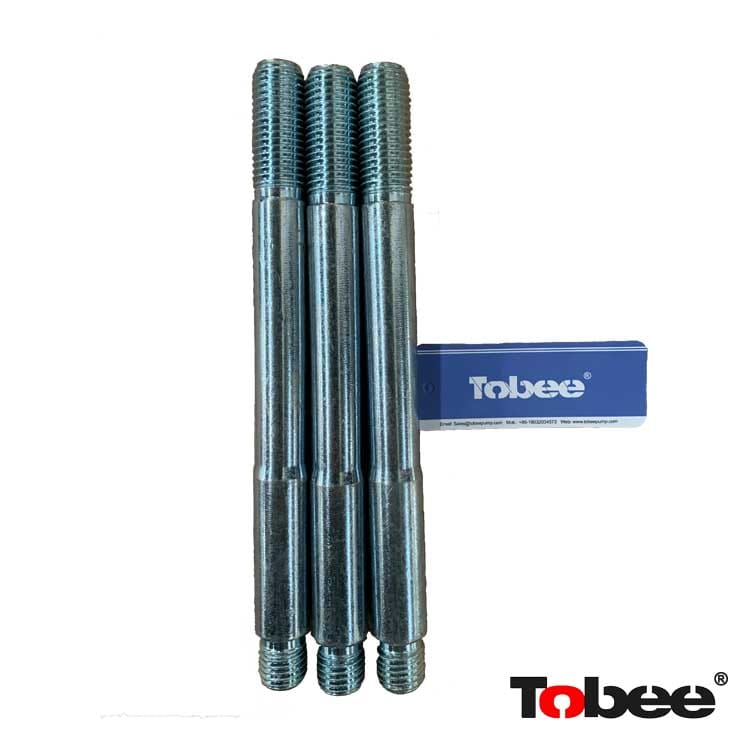

Frame Plate Stud |
4/3/D-AH |
D039 |
E62 |
|
|
18 |

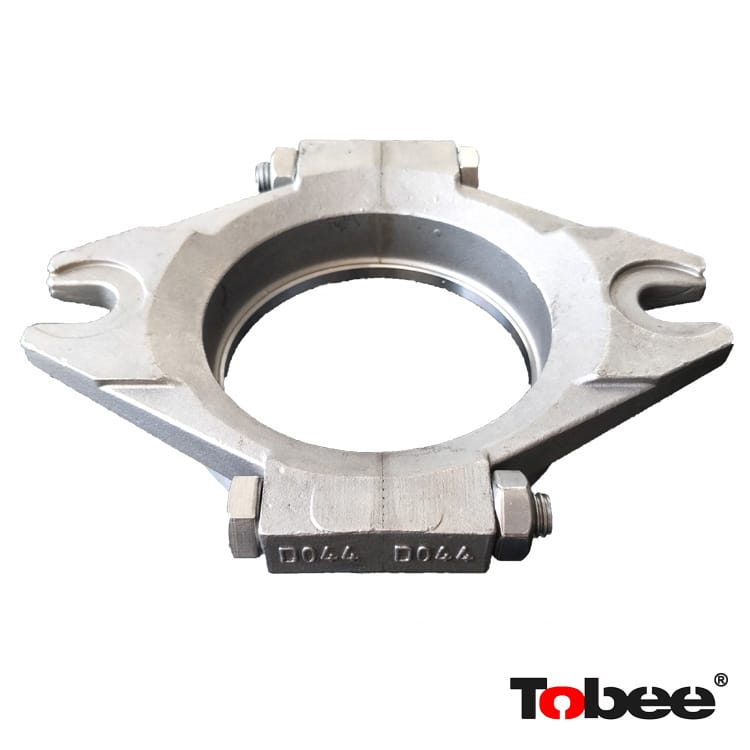

Gland |
4/3/D-AH |
D044 |
G01 |
1.2 |
|
19 |
Gland |
4/3/D-AH |
D044 |
C23 |
1.2 |
|
20 |
Gland Bolt |
4/3/D-AH |
D045 |
C23 |
|
|
21 |
Grease Retainer |
4/3/D-AH |
D046 |
G01 |
1.0 |
|
22 |
Impeller |
4/3/D-AH |
D3147 |
A05 |
24.0 |
|
23 |
Impeller |
4/3/D-AH |
D3147 |
R55 |
9.0 |
|
24 |
Intake Joint |
4/3/D-AH |
D3060 |
S01 |
0.2 |
|
25 |
Labyrinth |
4/3/D-AH |
D062 |
G01 |
1.0 |
|
26 |
Labyrinth Locknut |
4/3/D-AH |
D061 |
E62 |
0.4 |
|
27 |
Lantern Restrictor |
4/3/D-AH |
D118 |
C23 |
0.5 |
|
28 |
Lantern Ring |
4/3/D-AH |
D063 |
C23 |
0.3 |
|
29 |
Lip Seal |
4/3/D-AH |
D090 |
S01 |
|
|
30 |
Neck Ring |
4/3/D-AH |
D067 |
C23 |
0.1 |
|
31 |
O ring |
4/3/D-AH |
D109 |
S10 |
|
|
32 |
O ring |
4/3/D-AH |
E064 |
S10 |
|
|
33 |
Packing |
4/3/D-AH |
D111 |
Q05 |
|
|
34 |
Packing |
4/3/D-AH |
D111 |
Q05A |
|
|
35 |
Packing |
4/3/D-AH |
D111 |
Q22 |
|
|
36 |
Packing |
4/3/D-AH |
D111 |
Q21 |
0.28 |
|
37 |
Piston Ring |
4/3/D-AH |
D108 |
G01 |
|
|
38 |
Seal |
4/3/D-AH |
D122 |
S01 |
0.2 |
|
39 |
Shaft |
4/3/D-AH |
D073M |
E05 |
21.7 |
|
40 |
Shaft Sleeve |
4/3/D-AH |
D075 |
C21 |
1.0 |
|
41 |
Shaft Sleeve |
4/3/D-AH |
D075 |
C23 |
1.0 |
|
42 |
Shaft Sleeve |
4/3/D-AH |
D075 |
J05 |
|
|
43 |
Shaft Sleeve |
4/3/D-AH |
D076 |
C21 |
1.0 |
|
44 |
Shaft Sleeve |
4/3/D-AH |
D076 |
C23 |
1.0 |
|
45 |
Shaft Sleeve |
4/3/D-AH |
D076 |
J05 |
|
|
46 |
Shaft Spacer |
4/3/D-AH |
D117 |
C21 |
0.7 |
|
47 |
Shaft Spacer |
4/3/D-AH |
D117 |
C23 |
0.7 |
|
48 |
Shaft Spacer |
4/3/D-AH |
D117 |
J05 |
|
|
49 |
Shim Set |
4/3/D-AH |
D025 |
P10 |
|
|
50 |
Stuffing Box |
4/3/D-AH |
D078 |
A05 |
7.0 |
|
51 |
Volute Frame Seal |
4/3/D-AH |
D3125 |
S01 |
0.2 |
|
52 |
Volute Liner |
4/3/D-AH |
D3110 |
A05 |
63.0 |
