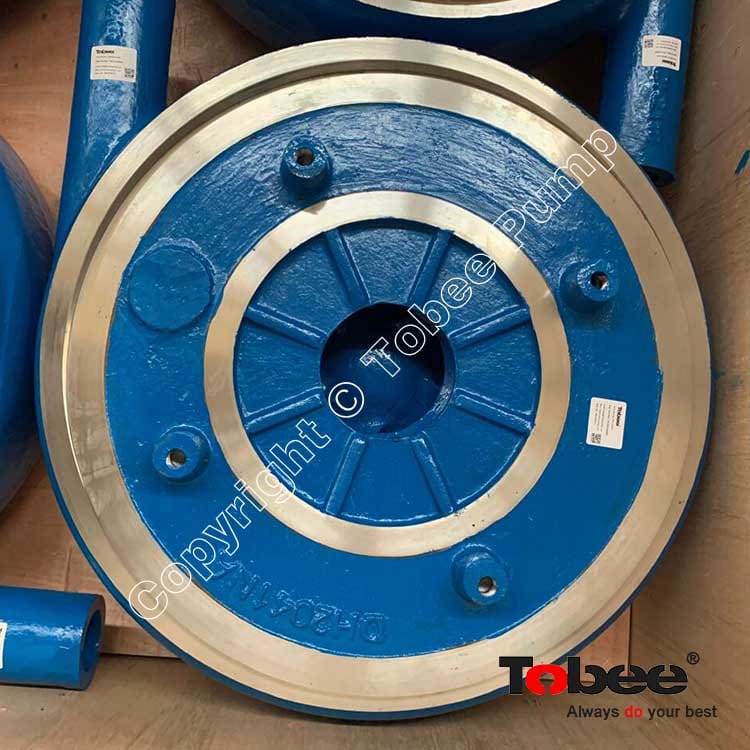

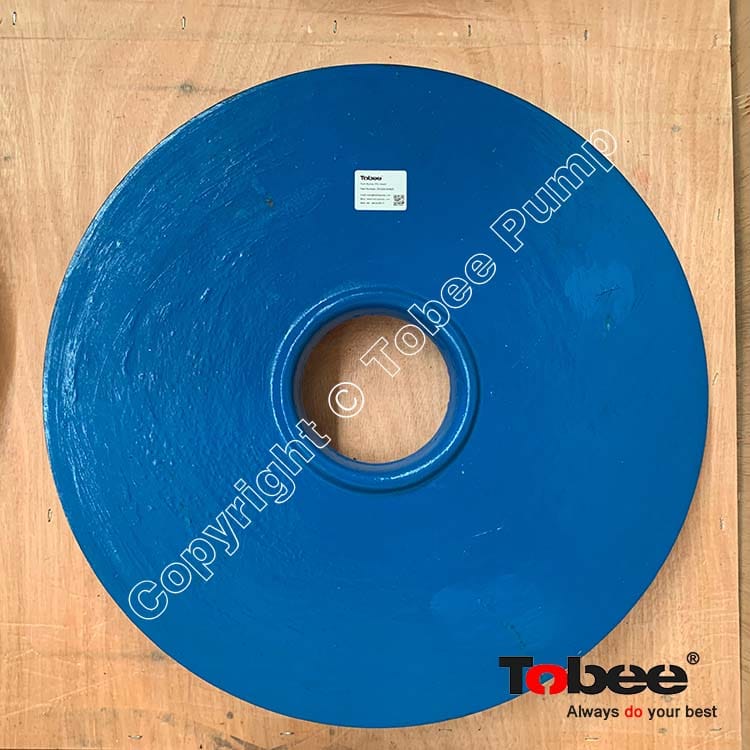

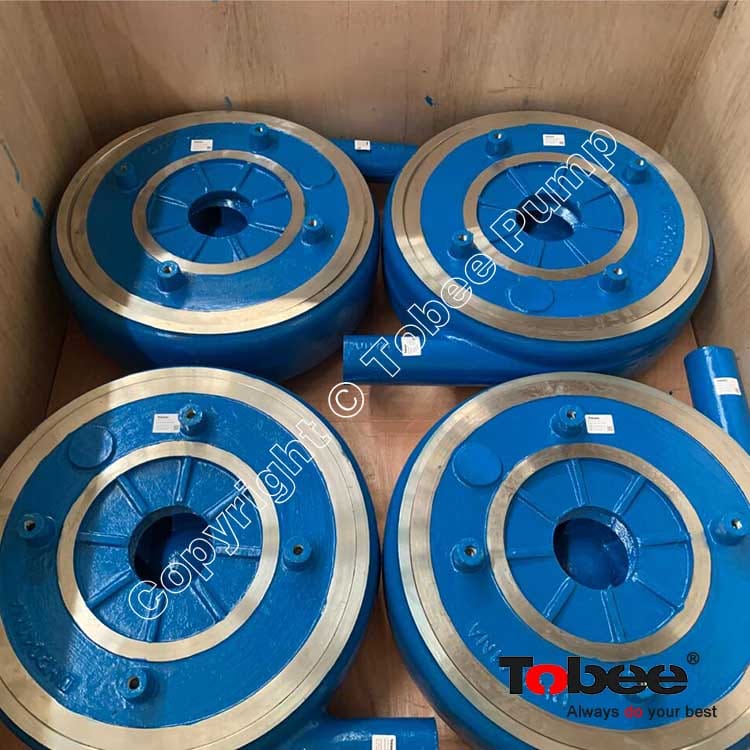

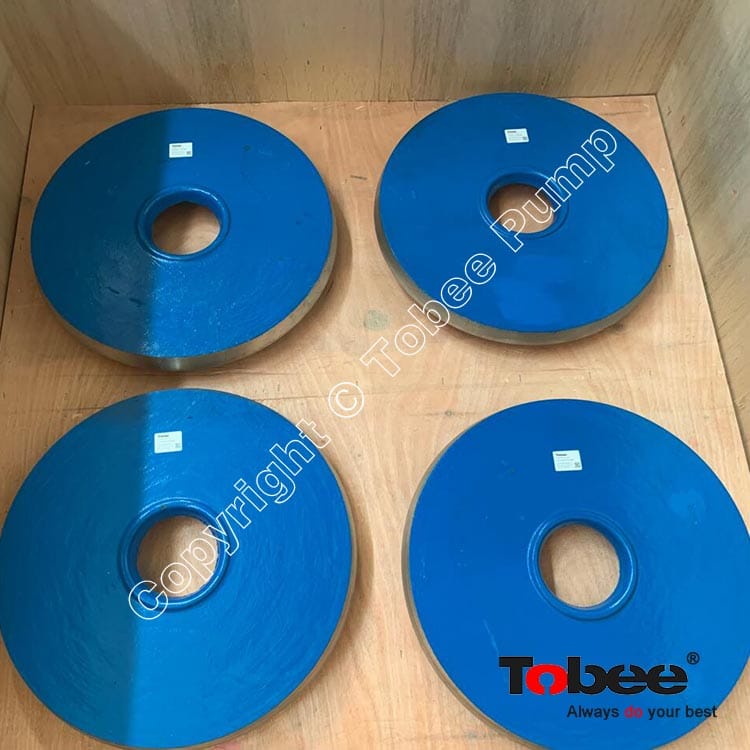

3x2D-HH Slurry Pump High Chrome Wet-end Parts FPL Insert DH2041MA05A

Tobee® High Chrome Frame Plate Liner Insert DH2041MA05 is the wet-end parts for 3/2D-HH High Head Slurry Pumps, It forms a pump chamber with throat bush and volute liner where the slurry would flow through them.

Slurry Pump Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with warman pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.

Frame plate liner insert basic part number is 041, it is a wet part where the shaft passes through, it is drive side liner which is connected with frame plate in horizontal lined slurry pump. Alloy frame plate liner insert is common in small and large pumps, but rubber frame plate liner insert appears in large pumps, because rubber frame plate liner insert and frame plate liner are normally in one solid piece in small pumps.

Frame plate liner insert can be abbreviated to FPL Insert, it is a common and generally accepted alternate spelling.

Slurry pump frame plate liner insert are normally made in high chrome alloy or natural rubber, special materials are also available. Our slurry pump frame plate liner inserts are available to suit: AH pumps, L pumps, M pumps and HH pumps.

HH Series Slurry Pump FPL Insert Codes:

Tobee® 3x2D-HH High Head Slurry Pumps Applications:

HH high head slurry pumps widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc
