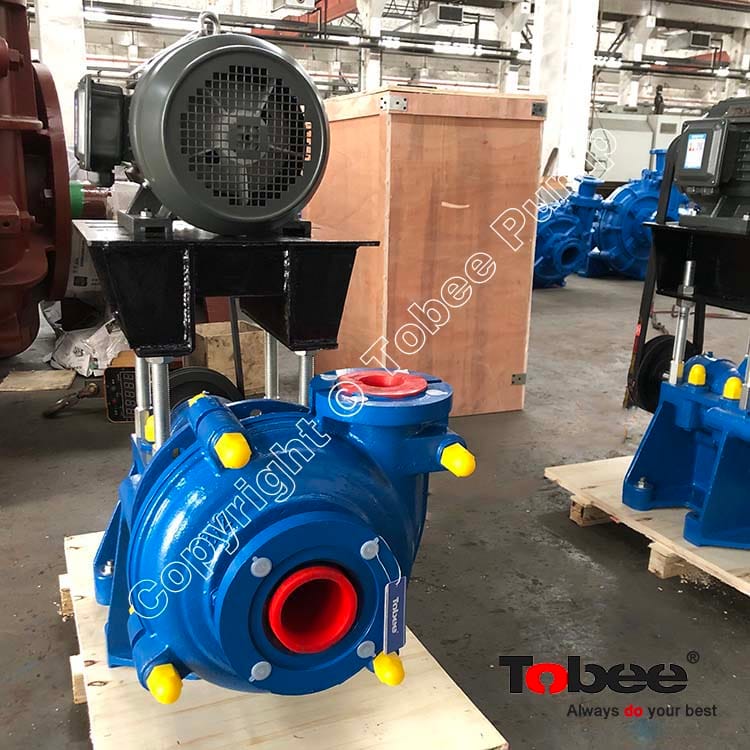

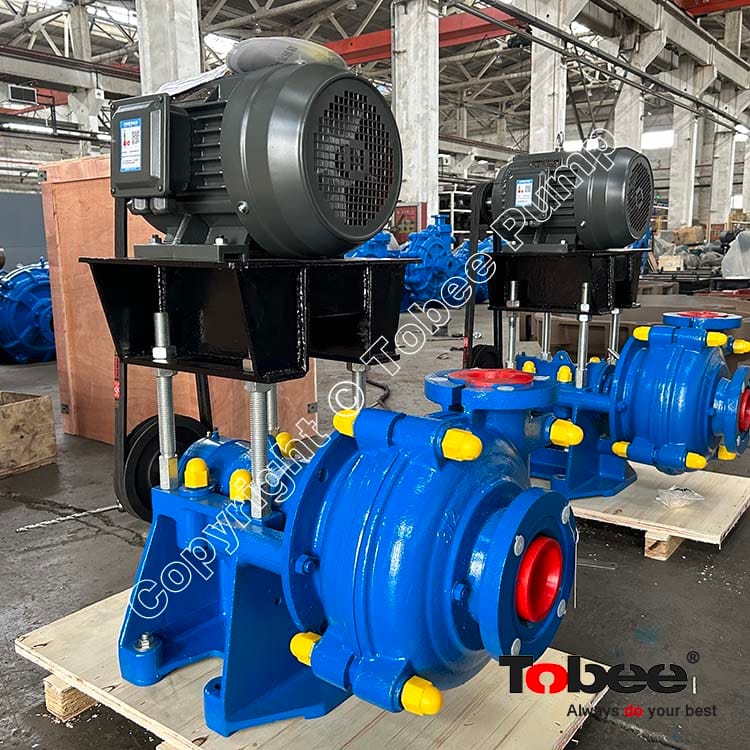

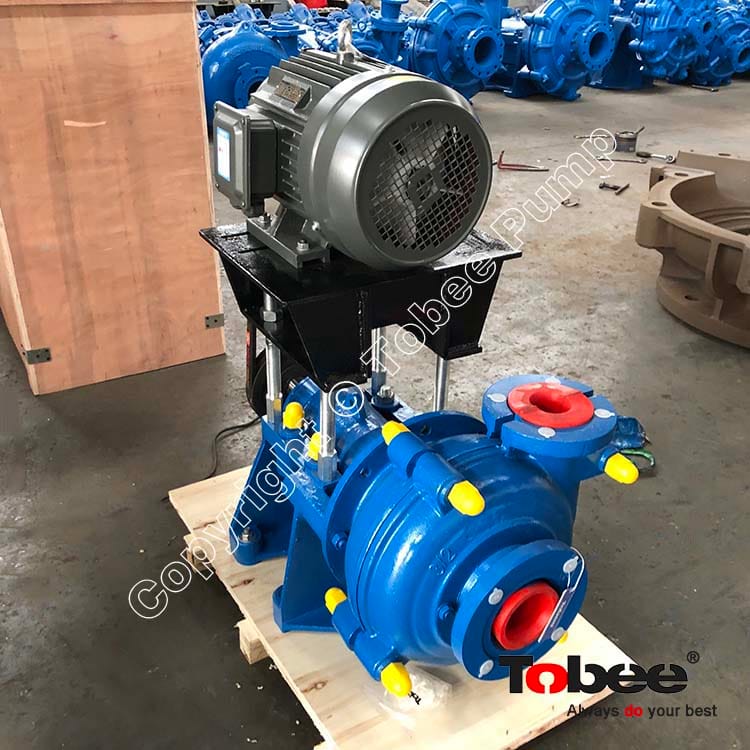

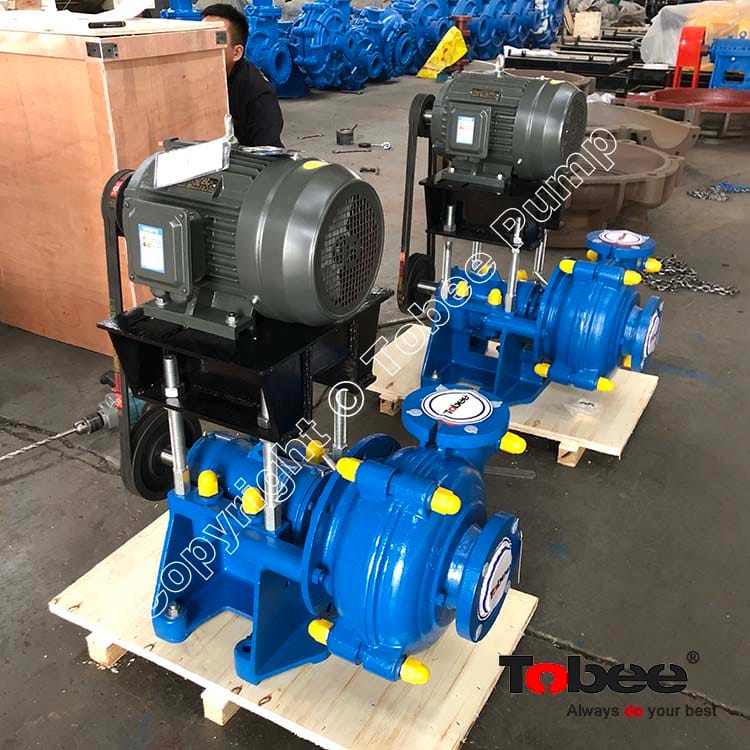

Tobee® 3/2C-AHR Rubber Lined Manure Slurry Pumps are designed for handling strong corrosive or abrasive slurries of small particle size without sharp edges in the mining,mineral dressing,metallurgy,coal,power,building material and other industrial departments etc.
Tobee® 3/2 C AHR Rubber Lined Slurry Pump Performance Parameters:
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.
√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the slurry pump, resulting in reliable operation and prolonged bearing life.
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
√ Optional dry running shaft seal reduces or eliminates flush water requirements.
√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
Tobee® Rubber Lined Slurry Pumps Sealing Arrangement:
Packing Seal
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
Centrifugal Seal - Expeller
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Mechanical Seal
MA series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.
Tobee® Rubber Lined Slurry Pumps Applications:
√ Tailings
√ Heavy Mining
√ Ash Handling
√ Cyclone Feeds
√ Pulp and Paper
√ Corrosive Slurries
√ Coal Preparation
√ Mineral Processing
√ Aggregate Processing
√ Heavy Refusal Removal
