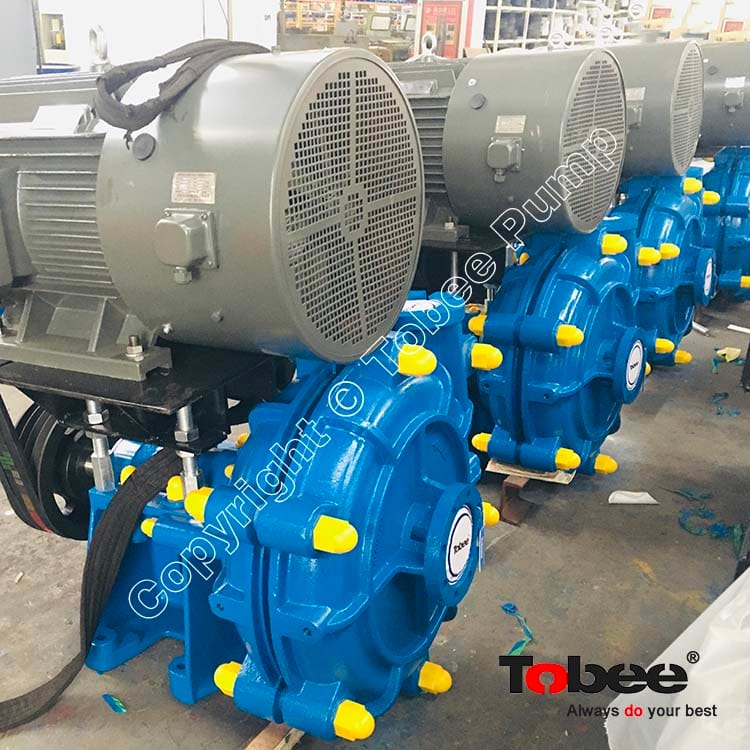

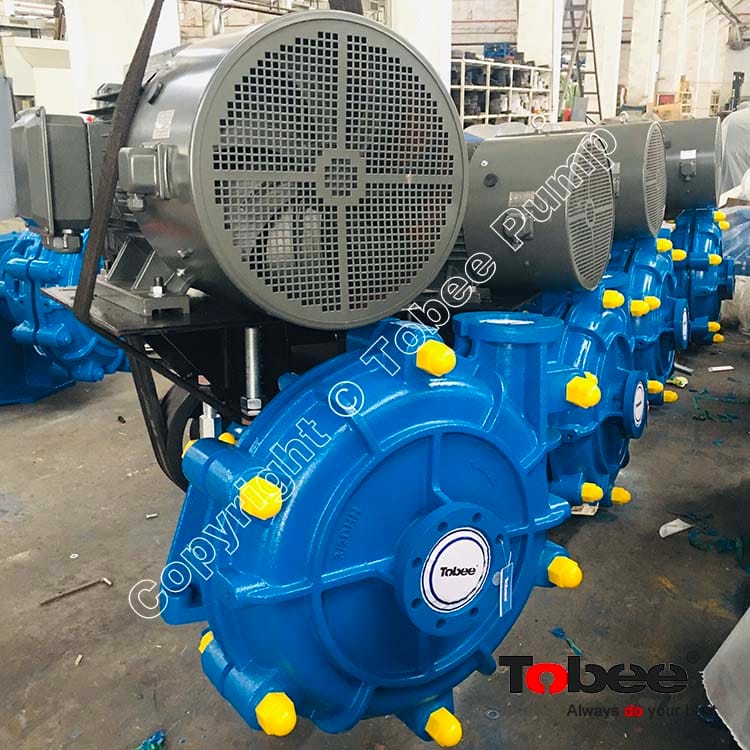

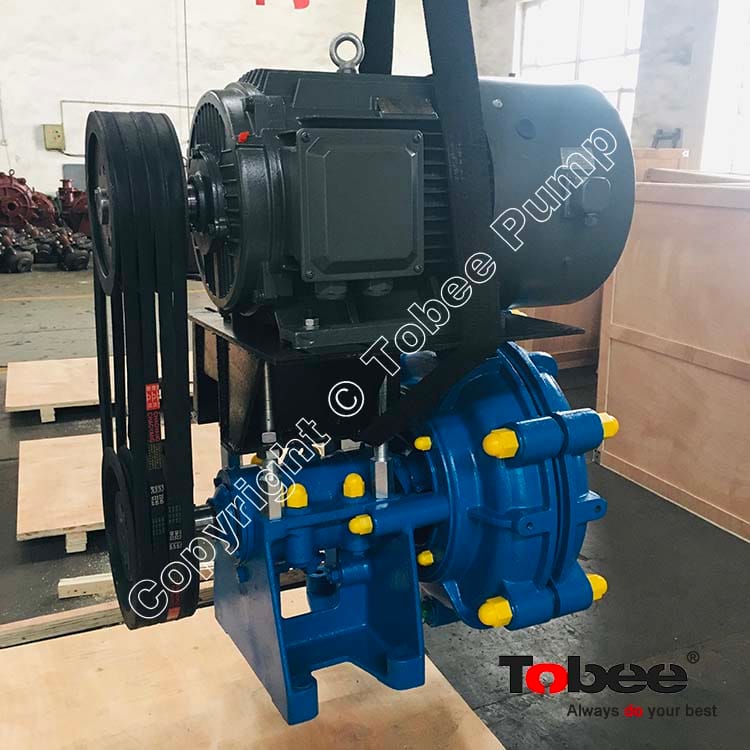

Tobee® HH High Head Slurry Pump lines were designed to produce high heads per stage at high pressures, Commonly used for long distance transport lines, the HH slurry pumps can often satisfy application duties with a single pump where others require multiple pumps in series.

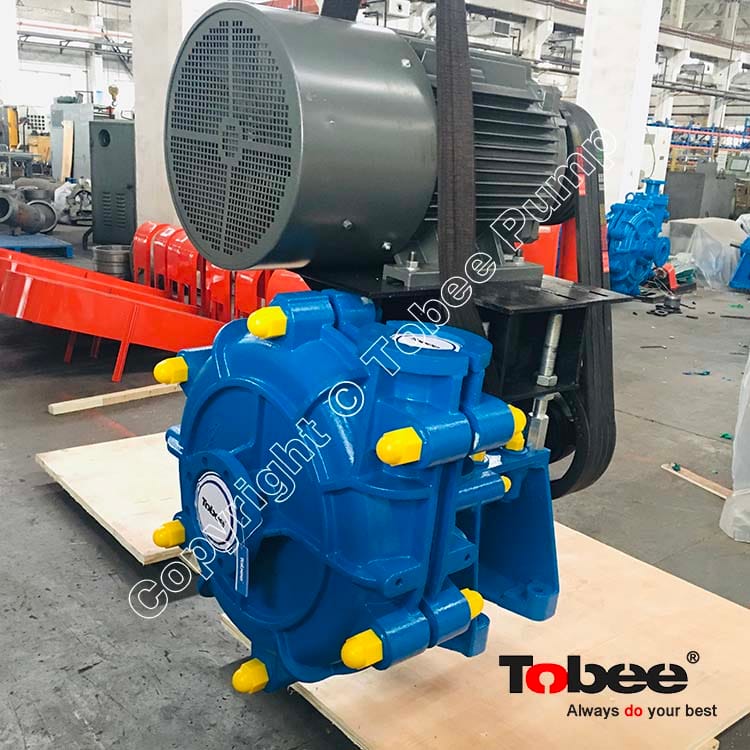

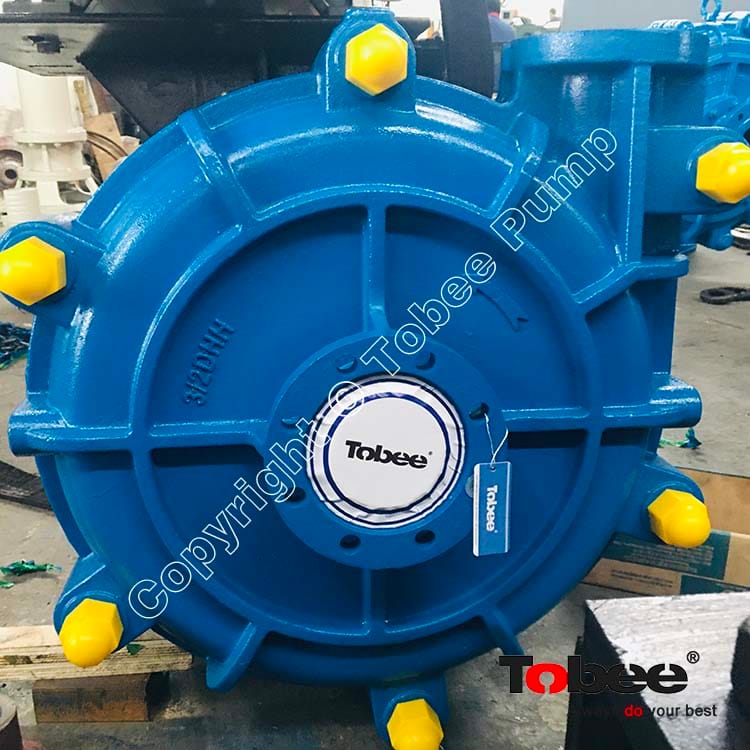

3/2D-HH High Pressure Mining Slurry Pumps Specification:
Size: 3" x 2"
Capacity: 68.4-136.8m3/h
Head: 25-87m
Speed: 850-1400rpm
NPSHr: 3-7.5m
Eff.: 47%
Power: Max. 60kw
Handling solids: 31mm
Materials: A05, A07, A12, A49, A51, A61 etc
Design Features:
√ Ductile iron fully lined casing provides durability, strength and long service life.
√ Multi-stage high pressure operation to 750 psi.
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to maximize wear life and lower operating costs.
√ Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.
√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
Tobee® HH High Head Slurry Pumps Performance Parameters:
|
Model |
Max. Power (kw) |
Clear Water Performance |
Impeller |
|||||
|
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
Vane No. |
Impeller Dia. |
||
|
1.5/1C-HH |
30 |
16.2-34.2 |
25-92 |
1400-2200 |
20 |
2-5.5 |
5 |
330 |
|
3/2D-HH |
60 |
68.4-136.8 |
25-87 |
850-1400 |
47 |
3-7.5 |
5 |
457 |
|
4/3E-HH |
120 |
126-252 |
12-97 |
600-1400 |
50 |
2-5 |
5 |
508 |
|
6/4F-HH |
560 |
324-720 |
30-118 |
600-1000 |
64 |
3-8 |
5 |
711 |
|
8/6S-HH |
560 |
468-1008 |
20-94 |
500-1000 |
65 |
4-12 |
5 |
711 |
Tobee® 3/2 D HH High Head Slurry Pump Component Diagram:
Tobee® HH High Head Slurry Pumps Applications:
HH high head slurry pumps widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.
