Tobee® L Light Duty Slurry Pumps have been developed for continuous use in slurry applications where low to medium developed head is required, designed for lighter slurry densities up to 1,35. Shares proven unique design features with the AH slurry pump range, A key feature is the light duty high efficiency impeller, engineered with the latest hydraulic and wear technologies for high efficiency and increased wear life. With a range of high quality parts and different material combinations the L Light duty slurry pump has the versatility to ensure the most appropriate pumping solution provided for any given application.
Tobee® L Light Duty Slurry Pumps Design Features:
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.

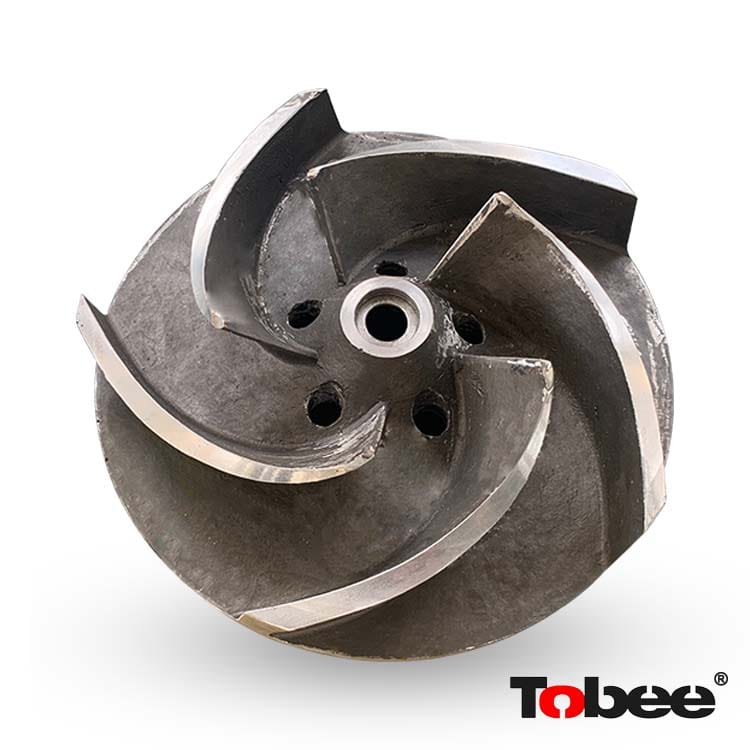

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs.
√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.
√ Designed for rugged duties while offering excellent efficiencies.
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life.
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
√ Mechanical seals reduce flush water usage, minimizing pump operating costs.
Tobee® L Light Duty Slurry Pumps Shaft Seal Arrangement:
• Packing Seal is most popular type of seal. Clean water at a certain pressure being injected into the packing through the lantern restrictor, preventing leakage from casing.
• Expeller Seal generates a reverse centrifugal force to prevent the leakage. Suitable for most slurry pumping applications providing a major advantage where no gland water is required.
• Mechanical seal is used for applications where no extra substance is allowed to mix with the fluid being pumped, such as chemical or food industry.
Tobee® L Light Duty Slurry Pumps Applications:
-
Mining: Slurry pumps play a crucial role in the mining industry, particularly in coal mining, mineral extraction (such as copper, gold, iron ore), and other types of mining operations. They are used for transporting mineral slurries, processing plant feed, tailings disposal, and dewatering applications.
-
Mineral Processing: Slurry pumps are extensively used in mineral processing plants, where they handle abrasive slurries during various stages of ore beneficiation, including grinding, flotation, and thickening processes.
-
Sand and Gravel: Slurry pumps are commonly used in the sand and gravel industry for dredging, transporting and processing sand, gravel, and aggregates. They are utilized in applications such as river and harbor dredging, sand extraction, and aggregate washing plants.
-
Power Generation: Slurry pumps are employed in power plants, particularly in coal-fired power plants, to handle coal slurry for transportation, ash handling systems, and flue gas desulfurization (FGD) processes.
-
Chemical and Petrochemical: Slurry pumps find applications in the chemical and petrochemical industries for handling abrasive and corrosive slurries in processes such as chemical production, wastewater treatment, and pipeline transportation.
-
Construction: Slurry pumps are utilized in construction projects involving tunneling, foundation excavation, and concrete pumping, where slurries containing cement, water, and aggregates need to be transported.
-
Pulp and Paper: Slurry pumps are used in the pulp and paper industry for handling fibrous slurries during processes like pulp production, paper recycling, and wastewater treatment.
