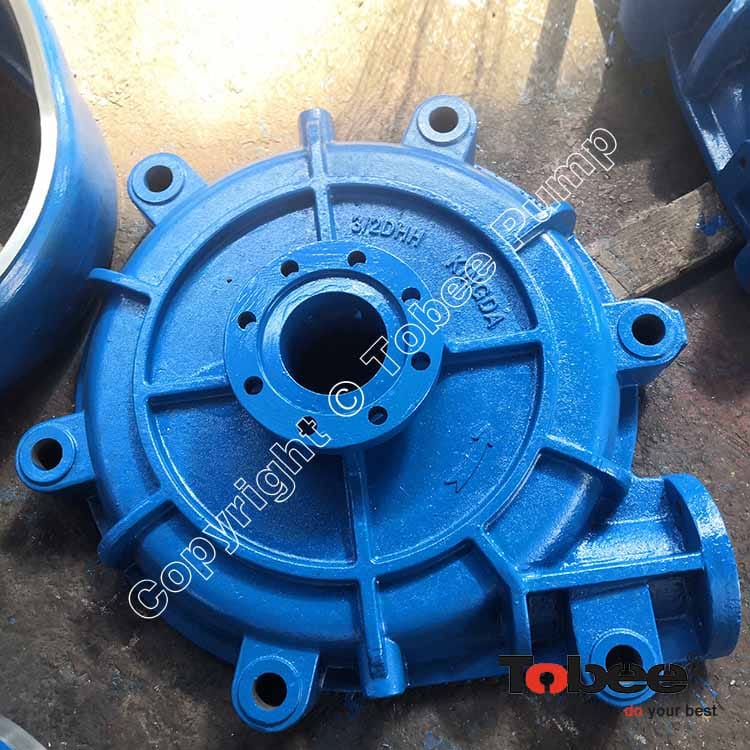

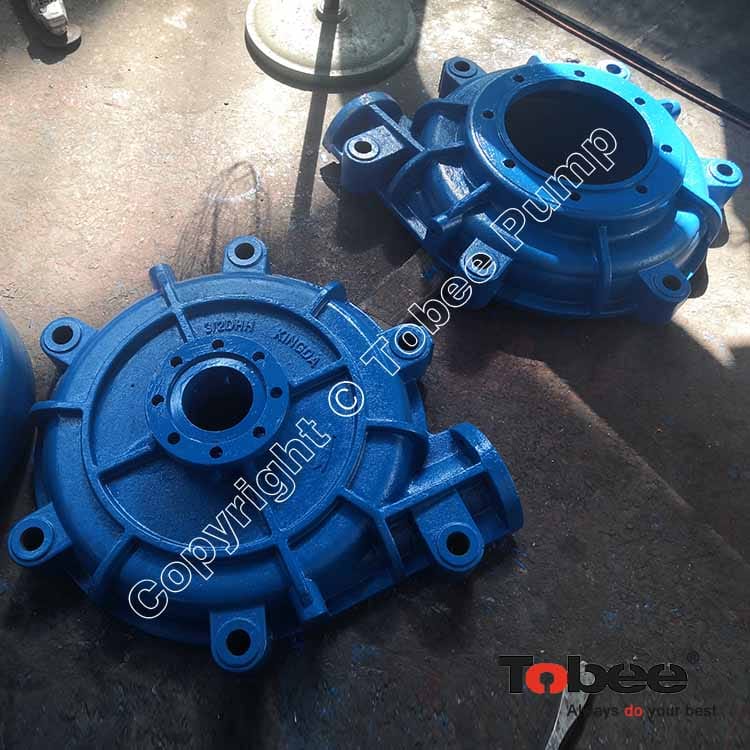

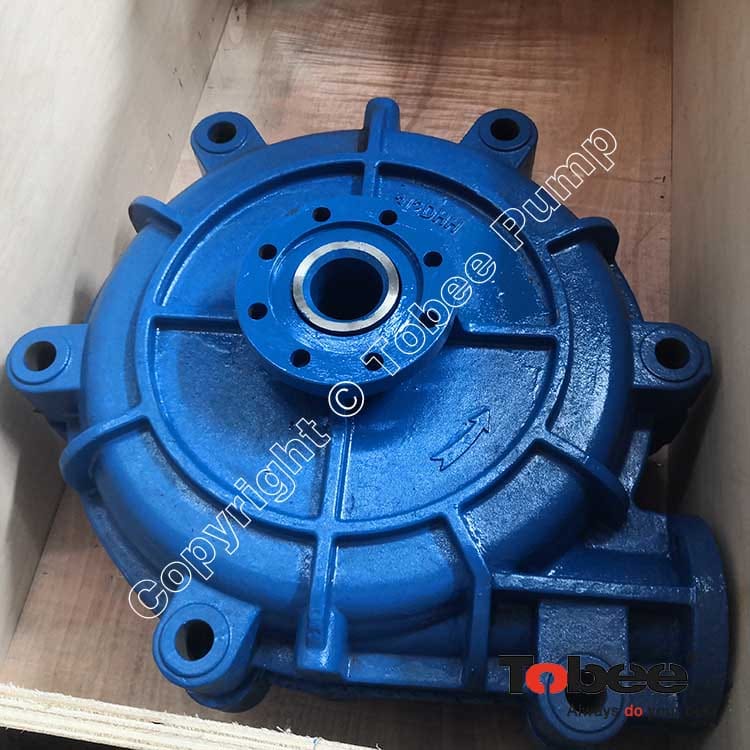

DH2013D21 Cover Plate is the wearing spares for 3x2D-HH Slurry Pumps, together with DH2032D21 frame plate constitute Slurry Pump Casing.
The slurry pump casing encloses the wet parts of the slurry pump and supplies enough pressure to avoid the leak. It forms a pump chamber with the volute liner and throat bush to transfer the slurries. Usually, the pump case is not easy to be worn out except the environment is corrosive, so normally slurry pump cover plate and slurry pump frame plate are made in gray iron or ductile iron, the special material are also available. The pump casing with an outlet is called the cover plate. The other pump casing connected with the bearing assembly is called the frame plate.
Slurry Pump Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.
Interchangeable Slurry Pump Casing Code:
|
Cover Plate |
Frame Plate |
Tobee TH Slurry Pump |
AH Slurry Pump |
Materials |
|
B1313 |
B1032 |
TH1.5/1B |
1.5/1B-AH |
HT250, QT500 |
|
B15013 |
B15032 |
TH2/1.5B |
2/1.5B-AH |
HT250, QT500 |
|
C2013 |
C2032 |
TH3/2C |
3/2C-AH |
HT250, QT500 |
|
D3013 |
CAM3032 |
TH4/3C |
4/3C-AH |
HT250, QT500 |
|
D3013 |
D3032 |
TH4/3D |
4/3D-AH |
HT250, QT500 |
|
DAM4013 |
DAM4032 |
TH6/4D |
QT500-7 |
|
|
E4013 |
E4032 |
TH6/4E |
6/4E-AH |
QT500-7 |
|
F6013 |
EAM6032 |
TH8/6E, TH8/6R, TH8/6F |
8/6E-AH, 8/6R-AH, 8/6F-AH |
QT500-7 |
|
G8013 |
G8032 |
TH10/8F, TH10/8ST |
10/8F-AH, 10/8ST-AH |
QT500-7 |
|
G10013 |
G10032 |
TH12/10ST, TH12/10F |
12/10ST-AH, 12/10F-AH |
QT500-7 |
|
G12013 |
G10032 |
TH14/12ST, TH14/12F |
14/12ST-AH, 14/12F-AH |
QT500-7 |
|
H14013 |
H14032 |
TH16/14TU |
16/14TU-AH |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee THH Slurry Pump |
HH Slurry Pump |
Materials |
|
CH1013 |
CH1032 |
THH1.5/1C |
1.5/1C-HH |
QT500-7 |
|
DH2013 |
DH2032 |
THH3/2D |
3/2D-HH |
QT500-7 |
|
EH3013 |
EH3032 |
THH4/3E |
4/3E-HH |
QT500-7 |
|
FH4013 |
FH4032 |
THH6/4F |
6/4F-HH |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TM Slurry Pump |
M Slurry Pump |
Materials |
|
F8013 |
EM8032 |
TM10/8E, TM10/8R |
10/8E-M |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TL Slurry Pump |
L Slurry Pump |
Materials |
|
AL2013 |
AL2032 |
TL20A |
20A-L |
HT250, QT500 |
|
BL5013 |
BL5032 |
TL50B |
50B-L |
HT250, QT500 |
|
CL75013 |
CL75032 |
TL75C |
75C-L |
HT250, QT500 |
|
DL10013 |
DL10032 |
TL100D |
100D-L |
QT500-7 |
|
EL15013 |
EL15032 |
T150E |
150E-L |
QT500-7 |
|
SL30013 |
SL30032 |
300S-L |
300S-L |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TG(H) Gravel Pump |
G(H) Gravel Pump |
Materials |
|
/ |
DG4131 |
TG6/4D |
6/4D-G |
High Chrome |
|
EG86013 |
EG6131 |
TG8/6E |
8/6E-G |
High Chrome |
|
F0108013 |
FG8131 |
TG10/8F |
10/8F-G |
High Chrome |
|
GG10013 |
FG10131 |
TG12/10G |
12/10G-G |
High Chrome |
|
GG1412292 |
GG12131 |
TG14/12G |
14/12G-G |
High Chrome |
|
/ |
FGH8131 |
TGH10/8S |
10/8S-GH |
High Chrome |
|
GGH10292 |
GGH10131 |
TGH10/12G |
12/10TU-GH |
High Chrome |
|
HG14292 |
HG14131 |
TGH16/14TU |
16/14TU-GH |
High Chrome |
|
Cover Plate |
Pump Casing |
Tobee TP(R) Vertical Slurry Pump |
SP(R) Vertical Slurry Pump |
Materials |
|
/ |
TP40PV |
40PV-SP |
High Chrome, Rubber |
|
|
/ |
SP65092 |
TP65QV |
65QV-SP |
High Chrome, Rubber |
|
/ |
SP0092 |
TP100RV |
100RV-SP |
High Chrome, Rubber |
|
/ |
SP15092 |
TP150SV |
150SV-SP |
High Chrome, Rubber |
|
/ |
SP20092 |
TP200SV |
200SV-SP |
High Chrome, Rubber |
|
Cover Plate |
Frame Plate |
Tobee TF Froth Pump |
AH Froth Pump |
Materials |
|
C2013 |
C2032 |
TF2QV |
2QV-AF |
HT250, QT500 |
|
E4013 |
E4032 |
TF4RV |
4RV-AF |
HT250, QT500 |
