Name: 3/2D-HH High head slurry pump and spares
Price: 6900.00 USD

3/2D-HH High head slurry pump and spares

Product Brands: Tobee

HH High Pressure Slurry Pumps, Heavy duty high head slurry pump. It has the feature of high lift, small volume of flow

price:

$6900.00

Materials:

A05 A07 A49 A33 A12 A21 A51 A61

Pump Models:

3/2D-HH

Certificates:

ISO CE SGS

Quantity:

- + (60 available)

Add to Favorite Items (126)

Sales: 98+

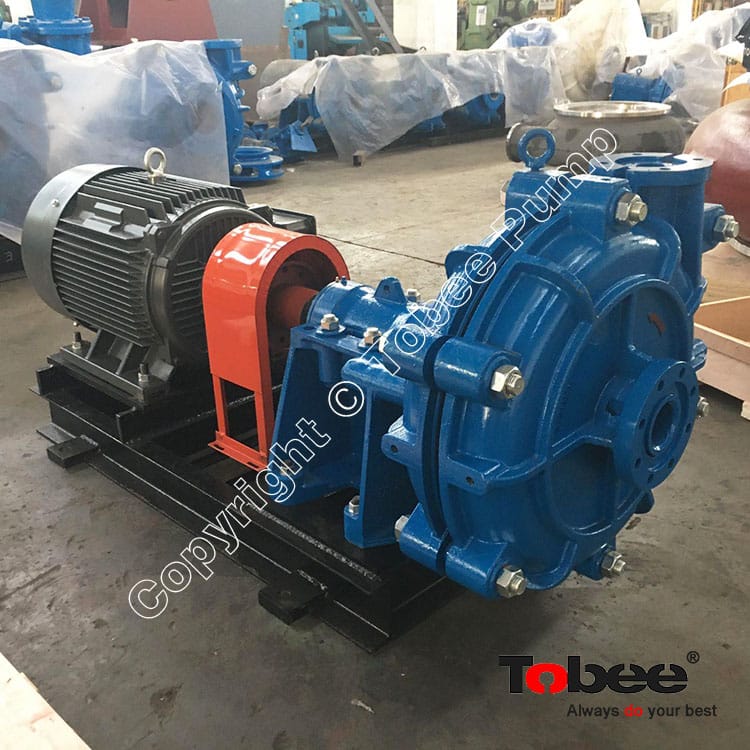

3x2D - HH Slurry Pumps are fit for a variety of applications ranging from filter press feeds to pipeline transport staging pumps. Commonly used for long distance transport lines, the HH series slurry pumps were designed to produce high heads per stage at high pressures and can often satisfy application duties with a single pump where others require multiple pumps in series.

3x2D - HH Slurry Pump Features

Wetted Parts of 3/2 D-HH Slurry Pump:

Impellers – wide variety of metallurgic options – pump out vanes on rear and front (on closed impellers) reduce recirculation within pump, and aid in preventing seal contamination – optional castings of straight or semi-Francis vanes (from 3 to 8 vanes on certain sizes) offer wider hydraulic options in single sizes

Liners – heavy-duty high chrome liner – active engineered attachment mechanism to casing via threaded bolts as opposed to unreliable glue

3/2D-HH Slurry Pump Seals:

Expeller (Centrifugal Seal) – no external sealing water required where applicable

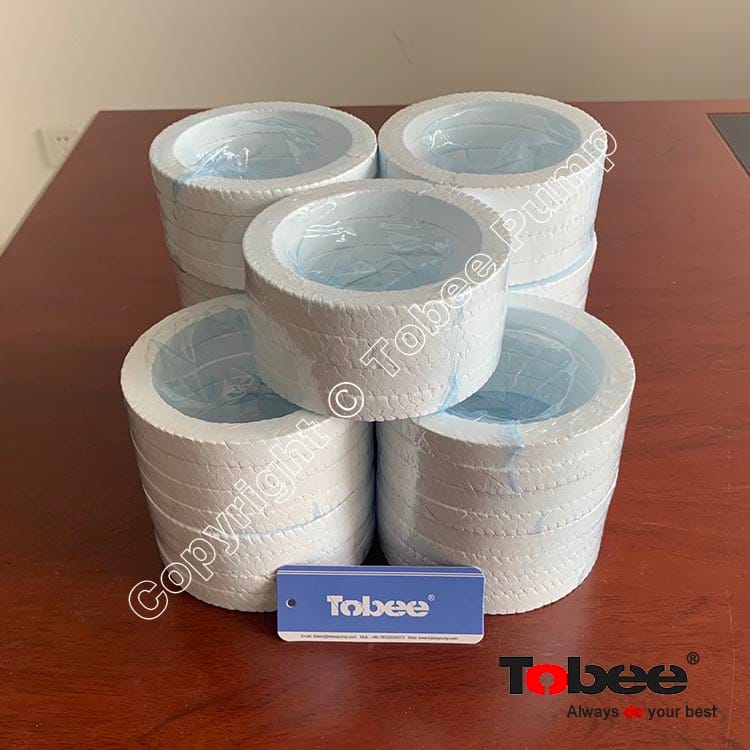

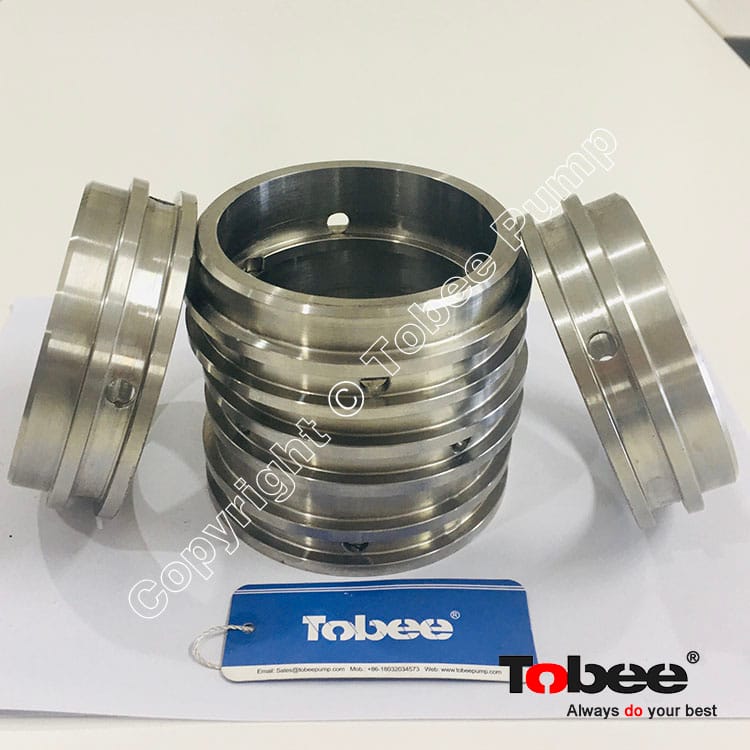

Stuffing Box – flushed gland sealing with braided packing and a lantern ring

Mechanical Seals

Bearing Assembly for 3x2 D HH Slurry Pump:

Cartridge-style bearing housing allows for removal from pump and assembly in controlled environment

Oversized shaft diameters and reduced overhang in the wet-end contribute to long life and reliability in the field

3/2D-HH Slurry Pump Performance:

Pump Model	Max. Power (kw)	Performance
		Capacity Q		Head H (m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	Blade No.	Impeller Dia.(mm)
		m³/h	l/s
3/2D HH	60	68.4-136.8	19-38	25-87	850-1400	47	3-7.5	5	457

3x2D - HH Slurry Pump Applications:

Pipeline transport	High velocity hydraulic transport	Mineral processing
Coal prep	Cyclone feeds	Aggregate processing
Fine primary mill grinding	Chemical slurry service	Tailings, secondary grinding
Industrial processing	Pulp and paper	Food processing
