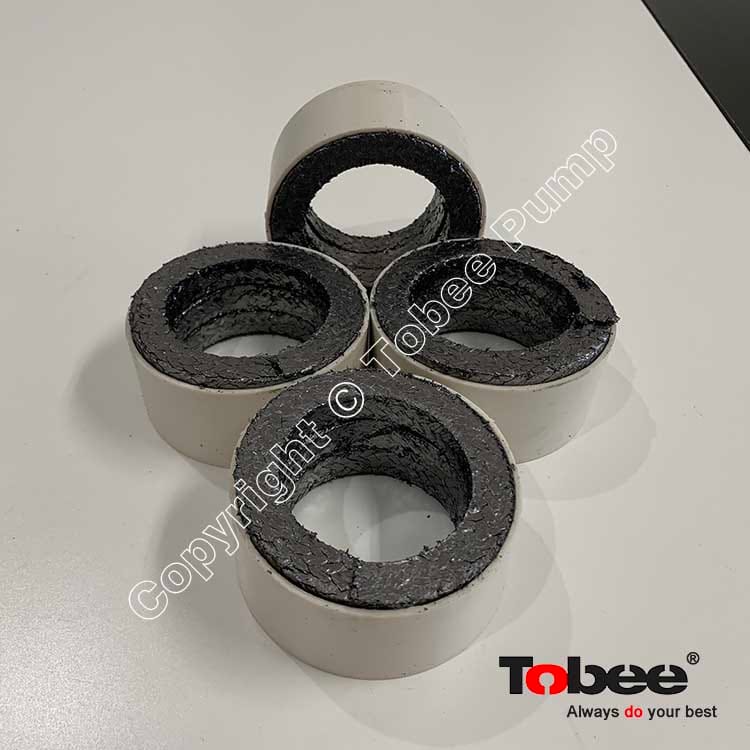

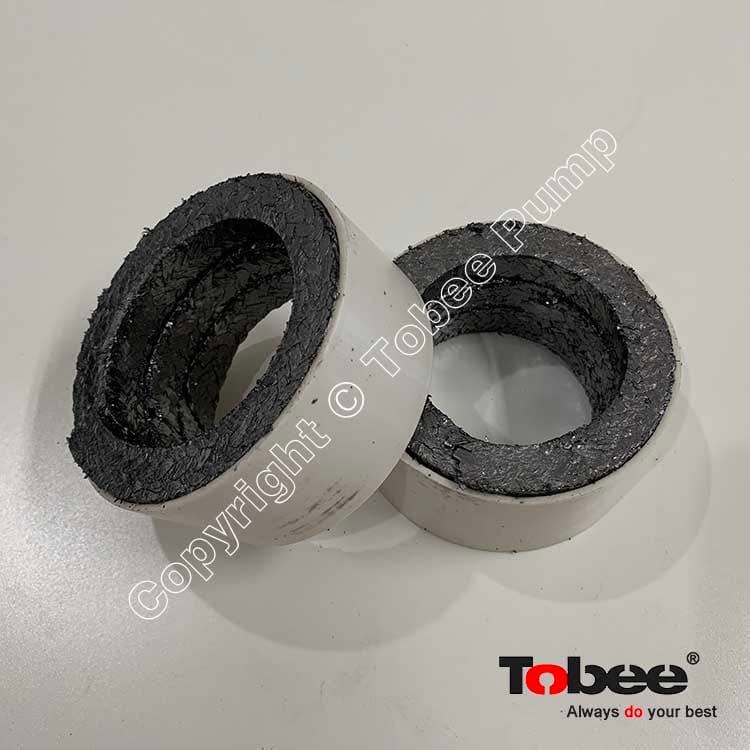

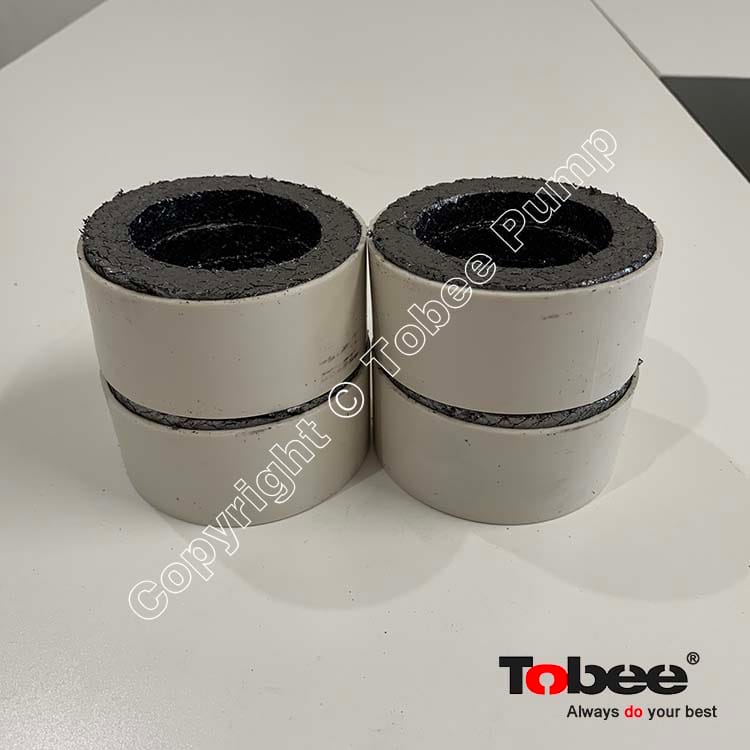

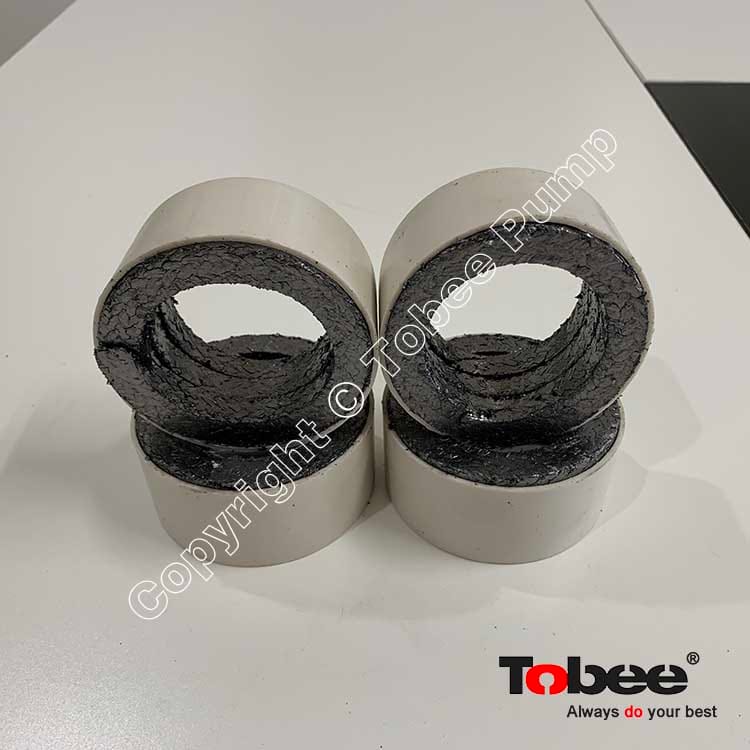

P/N: 25014-04M-B (661007005) Packing, Shaft can be used for Mission Magnum Centrifugal Pumps, 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14.

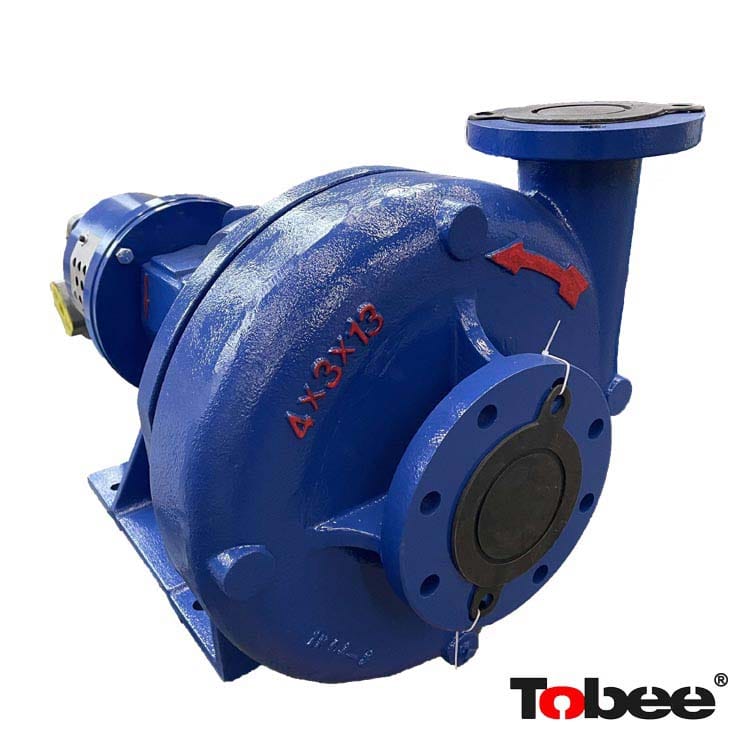

The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.
The revolutionary design of the MAGNUM I provides supreme-duty performance in all types of fluid pumping operations. Although it offers greater capacity and higher heads, the MAGNUM I remains the competitive pump of choice for aggressive applications.
The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.
The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome™, hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Also available, Horizontal and Vertical Close Coupled Magnum.
Mission Magnum Centrifugal Pump Parts List:
Item | Qty | Part No. | Processing# | Description | Material |
1* | 1 | See below | See below | Casing | Hard iron |
1A | 1 | 10399-46-1 | 648403012 | Gasket,casing | Vellumoid |
1B | 12 | 3932-61 | 648402014 | Nut,casing | Stl |
1C | 12 | 3862-76 | 648401115 | Stud,casing | Stl |
1D | 1 | 8505-04-01 | 86485503 | Plug,Casing Drain | Stl |
1E | 1 | 8505-04-01 | 646400507 | Plug,flush line | Stl |
2* | 1 | See below | See below | Impeller | Hard iron |
2A | 1 | 64845082 | Seal,impeller | Viton | |
2B | 1 |
| Washer,impeller | Stl | |
2C | 1 |
| Bolt,impeller lock | Stl | |
3* | 1 | 22223-01-30 | 641116157 | Stuffing box,mech.seal | Hard iron |
3* | 1 | 20614-01-30 | 643365042 | Stuffing box,packed | Hard iron |
3A | 2 | 3861-117 | 648401016 | Bolt,stuffing box | Stl |
3B | 1 | 19368-01 | 601499403 | Grease fitting | Stl |
4 | 1 | 641103338 | Gland assy,packing | Bronze | |
5A# | 1 | 648414308 | Seal,mechanical | Tungsten Carbide | |
5A~ | 3 | 661007005 | Packing, Shaft | Graphite/Acrylic | |
6 | 2 | B3701A | 601102494 | Bolt assy,gland | Stl |
7 | 1 | 646490557 | Shaft | AISI 4140 | |
7A# | 1 | 20943-21 | 641102182 | Sleeve,shaft,M.S. | 416SS |
7A& | 1 | 20613-21G-7A | 641102181 | Sleeve,shaft,Pack | Stl |
7B | 1 | 4372-5-21 | 601212392 | Key,shaft | Stl |
7C | 1 | 648415156 | Seal,shaft sleeve | Viton | |
8 | 1 | 641116108 | Deflector assembly | Bronze | |
9 | 1 | 20618-12-1 | 644302499 | Frame,grease lubricated | Cast iron |
9A | 1 | 8505-05 | 601474737 | Plug,oil drain | Iron |
9B | 3 | 18471 | 648403608 | Plug,oil fil | Iron |
9C | 1 | 8505-05 | 601474737 | Plug, Frame Drain | Iron |
9D | 1 | 8267-01 | 601473689 | Breather | Stl |
9E | 1 | 8478-3 | 601174584 | Oiler Assembly |
|
9F | 1 | A 662014131 | 662014131 | Dip Stick | Stl |
9G | 1 | 2538-1H |
| Bolt, Casing Jack | Stl |
10A | 1 | 20626 | 644303109 | Cover,inboard bearing | Iron |
10B | 1 | 20625 | 648408706 | Gasket,I.B.Brg.Cover | Vegetable fiber |
10C | 1 | 20619-01 | 648408300 | Oil seal, I.B.Brg.Cover | Buna-n |
10D | 2 | 3861-1 | 601407505 | Bolt, I.B.Brg.Cover | Stl |
10E | 2 | 3932-2 | 601408560 | Nut, I.B.Brg.Cover | Stl |
10F | 1 | 20620-01 | 648408409 | Exclusion Seal, I.B. Brg. Cvr. | Buna-n |
10G | 1 | 21641-01 | 661010033 | Grease Fitting | Stl |
10H | 1 |
| 648411908 | Grease Fitting | Stl |
11 | 1 | 20615-1 | - | Bearing,inboard | Vendor |
12 | 1 | 20624-01-01 | 644308504 | Housing,O.B.bearing | Iron |
12A | 1 | 7496-253 | 648402295 | Seal, O.B.Brg.housing | Buna-n |
12B | 4 | 3861-138 | 648401057 | Bolts, O.B.Brg.housing | Stl |
12C | 2 | 3932-62 | 658404702 | Nut, O.B.Brg.housing jam | Stl |
13 | 1 | 20617-01-01 | 641103296 | Cover,O.B.Bearing | Iron |
13A | 1 | 19368-01 | 661010020 | Grease zerk, O.B.Brg.Cover | Stl |
13B | 1 | 7496-26 | 72200017 | O-ring, O.B.Brg.Cover | Buna-n |
13C | 1 | 20619-02 | 648408359 | Oil seal, O.B.Brg.Cover | Buna-n |
13D | 2 | 3861-139 | 648401081 | Bolt, O.B.Brg.Cover | Stl |
14 | 2 | 20616-1 | 648408201s | Bearing, O.B. | Vendor |
14A | 1 | 6124-4 | 648402105 | Lockwasher,O.B.Bearing | Stl |
14B | 1 | 6123-4 | 648402055 | Locknut, O.B.Bearing | Stl |
CASINGS ( including studs, nuts and gaskets) | |||||
Item | Qty | Part No. | Processing# | Description | Material |
1* | 1 | 19203-01-30A | 641101753 | Casing,3×2×13 | Hard iron |
1* | 1 | 19205-01-30A | 641101902 | Casing,4×3×13 | Hard iron |
1* | 1 | 19222-01-30A | 641102058 | Casing,5×4×14 | Hard iron |
1* | 1 | 641101456 | Casing,6×5×11 | Hard iron | |
1* | 1 | 19123-01-30A | 641101605 | Casing, 6×5×14 | Hard iron |
1* | 1 | 19763-01-30A | 641102157 | Casing, 8×6×11 | Hard iron |
1* | 1 | 19763-01-30A | 641101308 | Casing,8×6×14 | Hard iron |
1* | 1 | 20937-01-30A | 641102322 | Casing,10×8×14 | Hard iron |
IMPELLERS | |||||
Item | Qty | Part No. | Processing# | Description | Material |
2* | 1 | 19204-XX-30 | 641215603 | Impeller,3×2×13 | Hard iron |
2* | 1 | 641217005 | Impeller,4×3×13 | Hard iron | |
2* | 1 | 19224--XX-30 | 641217831 | Impeller,5×4×14 | Hard iron |
2* | 1 | 19121-XX-30 | 641211602 | Impeller,6×5×11 | Hard iron |
2* | 1 | 19121-XX-30 | 641212105 | Impeller, 6×5×14 | Hard iron |
2* | 1 | 19121-XX-30 | 641211602 | Impeller, 8×6×11 | Hard iron |
2* | 1 | 19116-XX-30 | 641209903 | Impeller,8×6×14 | Hard iron |
