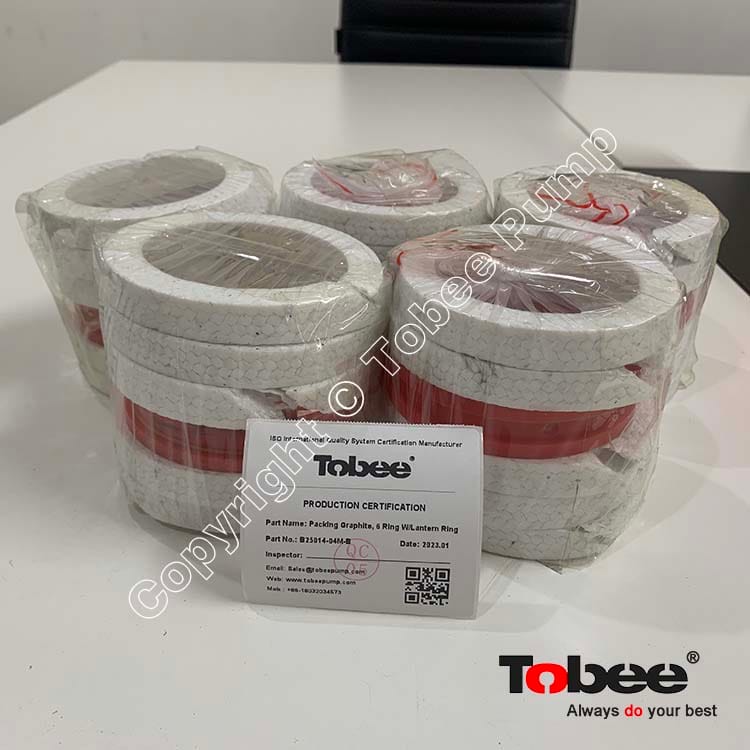

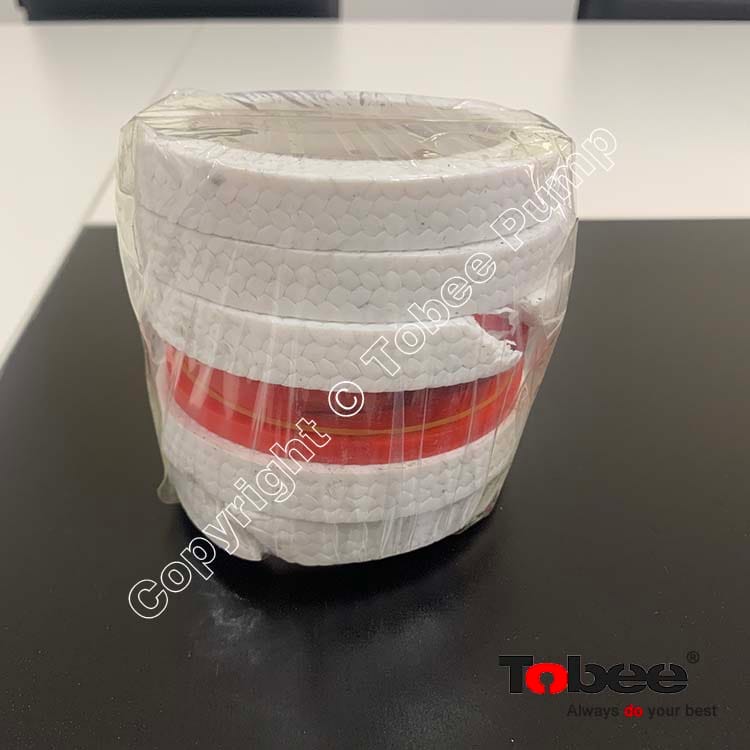

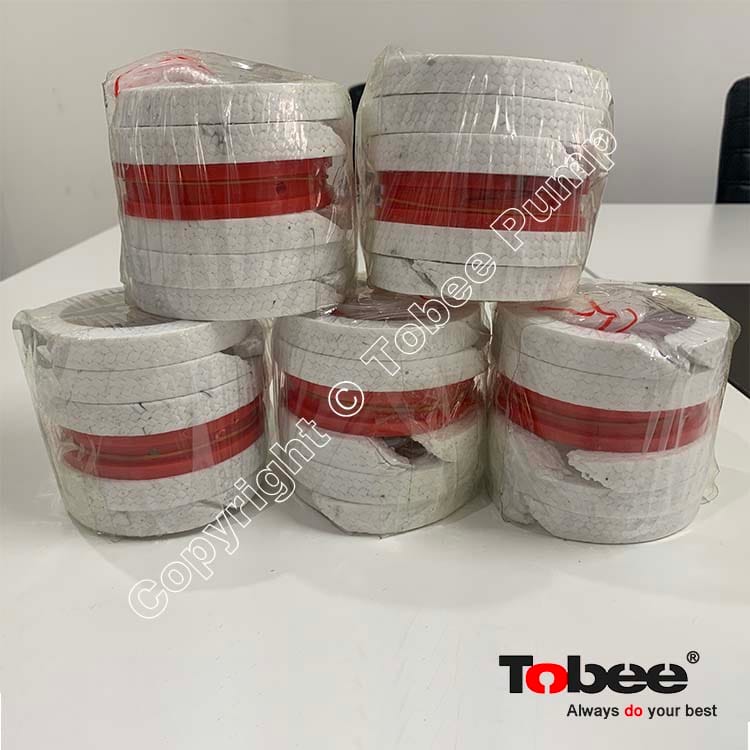

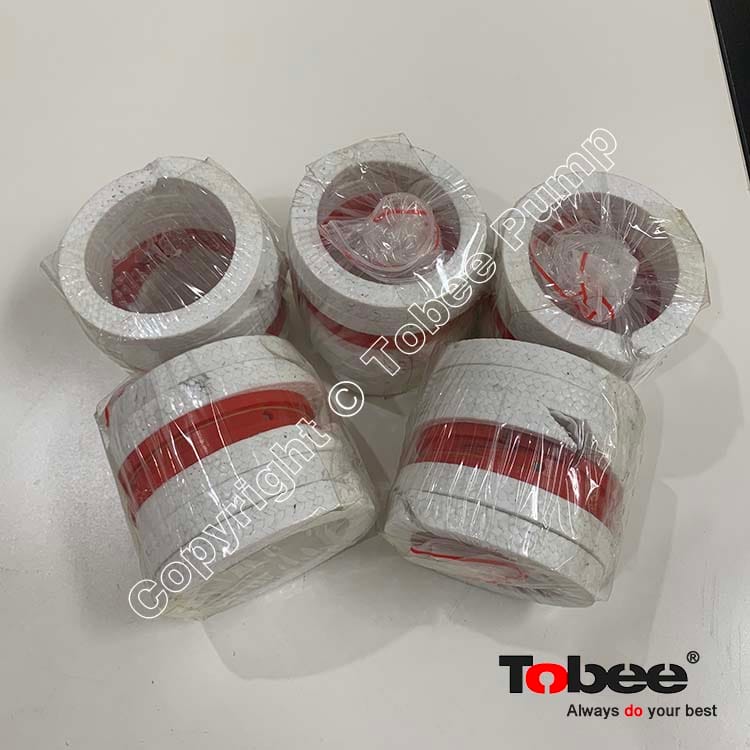

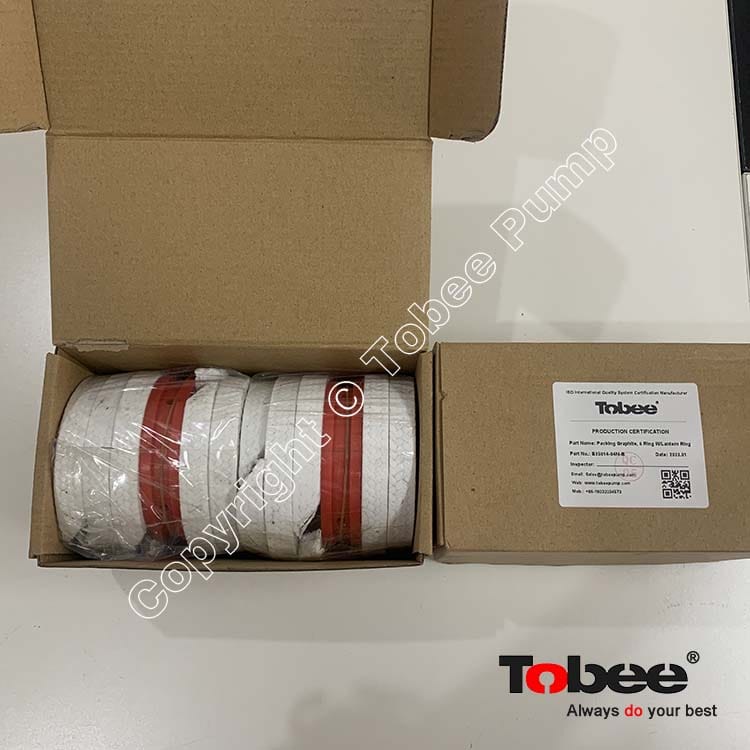

Sandman™ offers Mission Magnum I centrifugal pump spares packing 6 ring with lantern ring 25014-04M-B.
The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.
The revolutionary design of the MAGNUM I provides supreme-duty performance in all types of fluid pumping operations. Although it offers greater capacity and higher heads, the MAGNUM I remains the competitive pump of choice for aggressive applications.
The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.
The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome™, hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Also available, Horizontal and Vertical Close Coupled Magnum.
Mission Magnum Centrifugal Pump Parts List:
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
1* |
1 |
See below |
See below |
Casing |
Hard iron |
1A |
1 |
10399-46-1 |
648403012 |
Gasket,casing |
Vellumoid |
1B |
12 |
3932-61 |
648402014 |
Nut,casing |
Stl |
1C |
12 |
3862-76 |
648401115 |
Stud,casing |
Stl |
1D |
1 |
8505-04-01 |
86485503 |
Plug,Casing Drain |
Stl |
1E |
1 |
8505-04-01 |
646400507 |
Plug,flush line |
Stl |
2* |
1 |
See below |
See below |
Impeller |
Hard iron |
2A |
1 |
64845082 |
Seal,impeller |
Viton |
|
2B |
1 |
|
Washer,impeller |
Stl |
|
2C |
1 |
|
Bolt,impeller lock |
Stl |
|
3* |
1 |
22223-01-30 |
641116157 |
Stuffing box,mech.seal |
Hard iron |
3* |
1 |
20614-01-30 |
643365042 |
Stuffing box,packed |
Hard iron |
3A |
2 |
3861-117 |
648401016 |
Bolt,stuffing box |
Stl |
3B |
1 |
19368-01 |
601499403 |
Grease fitting |
Stl |
4 |
1 |
641103338 |
Gland assy,packing |
Bronze |
|
5A# |
1 |
648414308 |
Seal,mechanical |
Tungsten Carbide |
|
5A~ |
3 |
661007005 |
Packing, Shaft |
Graphite/Acrylic |
|
6 |
2 |
B3701A |
601102494 |
Bolt assy,gland |
Stl |
7 |
1 |
646490557 |
Shaft |
AISI 4140 |
|
7A# |
1 |
20943-21 |
641102182 |
Sleeve,shaft,M.S. |
416SS |
7A& |
1 |
641102181 |
Sleeve,shaft,Pack |
Ceramic |
|
7B |
1 |
4372-5-21 |
601212392 |
Key,shaft |
Stl |
7C |
1 |
648415156 |
Seal,shaft sleeve |
Viton |
|
8 |
1 |
641116108 |
Deflector assembly |
Bronze |
|
9 |
1 |
20618-12-1 |
644302499 |
Frame,grease lubricated |
Cast iron |
9A |
1 |
8505-05 |
601474737 |
Plug,oil drain |
Iron |
9B |
1 |
18471 |
648403608 |
Plug,oil fil |
Iron |
9C |
1 |
8505-05 |
601474737 |
Plug, Frame Drain |
Iron |
9D |
1 |
8267-01 |
601473689 |
Breather |
Stl |
9E |
1 |
8478-3 |
601174584 |
Oiler Assembly |
|
9F |
1 |
A 662014131 |
662014131 |
Dip Stick |
Stl |
9G |
1 |
2538-1H |
|
Bolt, Casing Jack |
Stl |
10A |
1 |
20626 |
644303109 |
Cover,inboard bearing |
Iron |
10B |
1 |
20625 |
648408706 |
Gasket,I.B.Brg.Cover |
Vegetable fiber |
10C |
1 |
20619-01 |
648408300 |
Oil seal, I.B.Brg.Cover |
Buna-n |
10D |
2 |
3861-1 |
601407505 |
Bolt, I.B.Brg.Cover |
Stl |
10E |
2 |
3932-2 |
601408560 |
Nut, I.B.Brg.Cover |
Stl |
10F |
1 |
20620-01 |
648408409 |
Exclusion Seal, I.B. Brg. Cvr. |
Buna-n |
10G |
1 |
21641-01 |
661010033 |
Grease Fitting |
Stl |
10H |
1 |
|
648411908 |
Grease Fitting |
Stl |
11 |
1 |
20615-1 |
- |
Bearing,inboard |
Vendor |
12 |
1 |
644308504 |
Housing,O.B.bearing |
Iron |
|
12A |
1 |
7496-253 |
648402295 |
Seal, O.B.Brg.housing |
Buna-n |
12B |
4 |
3861-138 |
648401057 |
Bolts, O.B.Brg.housing |
Stl |
12C |
2 |
3932-62 |
658404702 |
Nut, O.B.Brg.housing jam |
Stl |
13 |
1 |
20617-01-01 |
641103296 |
Cover,O.B.Bearing |
Iron |
13A |
1 |
19368-01 |
661010020 |
Grease zerk, O.B.Brg.Cover |
Stl |
13B |
1 |
7496-26 |
72200017 |
O-ring, O.B.Brg.Cover |
Buna-n |
13C |
1 |
20619-02 |
648408359 |
Oil seal, O.B.Brg.Cover |
Buna-n |
13D |
2 |
3861-139 |
648401081 |
Bolt, O.B.Brg.Cover |
Stl |
14 |
2 |
20616-1 |
648408201s |
Bearing, O.B. |
Vendor |
14A |
1 |
6124-4 |
648402105 |
Lockwasher,O.B.Bearing |
Stl |
14B |
1 |
6123-4 |
648402055 |
Locknut, O.B.Bearing |
Stl |
CASINGS ( including studs, nuts and gaskets) |
|||||
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
1* |
1 |
19203-01-30A |
641101753 |
Casing,3×2×13 |
Hard iron |
1* |
1 |
19205-01-30A |
641101902 |
Casing,4×3×13 |
Hard iron |
1* |
1 |
19222-01-30A |
641102058 |
Casing,5×4×14 |
Hard iron |
1* |
1 |
641101456 |
Casing,6×5×11 |
Hard iron |
|
1* |
1 |
19123-01-30A |
641101605 |
Casing, 6×5×14 |
Hard iron |
1* |
1 |
19763-01-30A |
641102157 |
Casing, 8×6×11 |
Hard iron |
1* |
1 |
19763-01-30A |
641101308 |
Casing,8×6×14 |
Hard iron |
1* |
1 |
20937-01-30A |
641102322 |
Casing,10×8×14 |
Hard iron |
IMPELLERS |
|||||
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
2* |
1 |
19204-XX-30 |
641215603 |
Impeller,3×2×13 |
Hard iron |
2* |
1 |
641217005 |
Impeller,4×3×13 |
Hard iron |
|
2* |
1 |
19224--XX-30 |
641217831 |
Impeller,5×4×14 |
Hard iron |
2* |
1 |
19121-XX-30 |
641211602 |
Impeller,6×5×11 |
Hard iron |
2* |
1 |
19121-XX-30 |
641212105 |
Impeller, 6×5×14 |
Hard iron |
2* |
1 |
19121-XX-30 |
641211602 |
Impeller, 8×6×11 |
Hard iron |
2* |
1 |
19116-XX-30 |
641209903 |
Impeller,8×6×14 |
Hard iron |
